Overview

Quick Details

• Applicable Industries:Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Construction works

• After Warranty Service:Video technical support, Online support

• Local Service Location:Canada, Turkey, United States

• Showroom Location:Turkey, United Kingdom, Pakistan

• Place of Origin:China

• Lift Mechanism:Scissor Lift

• Table Size:1870X730

• Warranty:1 Year

• After-sales Service Provided:Video technical support

• Machinery Test Report:Provided

• Video outgoing-inspection:Provided

• Marketing Type:New Product 2020

• Warranty of core components:1 Year

• Core Components:Engine

• Lift Rated Capacity:240kg

• Maximum working height:5000mm

• Maximum platform height:3000mm

• Overall Length:1180mm

• Overall Width:760mm

• Overall Height:1830mm

• Platform Size:1170-600mm

• Ground clearance:60mm

• Wheel base:990mm

• Minimum turn radius:1200mm

Supply Ability

Supply Ability  200 Unit/Units per Month

Packaging & Delivery

Packaging Details  Standard Export Packing Aerial Work Platform

Port  Shanghai Aerial Work Platform

Lead Time:

Quantity(Units)	1 - 2	>2
Est. Time(days)	15	To be negotiated

Product Description

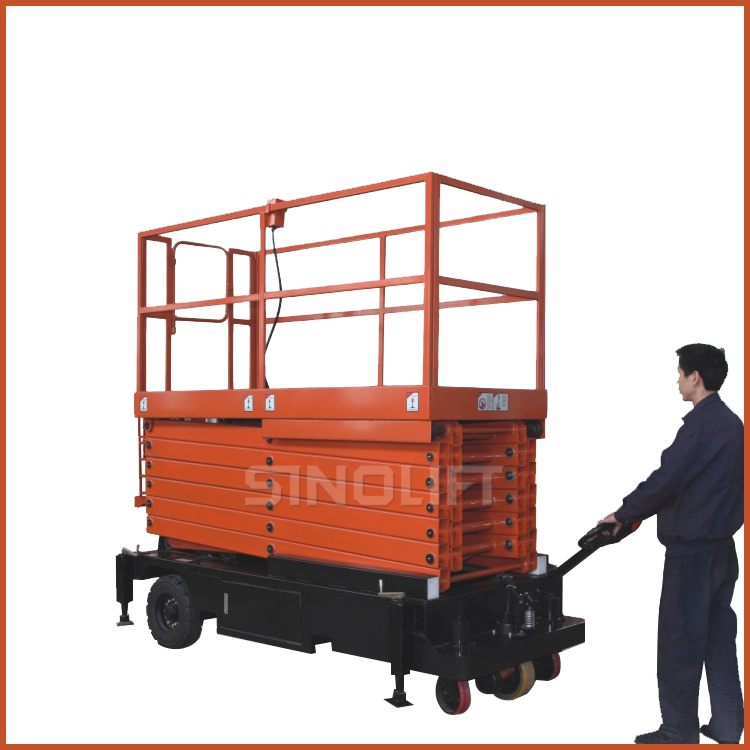

 Sinolift FSJY series Mini Scissor elevating lifting platform

FSJY Full electric work platform, both driving and lifting are powered by electricity, easy-operation design to assure all operation could be made by only one person. This model sells very well and wins a high reputation all over the world.  High quality imported components to keep its very perfect performance.

1. Electronic system imported directly from PG United Kingdom.

2. Battery imported from USA.

3. Driving wheels and balance wheels assembly to keep the safety.

4. Spraying plastics appearance .

5. 2-3 days working time of one time charging.

6.  With safety-falling equipment.

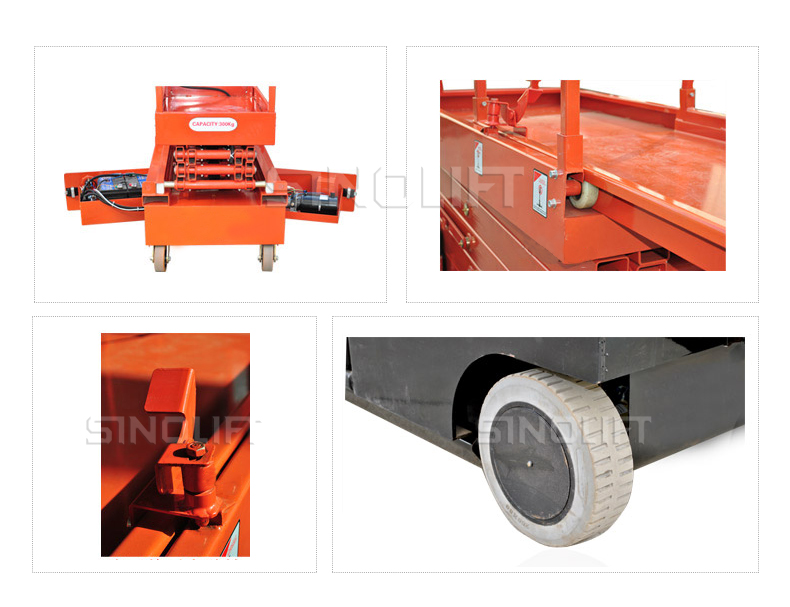

Detailed Images
