SINOLIFT CYT-B Series Easy Operation Table Lift
CYT-B
Quantity:
Overview
Quick Details
Supply Ability
Packaging & Delivery
Quick Details
- Applicable Industries:Building Material Shops, Manufacturing Plant, Food & Beverage Factory, Construction works
- Showroom Location:None
- Place of Origin:Shanghai, China
- Table Size:1600x810, 1220X610X55mm
- Weight:195 kg
- Warranty:1 Year
- Machinery Test Report:Provided
- Video outgoing-inspection:Provided
- Marketing Type:Ordinary Product
- Warranty of core components:1 Year
- Core Components:Pump
- Name:CYT-B Series Table Lift
- Color:Customers' Requirements
- Min. Lifting Height:500mm
- Application:Widely
- Keywords:Mobile Scissor Table Lift
- Capacity:500-1000kg
- Material:Stainless Steel
- Feature:Easy Operation
- Max. Height:915-1360mm
Supply Ability
- Supply Ability
- 200 Set/Sets per Month CYT-B Series Table Lift
Packaging & Delivery
- Packaging Details
- Sandard Export Package
- Port
- Shanghai
- Lead Time:
Quantity(Sets) 1 - 7 >7 Est. Time(days) 30 To be negotiated
SINOLIFT CYT-B Series Table Lift
1) Features of CYT-B Series Lift Table
- Simple, compact design.
- Fully complying product with super large table.
- Manual operation.
- All tables fitted with service props.
- Simple to add rollers etc.
- Fully serviceable components.
- Fast moving product line.
2) Specification Data of CYT-B Series Lift Table
| Model | CYT500-B | CYT1000-B | |
| Load Capacity | kg | 500 | 1000 |
| Max. Height | mm | 915 | 1360 |
| Min. Height | mm | 290 | 360 |
| Table Dimensions | mm | 1600x810 | 2035x750 |
| Net Weight | kg | 154 | 198 |
| Height of handle from the ground | mm | 975 | 1000 |
| Foot pedal cycles to max.height | ≤55 times | ≤200 times | |
| Caster wheel | mm | Φ125x40 | Φ180x50/Φ80x40 |

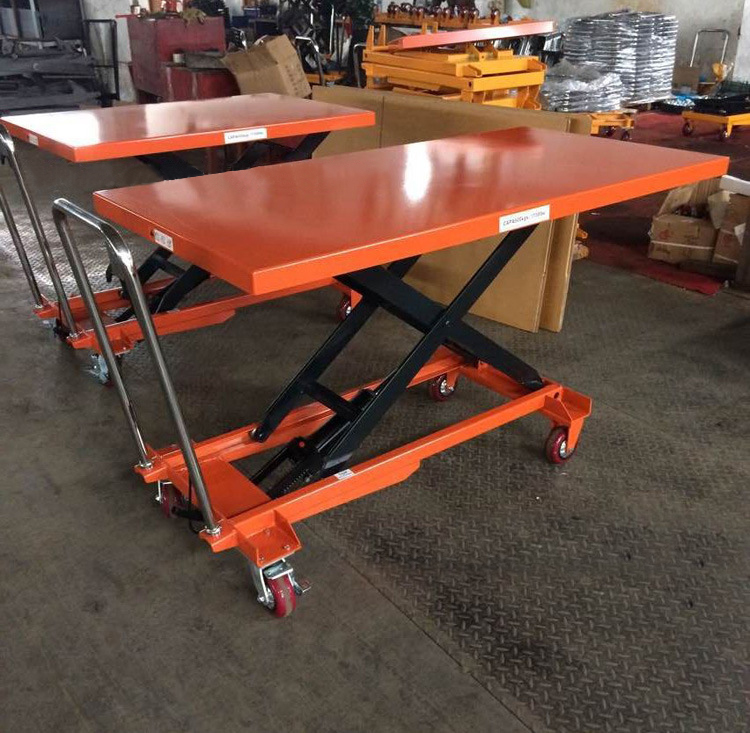

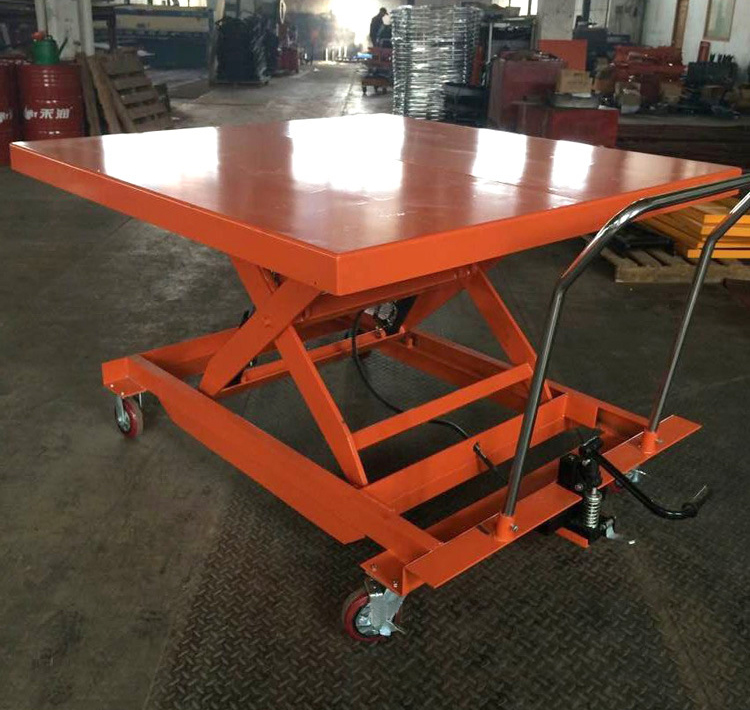

3) Photos of CYT-B Series Table Lift
