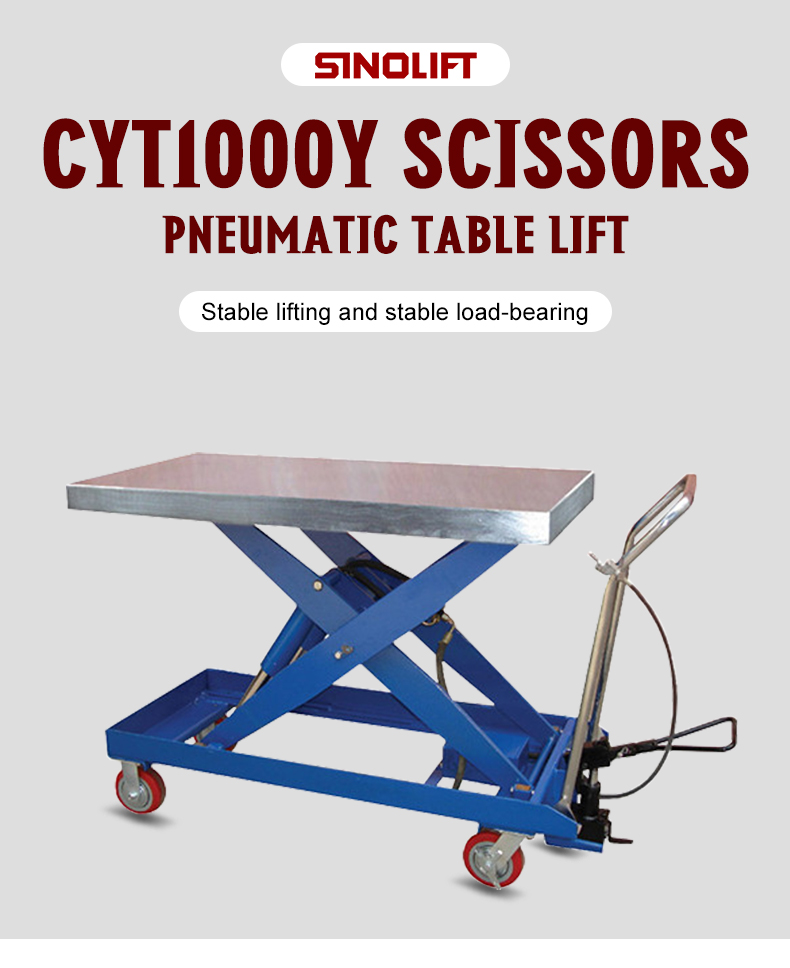

CYT1000Y Scissors Pneumatic Table Lift
CYT1000Y
Quantity:
1. Valuable material handling for use as a feeding table on assembly line.
2.Structural heavy duty steel construction.
3. Easy action foot operated hydraulic lift for raising table top to desired level.
4. Robust castors with safety wheel guard and brakes on the two swivel castors, for greater safety wheel loading and unloading.
5. Hand operated table descent control.
PRODUCT PRESENTATION：
CYT1000Y Scissors Pneumatic Table Lift
2.Structural heavy duty steel construction.
3. Easy action foot operated hydraulic lift for raising table top to desired level.
4. Robust castors with safety wheel guard and brakes on the two swivel castors, for greater safety wheel loading and unloading.
5. Hand operated table descent control.

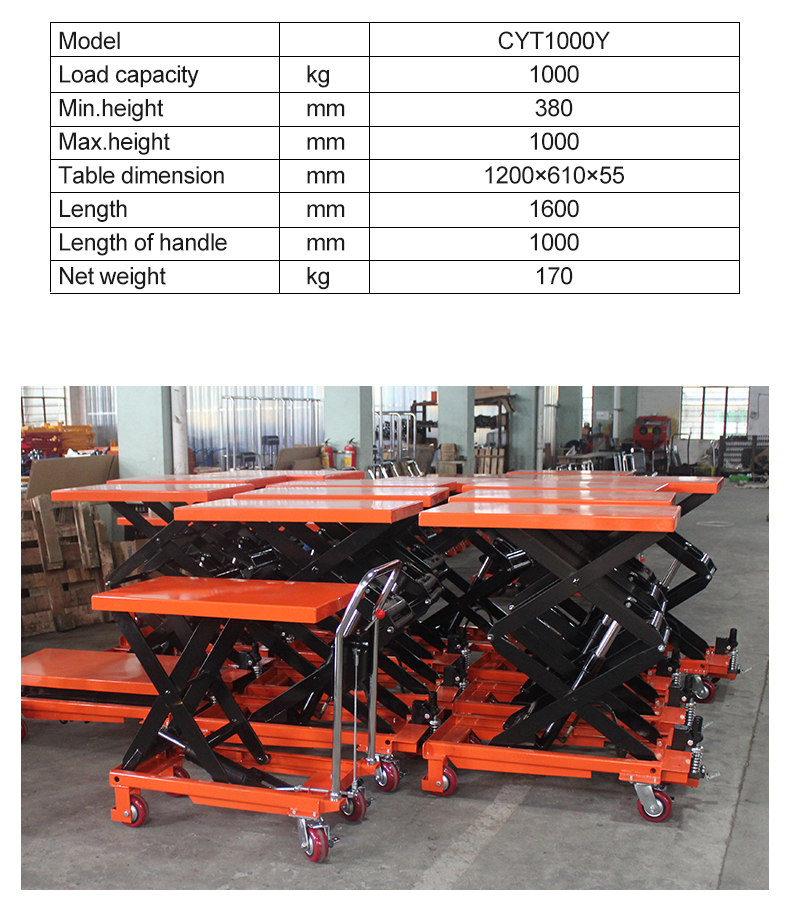

| Model | CYT1000Y | |
| Load capacity | kg | 1000 |
| Min.height | mm | 380 |
| Max.height | mm | 1000 |
| Table dimension | mm | 1200×610×55 |
| Length | mm | 1600 |
| Length of handle | mm | 1000 |
| Net weight | kg | 170 |
CYT1000Y Scissors Pneumatic Table Lift

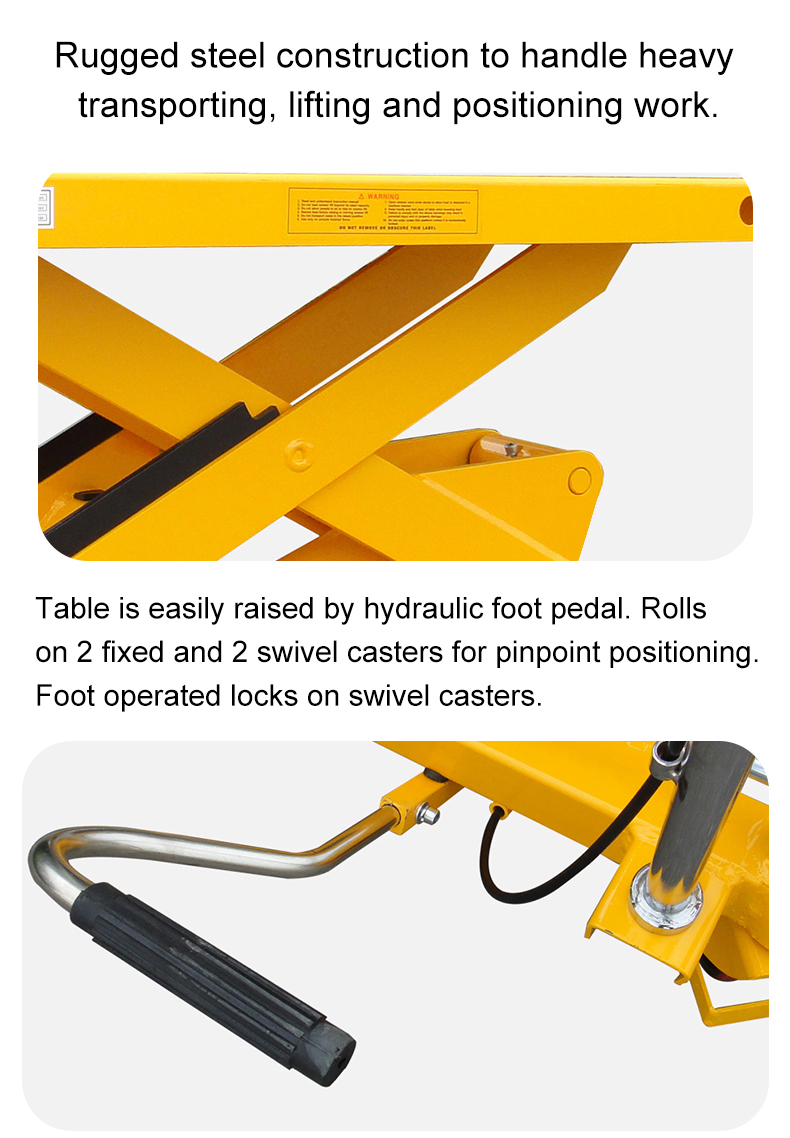

- Rugged steel construction to handle heavy transporting, lifting and positioning work.
- Table is easily raised by hydraulic foot pedal. Rolls on 2 fixed and 2 swivel casters for pinpoint positioning. Foot operated locks on swivel casters.

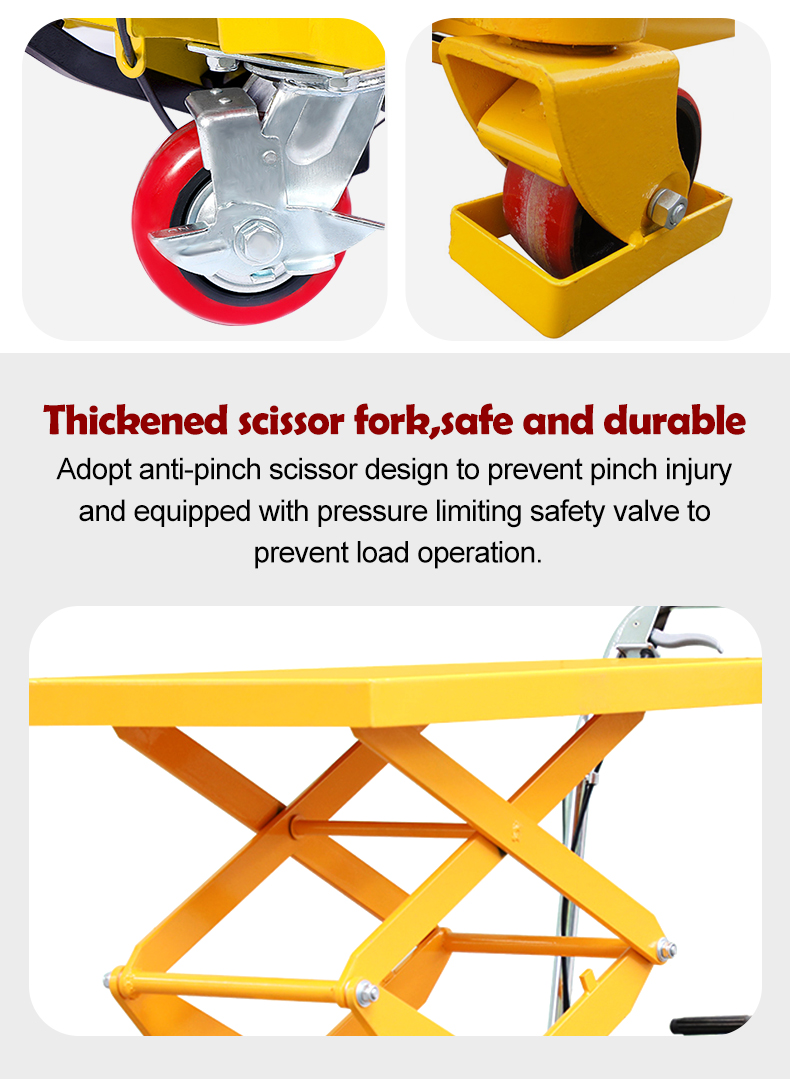

- Thickened scissor fork,safe and durable.Adopt anti-pinch scissor design to prevent pinch injury and equipped with pressure limiting safety valve to prevent load operation.

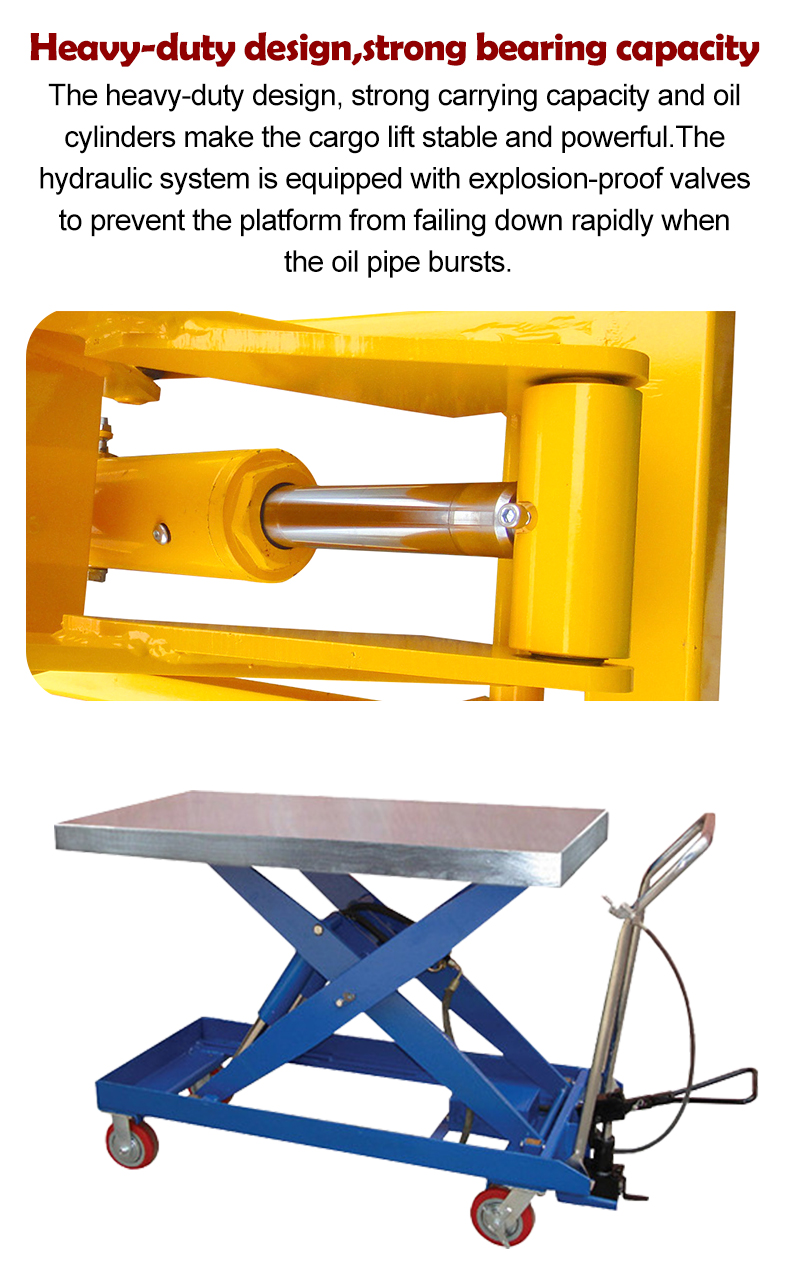

- Heavy-duty design,strong bearing capacity.The heavy-duty design, strong carrying capacity and oil cylinders make the cargo lift stable and powerful.The hydraulic system is equipped with explosion-proof valves to prevent the platform from failing down rapidly when the oil pipe bursts.
- Handle with rubber.The handle is wrapped in rubber to provide you with the best protection. It is not slippery to use, and it is very labor-saving.
- Two lowing systems.All lifting table trucks have two kinds of lowering systems wire or nut.There are two different lifting systems, you can choose either to use to meet your needs.
- Fully sealed cylinder.Fully sealed oil cylinder, equipped with overload protection device,separate design of oil pump and oil cylinder can provide lifting height,separate design makes the pump pressure light.
- Thickened and reinforced counter tops.The scissor fork is thickened, the lifting is more stable, The support is stronger and the bottom of the table is added strong all ribs make the table top load-bearing stronger,More secure and stable.
