HL Low Profile Electric Load and Unloading Lift Table
HL
Quantity:

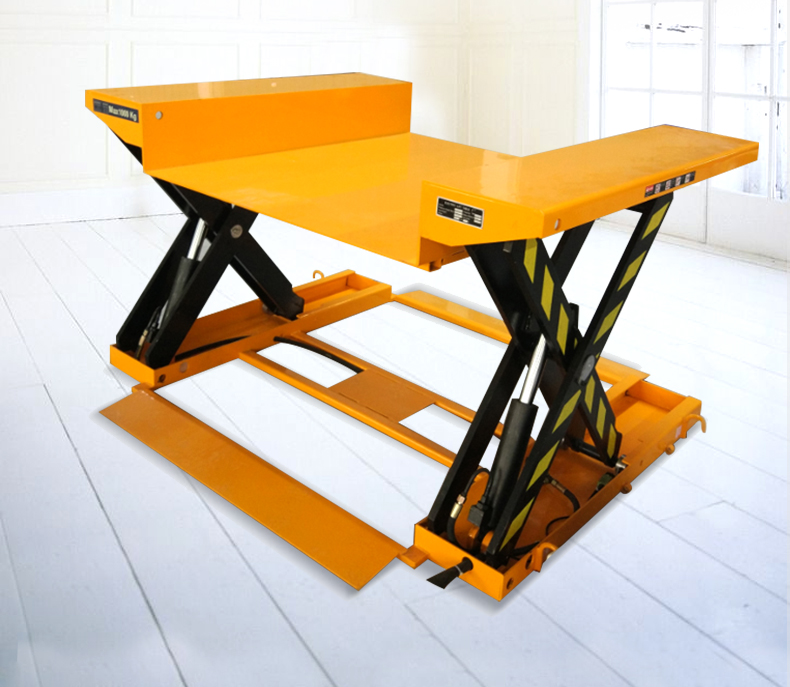

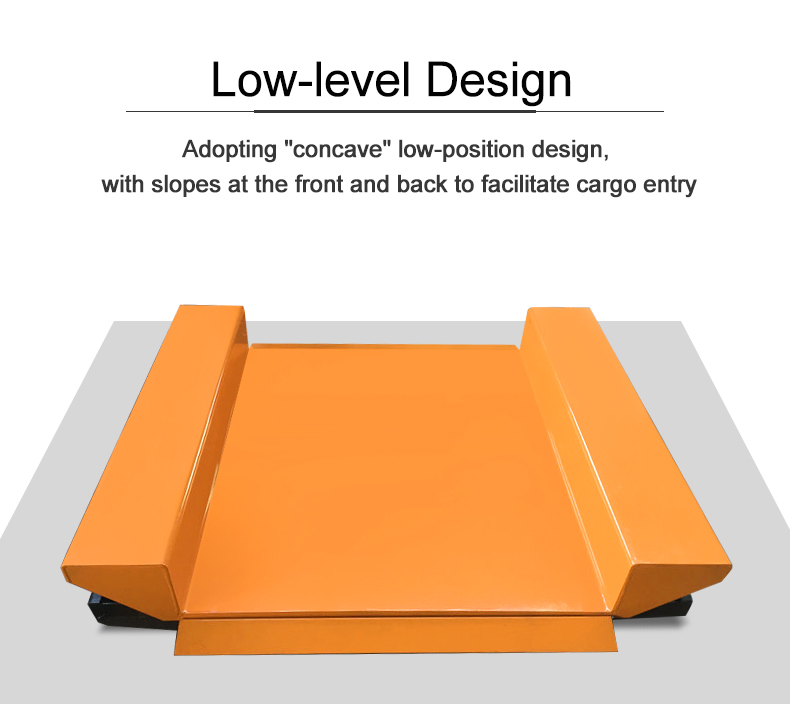

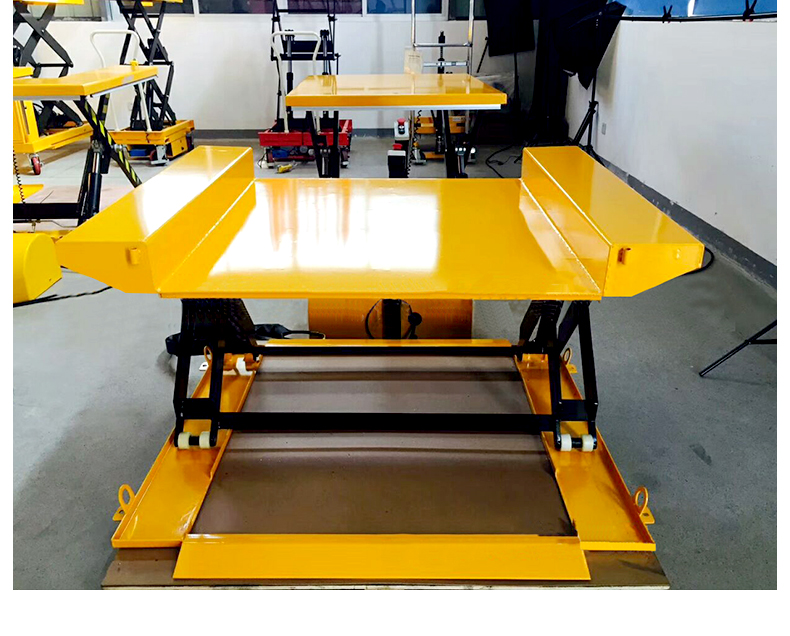

outhworth Floor Height / Floor Level lift tables are low-profile lift tables feature a unique pan-style platform that lowers to floor or near floor height so that they can be fed and offloaded by hand pallet trucks. The platform shape makes these units ideal for use as pallet lift tables. Low-Profile floor height lift tables are available in 1,100, 2,200 and 3,300 lb. capacities. An elastomeric front edge prevents toe injury.

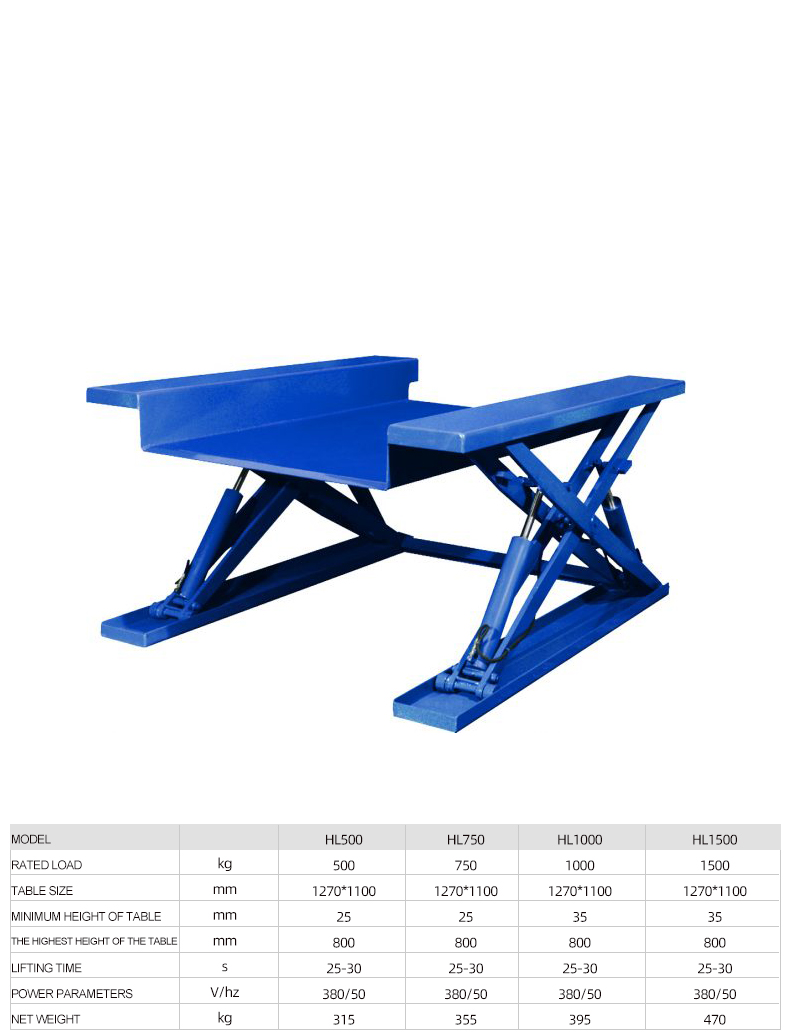

| Model | HL500 | HL750 | HL1000 | HL1500 |
| Capacity (kg) | 500 | 750 | 1000 | 1500 |
| Max. height H(mm) | 810 | 810 | 810 | 810 |
| Min. height h(mm) | 35 | 35 | 35 | 35 |
| Platform L×W(mm) | 1270x1100 | 1270x1100 | 1270x1100 | 1270x1100 |
| Lifting Time (second) | 25~35 | 25~35 | 25~35 | 25~35 |
| Power Pack (KW) | 380V/50Hz, AC0.75KW | 380V/50Hz, AC0.75KW | 380V/50Hz, AC0.75KW | 380V/50Hz, AC1.5KW |
| Net Weight (kg) | 207 | 250 | 280 | 380 |
