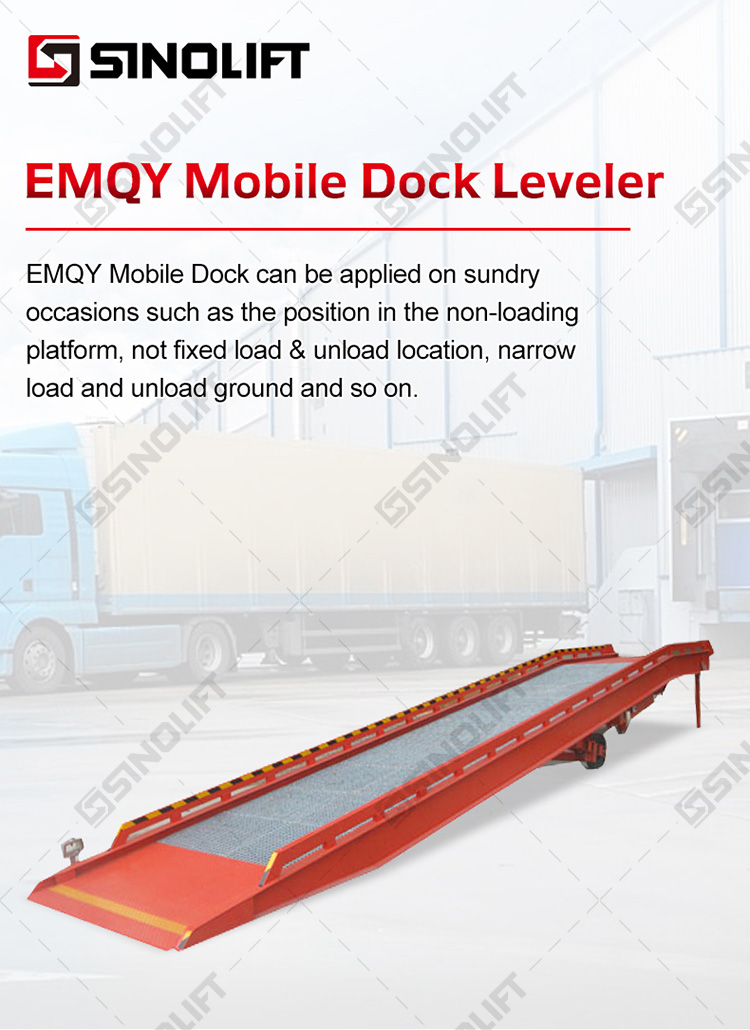

EMQY Mobile Dock Leveler
EMQY Mobile Dock Leveler
Quantity:

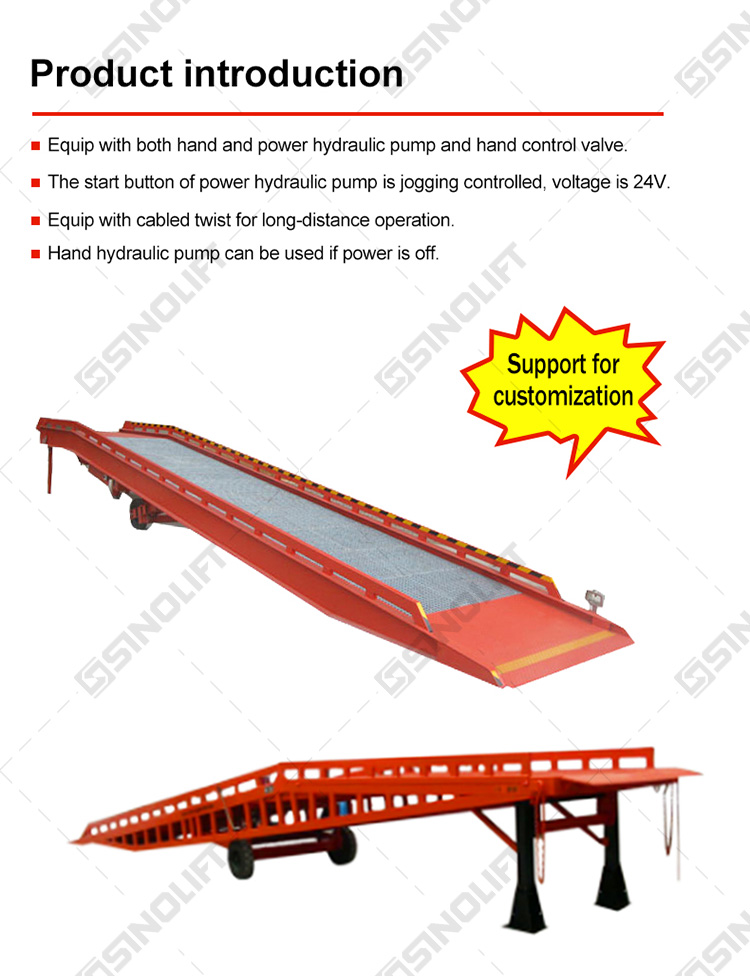

Equip with both hand and power hydraulic pump and hand control valve The start button of power hydraulic pump is jogging controlled, voltage is 24V. Equip with cabled twist for long-distance operation Hand hydraulic pump can be used if power is off.

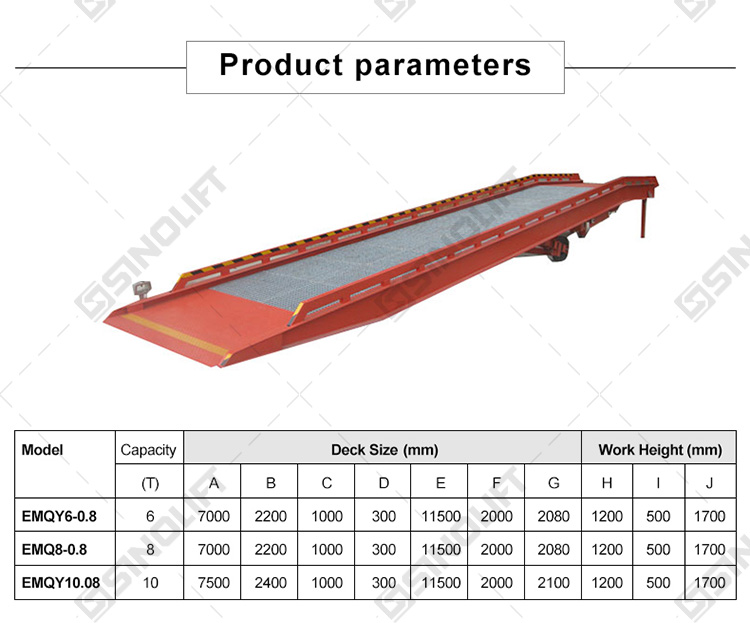

| Model | Capacity(t) | Deck Size | Height(mm) | ||||||||
| A | B | C | D | E | F | G | H | I | J | ||
| EMQY6-0.8 | 6 | 7000 | 2200 | 1000 | 300 | 11500 | 2000 | 2080 | 1200 | 500 | 1700 |
| EMQ8-0.8 | 8 | 7000 | 2200 | 1000 | 300 | 11500 | 2000 | 2080 | 1200 | 500 | 1700 |
| EMQY10.08 | 10 | 7500 | 2400 | 1000 | 300 | 11500 | 2000 | 2100 | 1200 | 500 | 1700 |
Remarks: It can be ordered according to your requirement.
