DKL-HE New Hydraulic Stationary Dock Leveler
DKL-HE New Hydraulic Stationary Dock Leveler
Quantity:

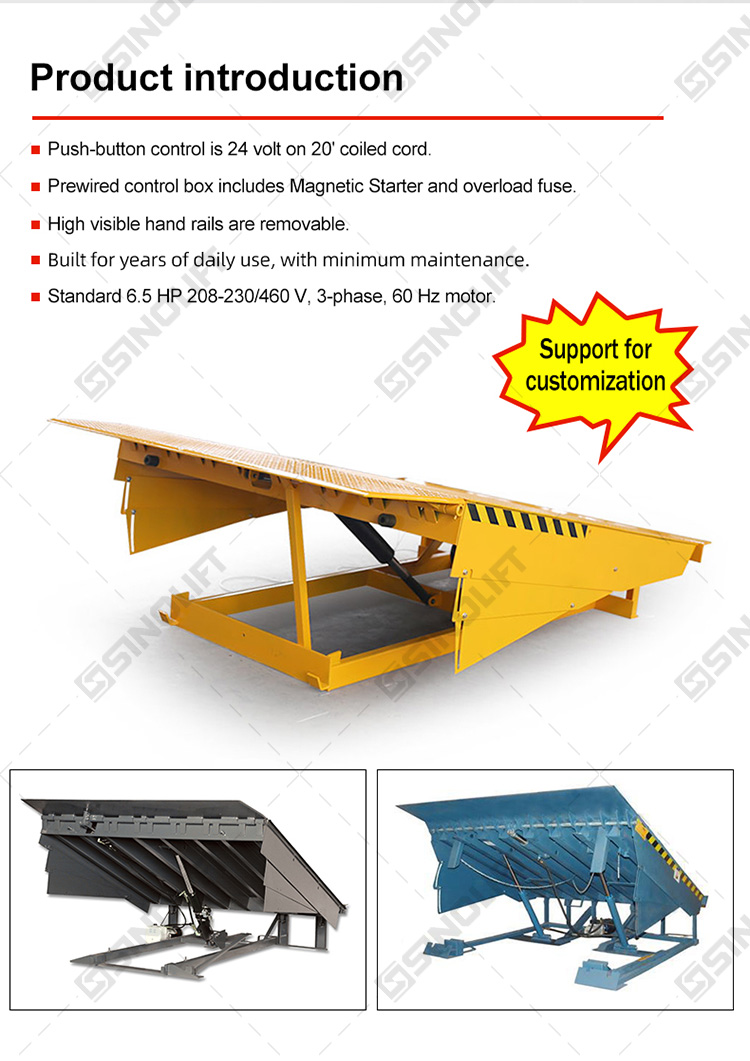

Saves time and reduces manhours where there are no docks. Checkered plate deck is made of heavy gauge steel for hard use. Hydraulic unit features emergency automatic stop if line breaks. Complete with upper travel limit switch, and overload relief. Push-button control is 24 volt on 20' coiled cord. Prewired control box includes Magnetic Starter and overload fuse. High visible hand rails are removable. Built for years of daily use, with minimum maintenance. Standard 6.5 HP 208-230/460 V, 3-phase, 60 Hz motor.
| Model | DKL-12HE-1820 | DKL-12HE-2020 | DKL-12HE-2025 | |
| DKL-14HE-1820 | DKL-14HE-2020 | DKL-14HE-2025 | ||
| DKL-16HE-1820 | DKL-16HE-2020 | DKL-16HE-2025 | ||
| Capacity | 12000kg | 12000kg | 12000kg | |
| 14000kg | 14000kg | 14000kg | ||
| 16000kg | 16000kg | 16000kg | ||
| Platform Size | B*A | 1800*2000mm | 2000*2000mm | 2000*2500mm |
| Lip Board Size | 450mm | 450mm | 450mm | |
| Travel | Up | 300mm | 300mm | 300mm |
| Down | 300mm | 300mm | 300mm | |
| Pit Dimension | L | 2150mm | 2150mm | 2650mm |
| W+1/2" | 1860mm | 2060mm | 2060mm | |
| H | 485mm,600mm | 485mm,600mm | 485mm,600mm | |
| Power Pack | HYDR-APP 0.75kw | |||
