HZ500 Mini Electric Stationary Lift Table stationary electric lift table stationary aerial work table lift scissor mini lift table electric motorcycle lift table electric lift table truck
HZ500

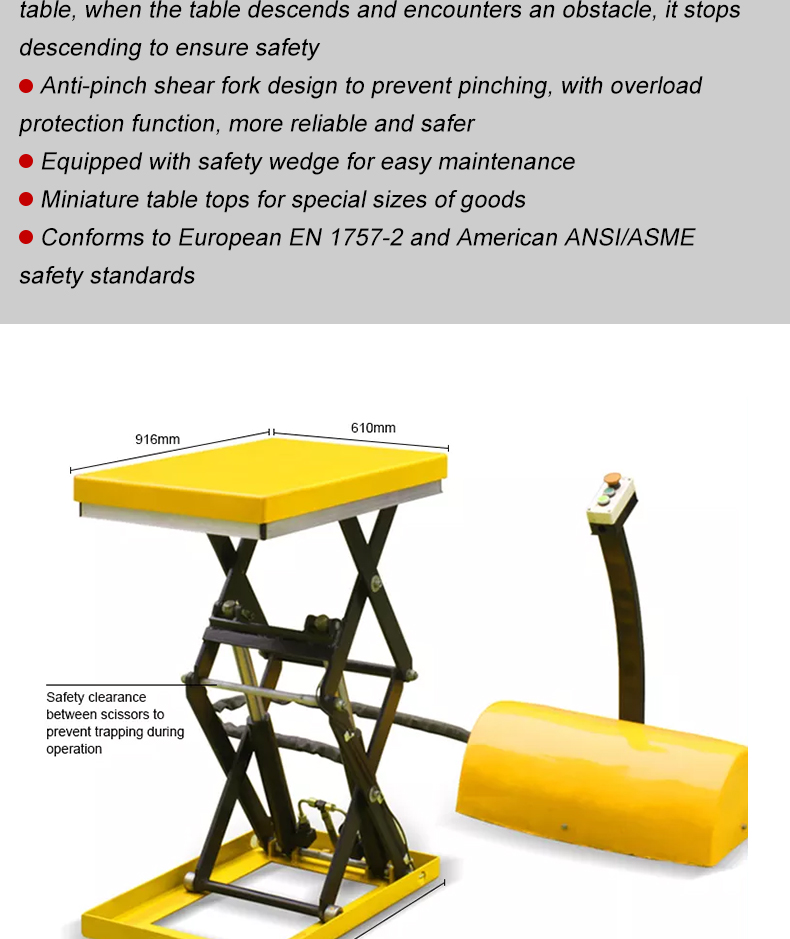

Imported high quality pump station for smooth and powerful lifting of goods
The table is equipped with a safety gearing device underneath the table, when the table descends and encounters an obstacle, it stops descending to ensure safety
Anti-pinch shear fork design to prevent pinching, with overload protection function, more reliable and safer
Equipped with safety wedge for easy maintenance
Miniature table tops for special sizes of goods
Conforms to European EN 1757-2 and American ANSI/ASME safety standards
The table is equipped with a safety gearing device underneath the table, when the table descends and encounters an obstacle, it stops descending to ensure safety
Anti-pinch shear fork design to prevent pinching, with overload protection function, more reliable and safer
Equipped with safety wedge for easy maintenance
Miniature table tops for special sizes of goods
Conforms to European EN 1757-2 and American ANSI/ASME safety standards
Quantity:
Imported high quality pump station for smooth and powerful lifting of goods
The table is equipped with a safety gearing device underneath the table, when the table descends and encounters an obstacle, it stops descending to ensure safety
Anti-pinch shear fork design to prevent pinching, with overload protection function, more reliable and safer
Equipped with safety wedge for easy maintenance
Miniature table tops for special sizes of goods
Conforms to European EN 1757-2 and American ANSI/ASME safety standards
The table is equipped with a safety gearing device underneath the table, when the table descends and encounters an obstacle, it stops descending to ensure safety
Anti-pinch shear fork design to prevent pinching, with overload protection function, more reliable and safer
Equipped with safety wedge for easy maintenance
Miniature table tops for special sizes of goods
Conforms to European EN 1757-2 and American ANSI/ASME safety standards
| Model | HZ500 | HZ1001 | |
| Capacity | kg | 500 | 1000 |
| Lowered Height | mm | 162 | 180 |
| Raised Height | mm | 950 | 770 |
| Platorm Size | mm | 916x610 | 610x916 |
| Base Frame Size | mm | 700x450 | 585x896 |
| Lift Speed | sec | 17-22 | 15-20 |
| Power Pack | 380V/50HZ,AC 0.75kw | 380V/50HZ,AC 1.1kw | |
| Net Weight | kg | 98 | 115 |
