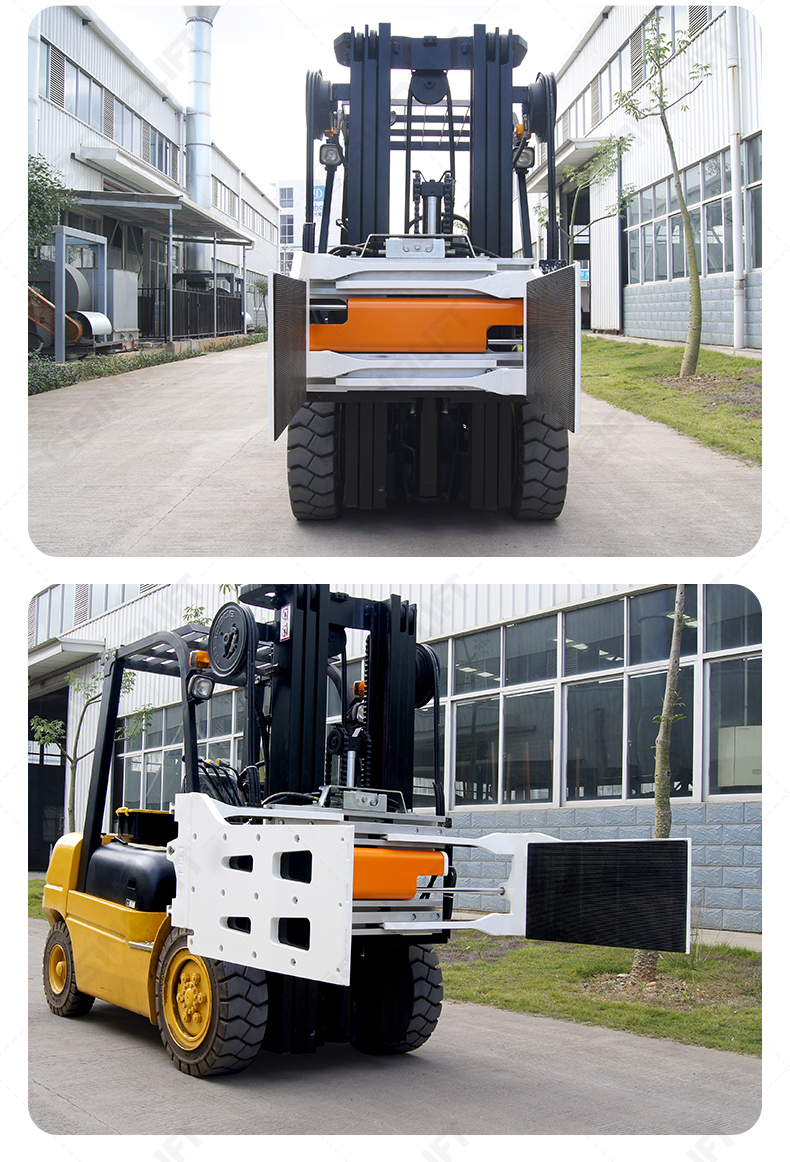

Multi-purpose Clamp forklift attachment
GBC

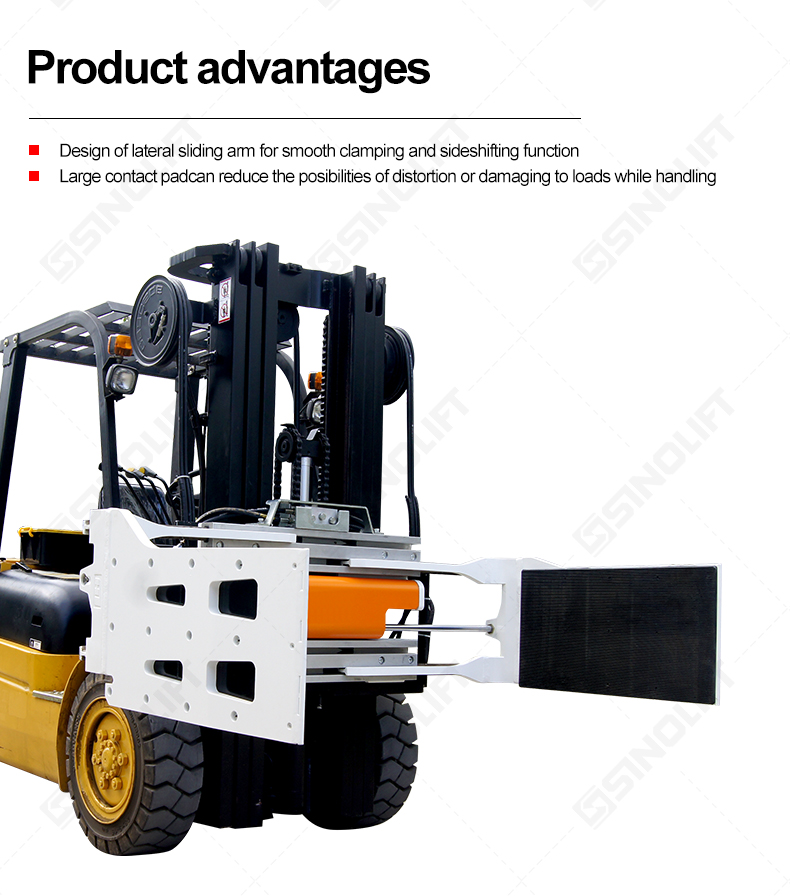

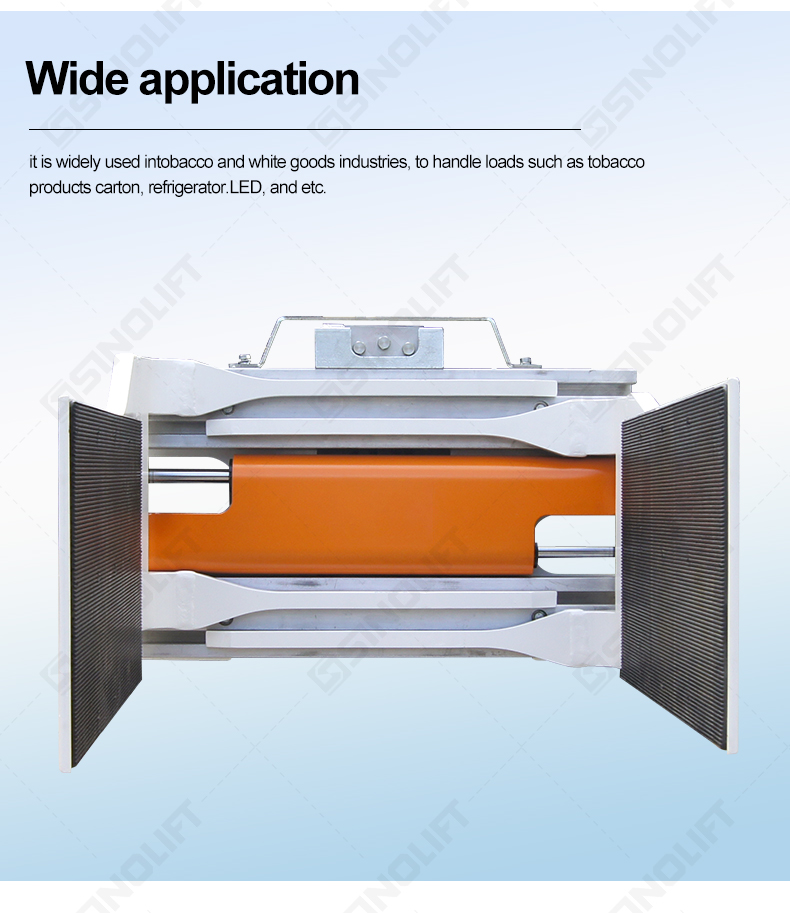

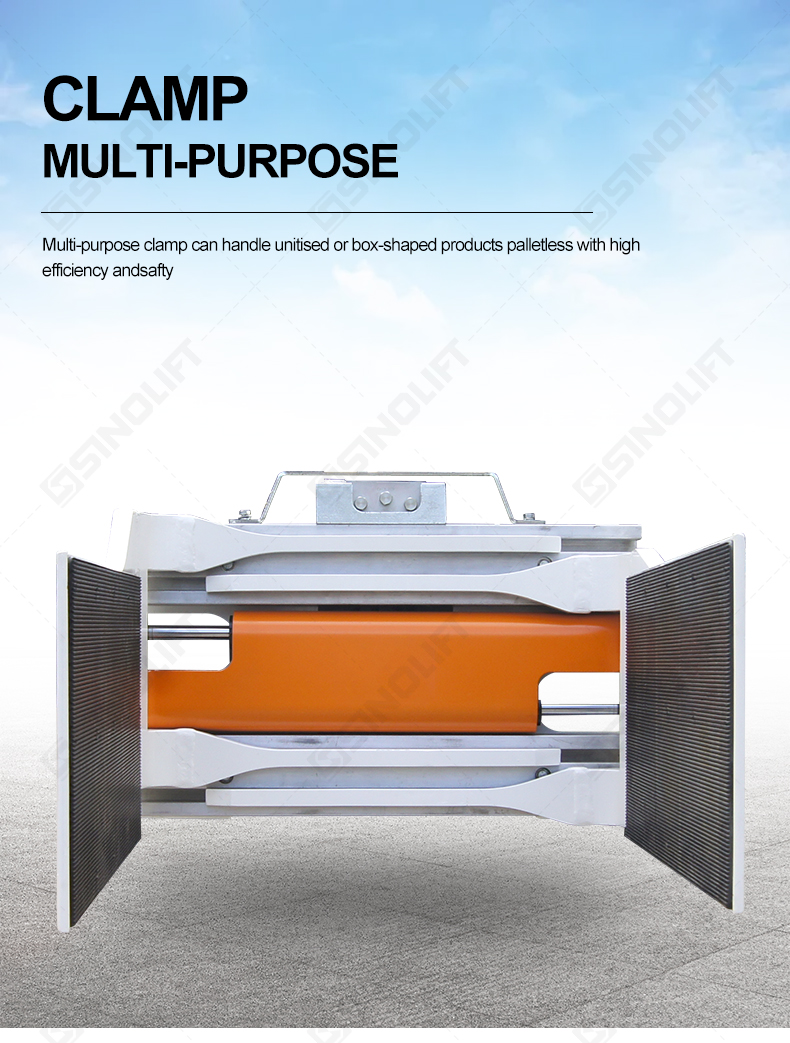

Multi-purpose clamp can handle unitised or box-shaped products palletless with high efficiency andsafty, Design of lateral sliding arm for smooth clamping and sideshifting function, Large contact padcan reduce the posibilities of distortion or damaging to loads while handling, it is widely used intobacco and white goods industries, to handle loads such as tobacco products carton, refrigerator.LED, and etc.
Quantity:
Multi-purpose clamp can handle unitised or box-shaped products palletless with high efficiency andsafty, Design of lateral sliding arm for smooth clamping and sideshifting function, Large contact padcan reduce the posibilities of distortion or damaging to loads while handling, it is widely used intobacco and white goods industries, to handle loads such as tobacco products carton, refrigerator.LED, and etc.

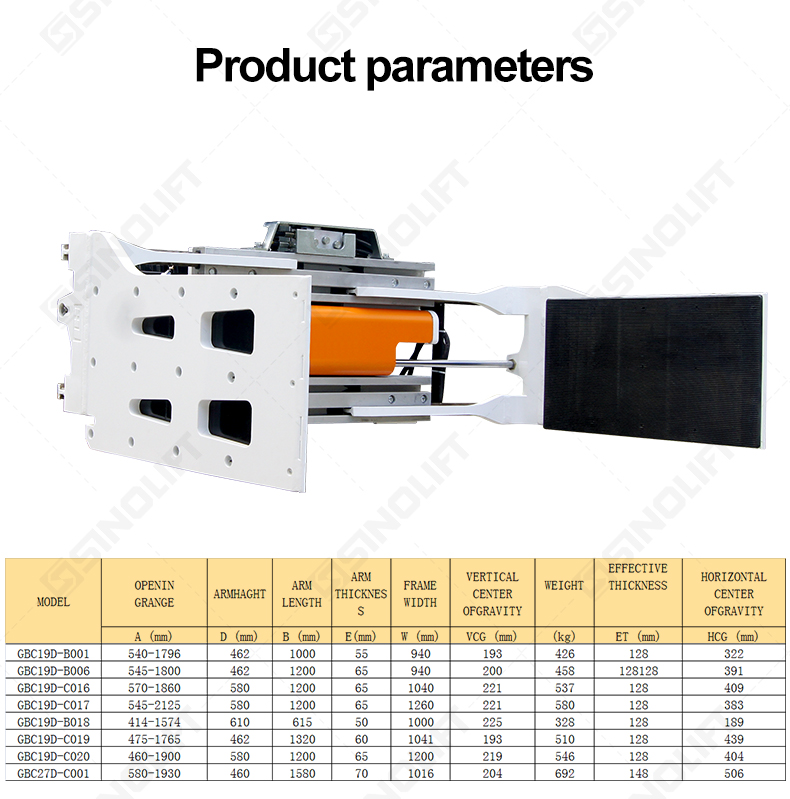

Specifications
| MODEL | OPENIN GRANGE | ARMHAGHT | ARM LENGTH | ARM THICKNESS | FRAME WIDTH | VERTICAL CENTER OFGRAVITY | WEIGHT | EFFECTIVE THICKNESS | HORIZONTAL CENTER OFGRAVITY |
| A (mm) | D (mm) | B (mm) | E(mm) | W (mm) | VCG (mm) | (kg) | ET (mm) | HCG (mm) | |
| GBC19D-B001 | 540-1796 | 462 | 1000 | 55 | 940 | 193 | 426 | 128 | 322 |
| GBC19D-B006 | 545-1800 | 462 | 1200 | 65 | 940 | 200 | 458 | 128128 | 391 |
| GBC19D-C016 | 570-1860 | 580 | 1200 | 65 | 1040 | 221 | 537 | 128 | 409 |
| GBC19D-C017 | 545-2125 | 580 | 1200 | 65 | 1260 | 221 | 580 | 128 | 383 |
| GBC19D-B018 | 414-1574 | 610 | 615 | 50 | 1000 | 225 | 328 | 128 | 189 |
| GBC19D-C019 | 475-1765 | 462 | 1320 | 60 | 1041 | 193 | 510 | 128 | 439 |
| GBC19D-C020 | 460-1900 | 580 | 1200 | 65 | 1200 | 219 | 546 | 128 | 404 |
| GBC27D-C001 | 580-1930 | 460 | 1580 | 70 | 1016 | 204 | 692 | 148 | 506 |
