M series Manual Work Positioner

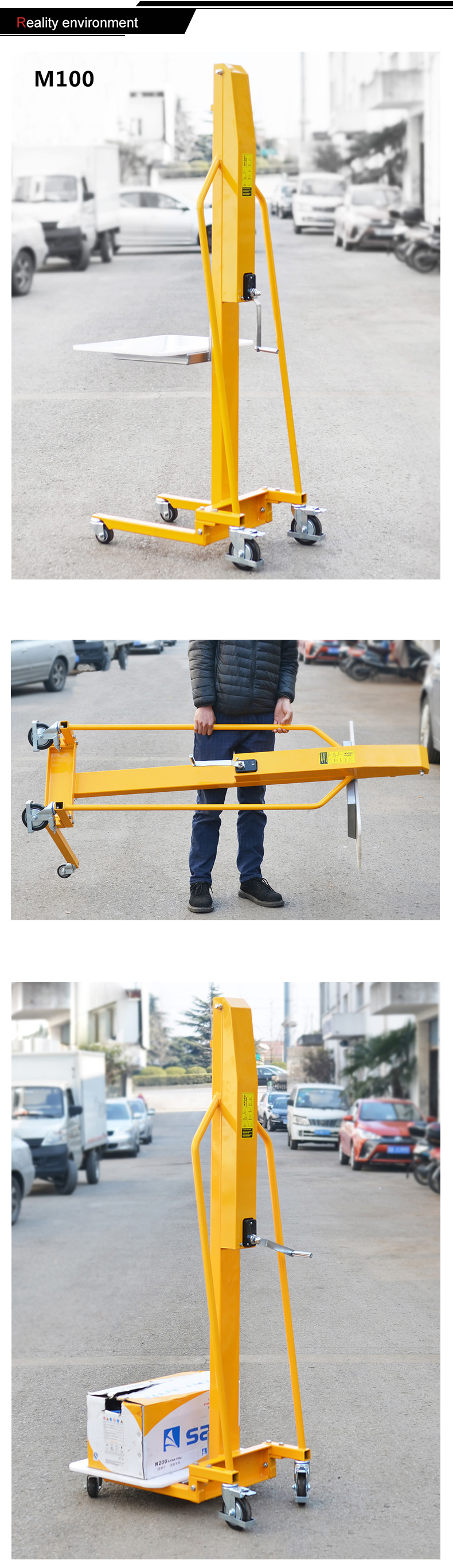

M100
1. Manual Stacker: Manual winch Operation Light, Safe self-locking, design novel lightweight, flexible operation.
2. Manual Stacker: Carefully designed, suitable for narrow space use;
3. Manual Stacker: A variety of change design and quick attachment (optional), can meet a variety of station handling, lifting requirements.
2. Manual Stacker: Carefully designed, suitable for narrow space use;
3. Manual Stacker: A variety of change design and quick attachment (optional), can meet a variety of station handling, lifting requirements.
Quantity:

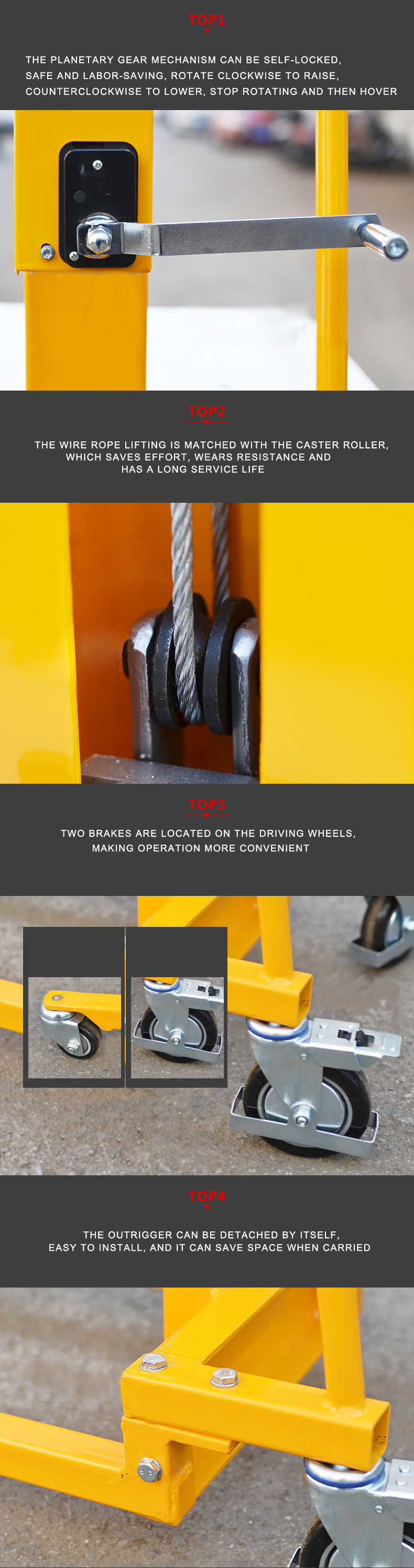

1. Work Positioner: Manual winch Operation Light, Safe self-locking, design novel lightweight, flexible operation.
2. Work Positioner: Carefully designed, suitable for narrow space use;
3. Work Positioner: A variety of change design and quick attachment (optional), can meet a variety of station handling, lifting requirements.
4. Work Positioner: Conform to European EN1757 standards.
5. Work Positioner: Profiles and specifications by our own choice of design, if changed by the Division I standards prevail.

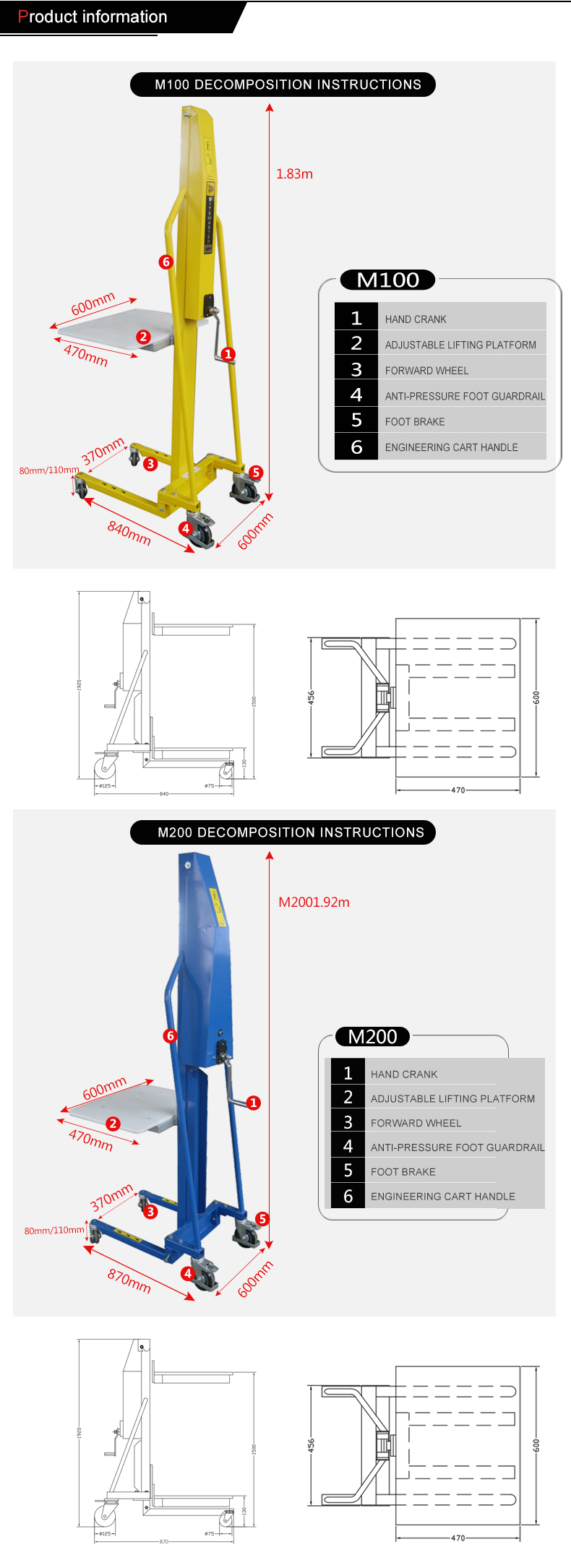

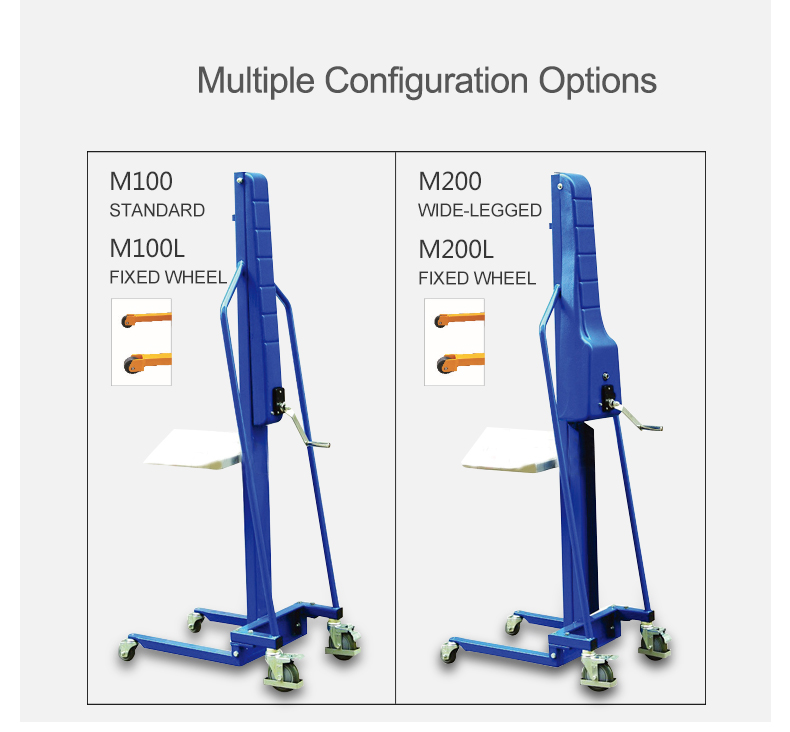

Model | M100 | M100L | M200 | M200L | |
| Type | / | manual | manual | manual | manual |
| Load capacity | kg | 100 | 200 | ||
| Load center | mm | 230 | |||
| Platform Minimum Height | mm | 130 | 85 | 130 | 85 |
| Platform Maximum height | mm | 1500 | |||
| Platform size | mm | 600*470(PE,steel) | |||
| Front Wheel diameter(PU wheel) | mm | φ75 Universal | φ75 fixed | φ75 Universal | φ75 fixed |
| Rear Wheel diameter(PU wheel) | mm | φ125 | |||
| Width of leg | mm | 370-600 | |||
| Minimum fork Height | mm | 30-80 | |||
| Minimum turning radius | mm | 850 | 870 | ||
| Overall size | mm | 840*600*1830 | 870*600*1920 | ||
| Net weight | kg | 48 | 50 | 52 | 64 |
