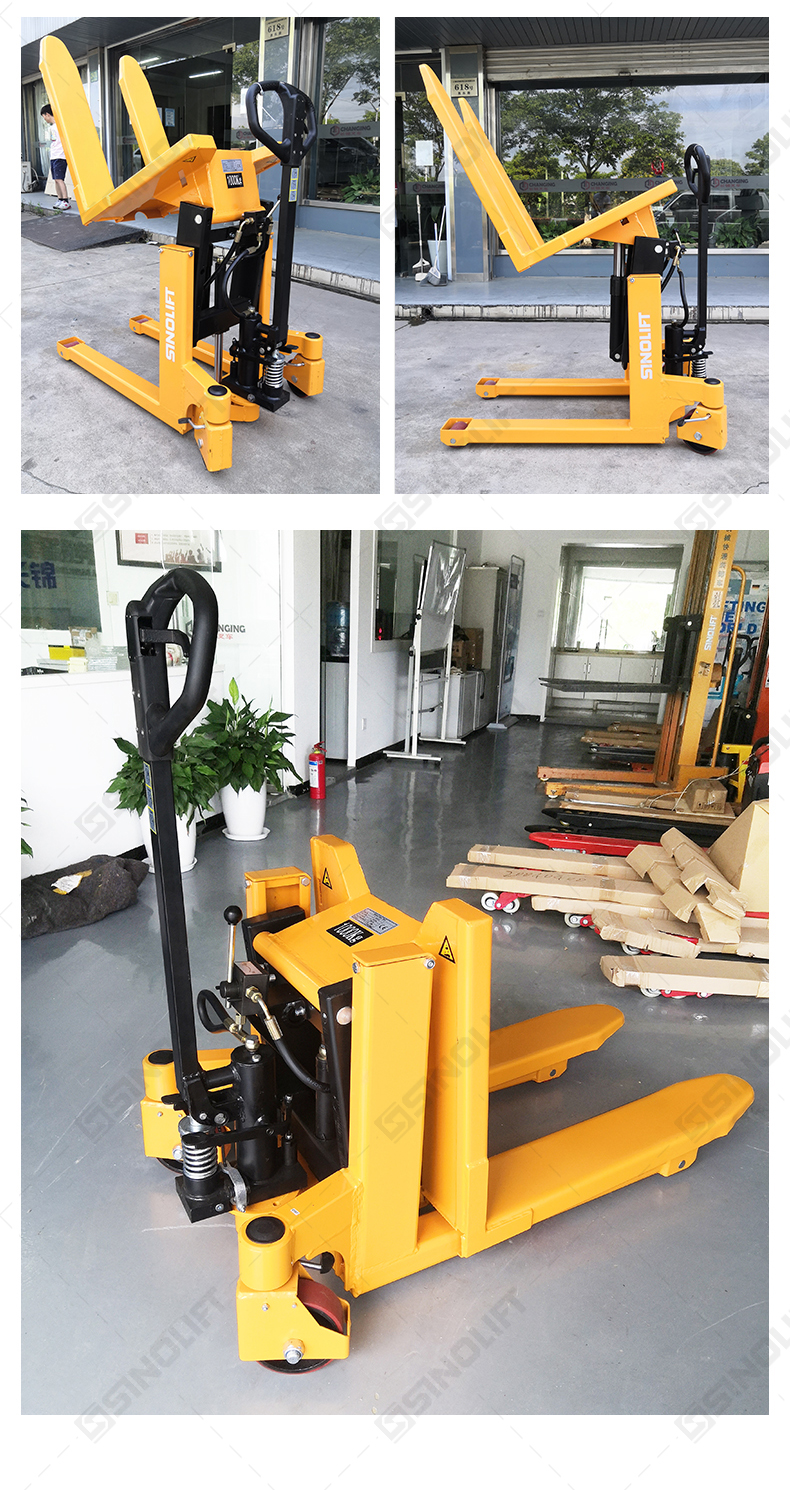

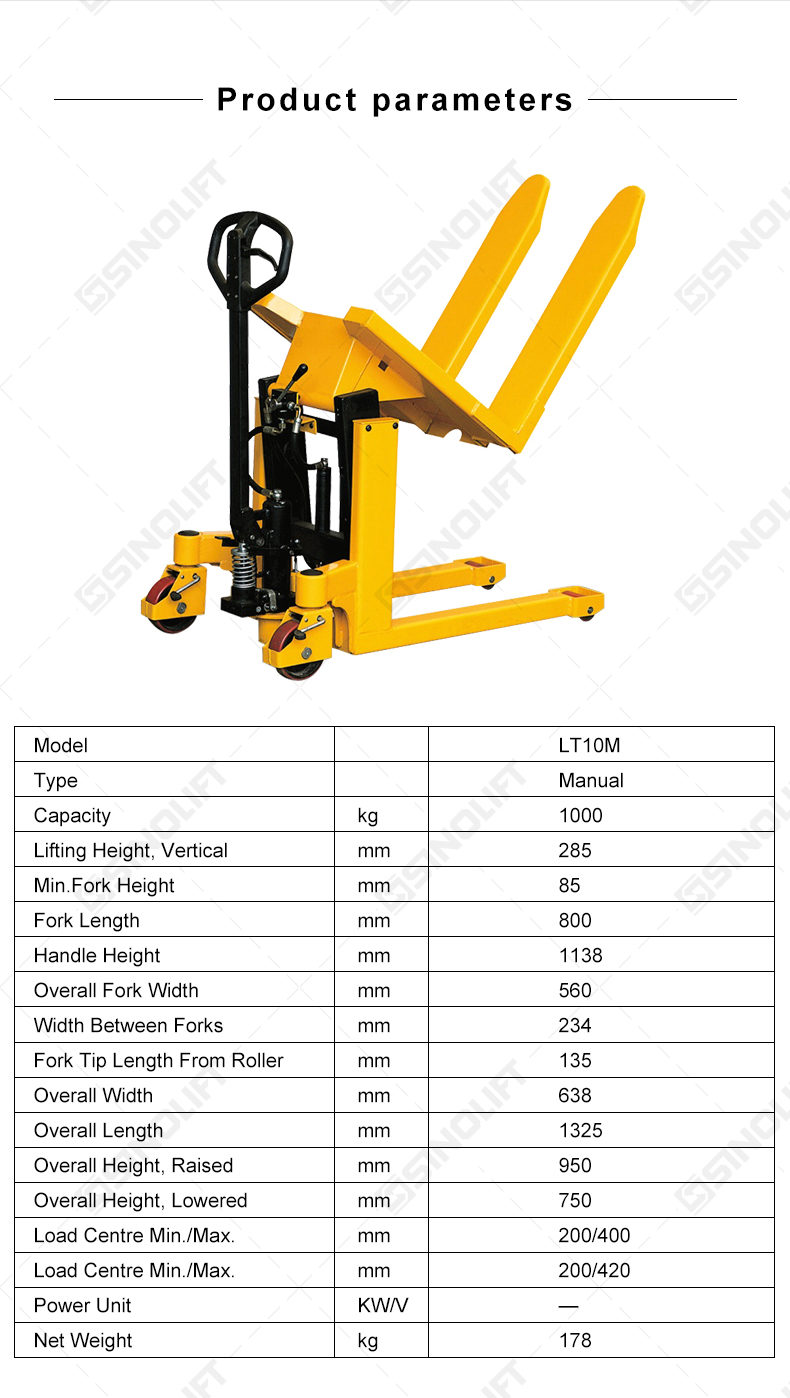

LT10M Manual Pallet Tilter
LT10M
Quantity:

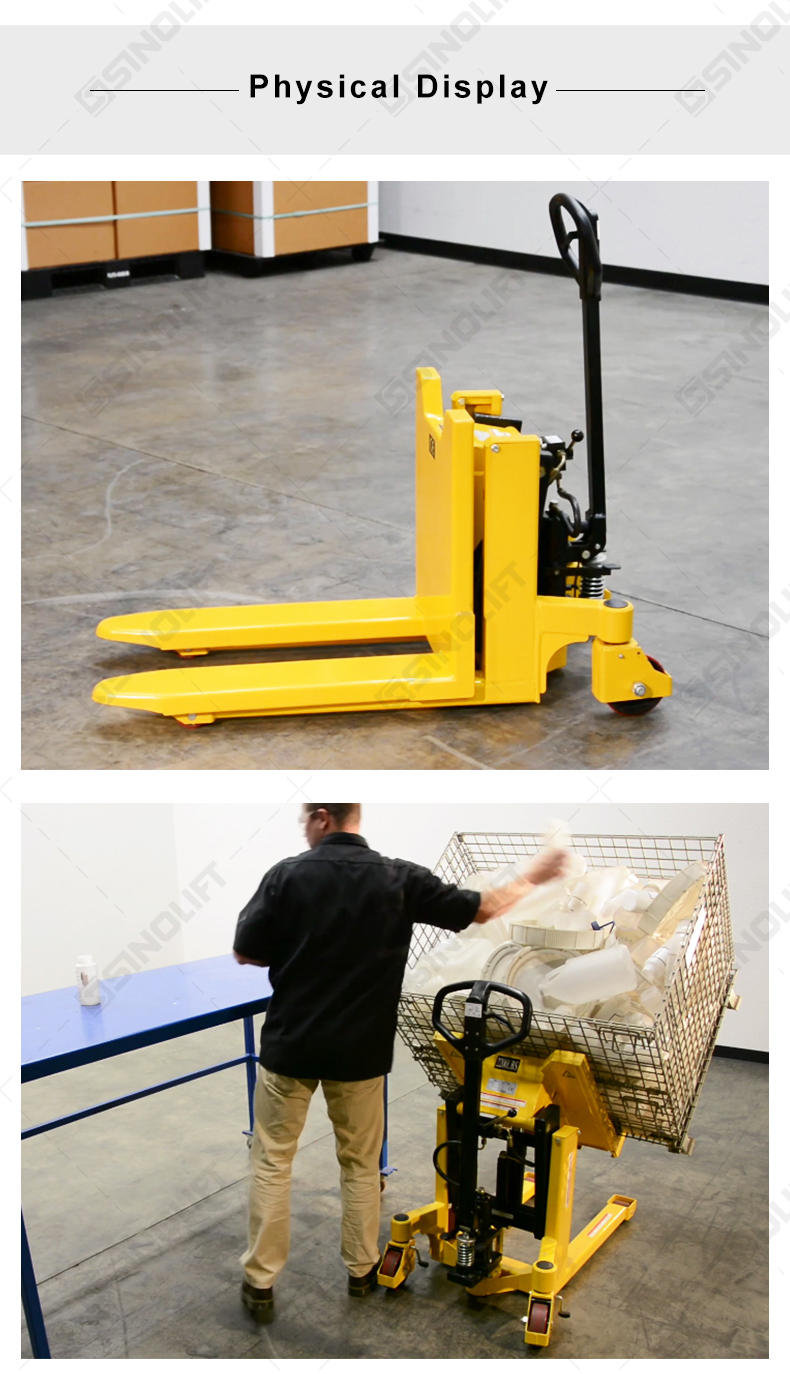

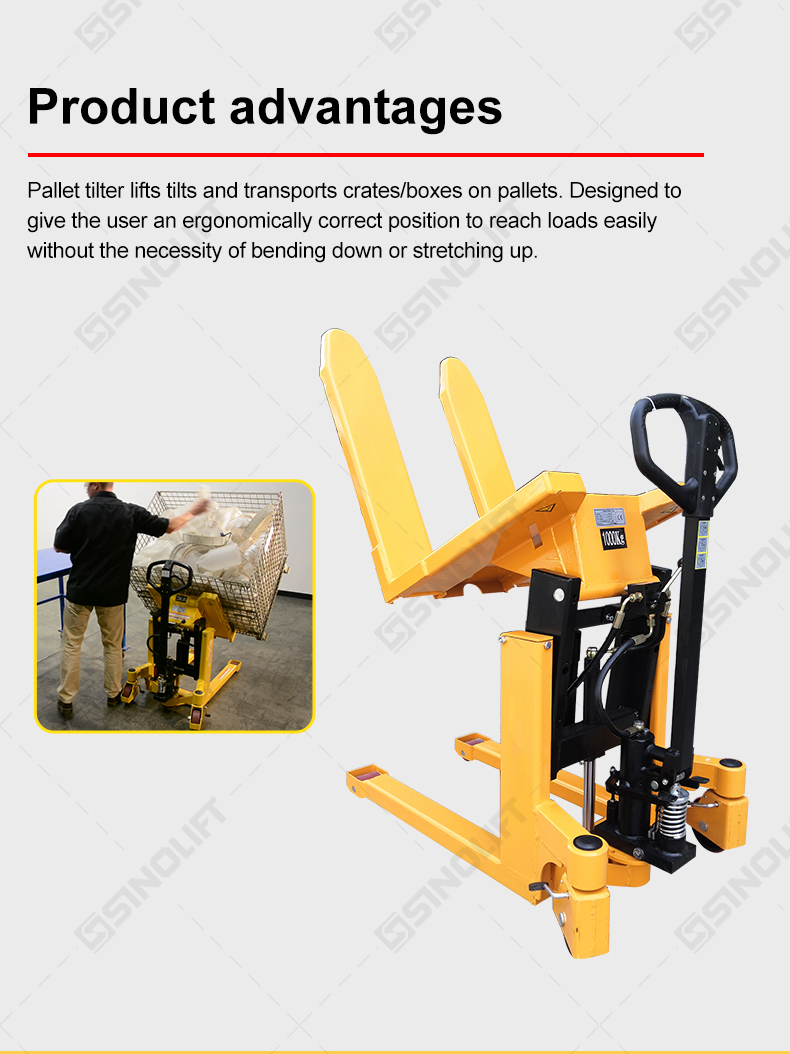

- Manual hydraulic pump tilter-lift & tilts crates, boxes & Euro pallets
- Gives the user the ergonomically correct position to reach loads easily without bending or stretching

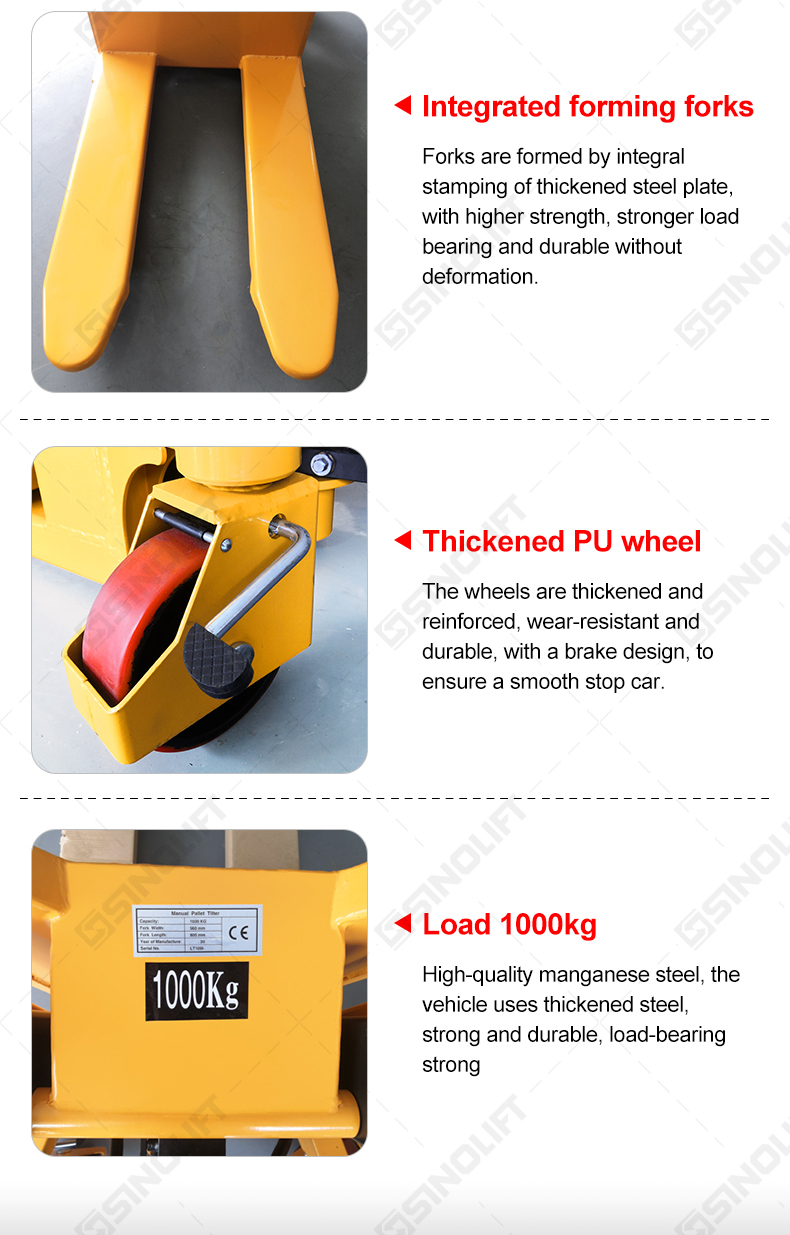

- Lifting capacity - 1000Kg

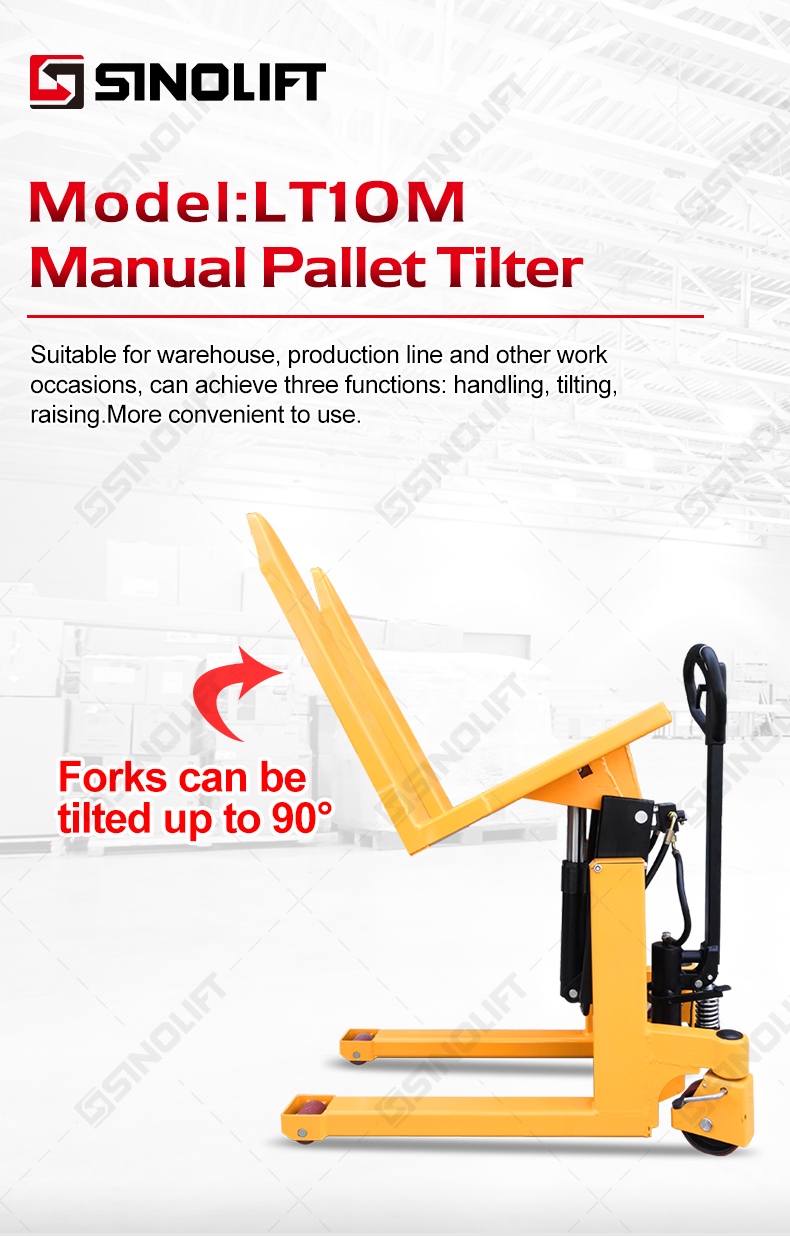

- Forks will title through to 90°

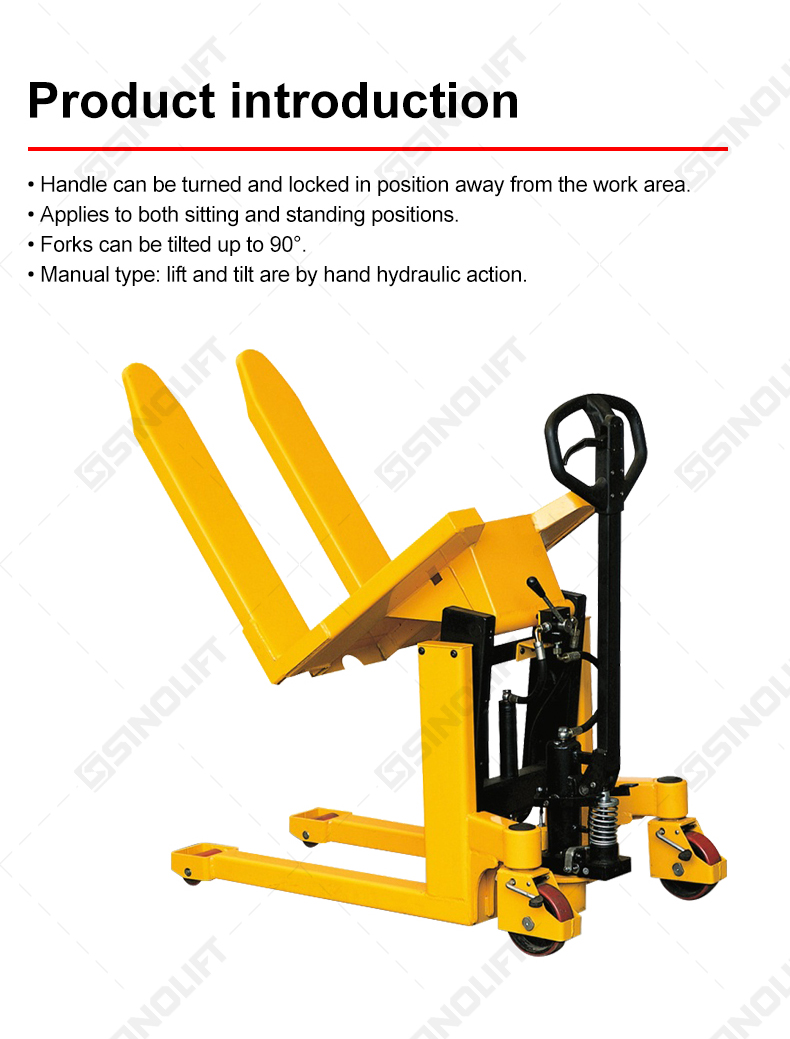

- Pulling / Pumping handle can be locked in position away from line of work

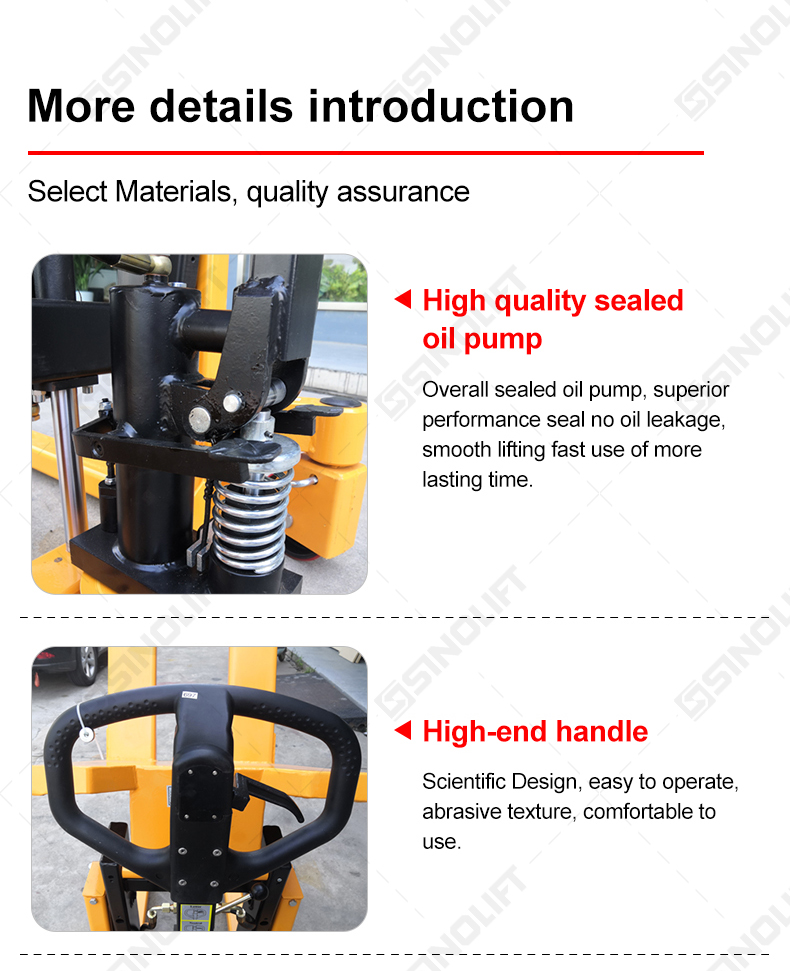

- Lift & Tilt operated by single pump unit fitted with supply changeover valve
- Delivery Ex Stock
- CE marked
| Model | LT10M | |
| Type | Manual | |
| Capacity | (kg) | 1000 |
| Lifting Height, Vertical | h (mm) | 285 |
| Min.Fork Height | h1 (mm) | 85 |
| Fork Length | l (mm) | 800 |
| Handle Height | L1 (mm) | 1138 |
| Overall Fork Width | b (mm) | 560 |
| Width Between Forks | b1 (mm) | 234 |
| Fork Tip Length From Roller | L2 (mm) | 135 |
| Overall Width | B (mm) | 638 |
| Overall Length | L (mm) | 1325 |
| Overall Height, Raised | H (mm) | 950 |
| Overall Height, Lowered | H (mm) | 750 |
| Load Centre Min./Max. | C1 (mm) | 200/400 |
| Load Centre Min./Max. | C2 (mm) | 200/420 |
| Power Unit | (KW/V) | — |
| Net Weight | (kg) | 178 |
