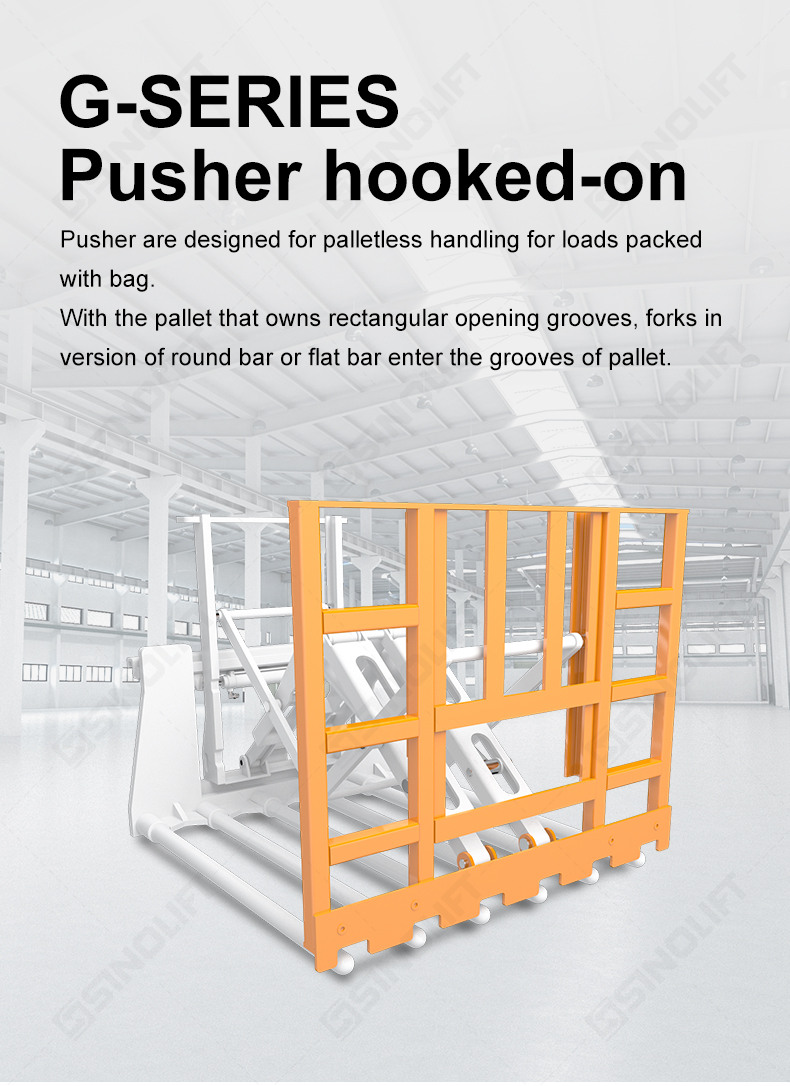

G-SERIES PUSHER HOOKED-ON

Strong and durable telescopic structure.
Simple and reliable structure with good vision.
Light weight, improving the combined carrying capacity of the forklift.
Smooth operation, fast hydraulic action and high handling efficiency.

Quantity:

Contact Now

add to cart

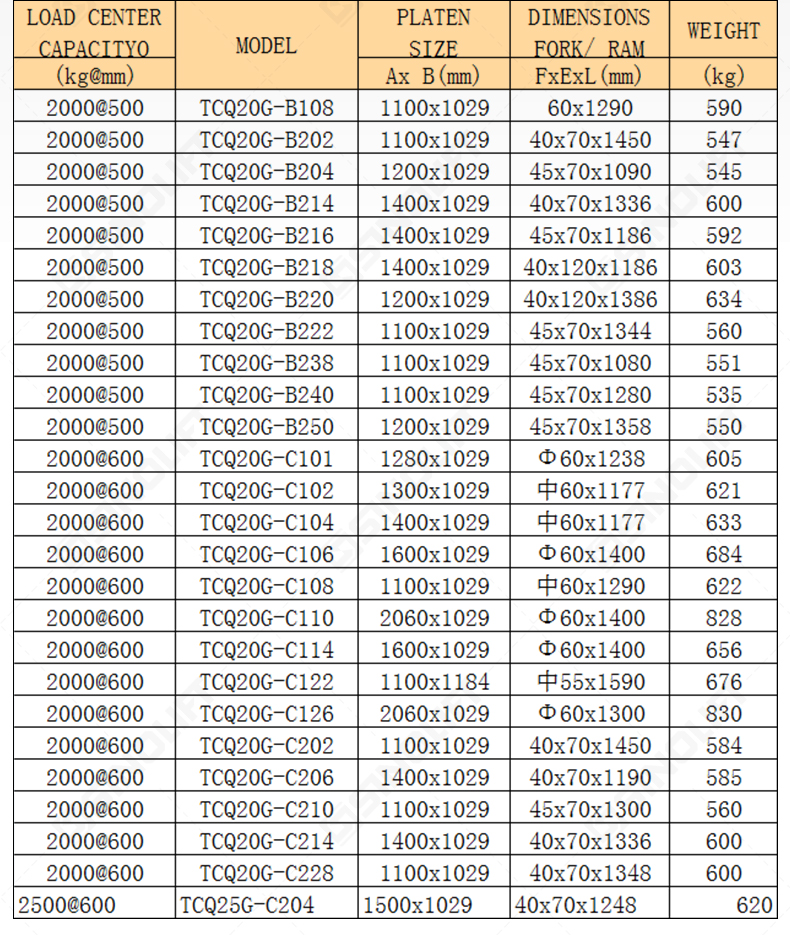

Specifications

LOAD CENTER CAPACITYO	MODEL	PLATEN SIZE	DIMENSIONS FORK/ RAM	WEIGHT
(kg@mm)	MODEL	Ax B(mm)	FxExL(mm)	(kg)
2000@500	TCQ20G-B108	1100x1029	60x1290	590
2000@500	TCQ20G-B202	1100x1029	40x70x1450	547
2000@500	TCQ20G-B204	1200x1029	45x70x1090	545
2000@500	TCQ20G-B214	1400x1029	40x70x1336	600
2000@500	TCQ20G-B216	1400x1029	45x70x1186	592
2000@500	TCQ20G-B218	1400x1029	40x120x1186	603
2000@500	TCQ20G-B220	1200x1029	40x120x1386	634
2000@500	TCQ20G-B222	1100x1029	45x70x1344	560
2000@500	TCQ20G-B238	1100x1029	45x70x1080	551
2000@500	TCQ20G-B240	1100x1029	45x70x1280	535
2000@500	TCQ20G-B250	1200x1029	45x70x1358	550
2000@600	TCQ20G-C101	1280x1029	Φ60x1238	605
2000@600	TCQ20G-C102	1300x1029	中60x1177	621
2000@600	TCQ20G-C104	1400x1029	中60x1177	633
2000@600	TCQ20G-C106	1600x1029	Φ60x1400	684
2000@600	TCQ20G-C108	1100x1029	中60x1290	622
2000@600	TCQ20G-C110	2060x1029	Φ60x1400	828
2000@600	TCQ20G-C114	1600x1029	Φ60x1400	656
2000@600	TCQ20G-C122	1100x1184	中55x1590	676
2000@600	TCQ20G-C126	2060x1029	Φ60x1300	830
2000@600	TCQ20G-C202	1100x1029	40x70x1450	584
2000@600	TCQ20G-C206	1400x1029	40x70x1190	585
2000@600	TCQ20G-C210	1100x1029	45x70x1300	560
2000@600	TCQ20G-C214	1400x1029	40x70x1336	600
2000@600	TCQ20G-C228	1100x1029	40x70x1348	600
2500@600	TCQ25G-C204	1500x1029	40x70x1248	620
