Custom U-type scissort lift tables: boost efficiency in pallet handling

What is a non-standard U-type scissor lift table?

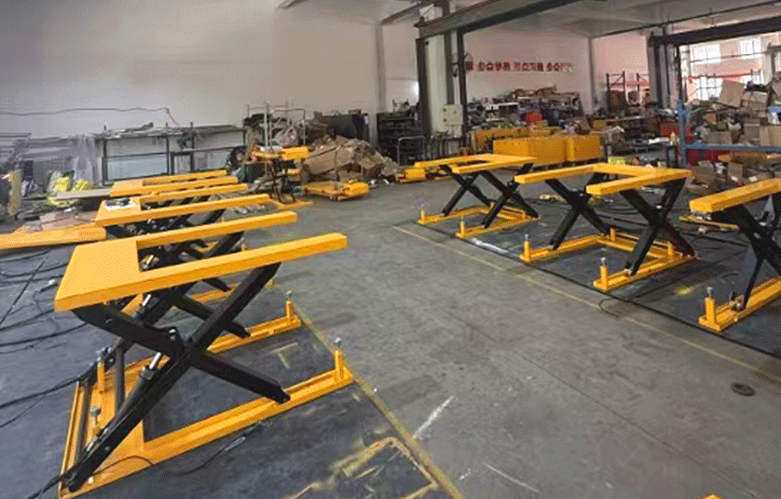

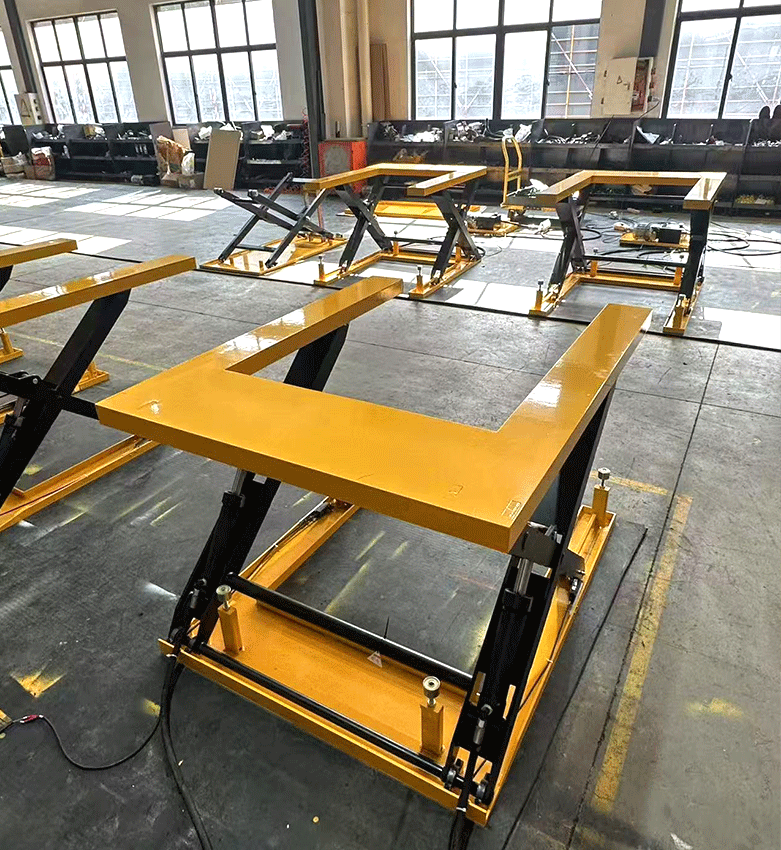

A lift table is a device that employs a scissors mechanism to raise or lower loads, often via hydraulic cylinders and an electric pump, to position work at ergonomic heights and reduce musculoskeletal strain . A U-type scissor lift table features a U-shaped cut-out in its deck so that pallet trucks can enter and exit without ramps or pits, simplifying pallet handling and speeding up loading operations . “Non-standard” refers to models built to custom specifications—dimensions, capacities, materials, and control options—rather than off-the-shelf configurations .

Design and Construction

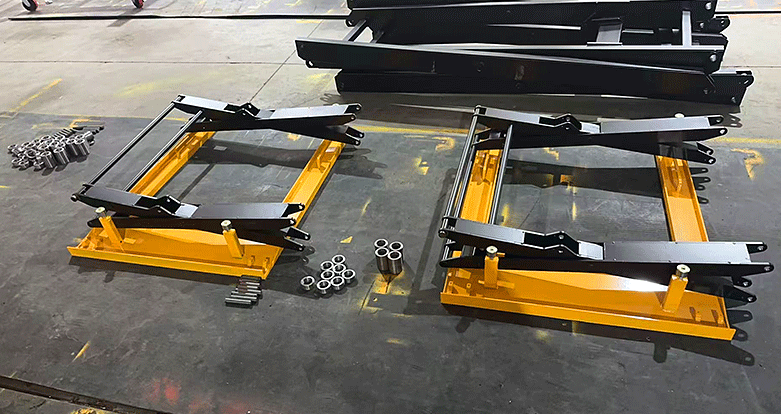

1. The platform, the scissor mechanism, and the base frame .
2. Steel or stainless-steel frames provide the necessary strength and durability, while deck surfaces are often coated with non-slip materials for operator safety .
3. The hydraulic system typically incorporates an explosion-proof valve to prevent sudden platform descent if a hose ruptures, plus overload protection to guard against exceeding rated capacities .

Because no pit is required, the entire table sits above floor level—eliminating installation costs and allowing easy relocation .

Key Features and Specifications

• Load Capacity: From 500 kg up to 3,000 kg for heavy-duty models
• Overload Protection: Pressure relief valves prevent operation beyond rated capacity
• Non-Slip Deck: Ensures foot stability for operators standing on or walking across the platform .

Applications

U-type scissor lift tables excel in:

• Pallet Handling & Docking: Drive-in platforms speed pallet loading/unloading without ramps .
• Assembly & Work Positioning: Raise parts to optimal heights for ergonomic assembly tasks .
• Integration with Conveyors: Seamlessly connect with roller conveyors or automated material-handling systems .
• Maintenance & Inspection: Provide stable, adjustable platforms for equipment servicing .

Customization & Choosing the Right Table

non-standard U-type tables can be tailored in:

• Platform Dimensions: Width and length to fit specific pallet sizes or machinery footprints .
• Scissor Leg Configuration: Single-, double-, or multiple-scissor legs for varied stroke and compactness .
• Power & Controls: Customizable voltage, motor power, and control interfaces to match facility utilities .
• Surface Treatment: Corrosion-proof coatings or cleanroom finishes for specialty environments .

When selecting, evaluate load needs, lift height, cycle frequency, and environmental factors . Work with manufacturers to confirm compliance with local safety standards and to arrange site inspections or trials.

Sinolift lift tables can be custom-made, users can specify platform dimensions, lifting heights, and control systems to suit unique workflow requirements ,Non-standard U-type scissor lift tables combine the ergonomic and space-saving benefits of U-shaped platforms with the robustness of hydraulic scissor mechanisms. By leveraging custom design, advanced safety features, and flexible integration options, offer reliable, ergonomic operation in warehouses, manufacturing, and logistics centers .

Sinolift offers customized services to meet various customer requirements. If you are interested in our products, feel free to contact us for more information. Visit our website at //www.sinoliftcorp.com, or reach us via email at market@sinolift.com or WhatsApp: +8613817178390.
