Sinolift's HU/HE type electric lifting platform eliminated cumbersome ramps and pits.

The Sinolift HU/HE U-Type and E-Type Electric Lifting Platforms deliver “no-pit” material-handling solutions through two distinctive deck geometries. The U-Type model features a U-shaped recess allowing forklift or pallet-jack entry without ramps or pits . In contrast, the E-Type’s symmetrical “E” profile accommodates varying pallet sizes on a single deck . Both platforms combine robust hydraulic or electric drives with advanced safety features and user-friendly controls, making them ideal for warehouses, production lines, and maintenance stations

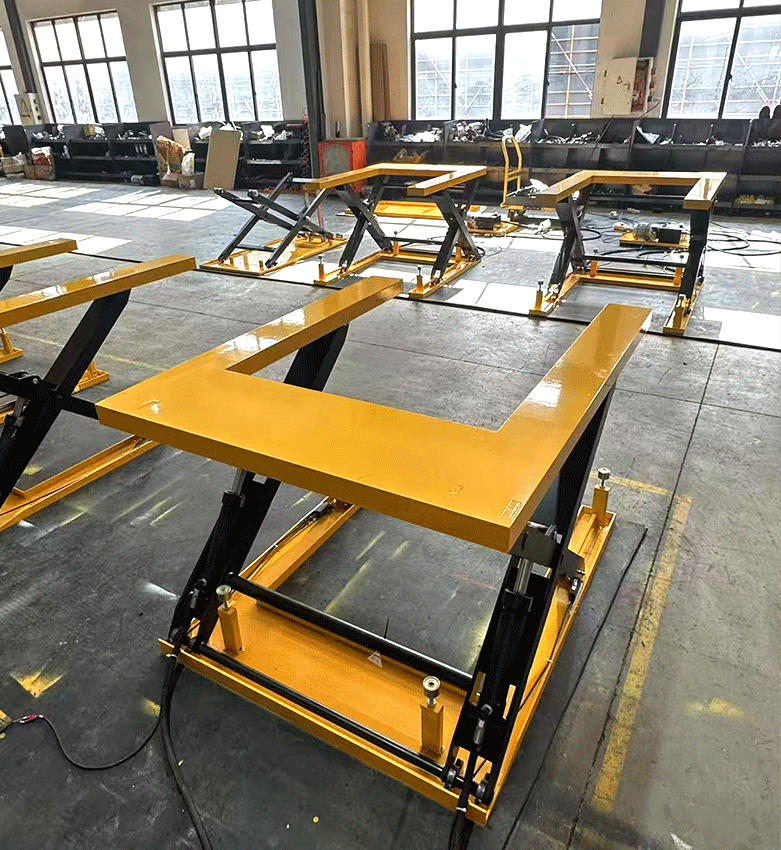

HU U-Type Electric Lifting Platform

• U-Cut Deck: The U-shaped recess lets forklifts and pallet jacks drive in directly—no ramps required .
• Hydraulic Safety: Explosion-proof valves prevent a freefall if a hose ruptures; overload relief valves guard against lifting beyond rated capacity .
• Above-Floor Mounting: Sits flush on the slab, eliminating civil-work costs and permitting rapid redeployment across docks .

E-Type Electric Lifting Platform

• E-Shape Deck: Supports pallets of various sizes without structural modification; its symmetrical deck remains stable under asymmetric loads
• Electric Drive & Controls: AC motor with regenerative braking ensures precise height positioning up to 1,500 mm. A pendant controller offers programmable lift presets .
• Load Capacity: Rated up to 1,500 kg standard, with options to 2,500 kg and a stainless-steel deck variant for hygienic areas .

Applications

• Warehousing & Distribution: Drive-in pallet transfer, dock-to-rack loading, and intermittent staging without fixed ramps .

• Assembly & Work Positioning: Multi-height workstations for pick-and-place, soldering, and light-manufacturing tasks .

• Maintenance & Inspection: Adjustable platforms for equipment servicing and quality-control stations in automotive, aerospace, and electronics .

• Cleanroom & Food Processing: Stainless-steel E-Type decks with sealed controls meet GMP and HACCP standards for hygienic operations.

Safety & Compliance

Both platform types adhere to global safety standards:

• European EN 1570-1 for lift tables, specifying safety guards, control reliability, and braking performance .

• ANSI MH29.1 in North America, covering design categories, emergency-stop requirements, and overload protection .

• Explosion-Proof & Overload Valves: Prevent uncontrolled descent and protect hydraulic circuits under extreme conditions .

• Emergency-Stop & Interlock Systems: Instant power cutoff via pendant or onboard switch reduces accident risk during high-throughput operations .

Sinolift offers customized services to meet various customer requirements，for more on Sinolift’s scissor electric lifting platyform, Platforms ,please feel free to contact us for more information. Visit our website at https://www.sinoliftcorp.com, or reach us via email at market@sinolift.com or WhatsApp: +8613817178390.
