SP500F SP1000F SP2000F Foldable Shop Crane
SP500F SP1000F SP2000F
Quantity:

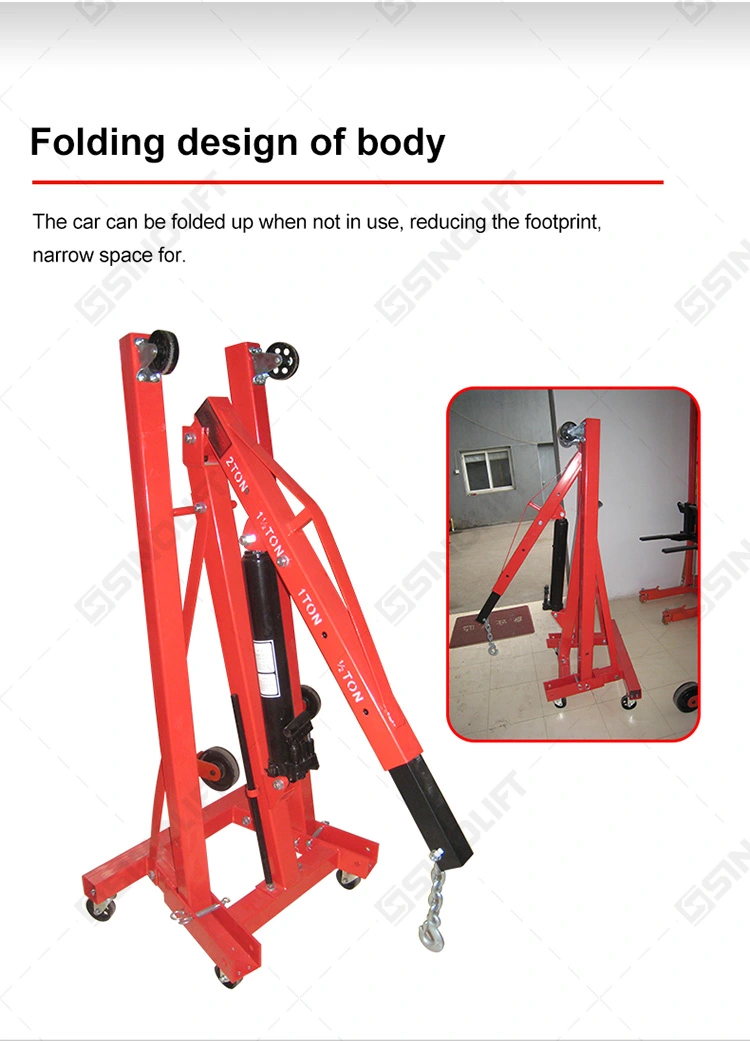

SP500F SP1000F SP2000F Foldable Shop Crane

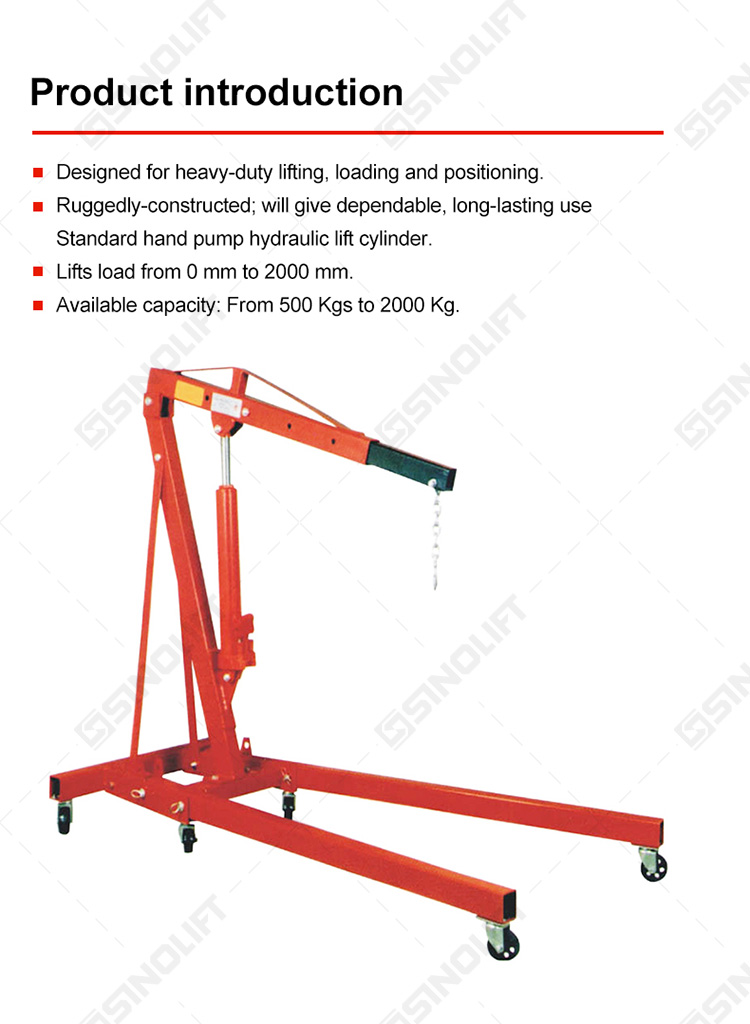

Designed for heavy-duty lifting, loading and positioning.
Ruggedly-constructed; will give dependable, long-lasting use Standard
hand pump hydraulic lift cylinder.
Lifts load from 0 mm to 2000 mm.
Available capacity: From 500 Kgs to 2000 Kgs.

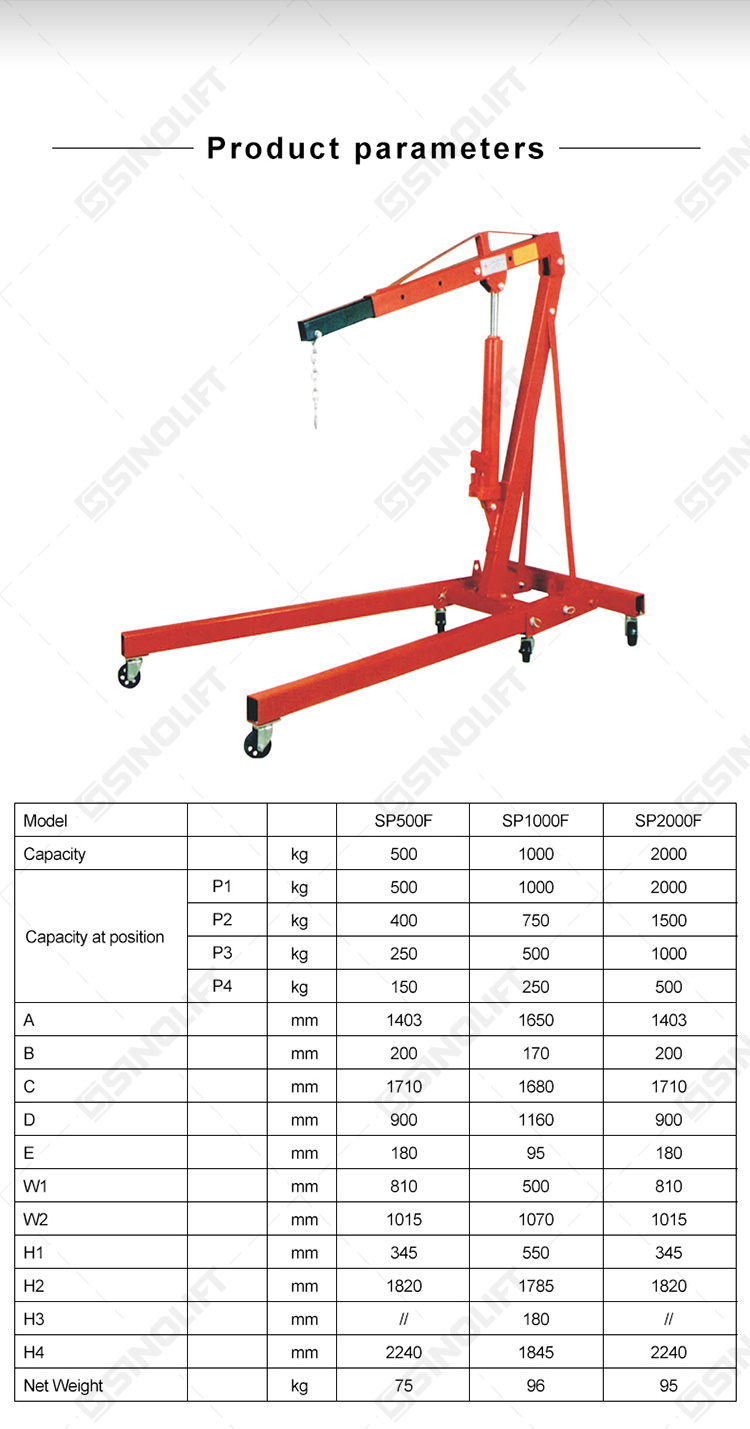

| Model | SP500F | SP1000F | SP2000F | |
| Foldable | Yes | |||
| Capacity | kg | 500 | 1000 | 2000 |

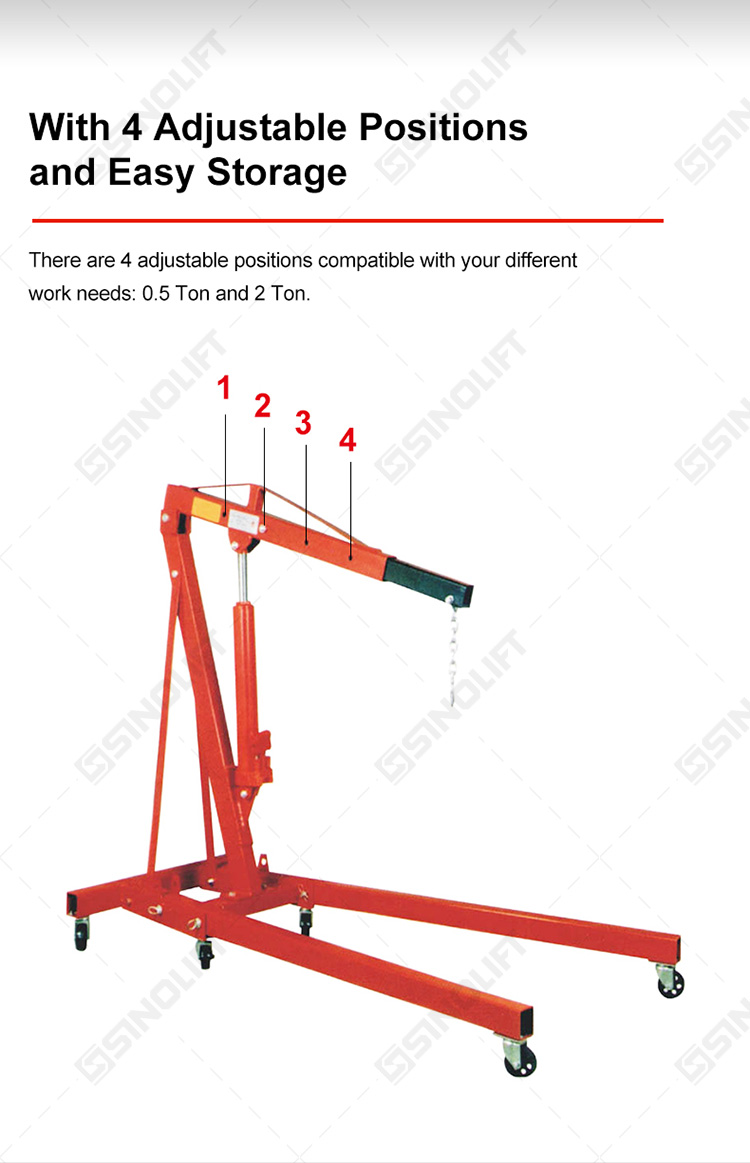

| Capacity at position | P1 | 500 | 1000 | 2000 |
| P2 | 400 | 750 | 1500 | |
| P3 | 250 | 500 | 1000 | |
| P4 | 150 | 250 | 500 | |

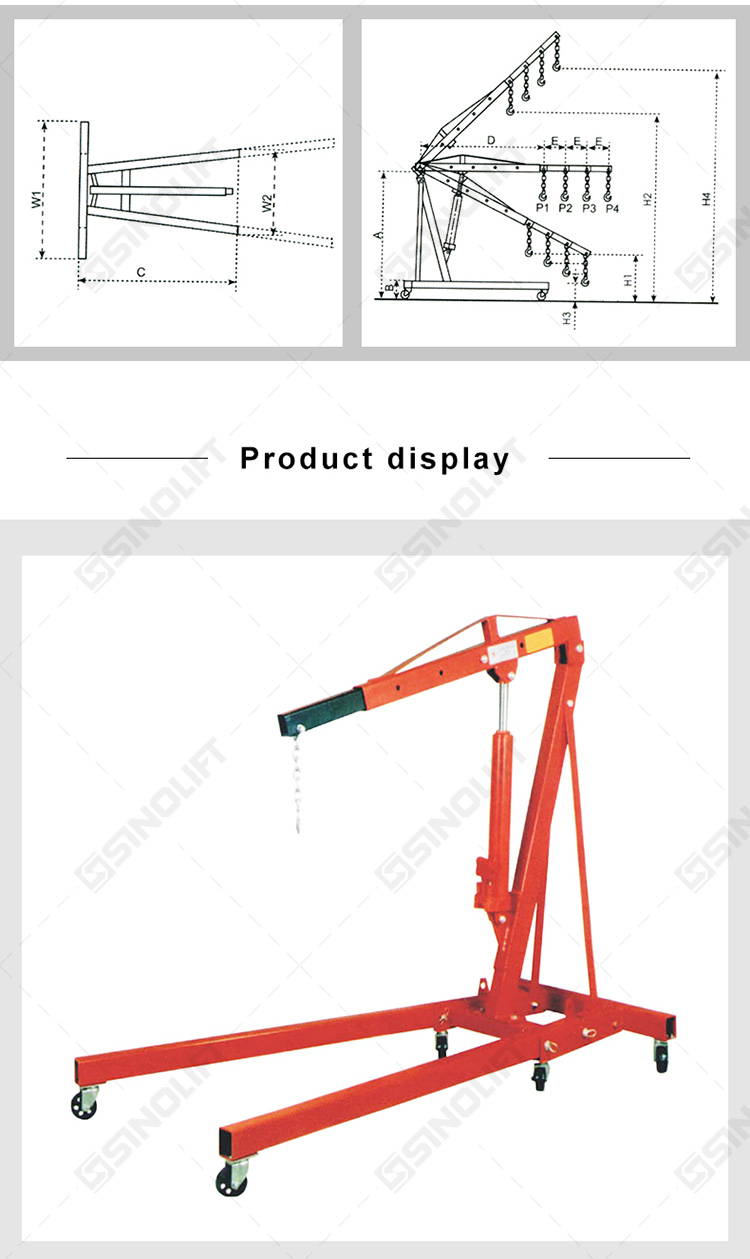

| A | mm | 1403 | 1650 | 1403 |
| B | mm | 200 | 170 | 200 |
| C | mm | 1710 | 1680 | 1710 |
| D | mm | 900 | 1160 | 900 |
| E | mm | 180 | 95 | 180 |
| W1 | mm | 810 | 500 | 810 |
| W2 | mm | 1015 | 1070 | 1015 |
| H1 | mm | 345 | 550 | 345 |
| H2 | mm | 1820 | 1785 | 1820 |
| H3 | mm | // | 180 | // |
| H4 | mm | 2240 | 1845 | 2240 |
| Net Weight | kg | 75 | 96 | 95 |
