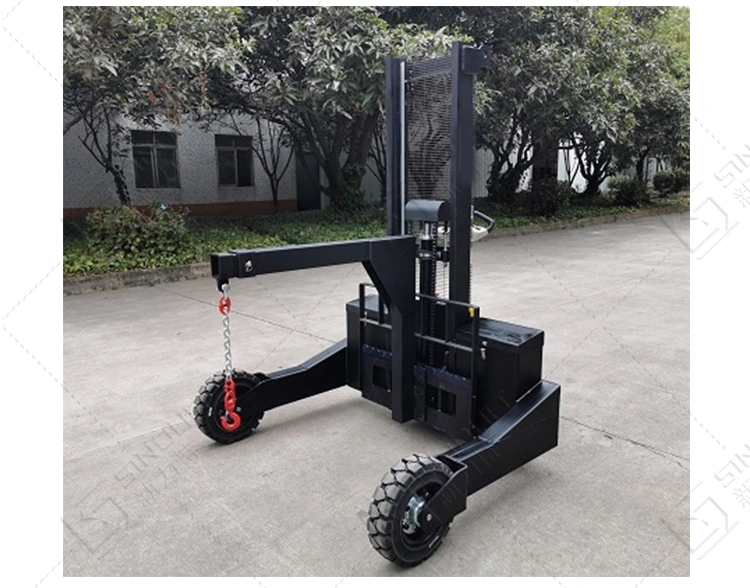

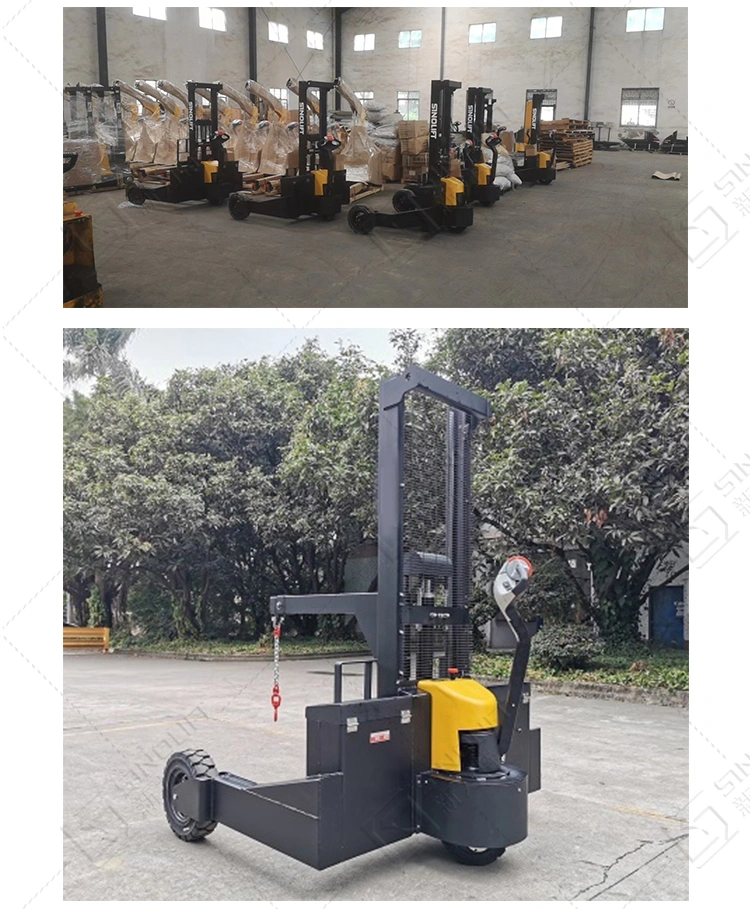

Sinolift WS-13016RT-DC WS-13020-DC WS-13025-DC WS-13030-DC Rough Terrain Electric Pallet Stacker
WS-13016RT-DC
Quantity:
Sinolift WS-13016RT-DC WS-13020-DC WS-13025-DC WS-13030-DC Rough Terrain Electric Pallet Stacker

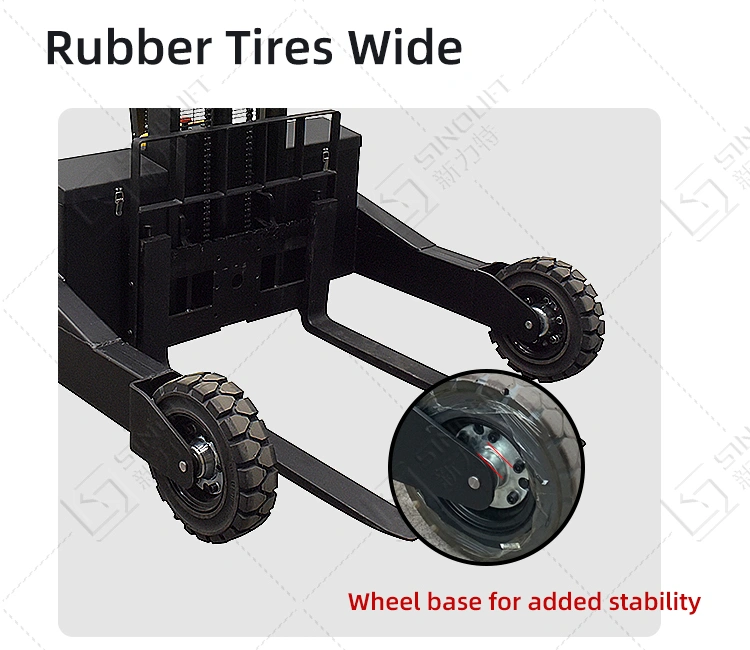

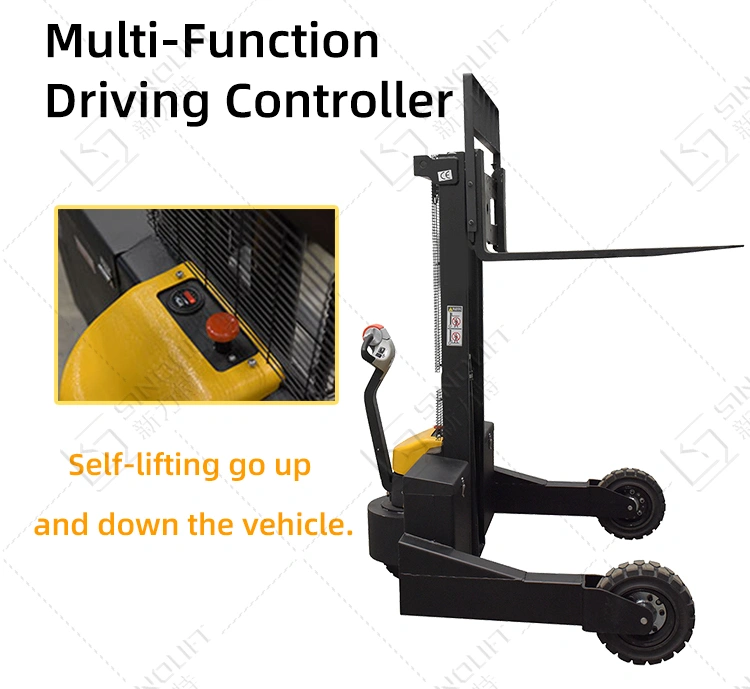

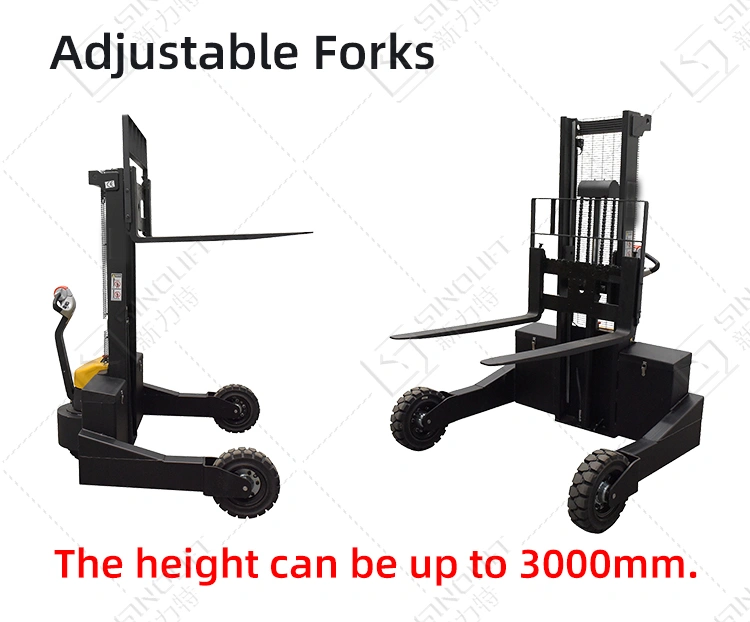

1.Standard fork length 1050mm, other lengths for optional according to your requirements. 2.Wide straddle legs provide great stability. 3.Adjustable fork to fit most pallets 4.Pneumatic wheels and solid rubber wheels is option, wheels fitted with sealed bearings 5.Compact iron shell to make sure it won’t out of shape easily. 6.Build in Battery and Charger, little maintenance required, charging at night, working at day time 7.Muti-function handle, set up speed stalls directly, adjust the speed, more secure and practical

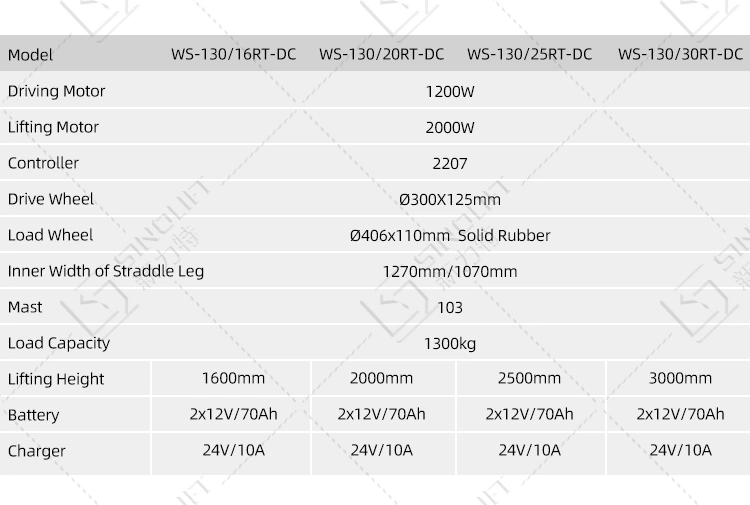

| MODEL | RT STACKER |
| CAPACITY | 1300kg |
| LIFTING HEIGHT | 1600mm |
| ADJUSTABLE OVERALL FORK WIDTH | Max. 850mm |
| LEG INSIDE WIDTH | 1270mm |
| FRONT SOLID RUBBER TYRE | 406mm x 110mm |
| REAR SOLID RUBBER TYRE | 310mm x 100mm |

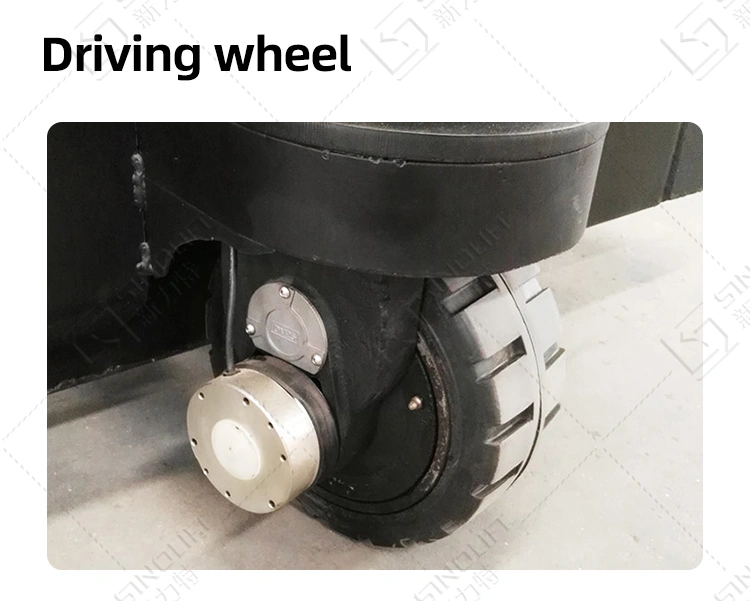

| DRIVE WHEEL | DC24V / 1200W |
| BATTERY | 2 x 12V / 100Ah |
| CHARGER | VST 124-10 Portable |
| HYDRAULIC STATION | DC24V / 1300W, 4L Oil Tank |
| LIFTING SPEED: LOAD | 13mm/s |
| DRIVING SPEED: UNLOAD | 4.5km/h |
| DRIVING SPEED: LOAD | 3.5km/h |
| CLIMB CAPACITY: UNLOAD | 10% |
| CLIMB CAPACITY: LOAD | 5% |

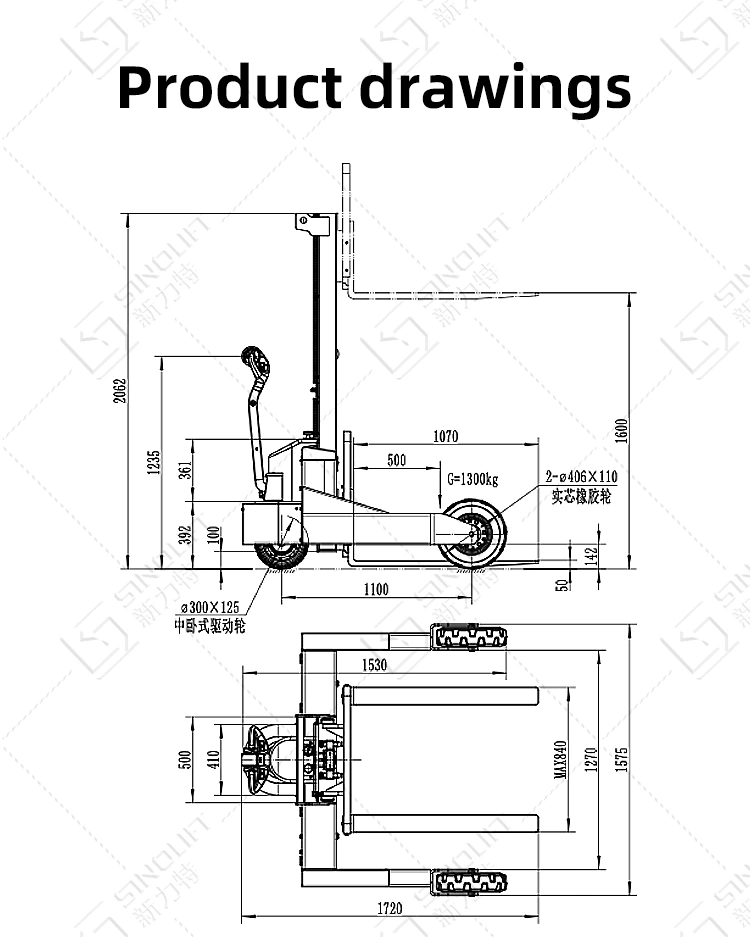

| HANDLE HEIGHT | 1235mm |
| OVERALL LENGTH | 1720mm |
| OVERALL WIDTH | 1574mm |
| OVERALL HEIGHT | 2062mm |
