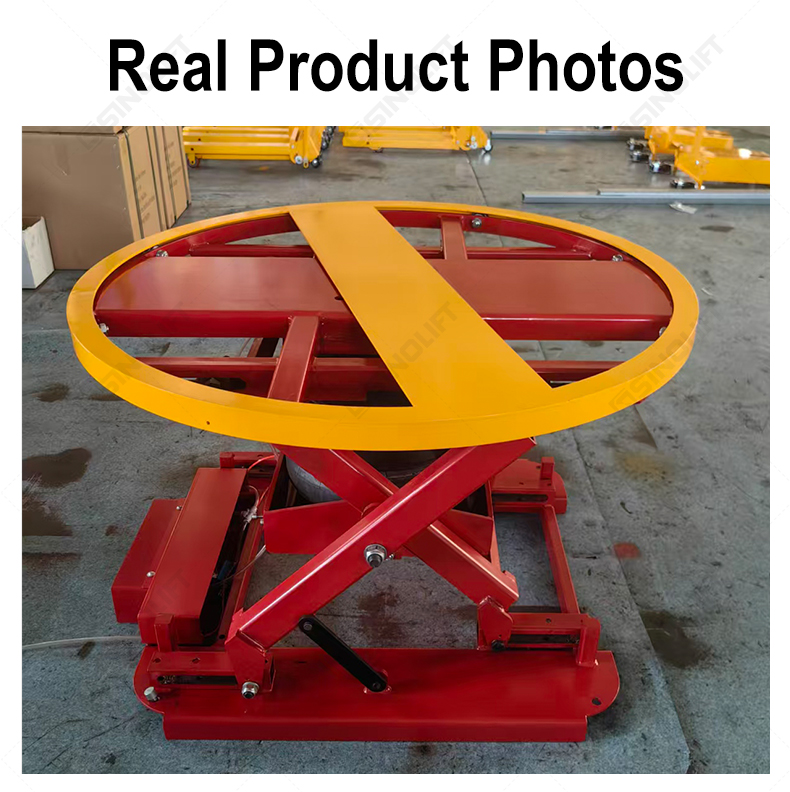

Sinolift SP4500 / SP4500C Pneumatic scissor lift table with rotating platform
The Sinolift SP4500 / SP4500C Pneumatic Pallet Positioner is a heavy-duty airbag scissor lift table designed for efficient and ergonomic material handling. Its pneumatic lifting system automatically adjusts the working height, reducing bending and manual effort during loading and unloading.
Featuring360° manual rotation, a 2000 kg load capacity, and reinforced steel construction, the platform provides stable and reliable operation. Integrated forklift pockets allow easy repositioning.

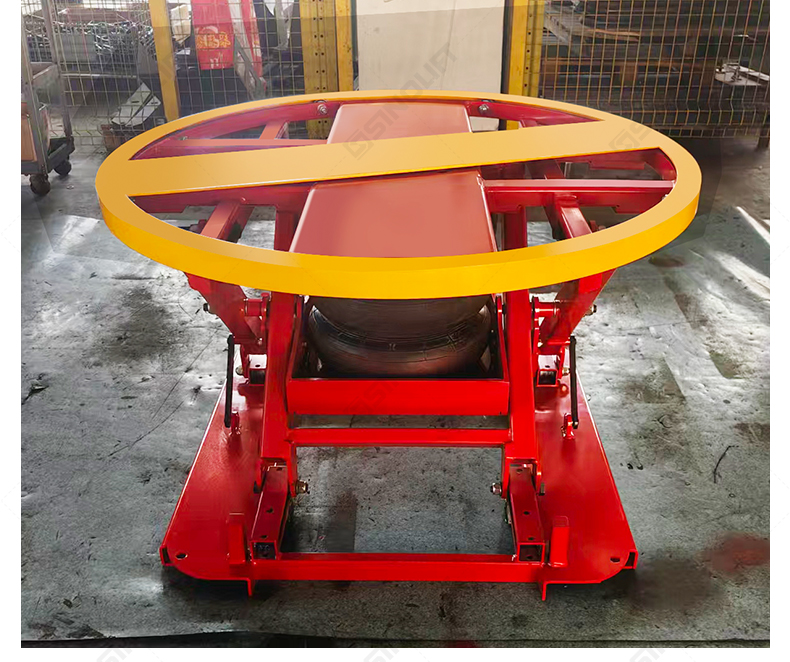

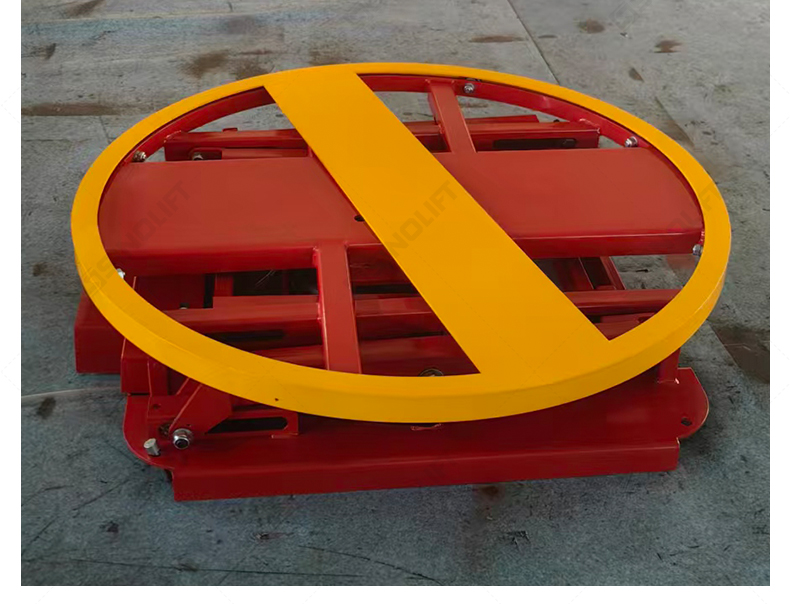

The SP4500 features an open-top platform, while the SP4500C offers a solid-top design. Both models are ideal for warehouses, production lines, logistics, and packaging applications.

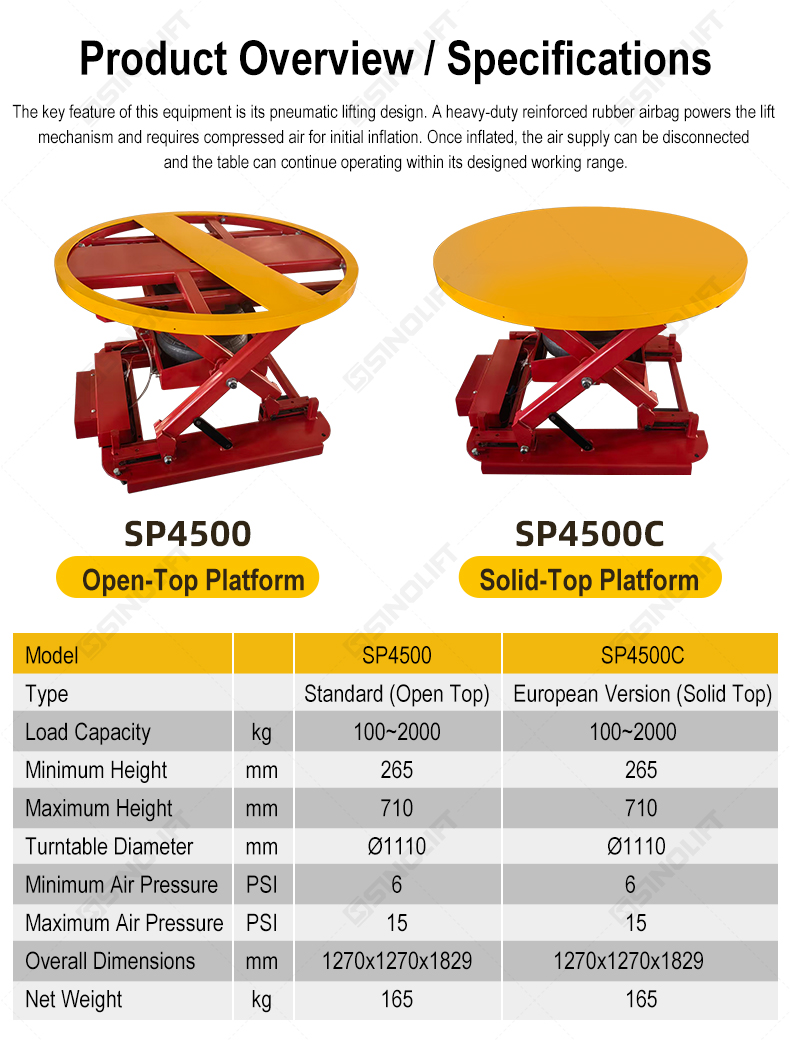

| Model | SP4500 | SP4500C | |
| Type | Standard Type(open top) | Closed Top for Europe | |
| Max. Load Capacity | kg | 100~2000 | |
| Lowered Height | mm | 265 | |
| Raised Height | mm | 710 | |
| Rotating Ring | mm | 1110 | |
| Min. air pressure | PSI | 6 | |
| Max. air pressure | PSI | 15 | |
| Overall Dimensions | mm | 1270x1270x1829 | |
| Net Weight | kg | 165 | |
Main Features

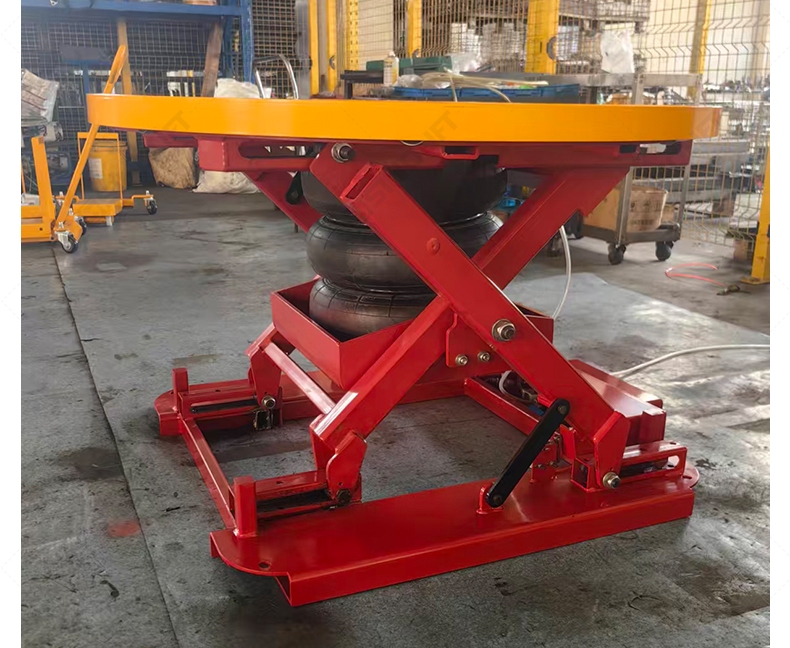

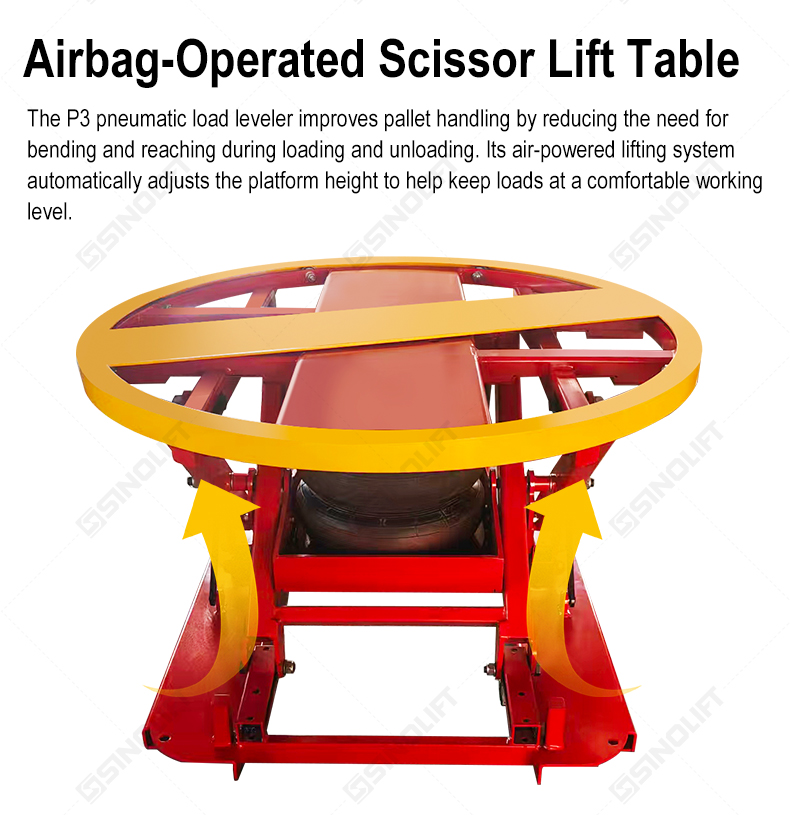

1. Pneumatic Airbag Lifting System
A reinforced air spring uses compressed air for smooth lifting and automatic height adjustment, reducing the need for conventional hydraulic components.

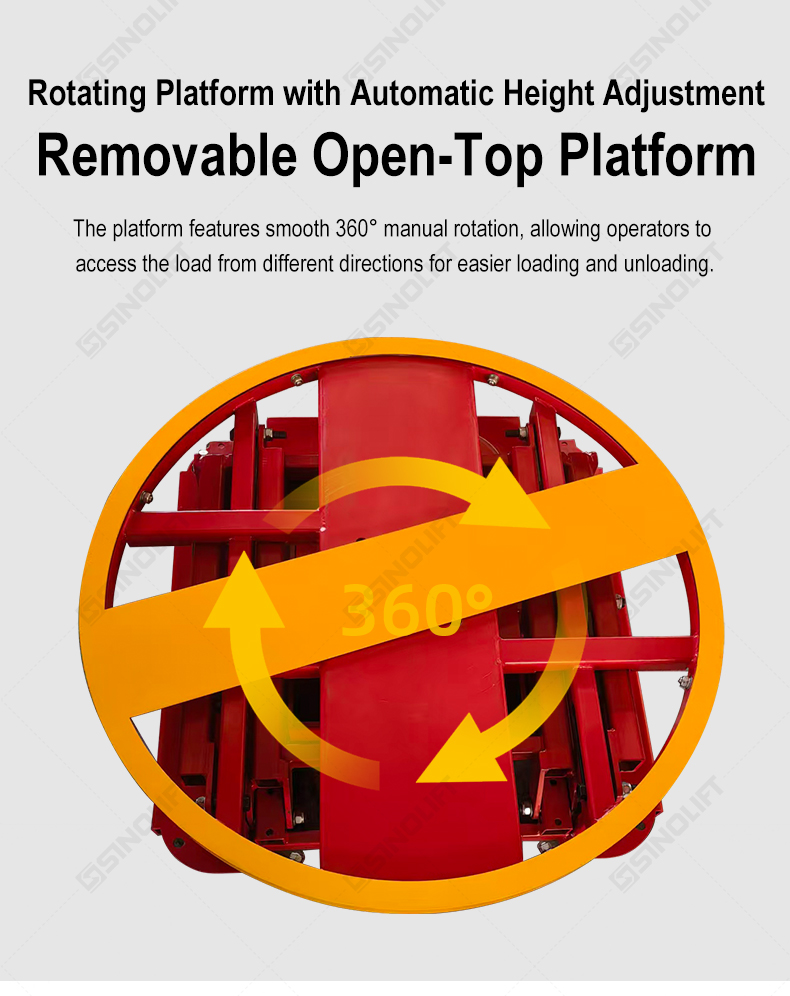

2. 360° Manual Rotating Platform
The rotating turntable allows operators to access palletized loads from any direction, improving loading and unloading convenience.

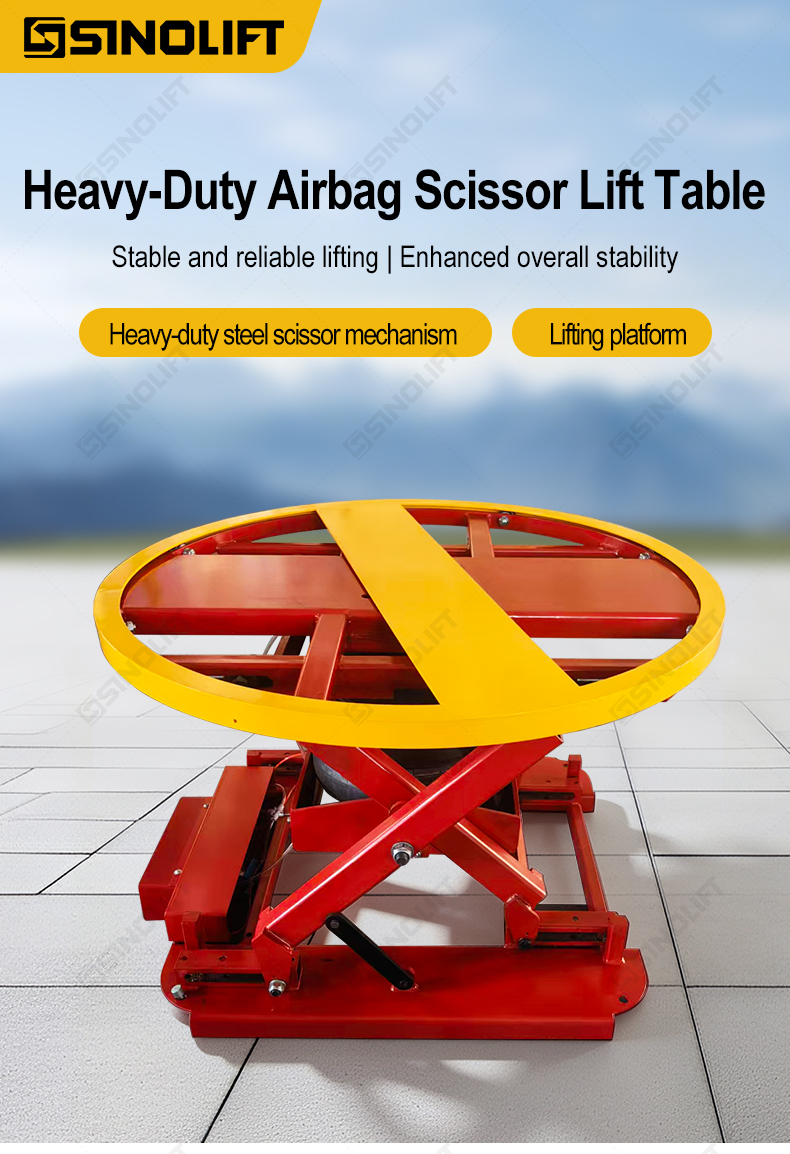

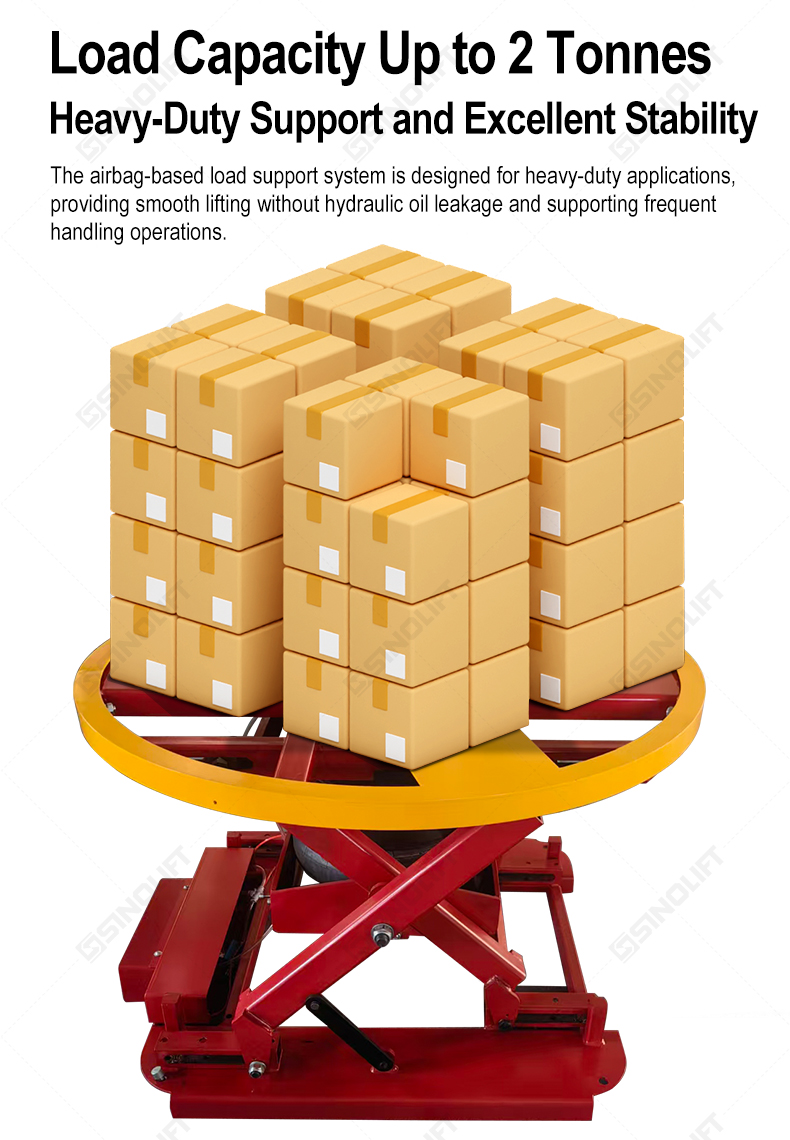

3. Heavy-Duty 2000 kg Capacity
A reinforced steel structure and heavy-duty scissor mechanism provide stable support for loads up to 2000 kg.
4. Ergonomic Height Adjustment
The pneumatic load-positioning system adjusts the working height as the load changes, helping reduce bending, reaching, and physical strain.
5. Two Platform Configurations
SP4500 features an open-top rotating platform, while SP4500C offers a solid-top design for different material handling requirements.

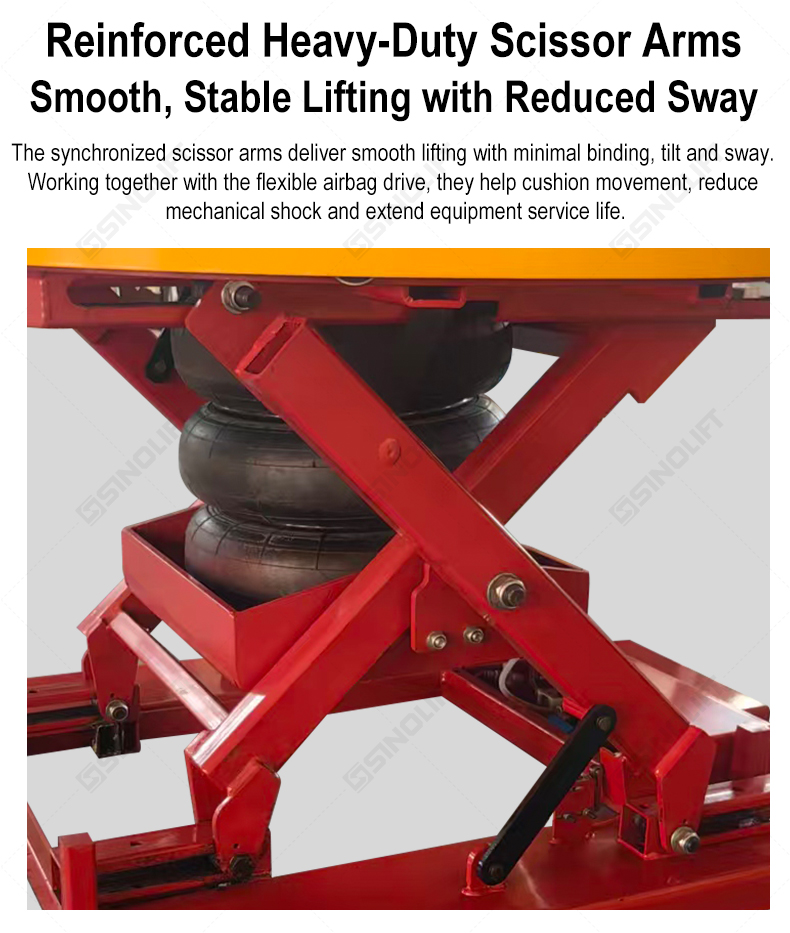

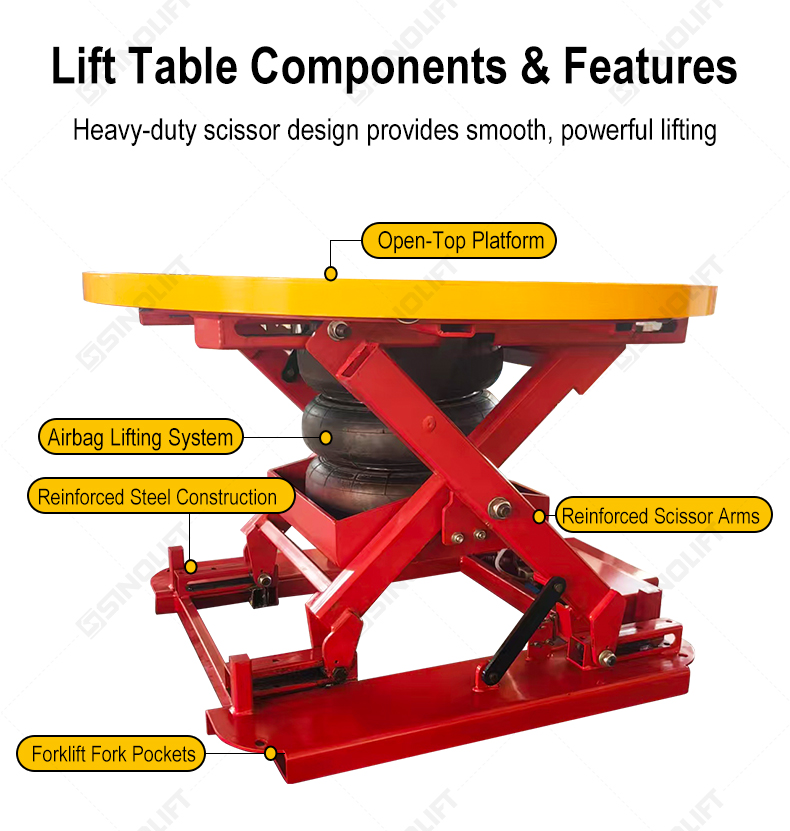

6. Reinforced Scissor Arms and Stabilizing Linkages
Heavy-duty scissor arms and strengthened linkages help maintain synchronized movement, minimize sway, and improve structural stability.

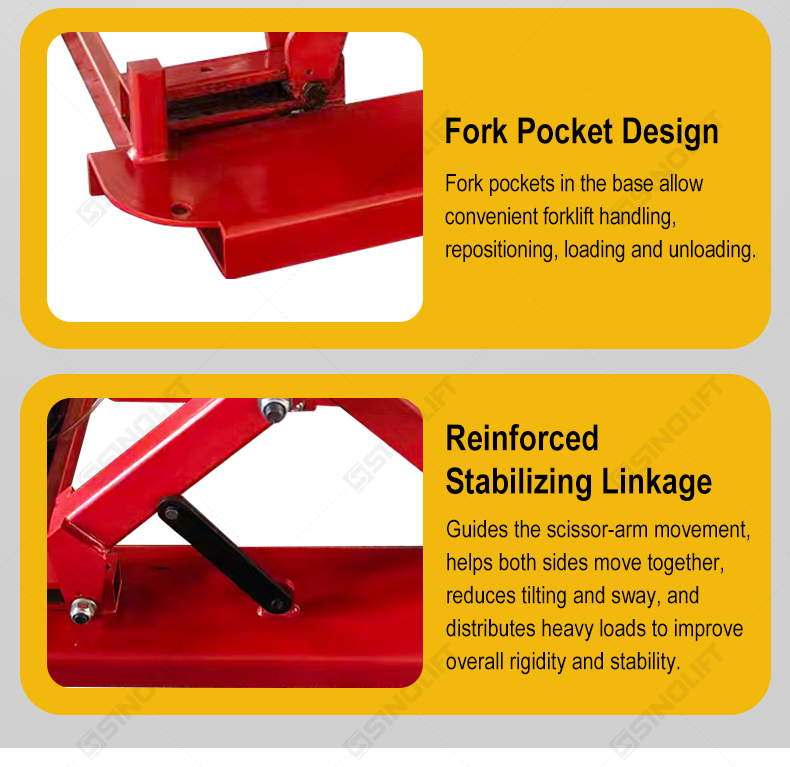

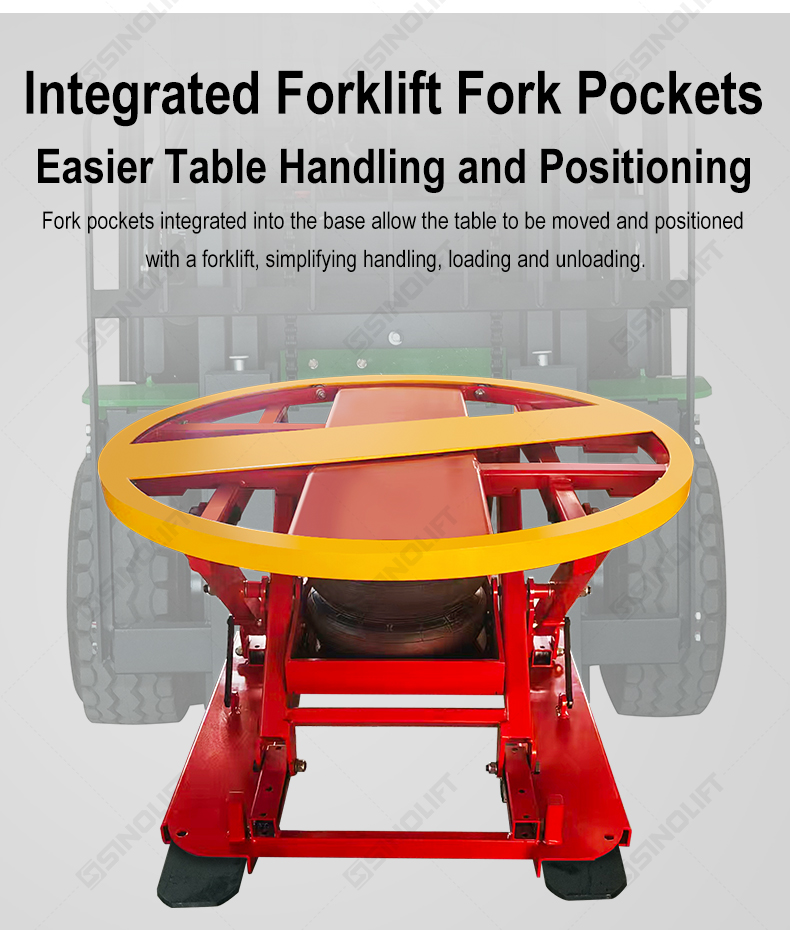

7. Integrated Forklift Pockets
Built-in forklift pockets allow convenient equipment relocation, loading, and unloading within industrial facilities.

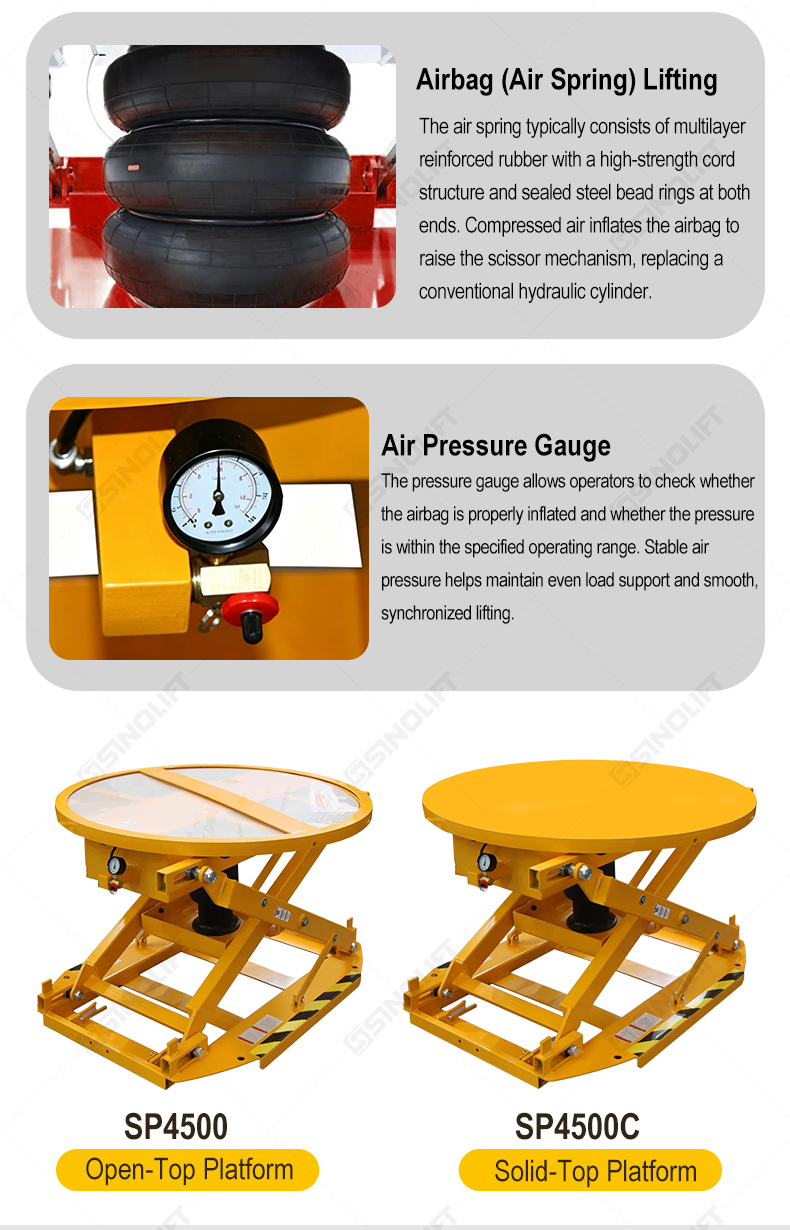

8. Air Pressure Monitoring
An integrated pressure gauge enables operators to monitor airbag pressure and maintain the specified operating range.
FAQ – Frequently Asked Questions
Q1: What is the maximum load capacity of the SP4500 pneumatic pallet positioner?
The Sinolift SP4500 and SP4500C support loads up to 2000 kg, making them suitable for heavy-duty pallet handling, packaging, and industrial material positioning.
Q2: What is the difference between the SP4500 and SP4500C?
The SP4500 features an open-top rotating platform, while the SP4500C has a solid-top platform. Both models share the same lifting range, rated load capacity, and turntable diameter.
Q3: Does the SP4500 require electricity or hydraulic power?
The SP4500 uses a pneumatic airbag lifting system instead of a conventional hydraulic cylinder. Compressed air is required for initial inflation, after which the platform can operate within its designed working range without a continuous air connection.
Q4: Can the SP4500 rotating platform turn 360 degrees?
Yes. The SP4500 series features a manually operated 360° rotating platform, allowing operators to turn palletized loads and access materials from different directions.
