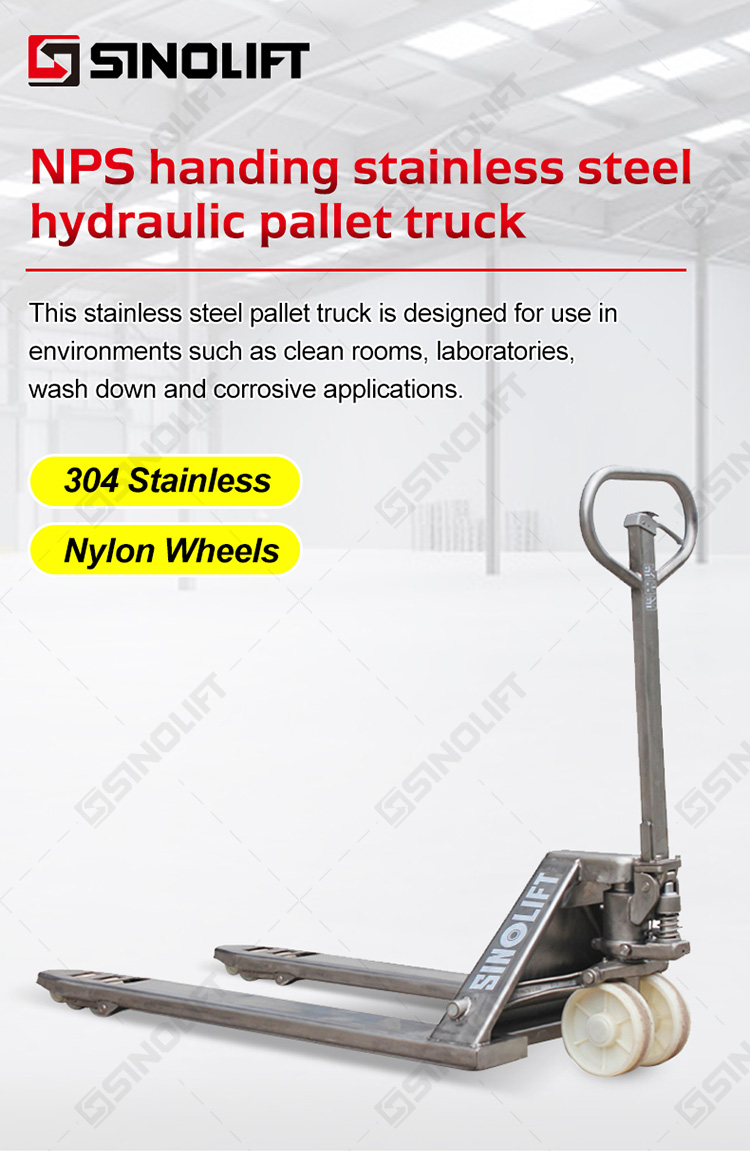

SINOLIFT NPS handing stainless steel hydraulic pallet Jack
nps
Quantity:

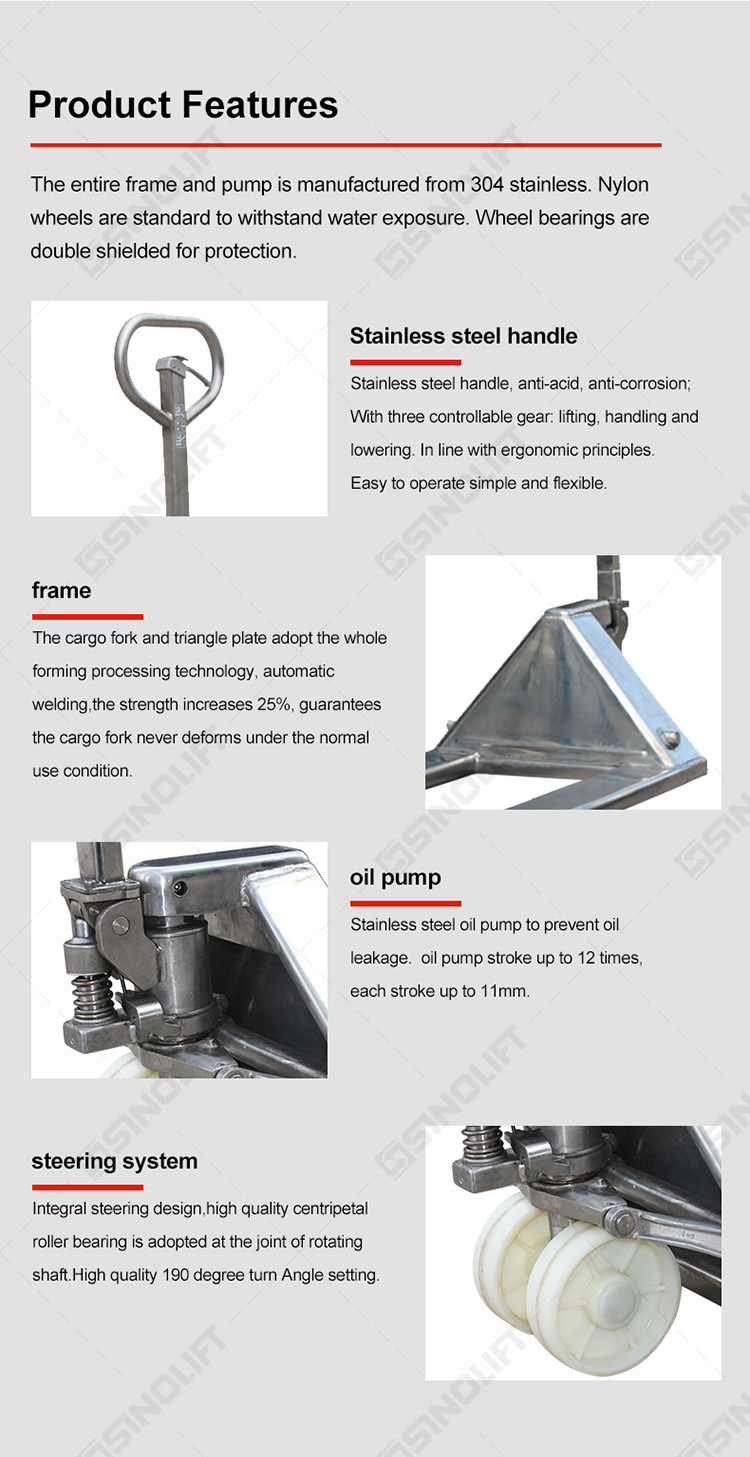

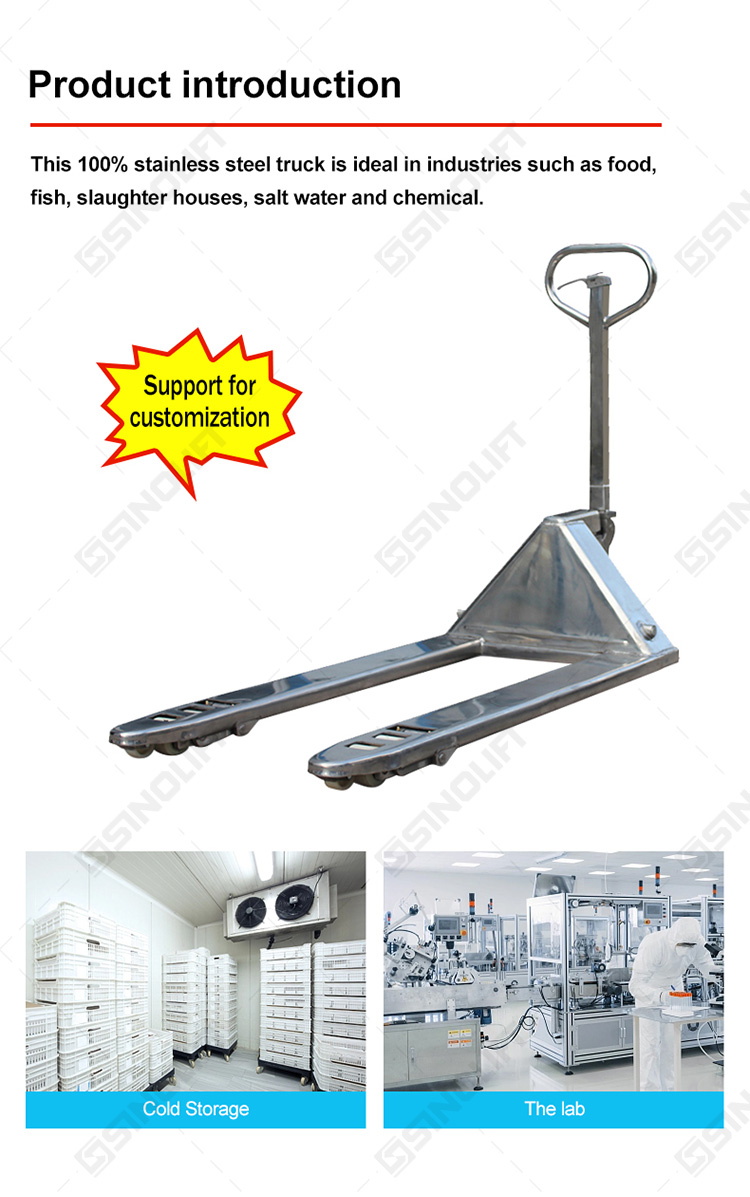

Thishydraulic pallet Jack is designed for use in environments such as clean rooms, laboratories, wash down and corrosive applications. This 100% stainless steel hydraulic pallet Jack is ideal in industries such as food, fish, slaughter houses, salt water and chemical.The entire frame and pump is manufactured from 304 stainless. Nylon wheels are standard to withstand water exposure. Wheel bearings are double shielded for protection.Capacity is 4500 lbs. Fork width is 6.25”. Steer wheels are 7” in diameter and load wheels are 2.75” in diameter. Lowered height is 3”. Entry and exit rollers standar

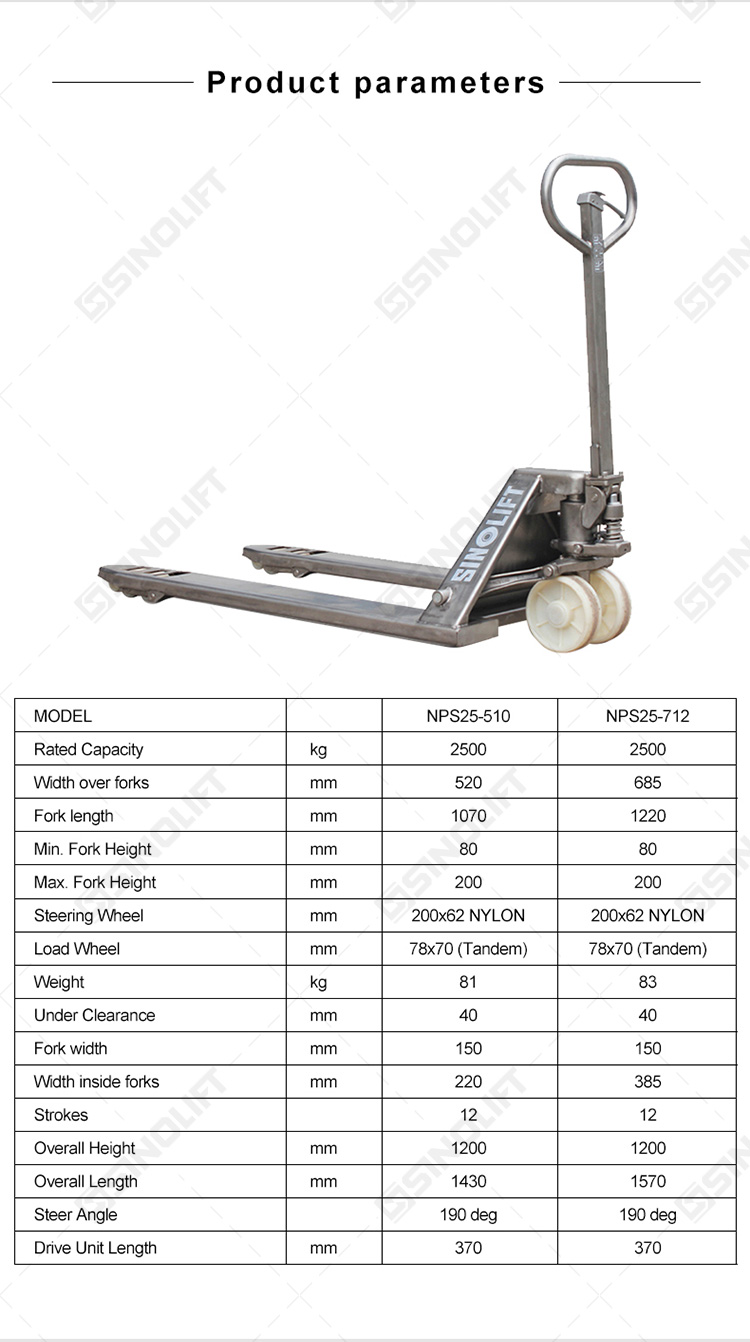

| MODEL | NPS25-511 | NPS25-712 | |
| Rated Capacity (Kg) | 2500 | 2500 | |
| Width over forks (mm) *1 | W1 | 520 | 685 |
| Fork length (mm) *1 | L1 | 1150 | 1220 |
| Min. Fork Height (mm) | H2 | 80 | 80 |
| Max. Fork Height (mm) | H1 | 200 | 200 |
| Steering Wheel (mm) | A | 200x62 NYLON | 200x62 NYLON |
| Load Wheel (mm) *2 | B | 78x70 (Tandem) | 78x70 (Tandem) |
| Weight (kg) | 80 | 83 | |
| Under Clearance (mm) | 40 | 40 | |
| Fork width (mm) | W2 | 150 | 150 |
| Width inside forks (mm) | 220 | 385 | |
| Strokes | 12 | 12 | |
| Overall Height (mm) | C | 1200 | 1200 |
| Overall Length (mm) | 1500 | 1570 | |
| Steer Angle | 230 deg | 230 deg | |
| Drive Unit Length (mm) | 370 | 370 |
