Scissors lift Pallet Jack

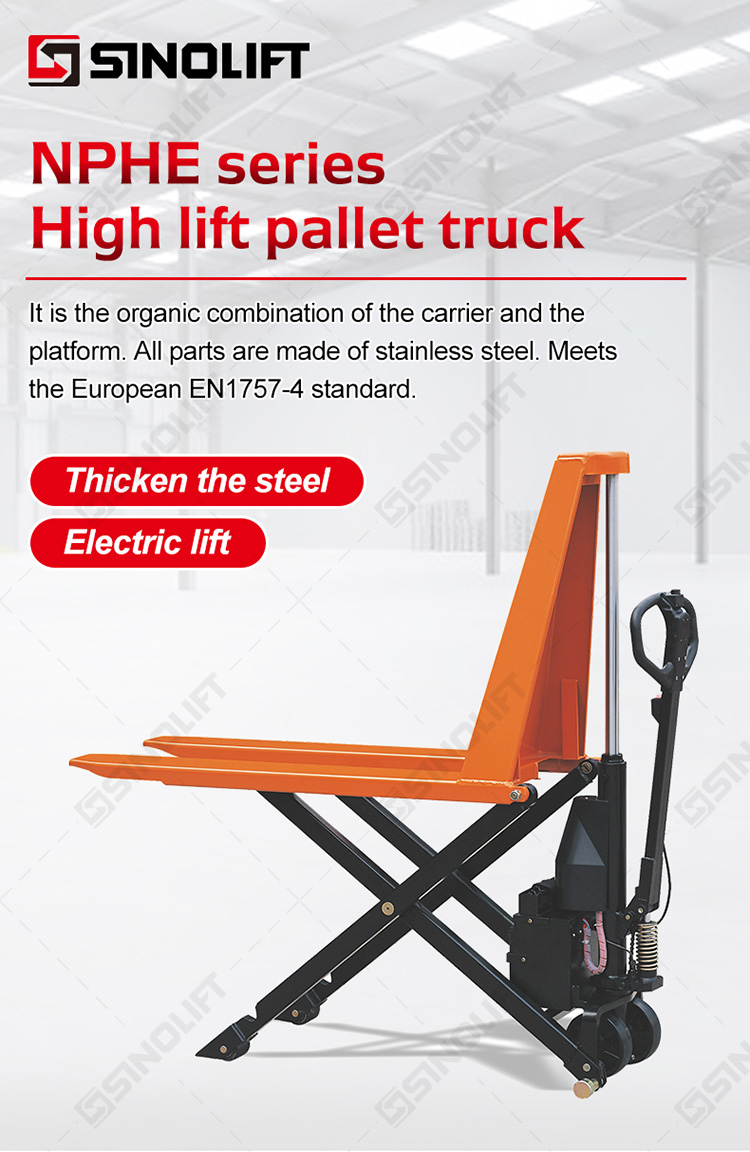

SINOLIFT NPHE electric scissors lift pallet jack

NPHE

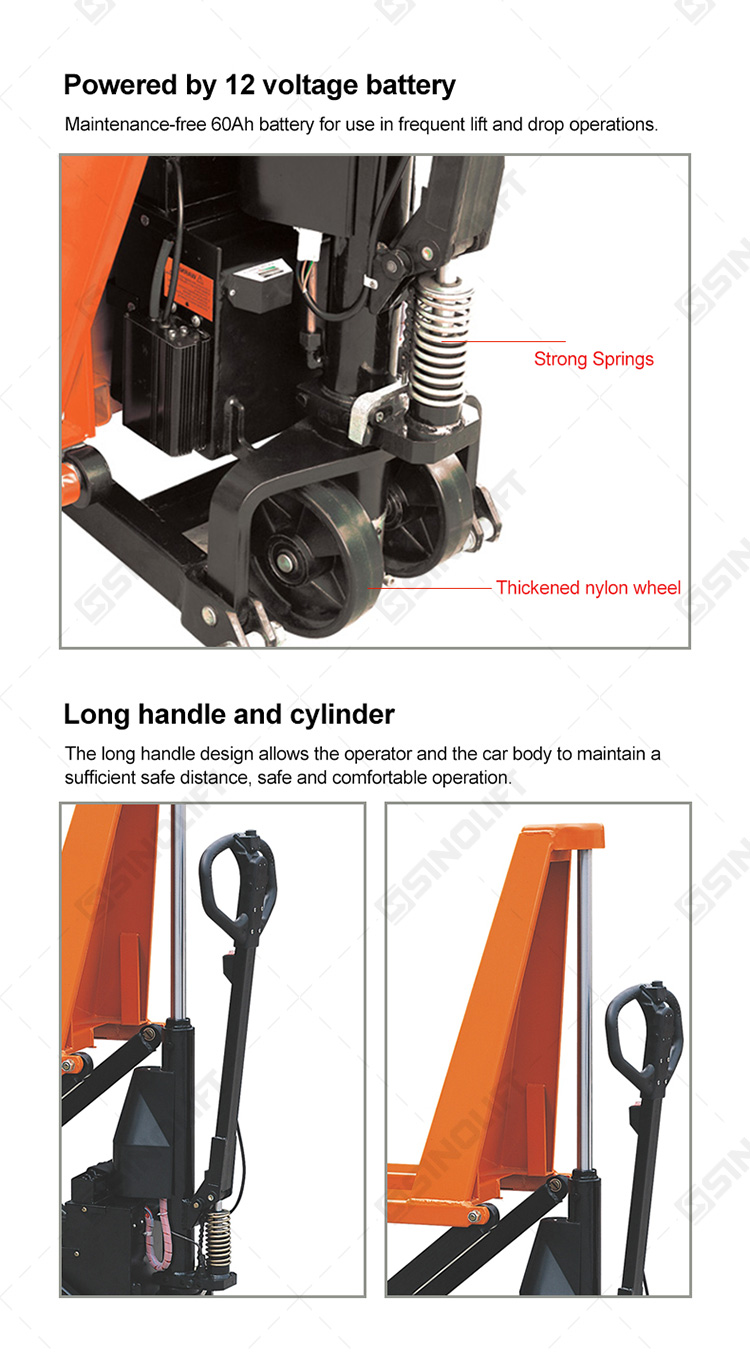

◆Powered by 12 voltage battery, Driven by American "Monarch" pump station or French "HPI" Pump station.
◆Used as both a work table and pallet truck.
◆10-12 seconds pumping from the bottom to the top.
◆safety overload system prevents the truck from being used beyond its rated capacity.
◆The Handle can be restored to its upright position automatically once you let it free.
◆Lifting motor power is: 1.1kw.
◆Easy placing of load to correct ergonomic work height
◆Easy placing of load to correct ergonomic work height.
Quantity:
Contact Now
add to cart
All Products

Used as both a work table and Scissors Pallet Jack.

safety overload system prevents the Scissors Pallet Jack from being used beyond its rated capacity.

Scissors Pallet Jacks are designed to load and unload conveyor, feed presses, or any application requiring moving and positioning pallets or containers.

Scissors Pallet Jack and Skid Lifters are an excellent way to move and handle open based pallets, gaylords, bins or wire baskets.

ModelNPHE1000NPHE1500
Capacity(kg)10001500
Lowest Fork Height(mm)8585
Max. Fork Height(mm)800800
Fork Length X Fork Width(mm)1140X520 or 1140X6801100X520 or 1100X680
Diameter of front wheel(mm)Ø75X50Ø75X50
Diameter of Rear Wheel(mm)Ø150X50Ø150X50
Lifting time in Full Range(s)10/1218
Size of Fork(mm)162X50162X50
Descending Speed(m/s)<0.1<0.1
Motor Working Voltage(v)1212
Battery Volgage(v)1212
Electricity Volume (A/h)6363
Working pressure of Pump Station(Mpa)1521
Imput/output Voltage of Charger(v)200-240/12115-230/12
Service Weight (kg)118 / 128145 / 155
Max. Charging Current of Charger(A)1010
