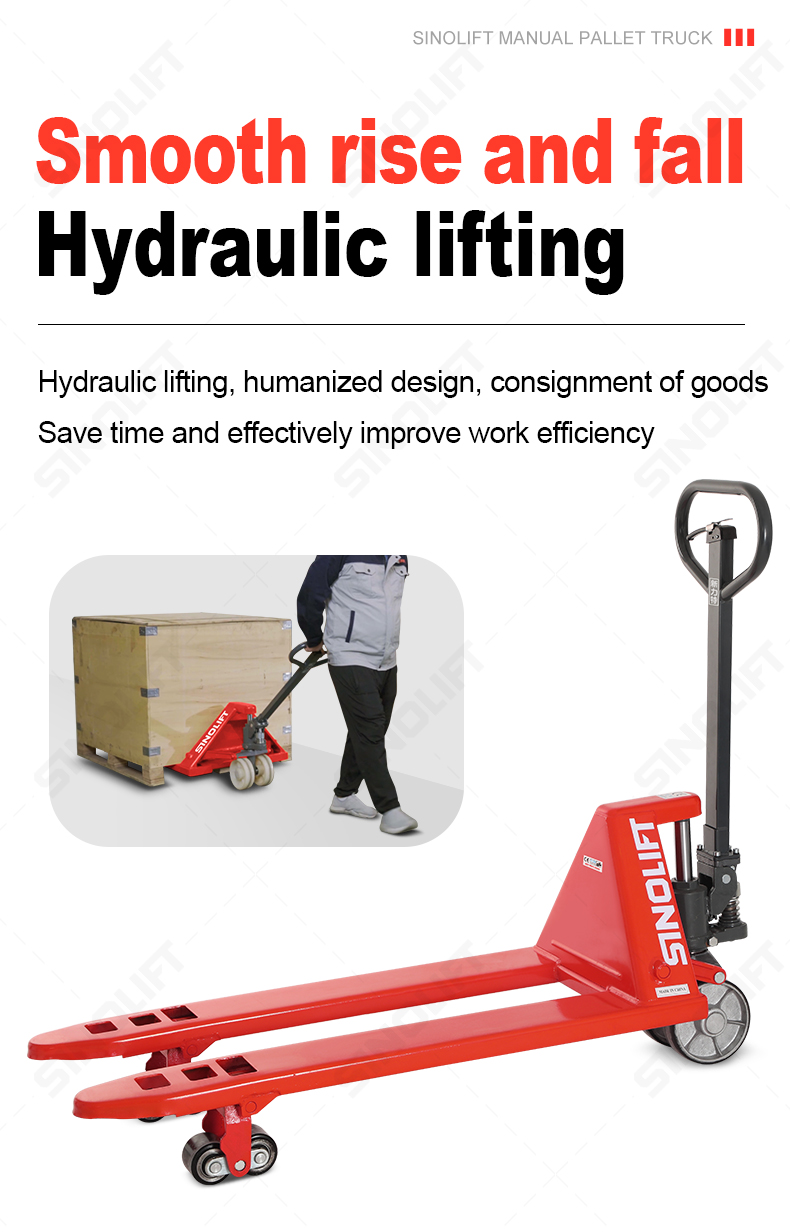

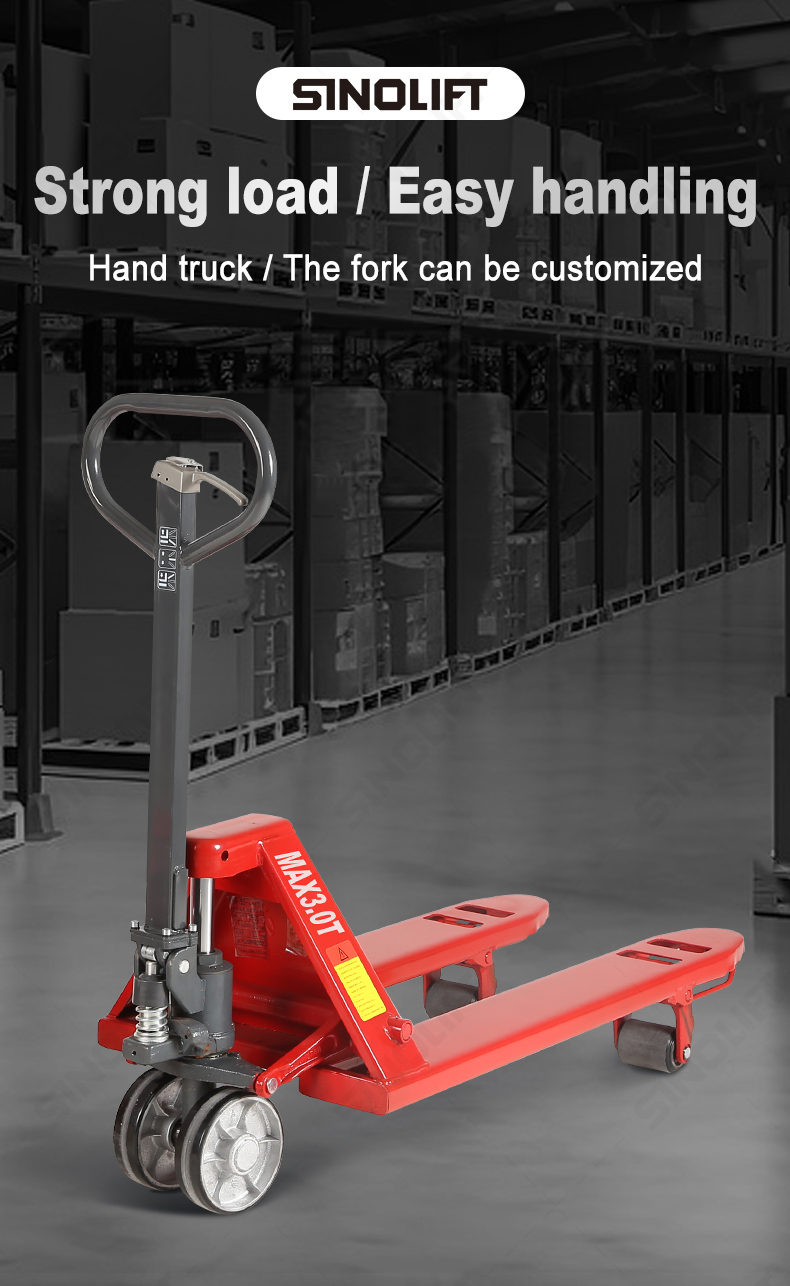

Sinolift NP hand pallet jack
NP

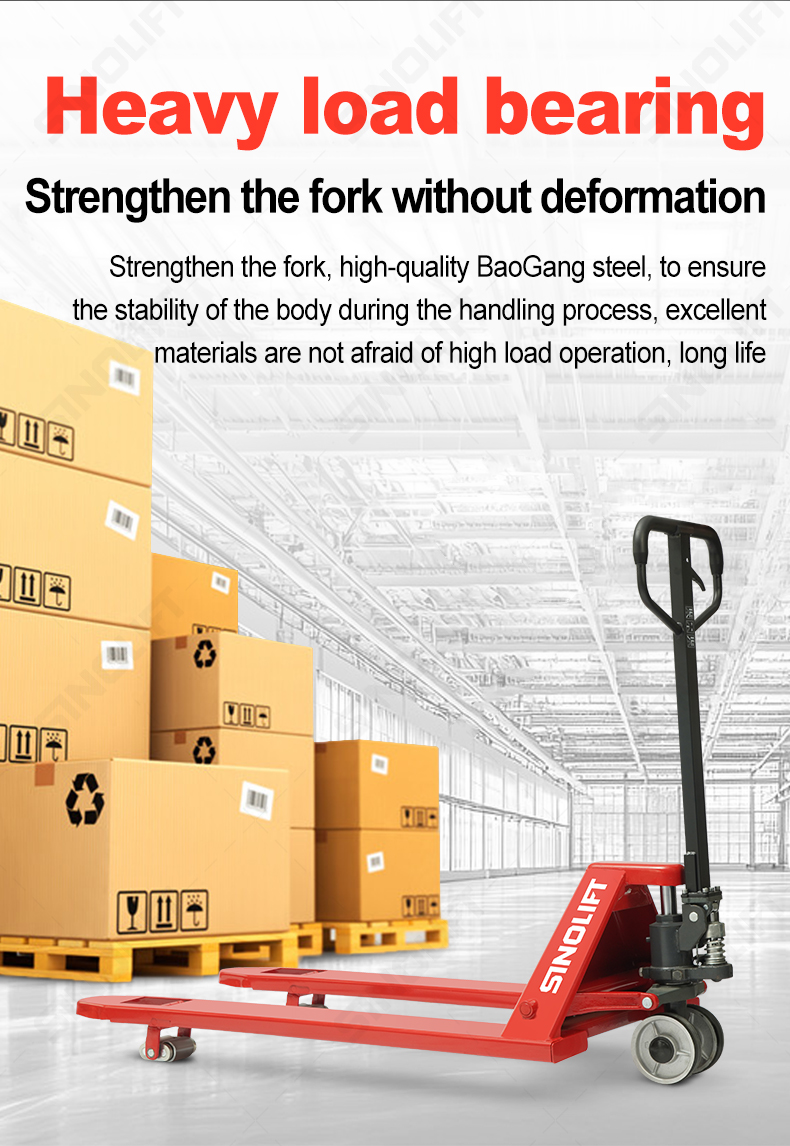

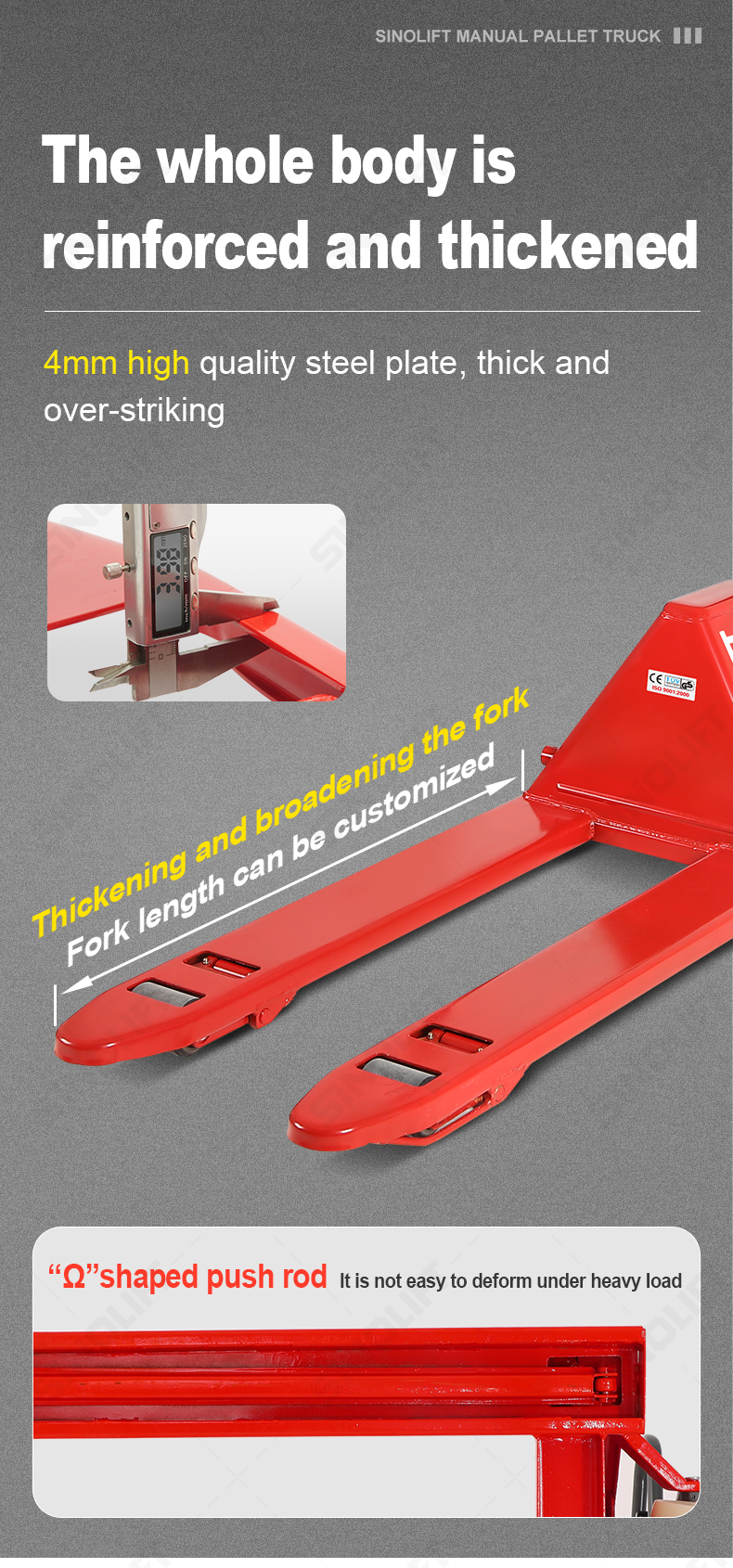

All steel plates of NP manual hydraulic Cart are Q235 manganese steel (Q235 manganese steel is the hardest steel at present) made by Shanghai Baosteel. The 1.5T to 2.5t manual hydraulic pallet Cart is made of 4MM thick steel plate, and the 3t manual hydraulic pallet Cart is made of 4.5MM thick steel plate with stiffeners at the fork and push rod. The car has a beautiful and streamlined shape, high strength, and is not easily deformed, making it one of the most classic models in China.
Quantity:
All steel plates of NP hand pallet jack are Q235 manganese steel (Q235 manganese steel is the hardest steel at present) made by Shanghai Baosteel. The 1.5T to 2.5t manual hand pallet jack is made of 4MM thick steel plate, and the 3t manual hand pallet jack is made of 4.5MM thick steel plate with stiffeners at the fork and push rod. The hand pallet jack has a beautiful and streamlined shape, high strength, and is not easily deformed, making it one of the most classic models in China.
| MODEL | NP15-511 | NP25-712 | NP30-510 | NP30-712 |
| Rated Capacity(kg) | 1500 | 2500 | 3000 | 3000 |
| Width across forks(mm) | 550 | 685 | 520 | 685 |
| Fork Length(mm) | 1150 | 1220 | 1070 | 1220 |

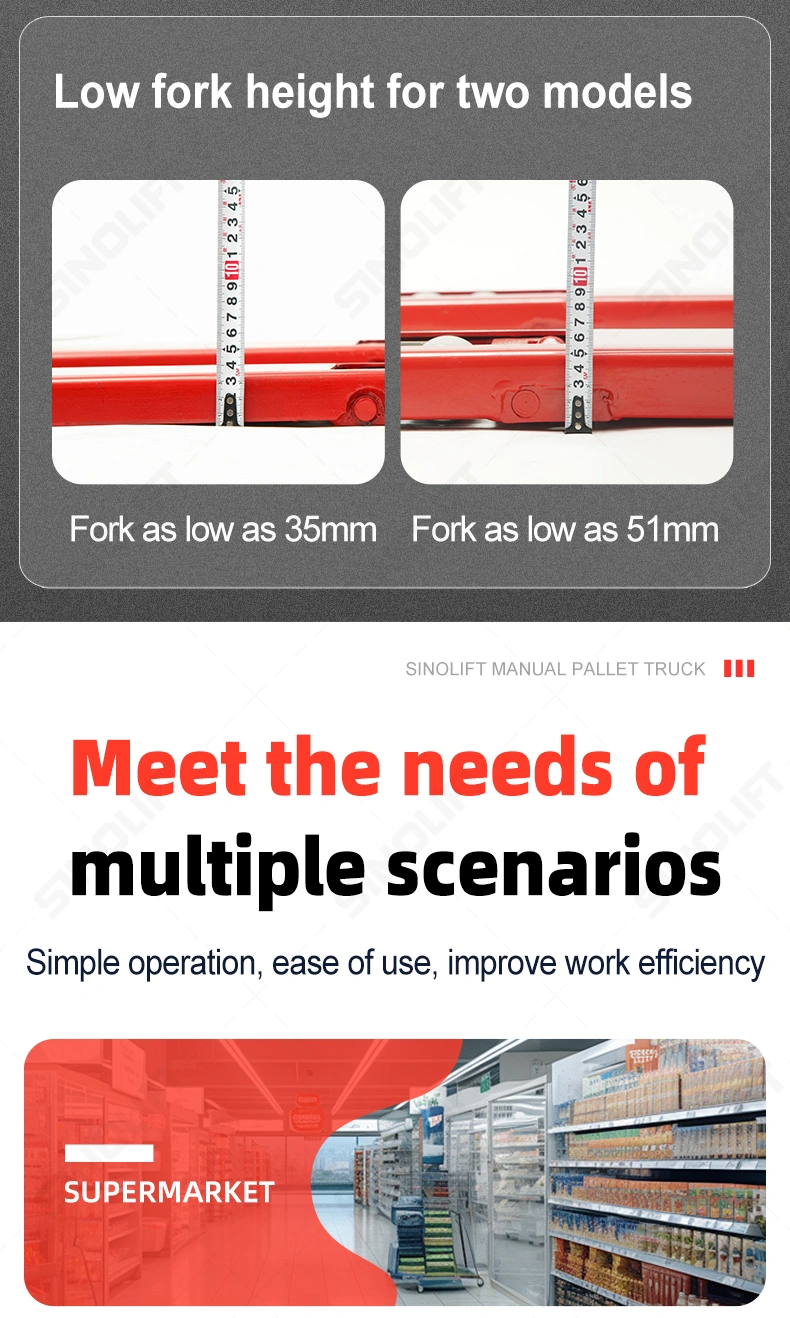

| Lowered fork height (Min)(mm) | 80 | 80 | 80 | 80 |
| Total lift height (Max)(mm) | 200 | 200 | 200 | 200 |

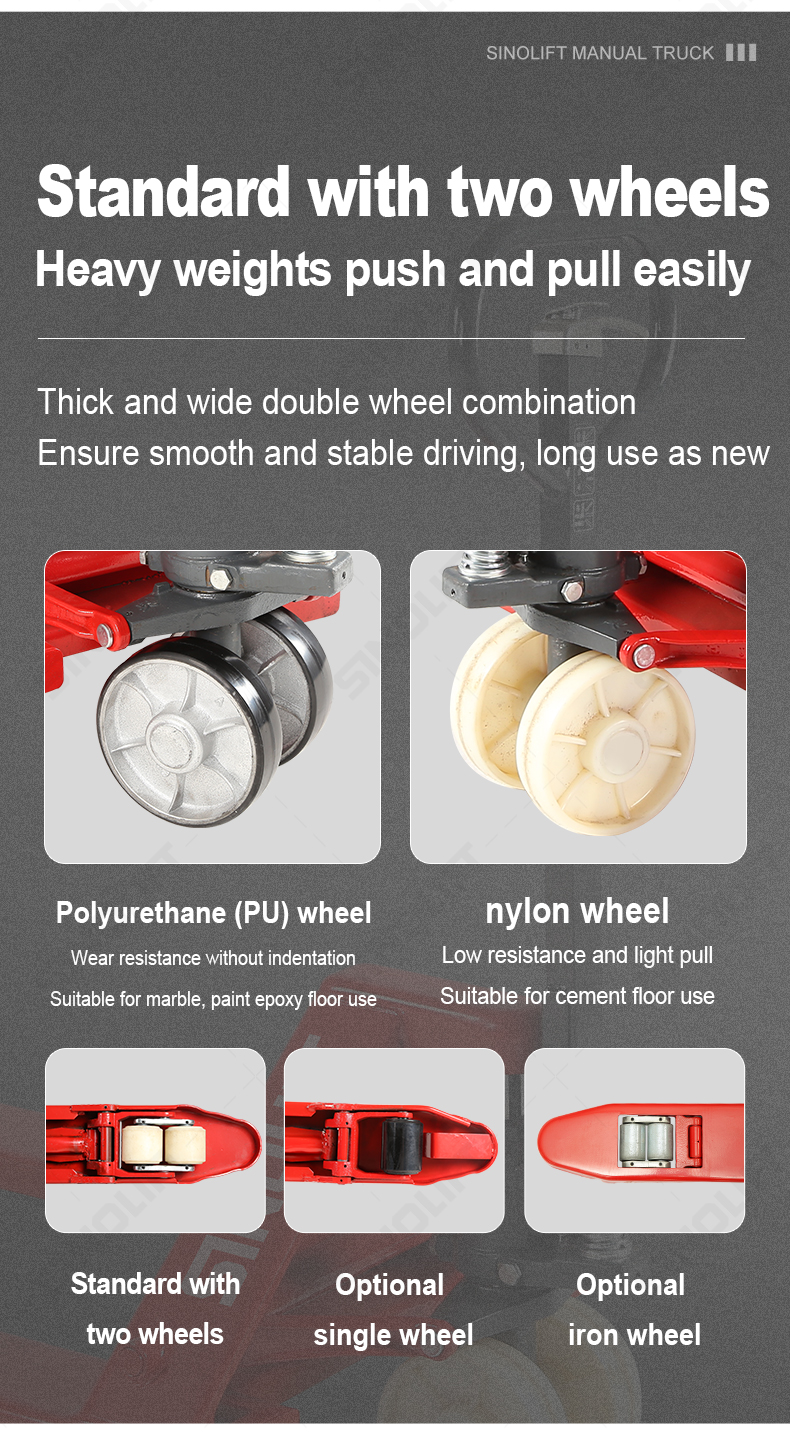

| Steering Wheels | ф180 (Rubber or Poly) | 180x62 Polyurethane | 180x62 Polyurethane | 180x62 Polyurethane |
| Fork Wheels | 78ф80 (Polyurethane in double) or 78*100 (Polyurethane in Single) | Ø78x100 (Single) | Ø78x100 (Single) or Ø78x70 (Tandem) | |
| Weight (kg) | 78 | 80 | 78 | 85 |
