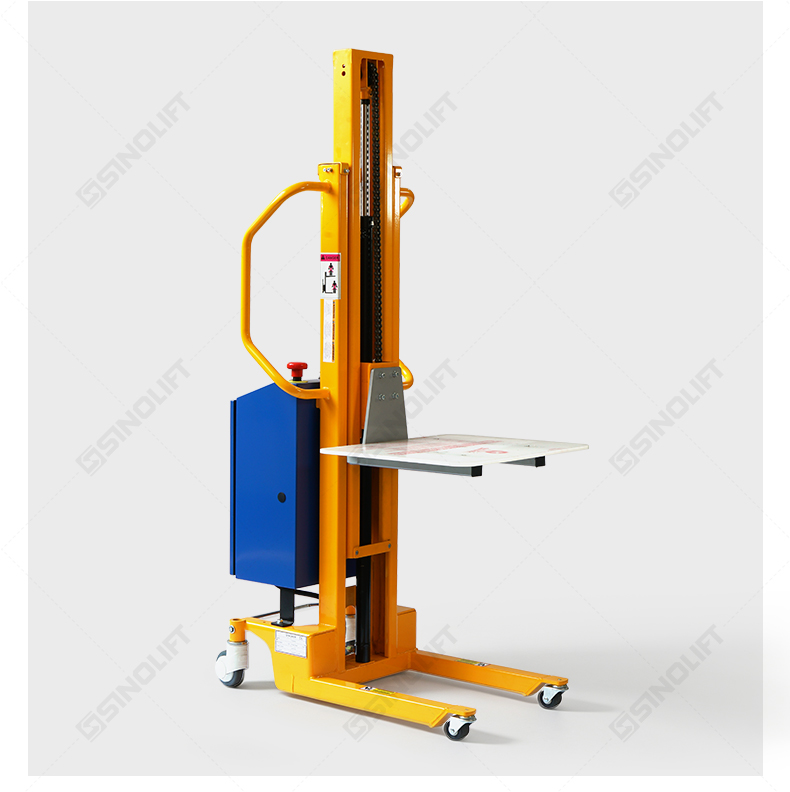

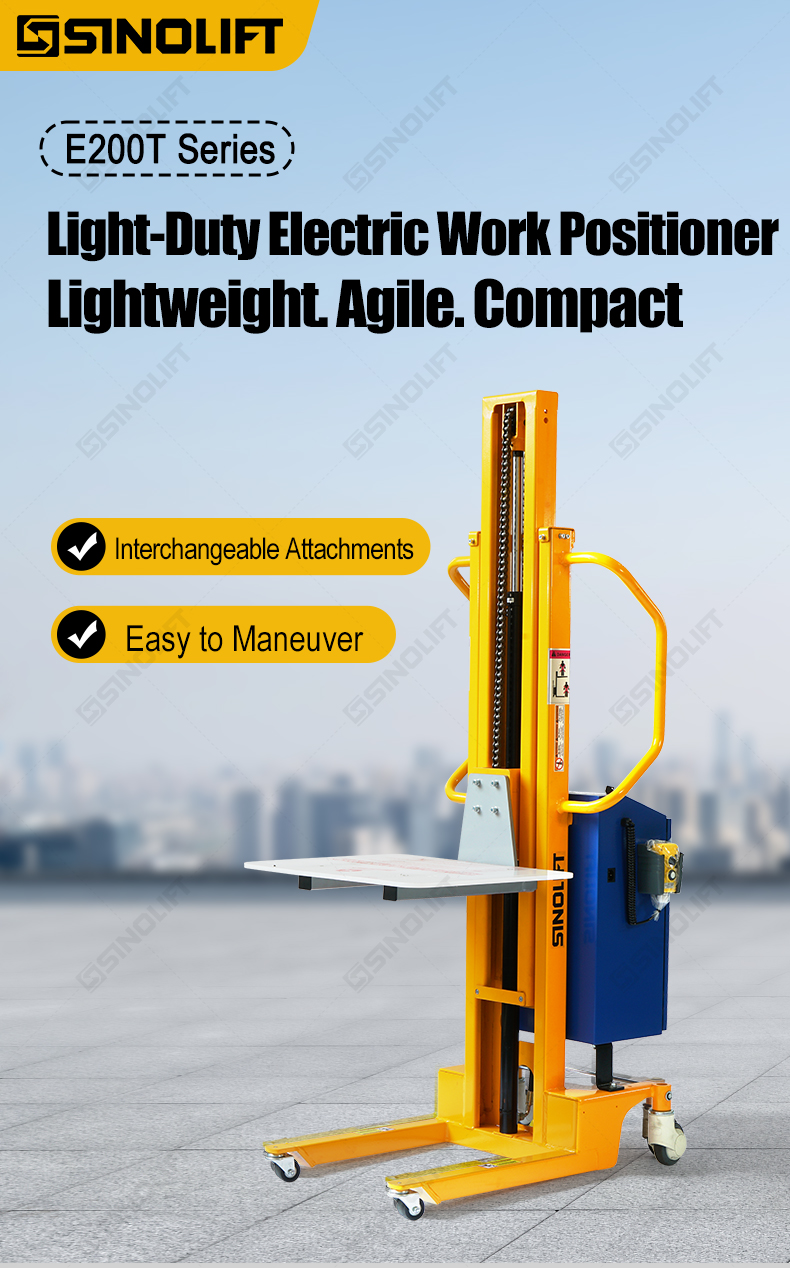

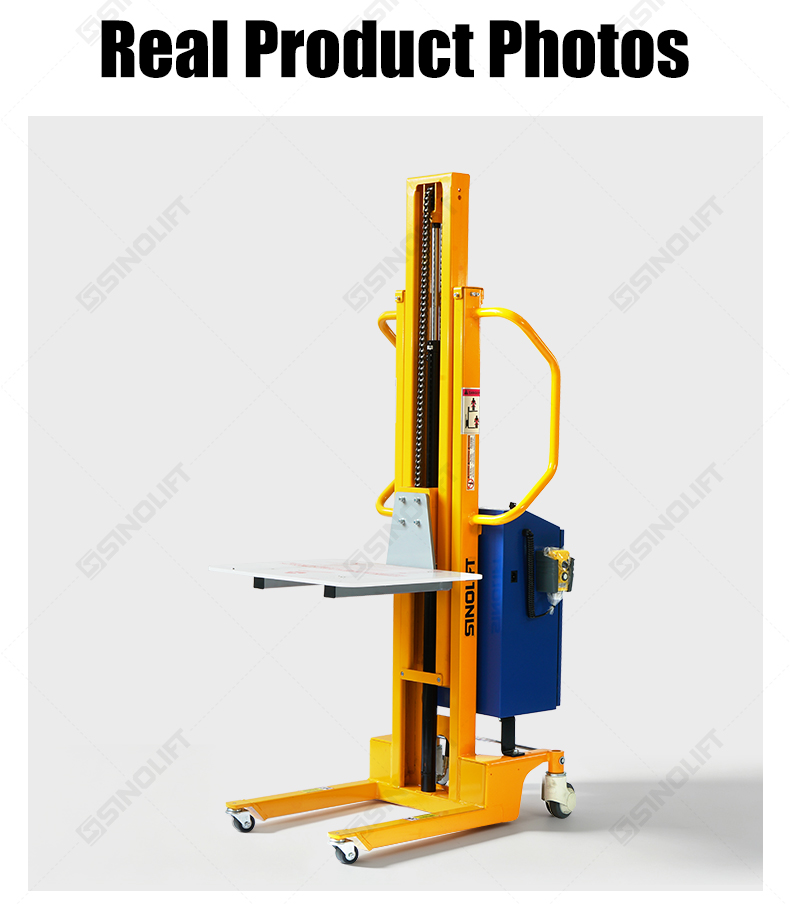

Sinolift E200T Light-Duty Electric Work Positioner with Interchangeable Attachments
Designed to simplify everyday lifting and positioning of light loads, the E200T series provides a compact solution for work areas where space and flexibility matter. Operators can push the unit into place and raise or lower loads electrically using simple push-button controls, reducing manual lifting effort. Interchangeable attachments, including a platform, adjustable forks, a tote box, and an expanding roll turner, allow the equipment to adapt to different materials and workflows. With custom configurations available, it is suited to warehouses, workshops, packing stations, and light industrial production areas.

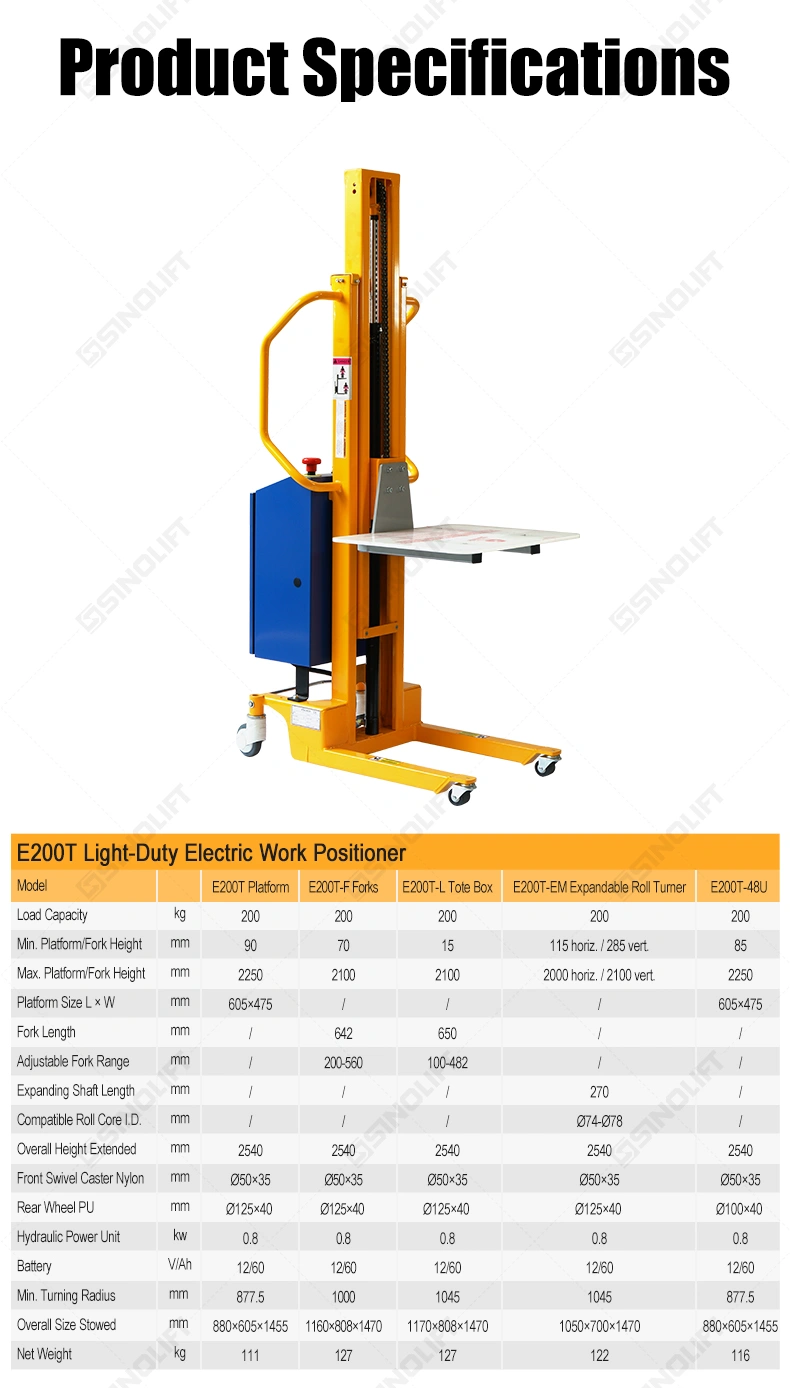

| E200T Light-Duty Electric Work Positioner | ||||||
| Specification | Unit | E200T Platform | E200T-F Forks | E200T-L Tote | E200T-EM Turner | E200T-48U |
| Load Capacity | kg | 200 | 200 | 200 | 200 | 200 |
| Min. Platform/Fork Height | mm | 90 | 70 | 15 | 115 horiz. / 285 vert. | 85 |
| Max. Platform/Fork Height | mm | 2250 | 2100 | 2100 | 2000 horiz. / 2100 vert. | 2250 |
| Platform Size L x W | mm | 605 x 475 | - | - | - | 605 x 475 |
| Fork Length | mm | - | 642 | 650 | - | - |
| Adjustable Fork Range | mm | - | 200-560 | 100-482 | - | - |
| Expanding Shaft Length | mm | - | - | - | 270 | - |
| Compatible Roll Core I.D. | mm | - | - | - | Ø74-Ø78 | - |
| Overall Height Extended | mm | 2540 | 2540 | 2540 | 2540 | 2540 |
| Front Swivel Caster Nylon | mm | Ø50 x 35 | Ø50 x 35 | Ø50 x 35 | Ø50 x 35 | Ø50 x 35 |
| Rear Wheel PU | mm | Ø125 x 40 | Ø125 x 40 | Ø125 x 40 | Ø125 x 40 | Ø100 x 40 |
| Hydraulic Power Unit | kW | 0.8 | 0.8 | 0.8 | 0.8 | 0.8 |
| Battery | V/Ah | 12/60 | 12/60 | 12/60 | 12/60 | 12/60 |
| Min. Turning Radius | mm | 877.5 | 1000 | 1045 | 1045 | 877.5 |
| Overall Size Stowed | mm | 880 x 605 x 1455 | 1160 x 808 x 1470 | 1170 x 808 x 1470 | 1050 x 700 x 1470 | 880 x 605 x 1455 |
| Net Weight | kg | 111 | 127 | 127 | 122 | 116 |
KEY FEATURES OVERVIEW
• Effort-Saving Electric Lifting: Push-button lift and lower controls make repetitive positioning easier without requiring manual lifting of the load.

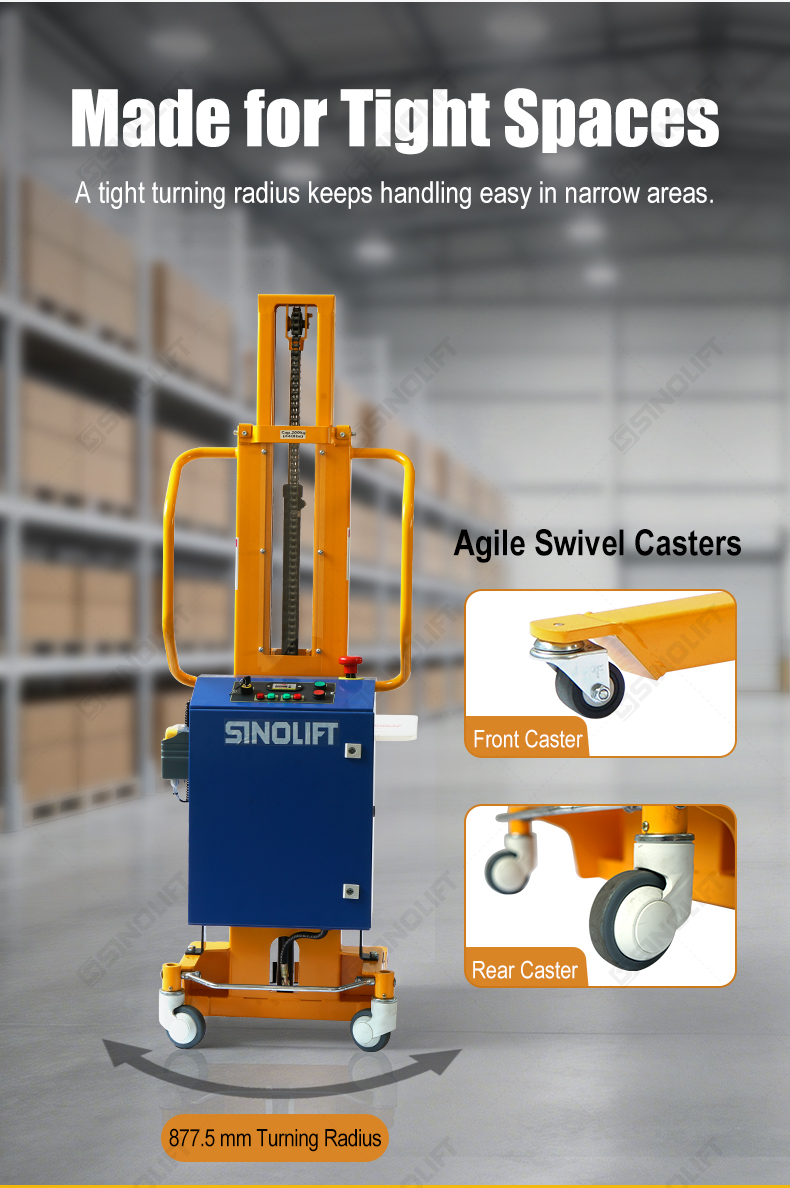

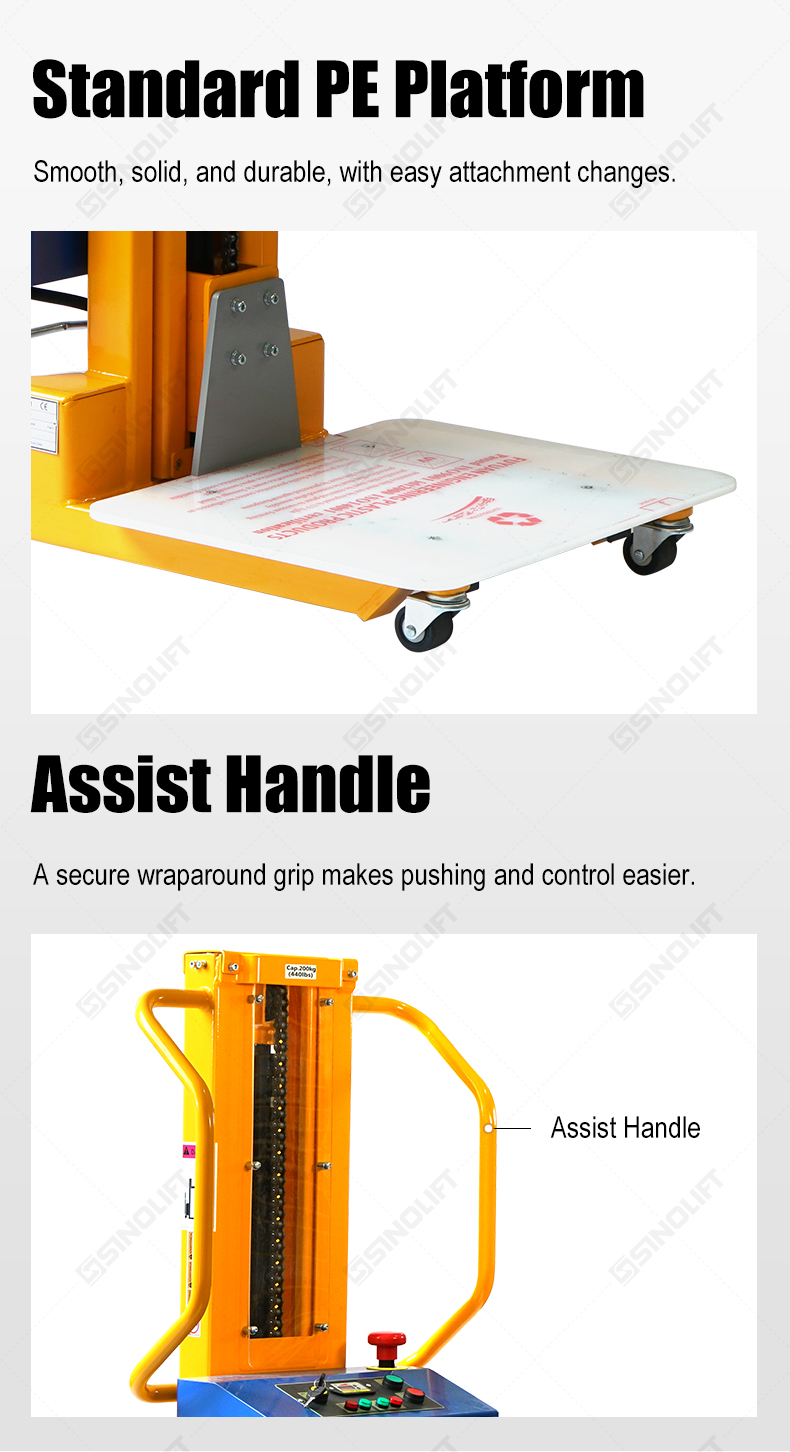

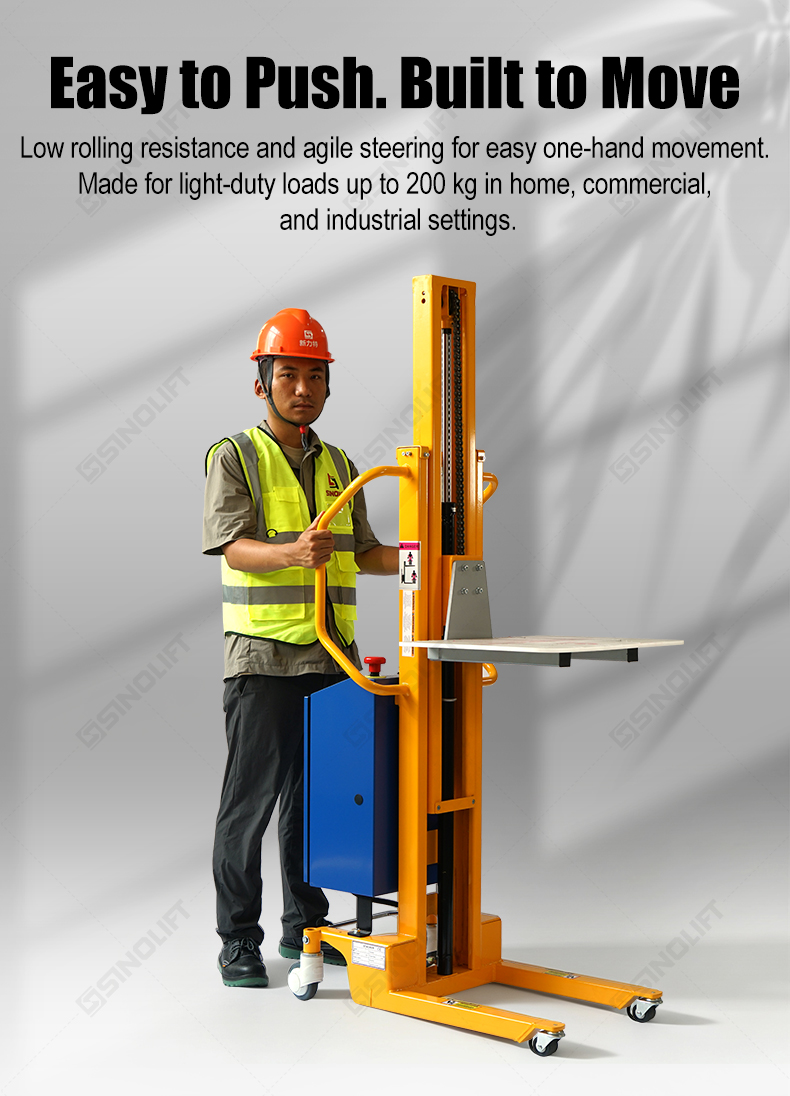

• Compact, Easy-to-Maneuver Design: A narrow frame, swivel casters, and an assist handle help operators move and position the unit in tight work areas.

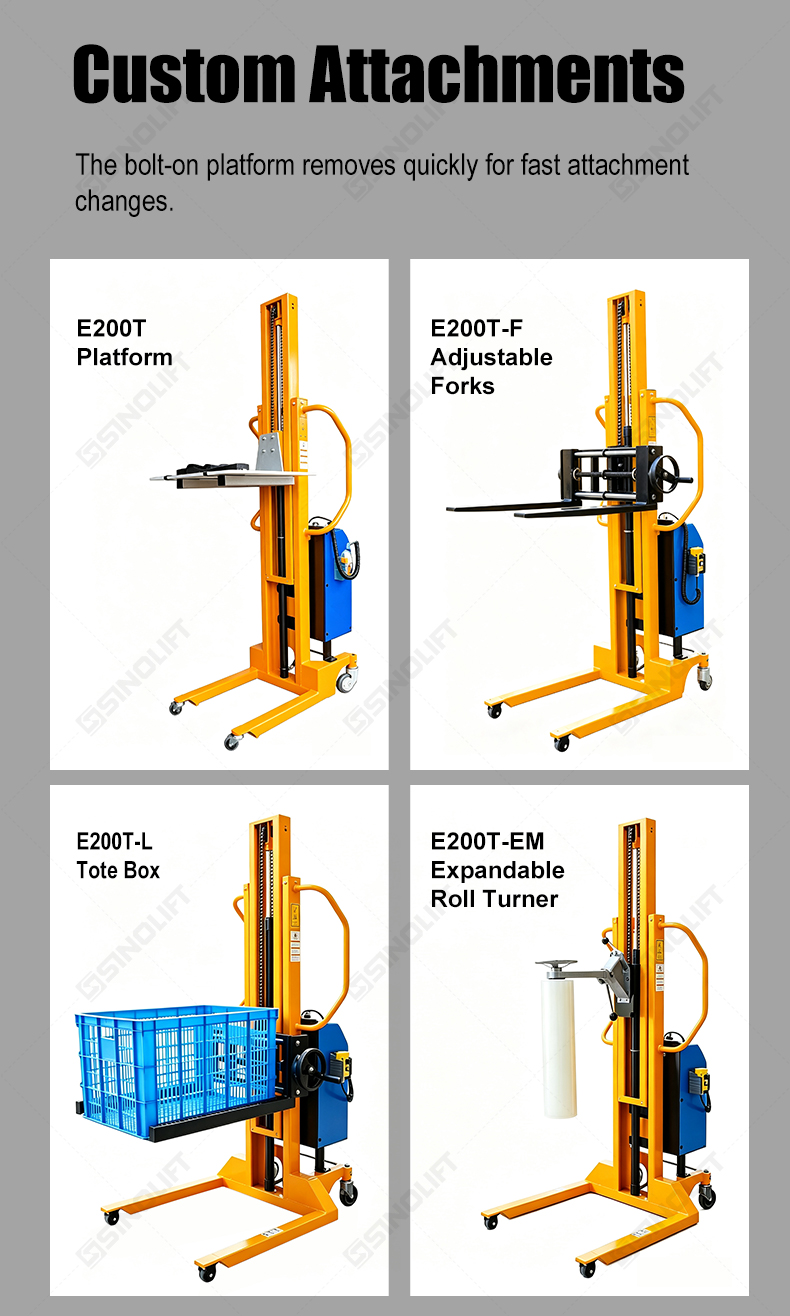

• Interchangeable Attachments: Bolt-on attachment options include a platform, adjustable forks, tote box, and expanding roll turner for different handling tasks.

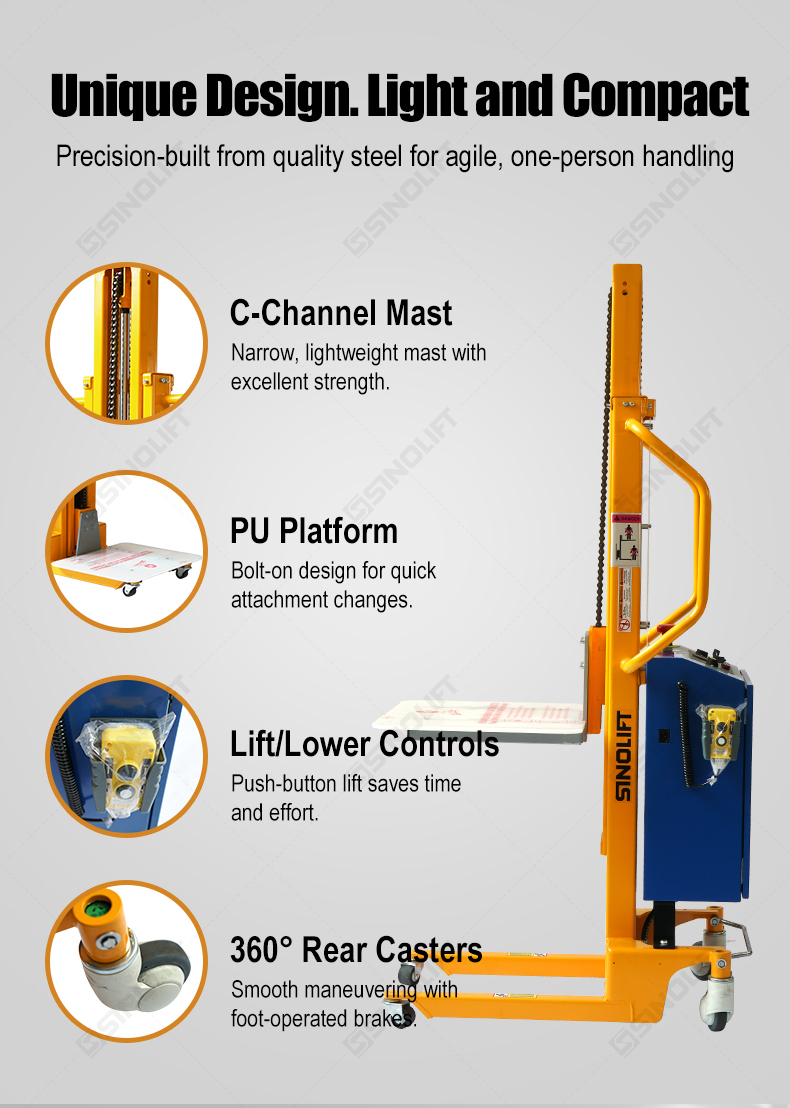

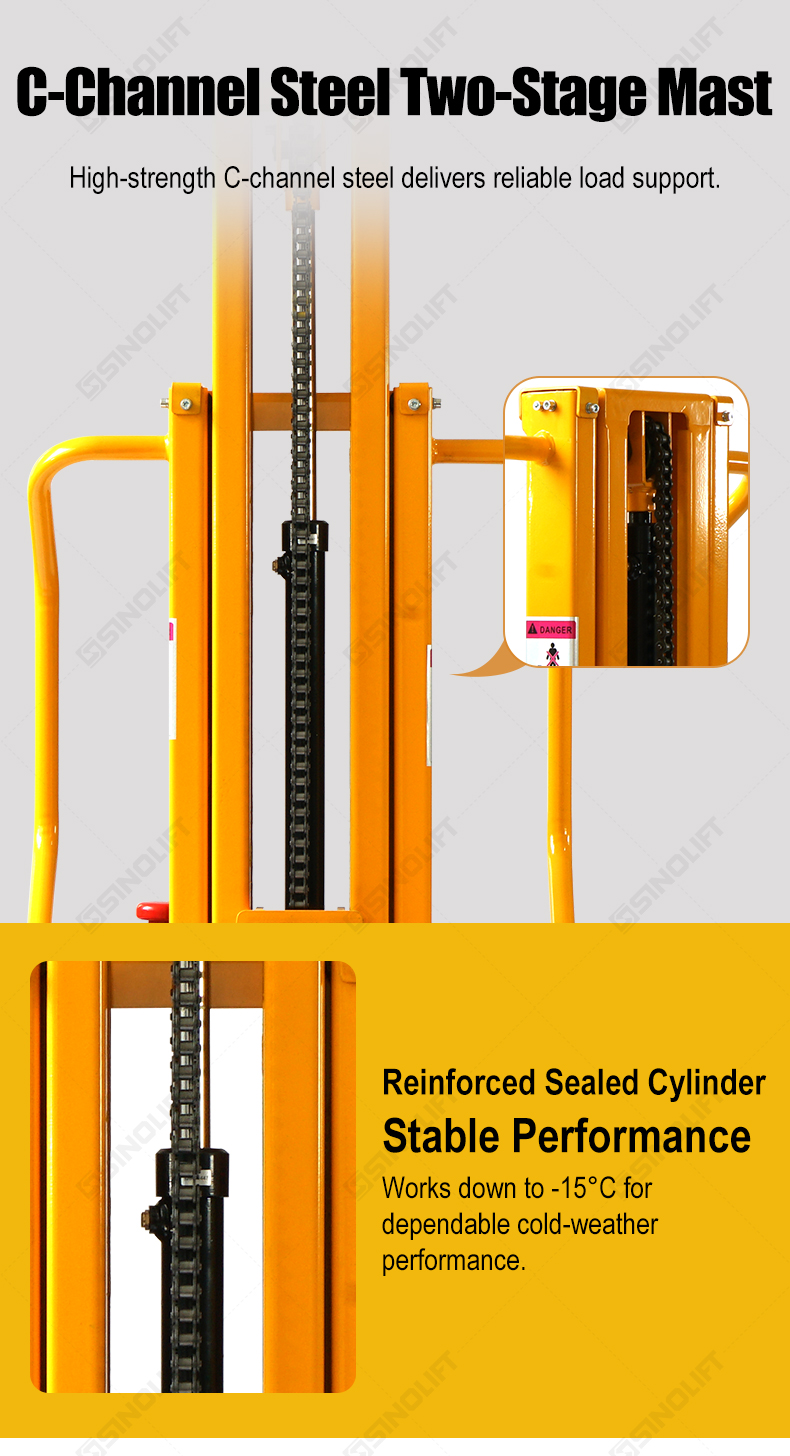

• Reinforced Mast Structure: A C-channel steel mast and reinforced construction provide reliable support for light-duty lifting operations.

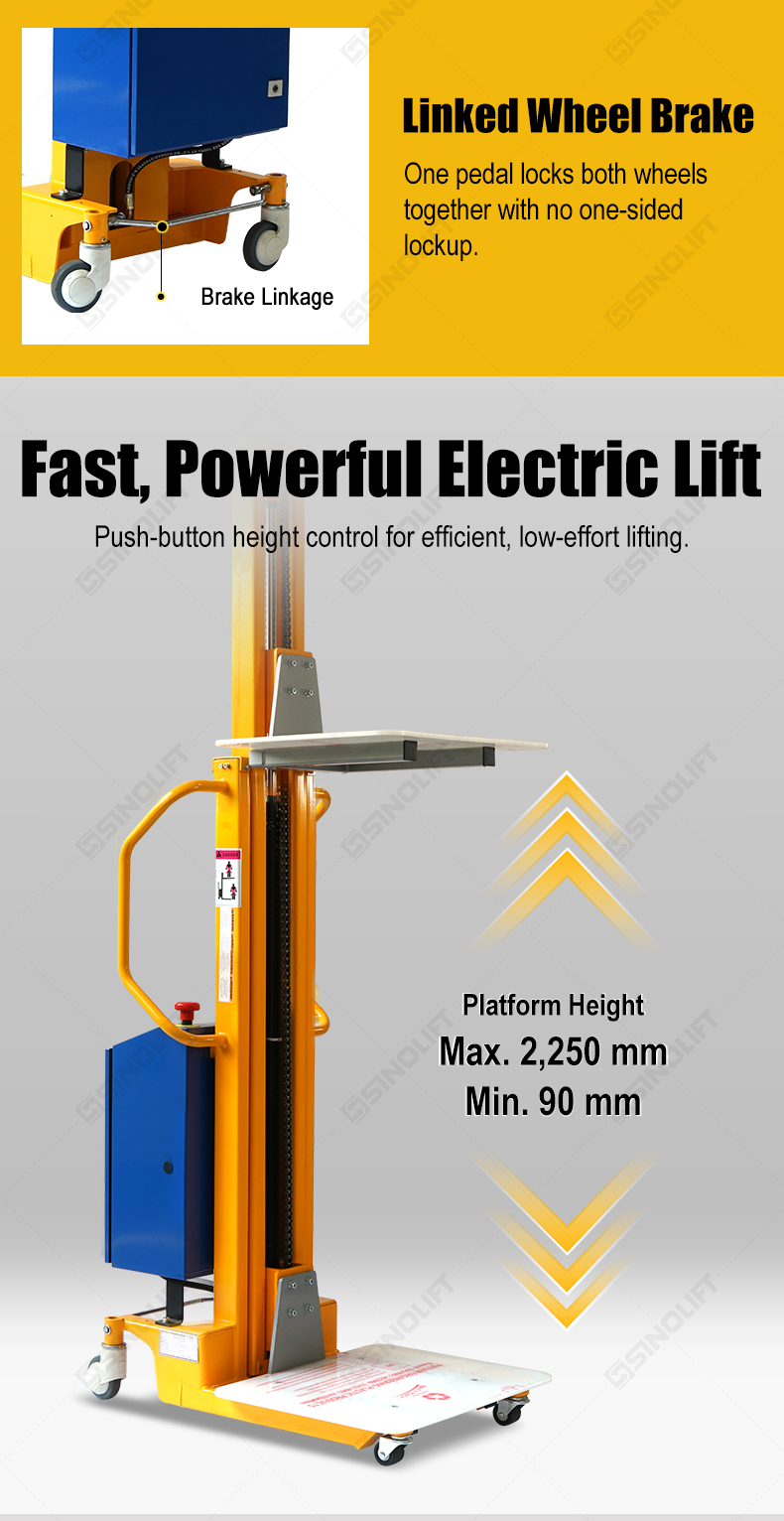

• Linked Wheel Braking: A foot-operated linked brake secures both rear wheels together when the work positioner is parked for handling.

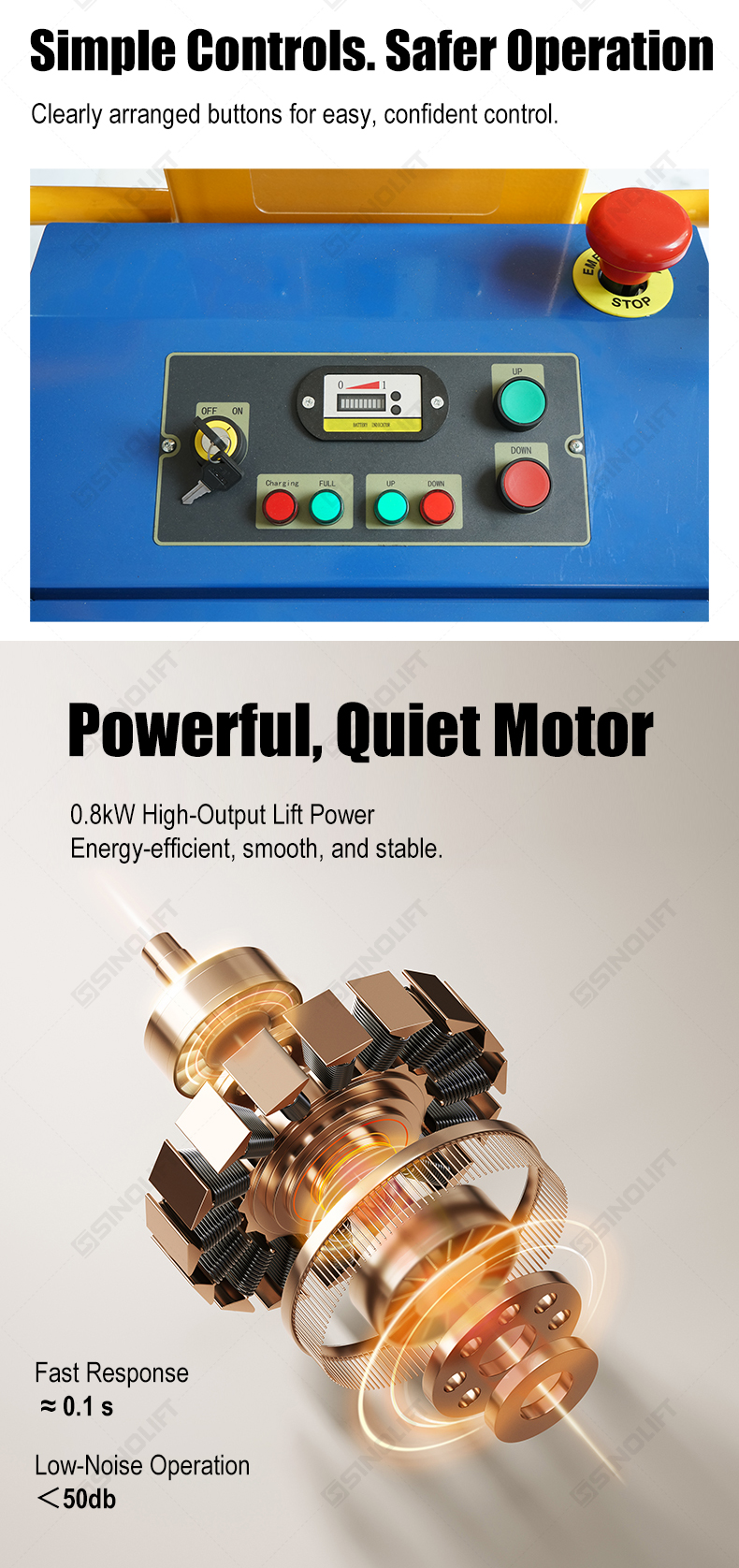

• Simple, Operator-Friendly Controls: Clearly arranged lift and lower buttons support straightforward operation and more controlled load positioning.
• Custom Configurations Available: Attachments and working requirements can be reviewed to create a practical solution for your load shape and workspace
FREQUENTLY ASKED QUESTIONS
Q1. Is the E200T fully electric, or does it need to be pushed manually?
The E200T uses an electric hydraulic power unit to raise and lower the load, but travel is manual: the operator pushes the unit between workstations. It is not a self-propelled electric stacker, so consider travel distance, floor conditions, and maneuvering space when selecting it.
Q2. How do I choose the right attachment for my materials?
The platform is suitable for stable, flat-bottomed items, while adjustable forks can be used when the load has appropriate fork-entry support. Tote box and expanding roll turner configurations serve more specific handling tasks; the load dimensions, support points, and roll core size (where applicable) should be checked before ordering.
Q3. What are the lifting capacity and maximum lifting height of the E200T?
The listed E200T configurations are rated for loads up to 200 kg, but the available working heights vary by model and attachment. For example, the standard platform version has a maximum platform height of 2,250 mm, while the fork and tote versions reach 2,100 mm; confirm the chosen configuration and load stability against the specification sheet.
