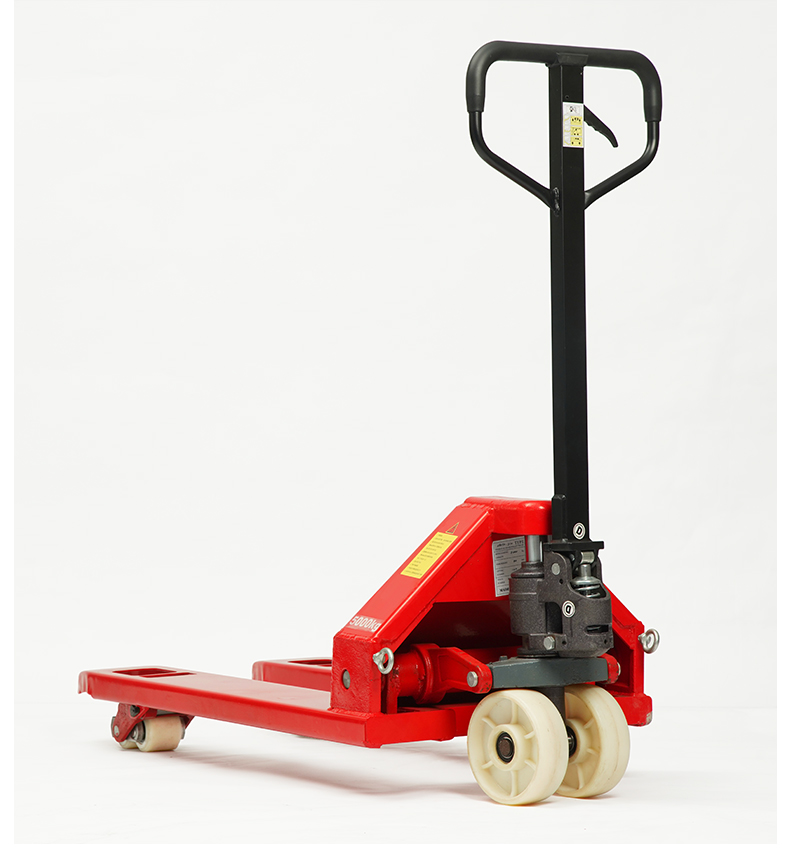

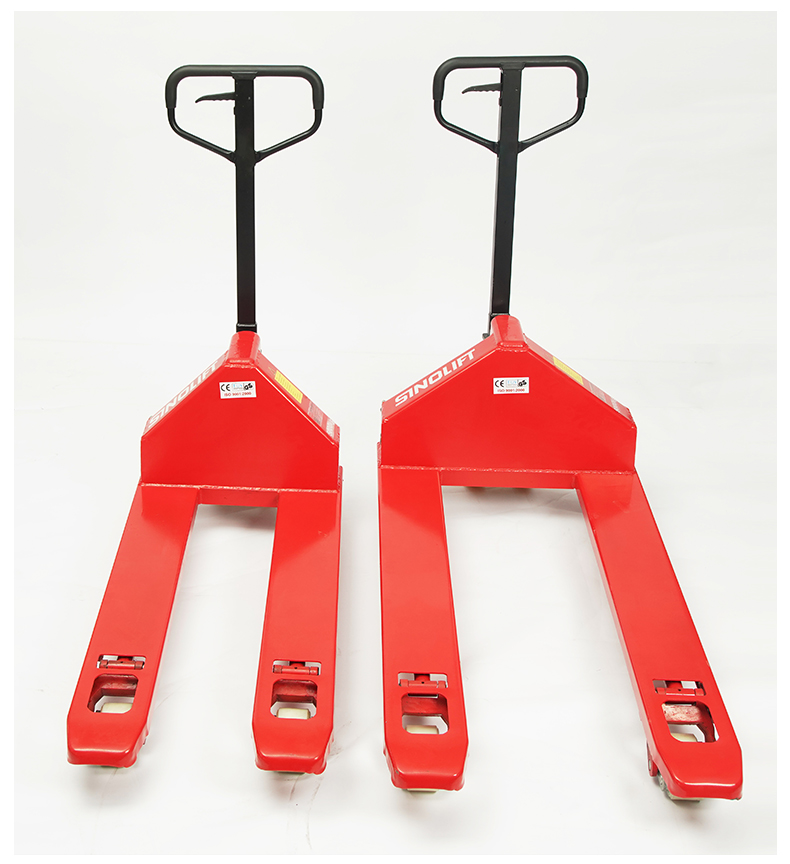

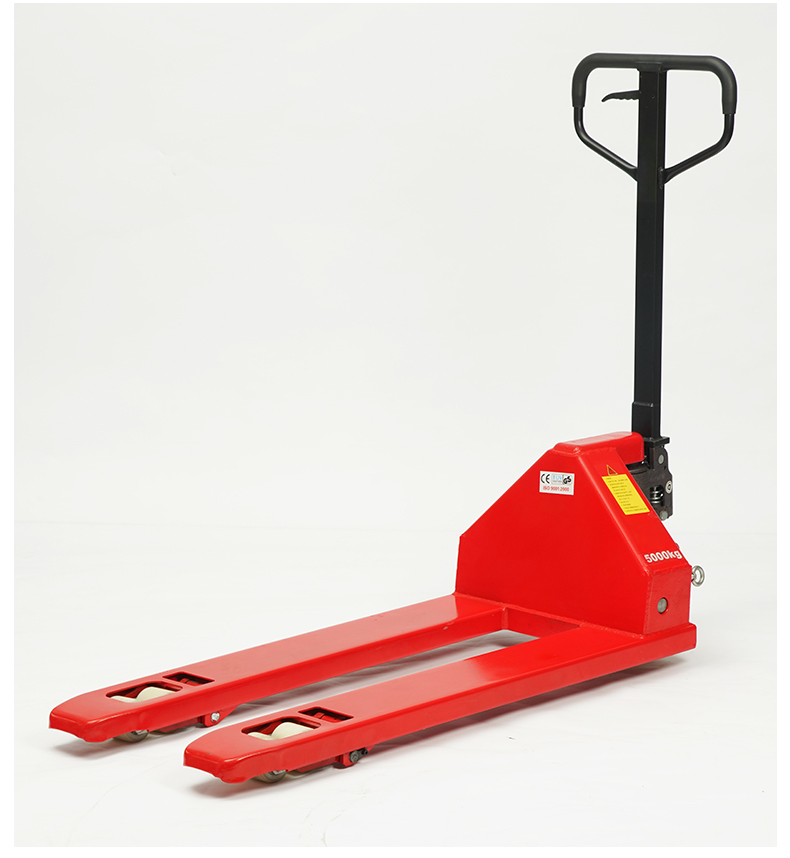

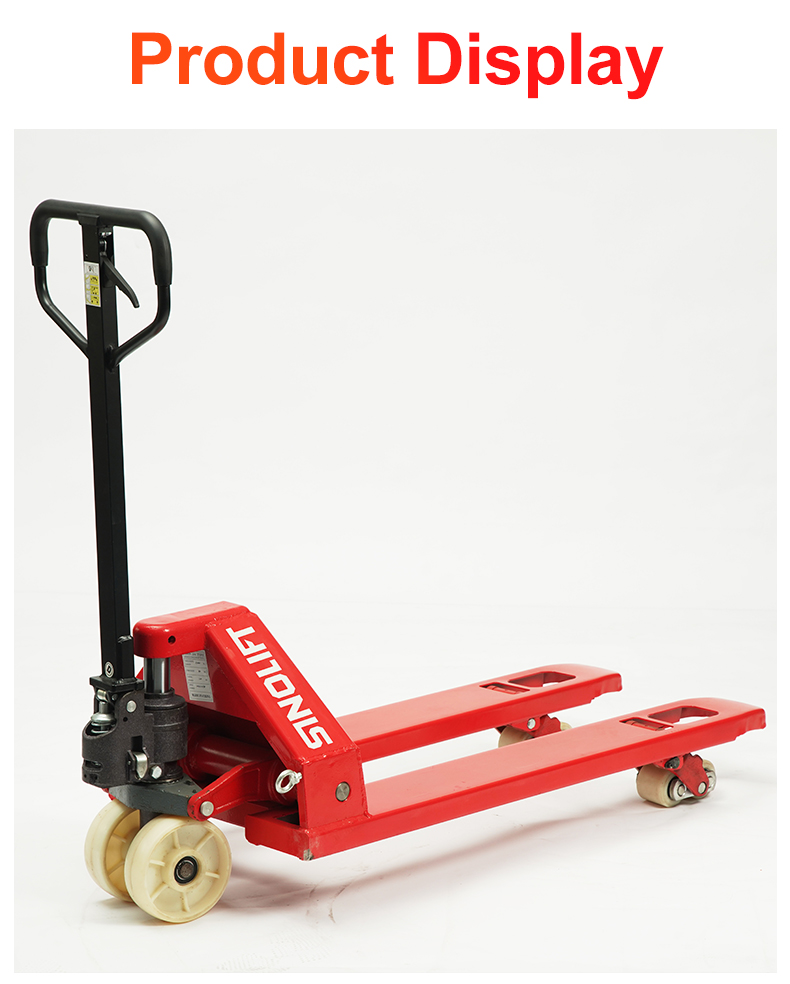

Sinolift china NAV50 heavy loads hand pallet jack with easy handling/high-quality oil pump
NAV50
Quantity:

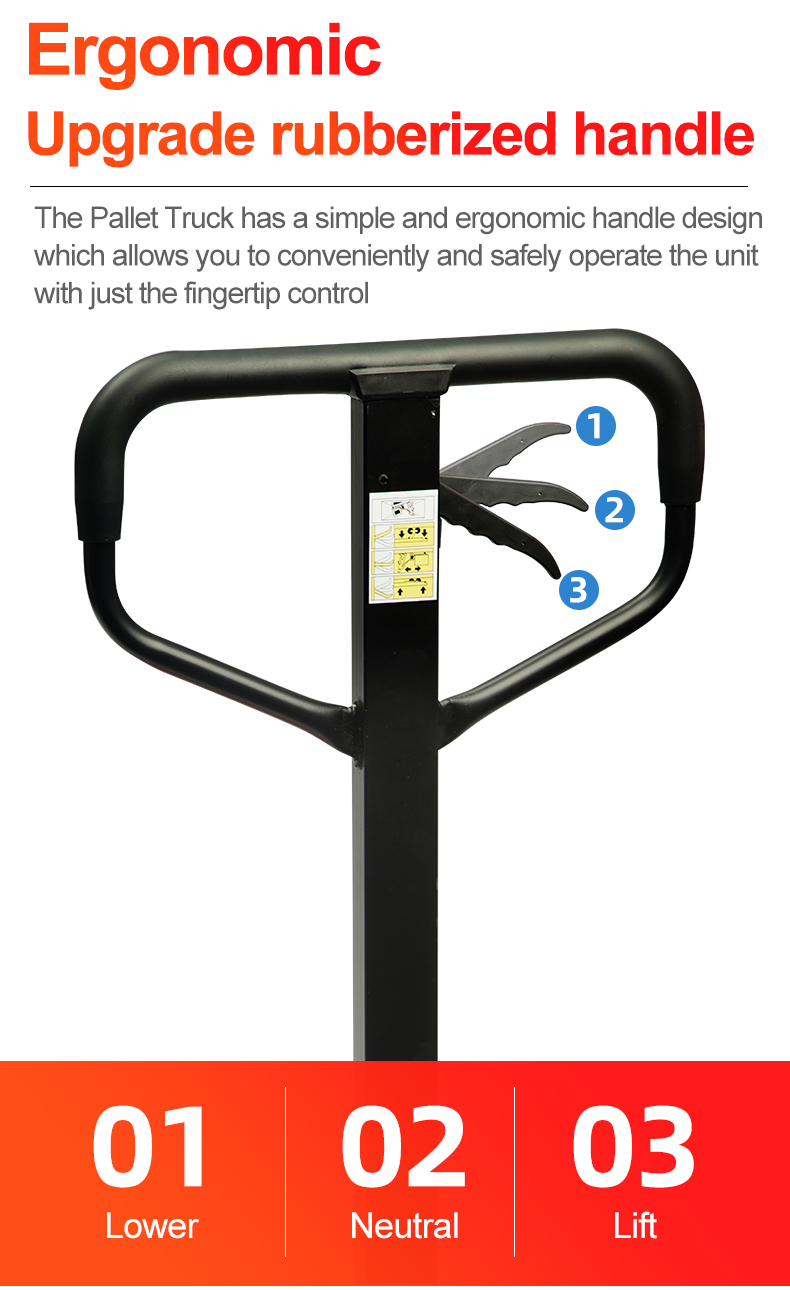

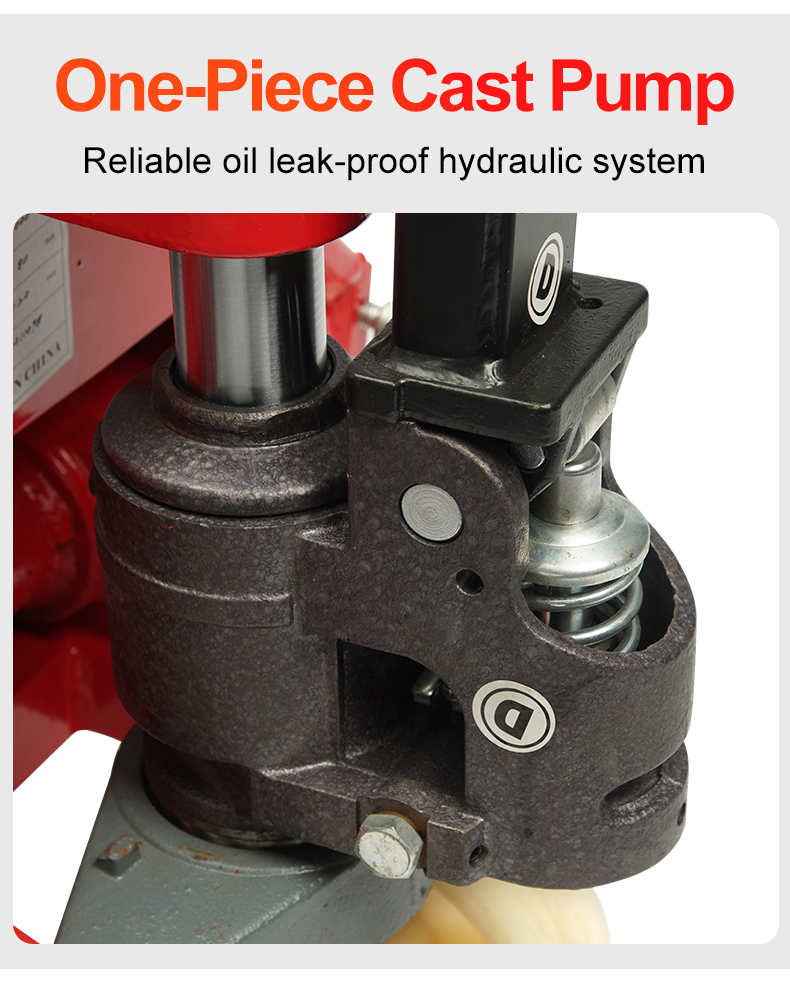

This pallet truck is our best-selling model, designed for long-lasting, heavy-duty performance. With thousands sold over the years, its durable construction, maintenance-free rollers, ergonomic handle, and sturdy pump make it an excellent choice. It offers a selection of steer and load wheels to suit various needs.
| Model | NAV50-510 | NAV50-712 | NAV50-715 | NAV50-718 | NAV50-720 | |
| Load Capacity | kg | 5000 | 5000 | 5000 | 5000 | 5000 |
| Load Capacity | mm | 500 | 500 | 600 | 600 | 600 |

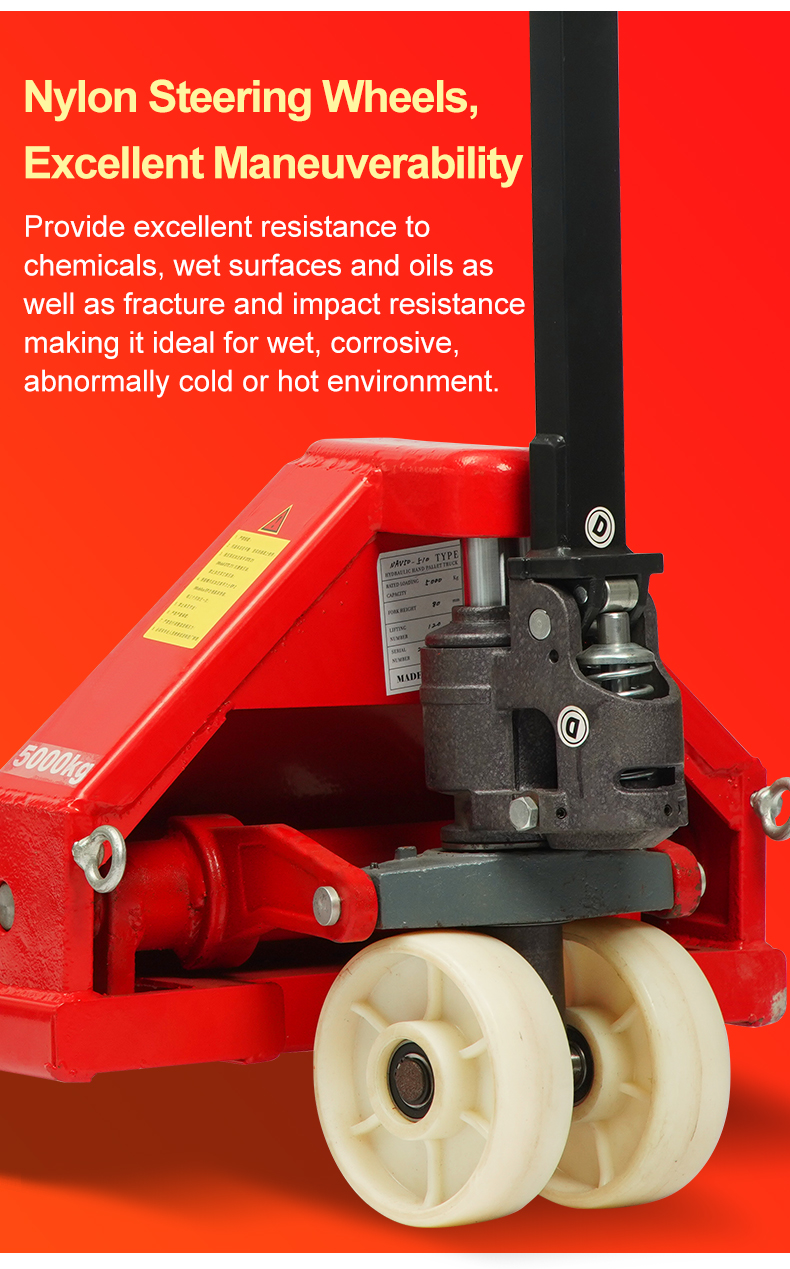

| Steering Wheel | mm | Φ180*65 | Φ180*65 | Φ180*65 | Φ180*65 | Φ180*65 |
| Load Wheel | mm | Φ78*70 | Φ78*70 | Φ78*70 | Φ78*70 | Φ78*70 |

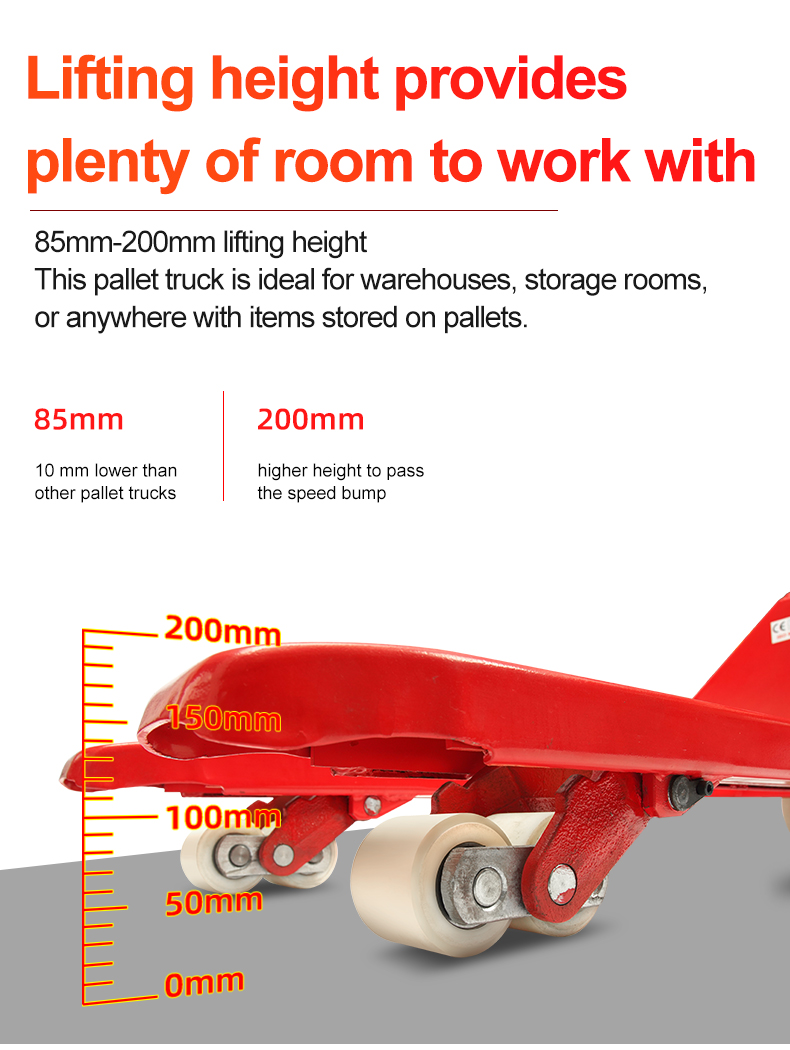

| Max.Fork Height | mm | 200 | 200 | 200 | 200 | 200 |
| Min.Fork Height | mm | 85 | 85 | 85 | 85 | 85 |
| Overall Length | mm | 1534 | 1604 | 1884 | 2184 | 2384 |

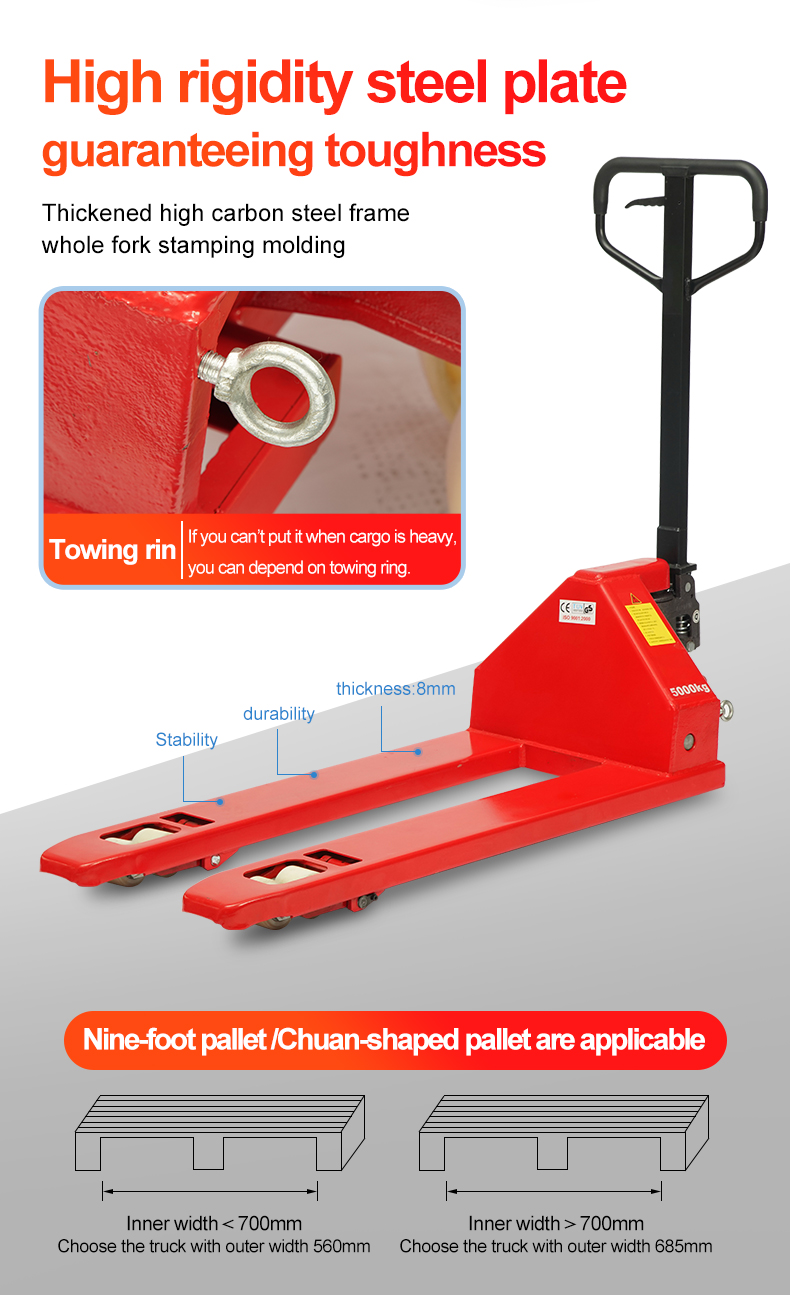

| Fork Size | mm | 54/165/1070 | 54/165/1200 | 54/165/1500 | 54/165/1800 | 54/165/2000 |
| Width over forks | mm | 540 | 685 | 685 | 685 | 685 |
| Turning radius | mm | 1249 | 1319 | 1609 | 1919 | 2029 |
| Self Weight | kg | 110 | 123 | 148 | 159 | 167 |
