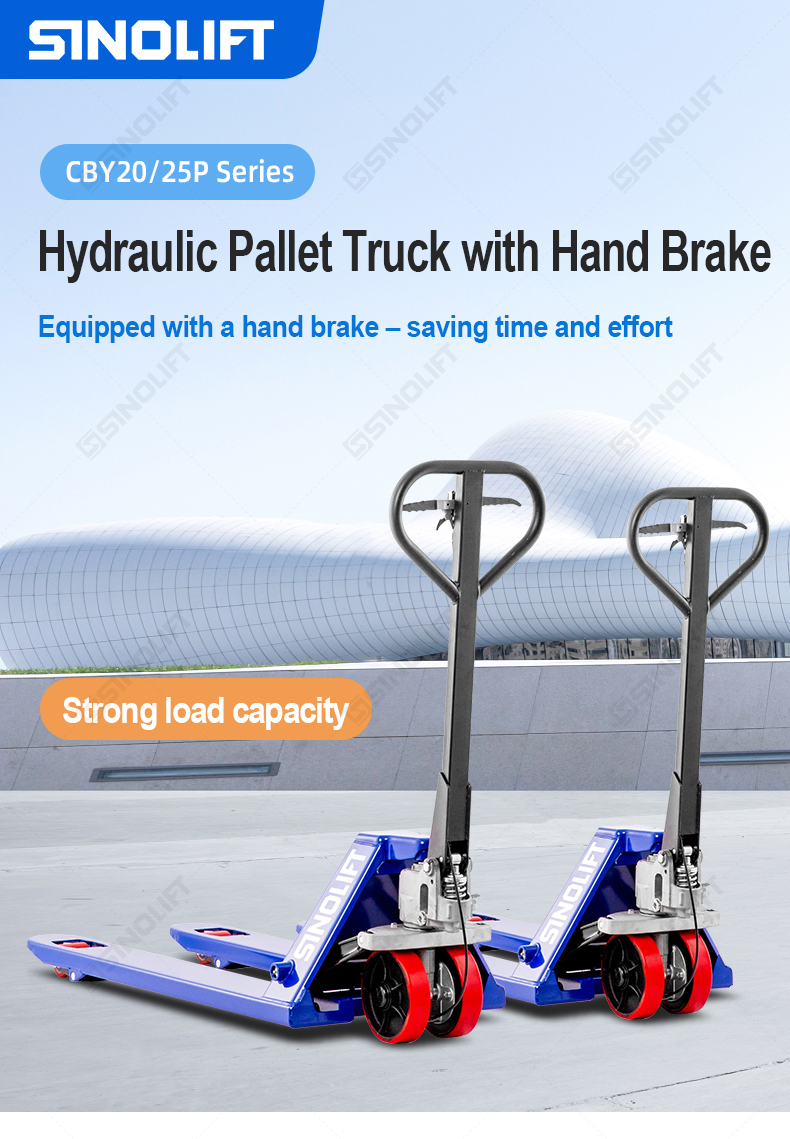

Sinolift CBY20/25P series hydraulic pallet truck with hand brake
CBY20/25P
Quantity:
The hydraulic pallet truck with a hand brake is a robust material handling solution designed for efficiently moving palletized loads in industrial, warehouse, and commercial settings. It utilizes a hydraulic lifting system to effortlessly raise and transport heavy loads, while the integrated hand brake gives operators added control and safety during stops and maneuvering.
| Model | CBY2000-P | CBY2500-P | ||
| Rated Capacity | kg | 2000 | 2500 | |
| Min. Fork Height | H1 mm | 85 | 75 | |
| Max. Fork Height | H2 mm | 200 | 190 | |
| Height without Handle | H3 mm | 431.5 | 421.5 | |
| Steer Wheel | A mm | 200×50 | 180×50 | |
| Load Wheel | Single | B mm | 80×93/70 | 74×93/70 |
| Tandem | 80×70 | 74×70 | ||
| Fork Width | W mm | 520/550/685 | 520/550/685 | |
| Fork Length | L mm | 1150/1220 | 1150/1220 | |
| Weight | kg | 75—85 | 75—85 | |
