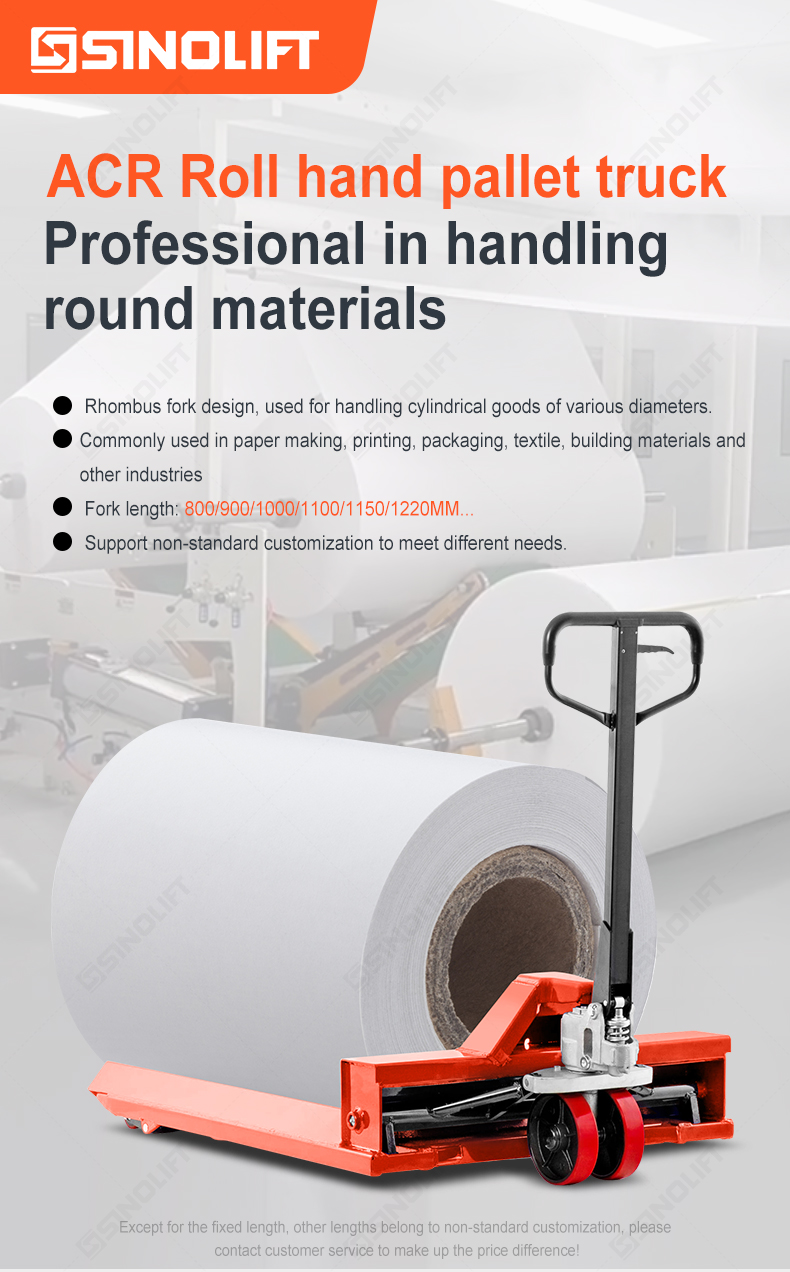

Sinolift ACR roll hand pallet truck professional in handing round material
ACR
Quantity:
A Roll Hand Pallet Truck is a specialized material handling tool designed for moving cylindrical objects, such as rolls of paper, fabric, or steel coils. This type of pallet truck is particularly useful in industries like printing, textiles, and manufacturing, where handling and transporting rolls of material is common.
| Model | ACR25A | ACR25B | ACR25C | ACR25D | |
| Load | kg | 2500 | |||

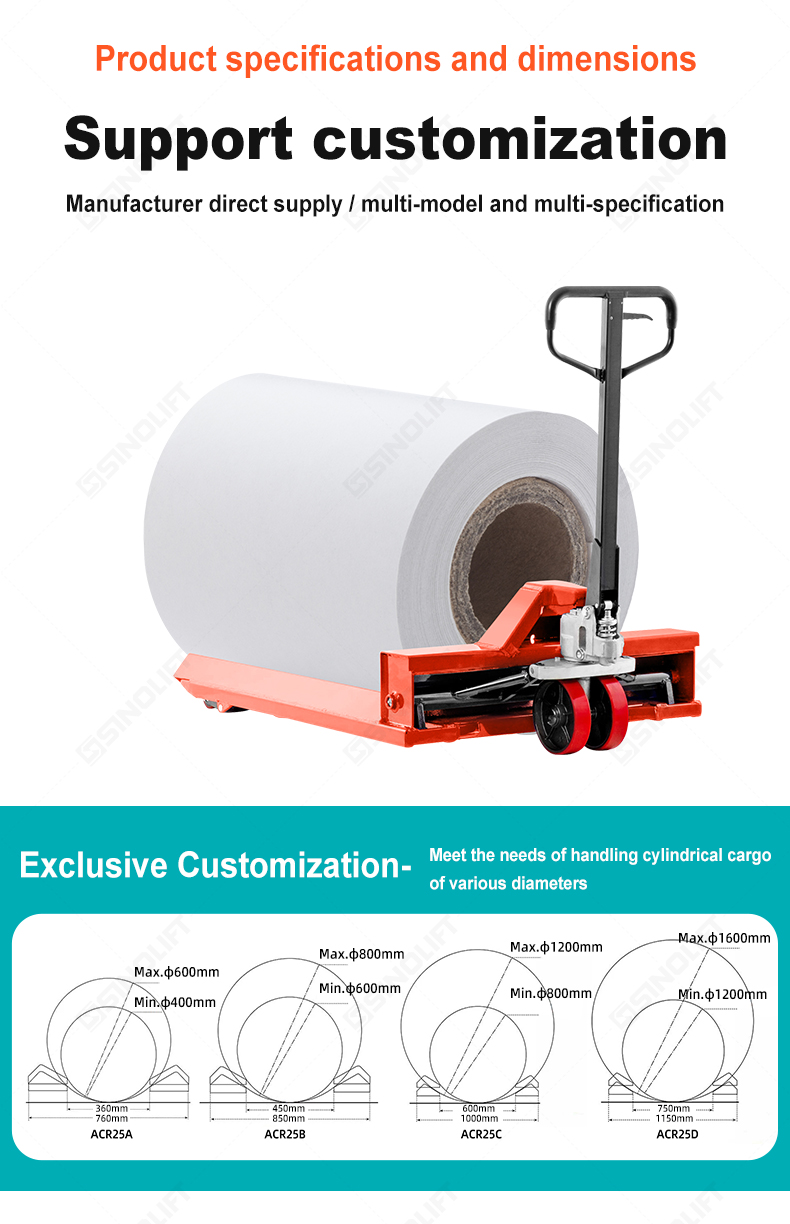

| Allowable diameter of drum | mm | 400-600 | 600-800 | 800-1200 | 1200-1600 |
| Overall fork width | mm | 760 | 850 | 1000 | 1150 |

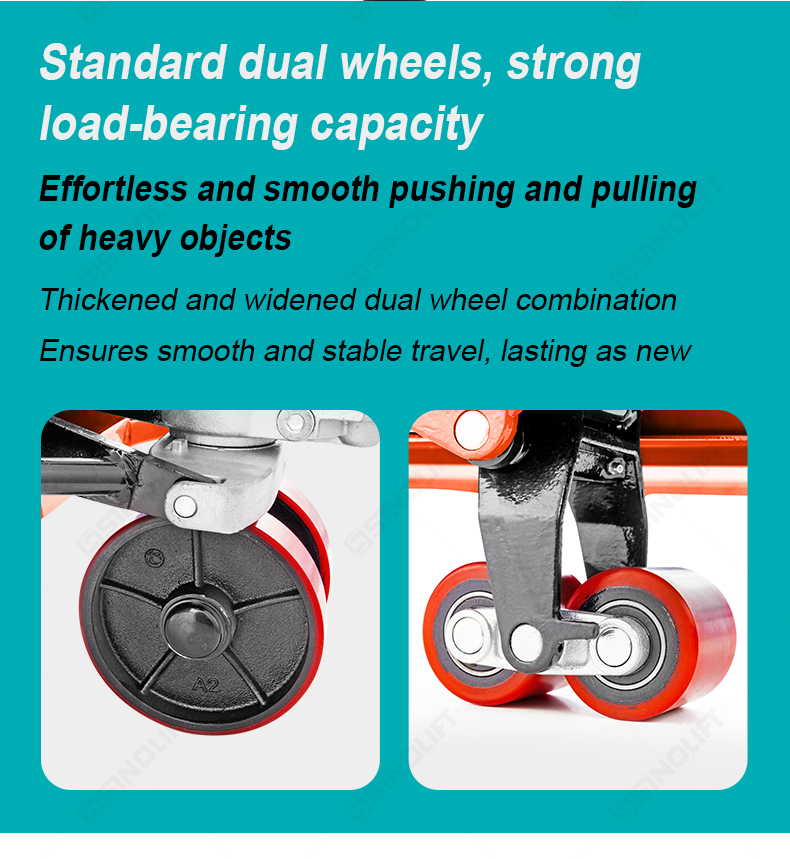

| Steering rear wheel | mm | Φ200x50orΦ180x50 | |||
| Carrying front wheel (single) | mm | Φ78x100 | |||
| Front wheel (two wheels) | mm | Φ78x70 | |||
| Overall fork length | mm | 800/900/1000/1100/1150/1220--maximum1500 | |||
| Overall weight | kg | 135 | 150 | 155 | 175 |
