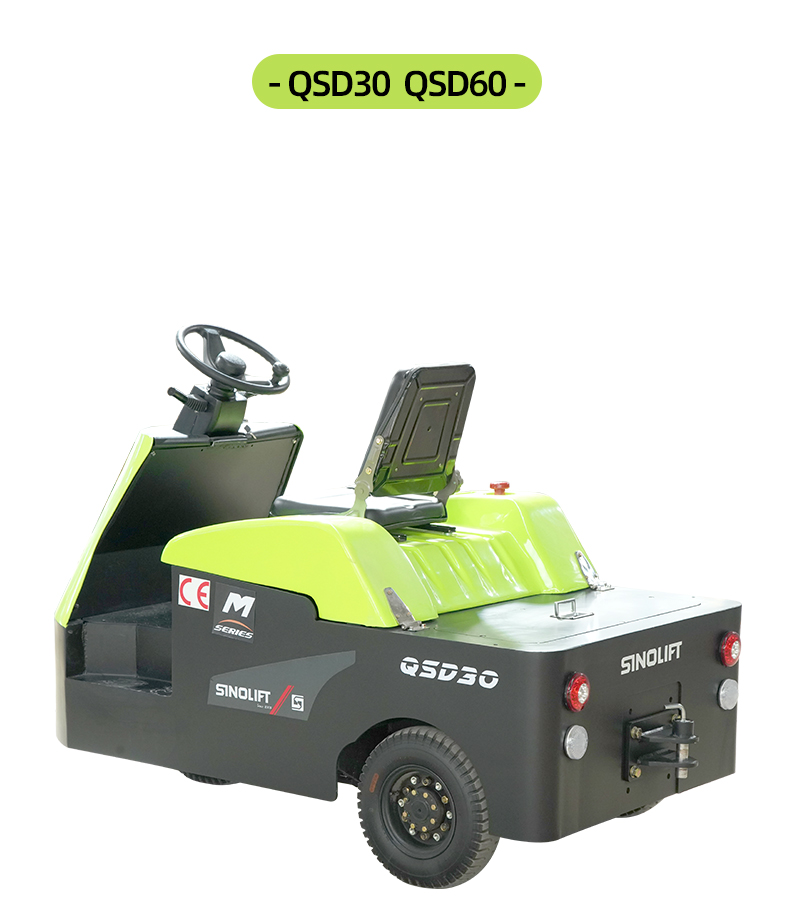

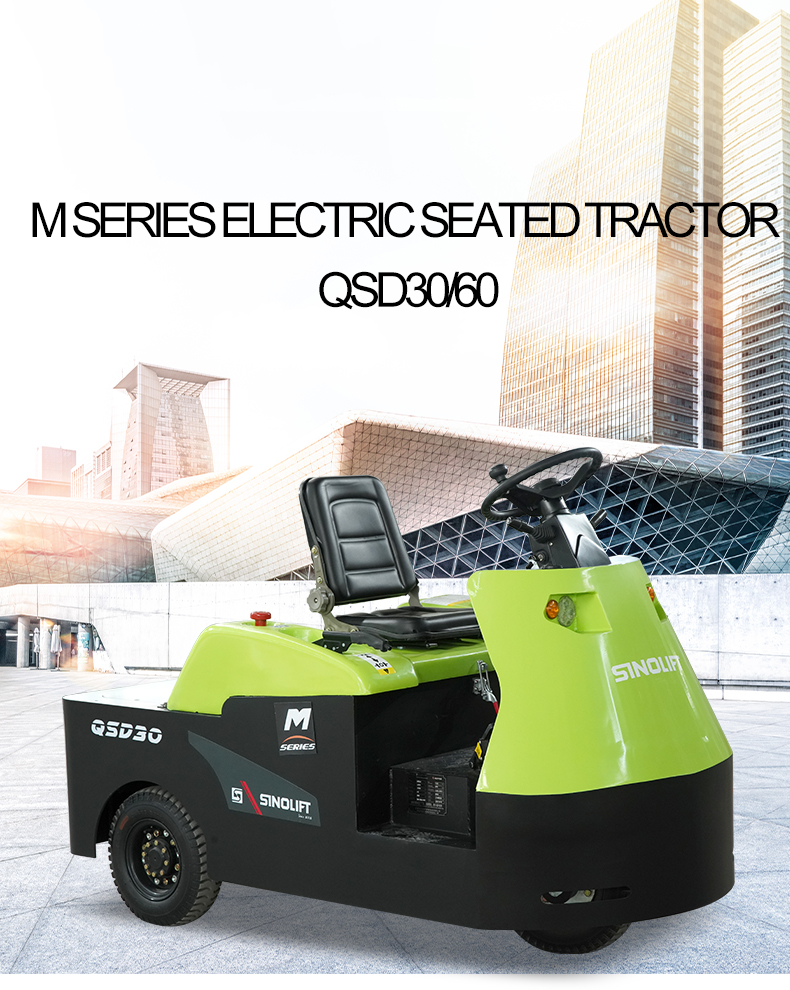

QSD30 QSD60 Rider Electric Towing Tractor
QSD30 QSD60
Quantity:
QSD30 QSD60 Rider Electric Tow Tractor
The QSD30/QSD60 rider seated electric tow tractor includes German engineering and design aspects which power over the competition in strength, versatility and usability. This electric rider tow tractor is perfect for regularly towing heavy products and industrial equipment throughout your facility. The battery powered tractor makes virtually no noise as it effortlessly moves materials from point A to point B in your distribution plant, factory or warehouse application.
| Manufacture's type designation | SINOLIFT | |||
| Model | QSD30 | QSD60 | ||
| Power Type | Electric | |||
| Type of operation | Seated | |||

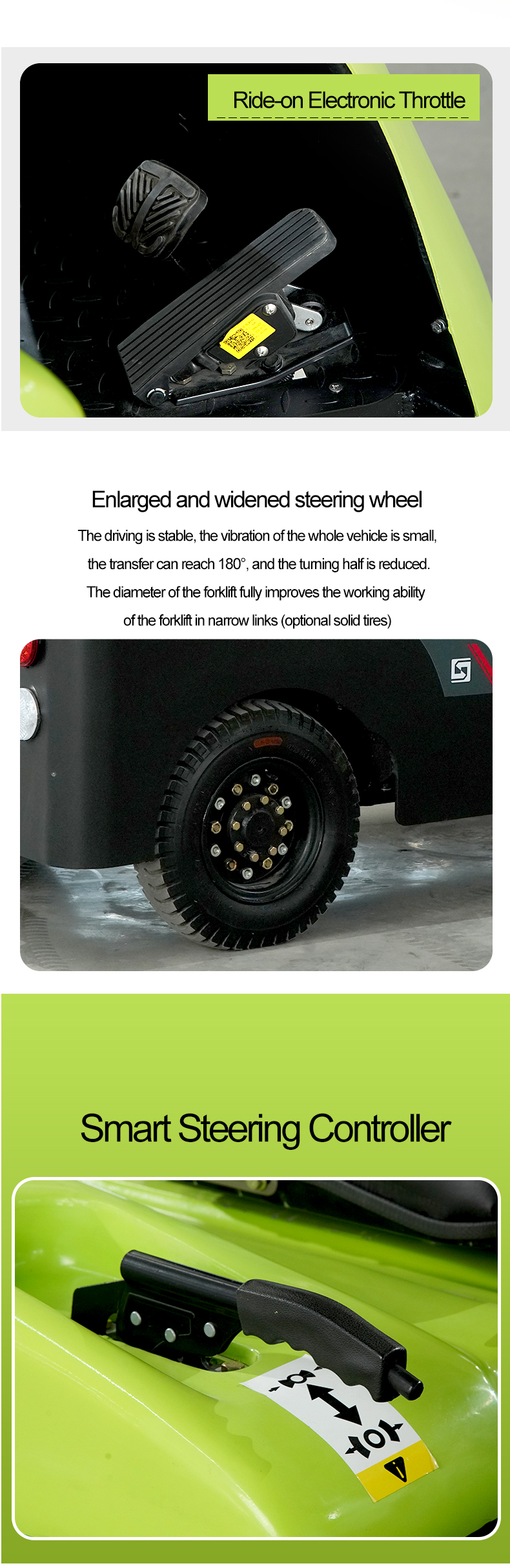

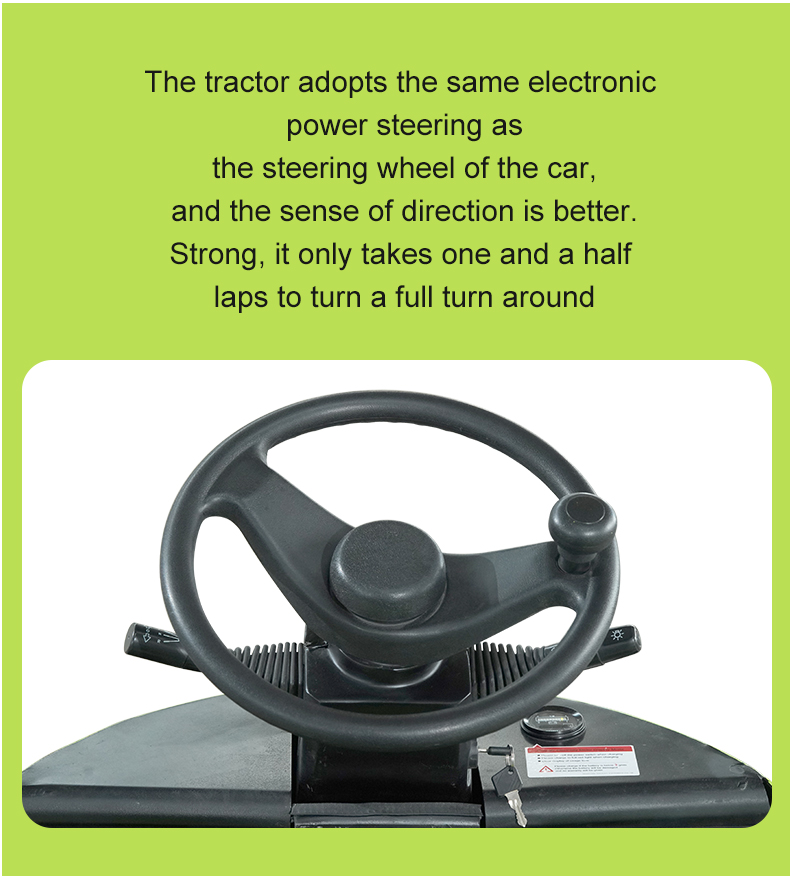

| Steering Mode | Electric Power Steering | |||
| Wheelbase. | y | mm | 1110 | 1110 |
| Total Weight(with battery) | kg | 985 | 1180 | |
| Axde Loadunladen:Drive: sde/ad-bearigside | kg | / | / | |
| Overall length | 1 | mm | 2030 | 2030 |
| Overall width | W1 | mm | 1020 | 1020 |
| Overall height | h5 | mm | 1350 | 1350 |
| Coupling Height(Hook center above ground) | h1 | mm | 300/350/400 | 300/350/400 |
| Seat height | h2 | mm | 965 | 965 |
| Ground Clearance at the center of wheelbase(Min) | m1 | mm | 110 | 110 |
| Turning Radius | Wa | mm | 1520 | 1520 |
| TyreType | Inflatable rubber wheel | Inflatable rubber wheel | ||
| Tyre Size(Front) | 4.00-8 | 4.00-8 | ||
| Tyre Size(Rear) | 4.00-8 | 4.00-8 | ||
| Wheels Quantity, front/rear (x=drving wheels) | 1X/2 | 1X/2 | ||
| Traveling Speed(aden/unladen) | Km/h | 7.5/15 | 7.5/15 | |
| Rated Draw-bar Pull | F | N | 3800 | 4500 |
| MaxGradient Performance S25min (laden/unladen) | % | 6/15 | 6/15 | |
| Service Brake Type | Hydraulic | Hydraulic | ||
| Parking BrakeType | Mechanical | Mechanical | ||
| Drive Motor Rating(AC)S2-60min | kW | 5 | 5 | |

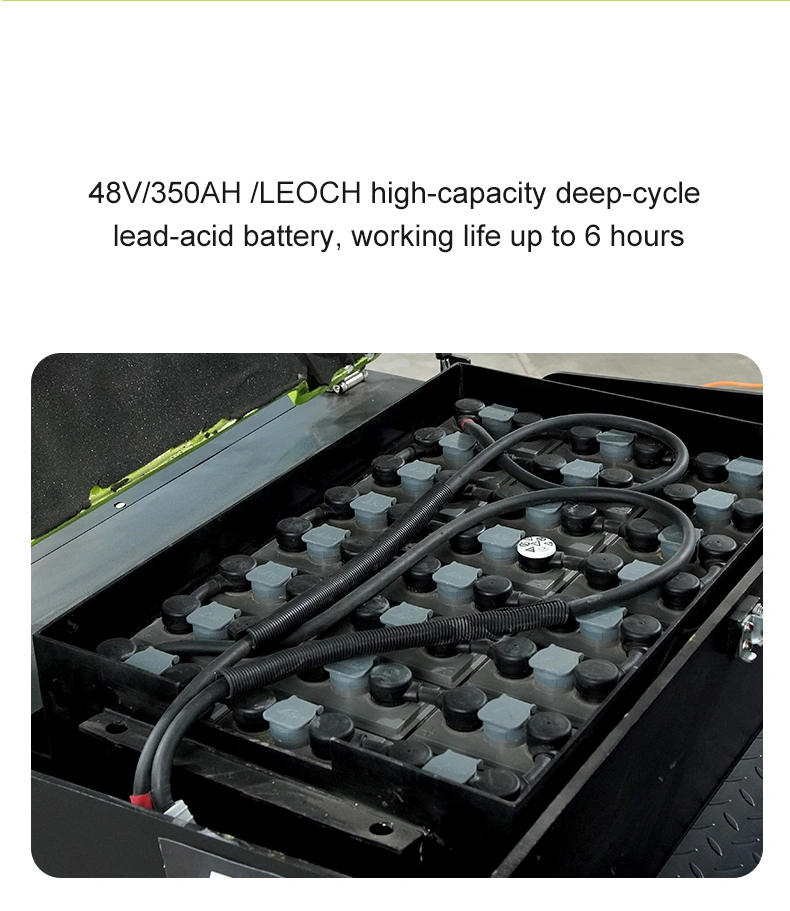

| Battery Voltage/Capacity K5 | V/Ah | 48/200 | 48/350 | |
| Battery Weight | kg | 360 | 545 | |
| Controller Brand | CURTIS | CURTIS | ||
| Controller Model | 1232SE | 1232SE | ||
| Sound level at driver's ear according to EN 12 053 | dB | 70 | 70 | |
