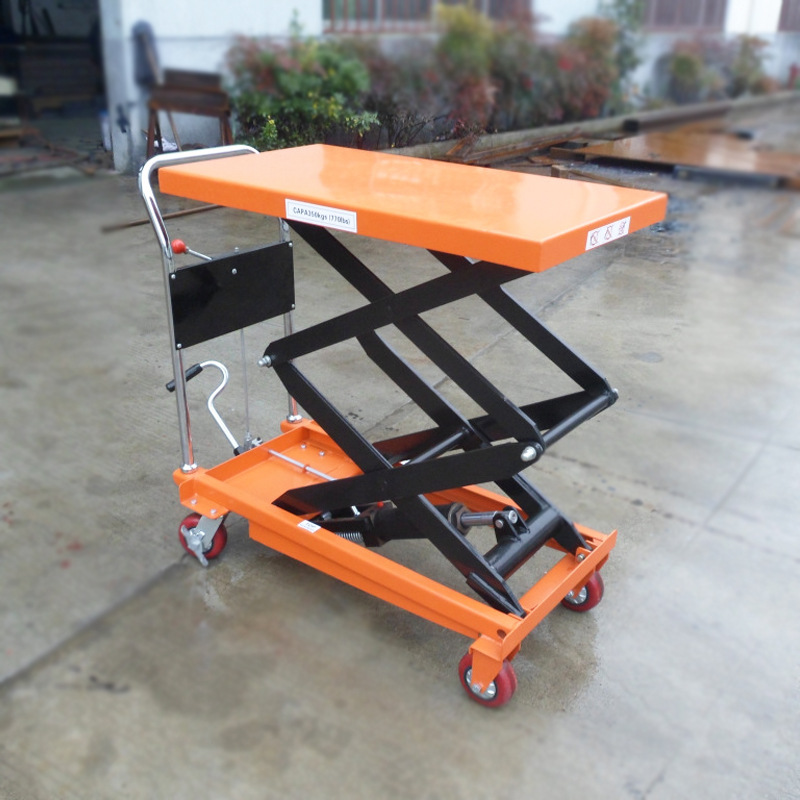

PTS350B double scissors hydraulic table lift
PTS350B
Quantity:
PTS350B double scissors hydraulic table lift, is a type of lifting equipment used to raise and lower heavy loads in various industrial and commercial applications.
- Valuable material handling for use as a feeding table on assembly line.
- Structural heavy duty steel construction.
- Easy action foot operated hydraulic lift for raising table top to desired level.
- Robust castors with safety wheel guard and brakes on the two swivel castors, for greater safety wheel loading and unloading.
- Hand operated table descent control.
| Model | PTS350B | ||
| Load Capacity | kg | 350 | |
| Min. Height | mm | 360 | |
| Max. Height | mm | 1300 | |
| Table Dimension | mm | 905*500*50 | |
| Dia.of the wheel | mm | Φ125 | |
| Net Weight | kg | 100 | |
| Packing Dimensions | mm | 1010*520*380 | |
| Load in 20'Container | pc | 100 |
