PT800B PT1000B Single Scissor Table Lift
PT800B PT1000B
Quantity:

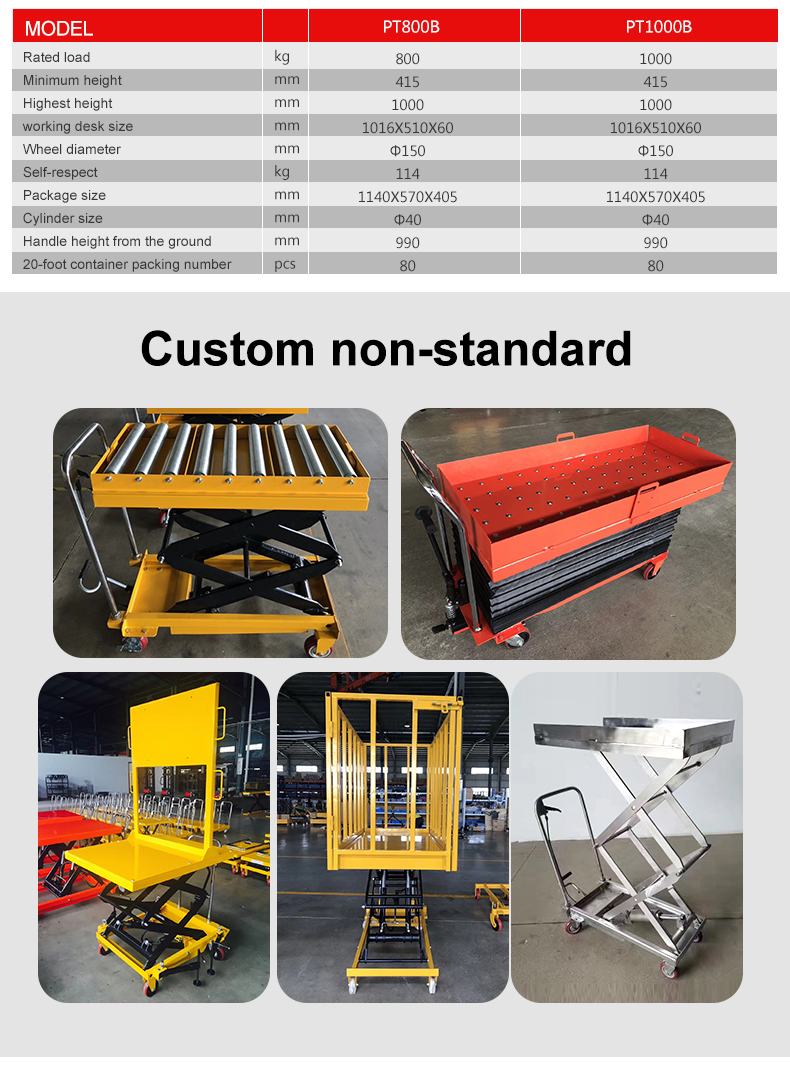

| Model | PT800B | PT1000B | |
| Load Capacity | kg | 800 | 1000 |
| Min. Height | mm | 415 | 415 |
| Max. Height | mm | 1000 | 1000 |
| Table Dimension | mm | 1016*510*60 | 1016*510*60 |
| Dia.of the wheel | mm | Φ150 | Φ150 |
| Net Weight | kg | 100 | 100 |
| Packing Dimensions | mm | 1140*570*425 | 1140*570*425 |
| Load in 20'Container | pc | 80 | 80 |
PRODUCT PRESENTATION:

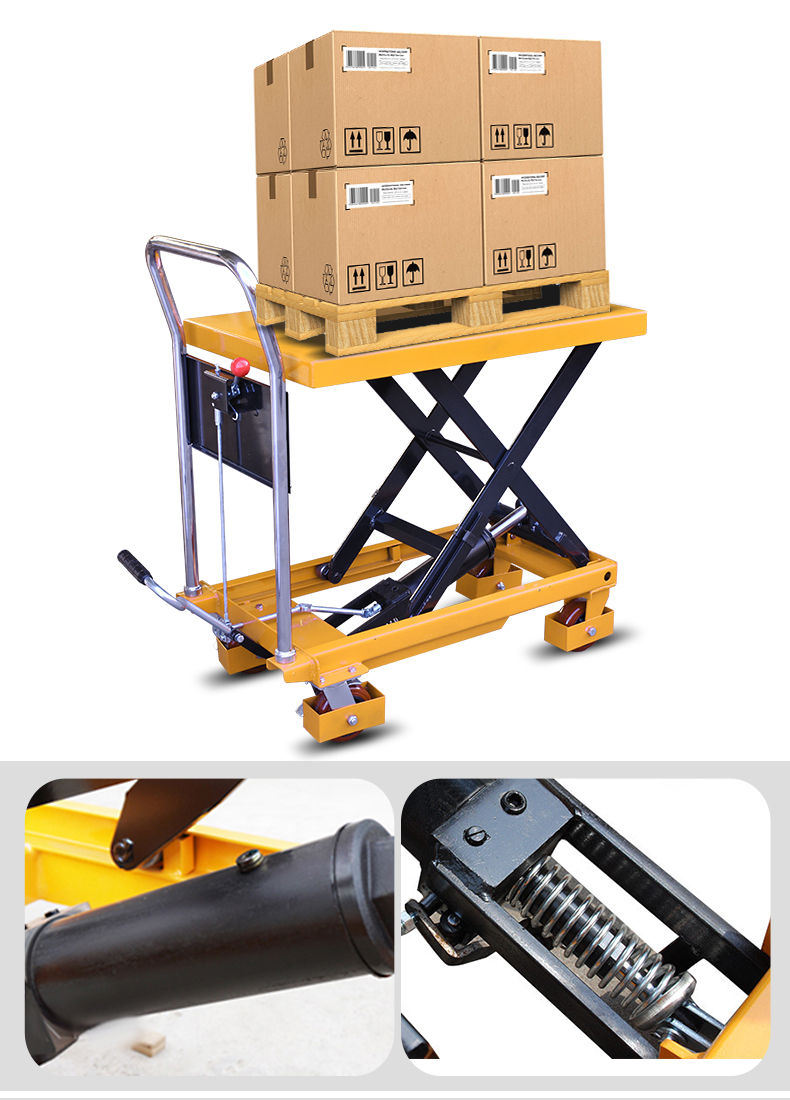

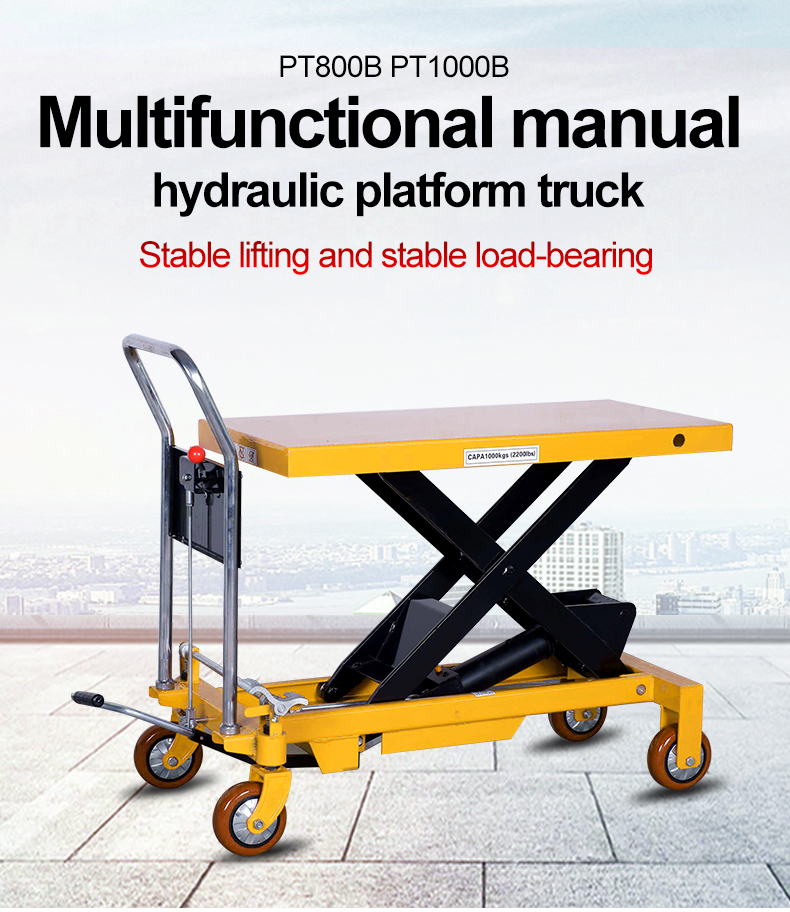

PT80OB PT1000B Multifunctional manual hydraulic platform truck

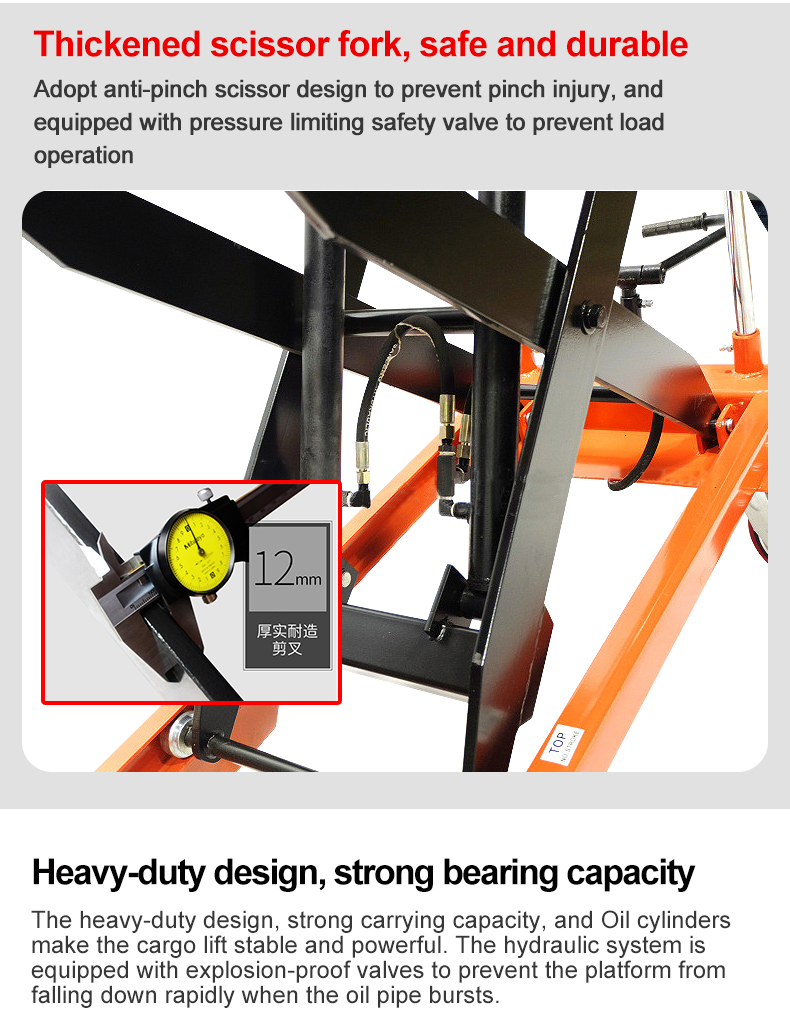

- Thickened scissor fork, safe and durable.Adopt anti- pinch scissor design to prevent pinch injury, and equipped with pressure limiting safety valve to prevent load operation.
- Heavy-duty design, strong bearing capacity.The heavy-duty design, strong carrying capacity, and Oil cylinders make the cargo lift stable and powerful. The hydraulic system is equipped with explosion-proof valves to prevent the platform from falling down rapidly when the oil pipe bursts.

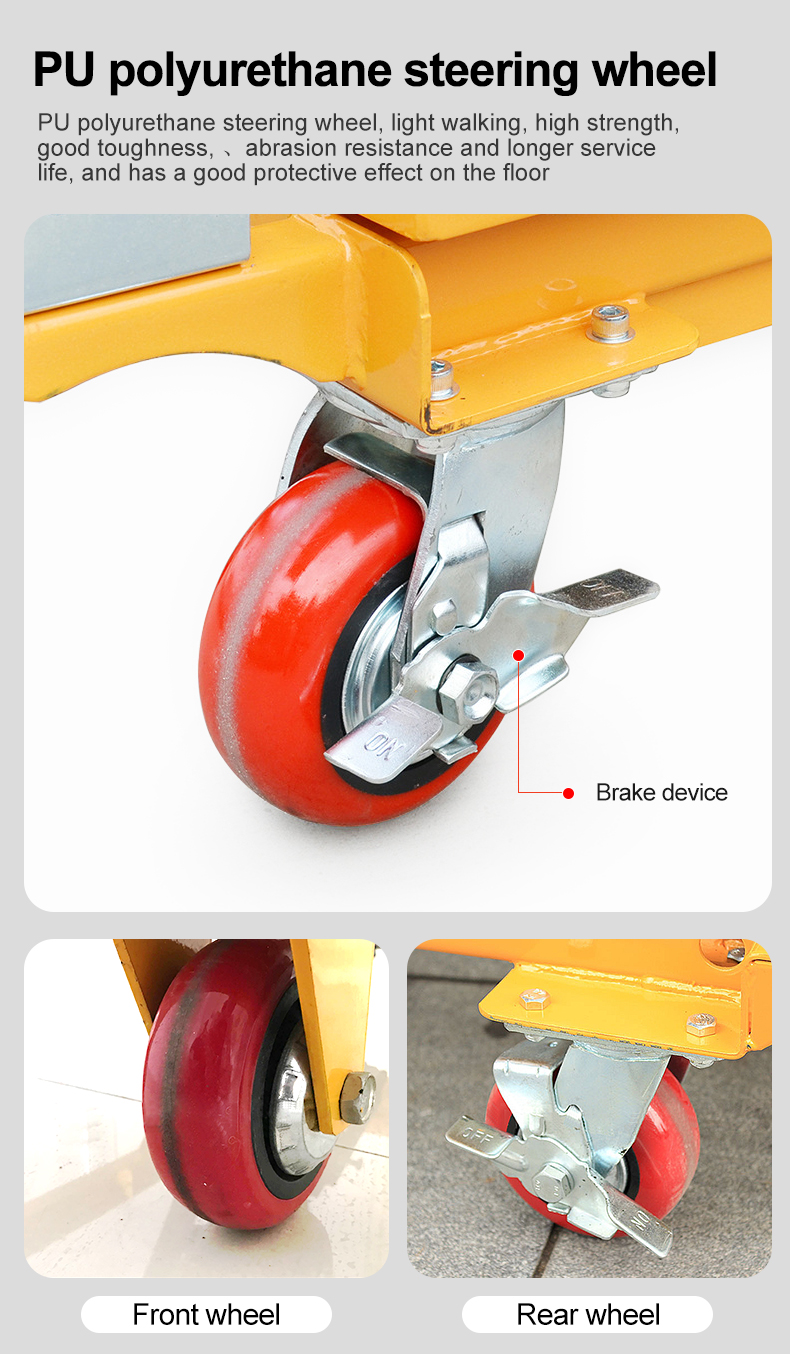

- PU polyurethane steering wheel. PU polyurethane steering wheel, light walking, high strength, good toughness,、abrasion resistance and longer service life, and has a good protective effect on the floor.

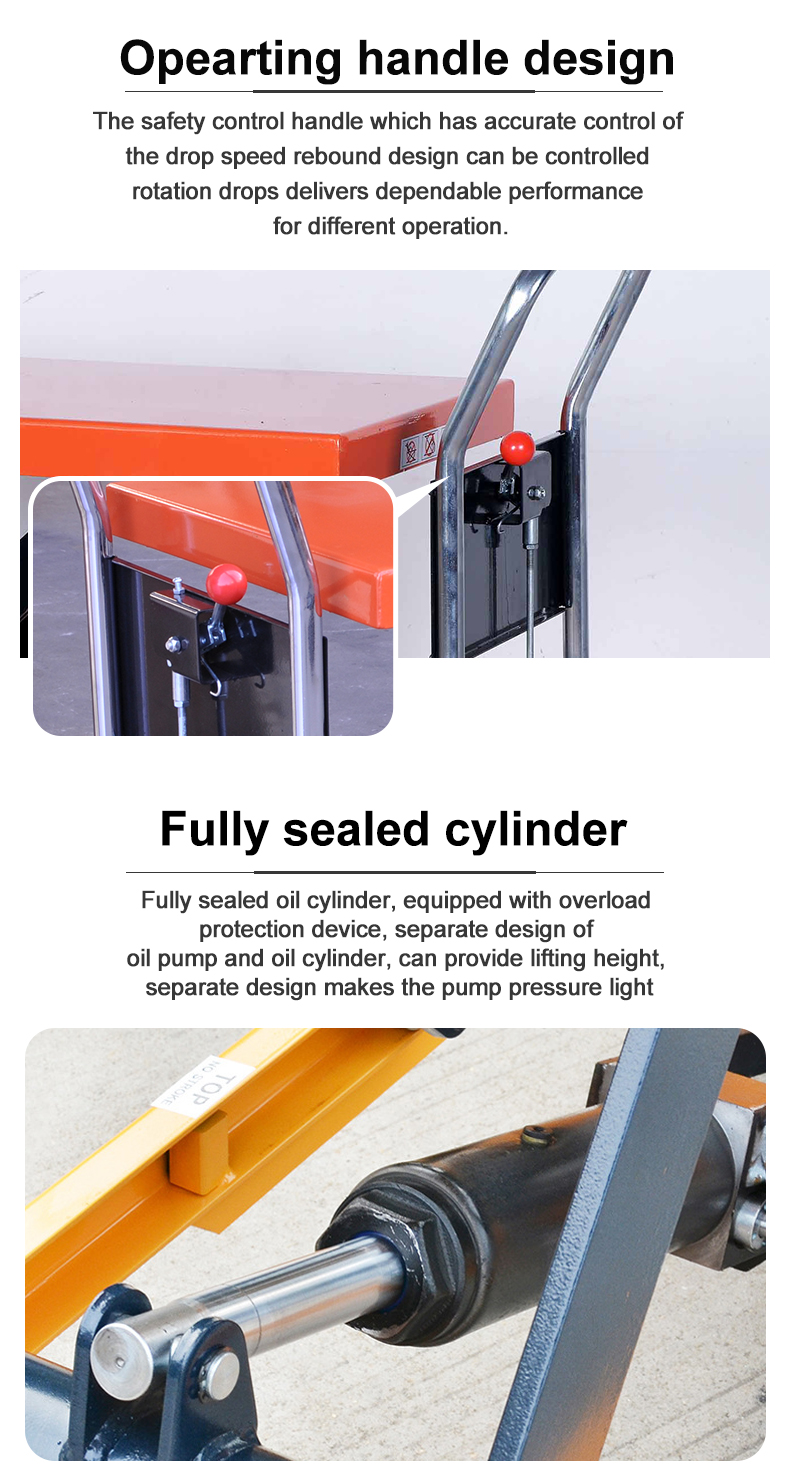

- Operating handle design.The safety control handle which has accurate control of the drop speed rebound design can be controlled rotation drops delivers dependable performance for different operation.
- Fully sealed cylinder.Fully sealed oil cylinder, equipped with overload protection device, separate design of oil pump and oil cylinder, can provide lifting height, separate design makes the pump pressure light.

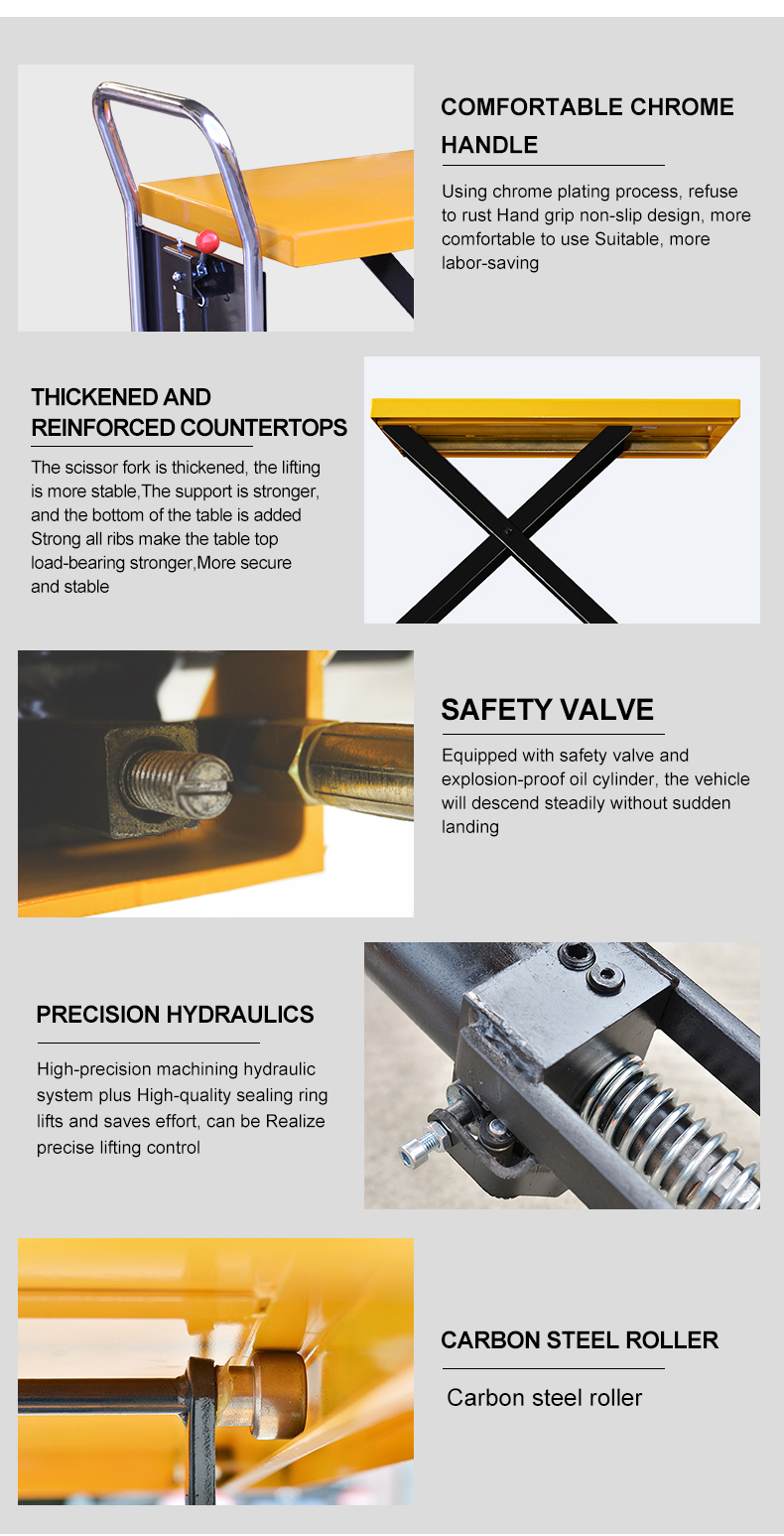

- Comfortable chrome handle. Using chrome plating process, refuse to rust Hand grip non-slip design, more comfortable to use Suitable, more labor-saving.
- Thickened reinforced counter tops. The scissor fork is thickened, the lifting is more stable, The support is stronger and the bottom of the table is added. Strong all ribs make the table top load-bearing stronger ,More secure and stable.
- Safety valve. Equipped with safety valve and explosion-proof oil cylinder, the vehicle will descend steadily without sudden landing.
- Precision hydraulics. High-precision machining hydraulic system plus High-quality sealing ring flits and saves effort, can be realize precise lifting control.

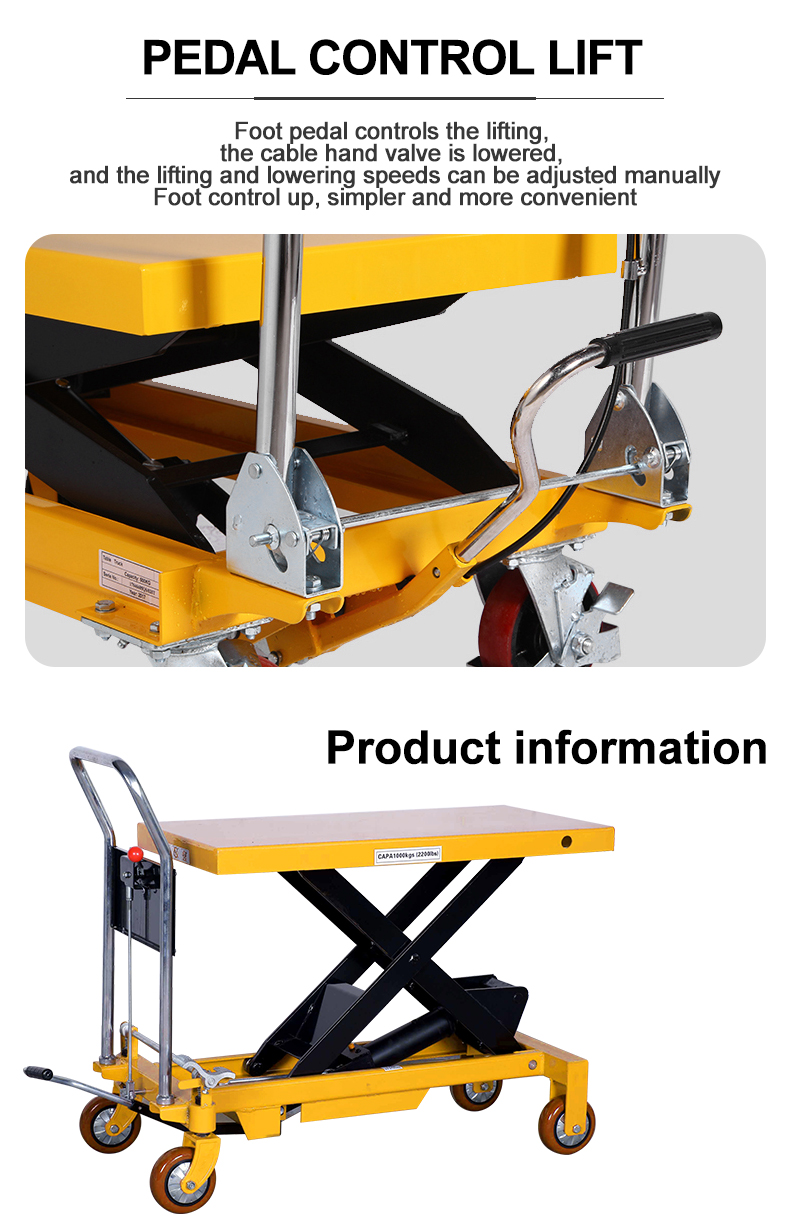

10.Pedal control lift. Foot pedal controls the lifting, the cable hand valve is lowered and the lifting and lowering speeds can be adjusted manually. Foot control up, simpler and more convenient.
