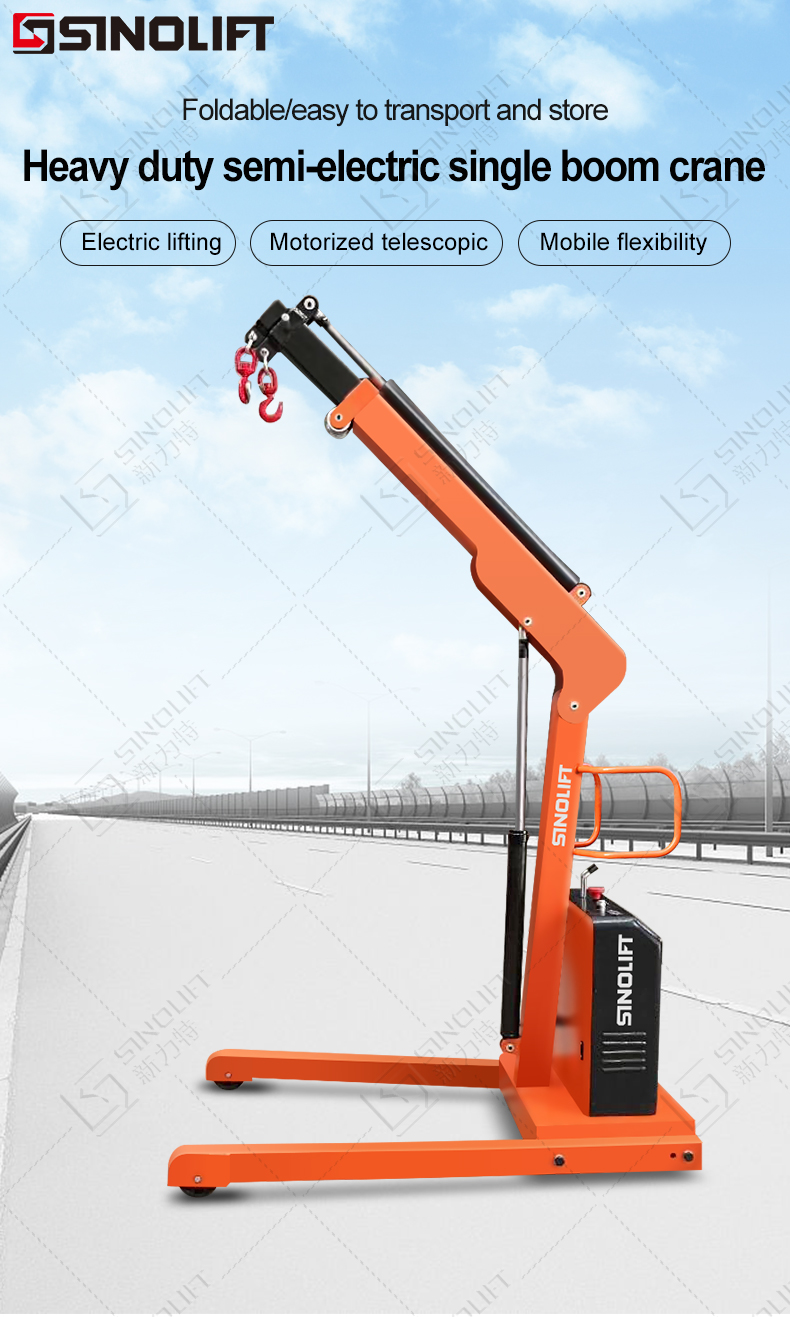

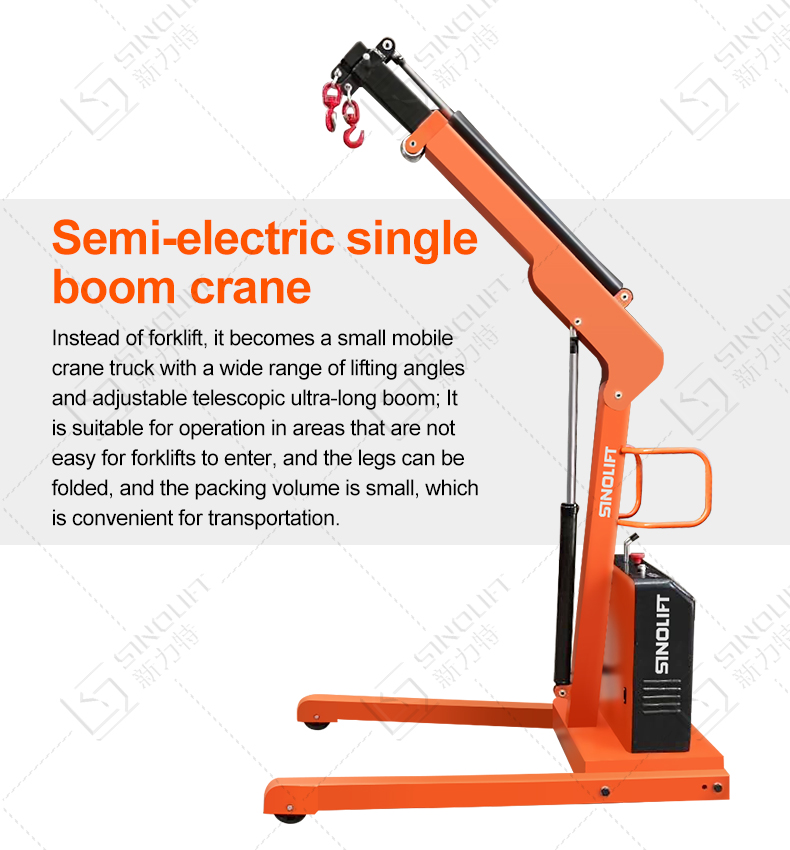

YLD01 Semi-electric Single Shop Crane

YLD01
Quantity:
Contact Now
add to cart
All Products

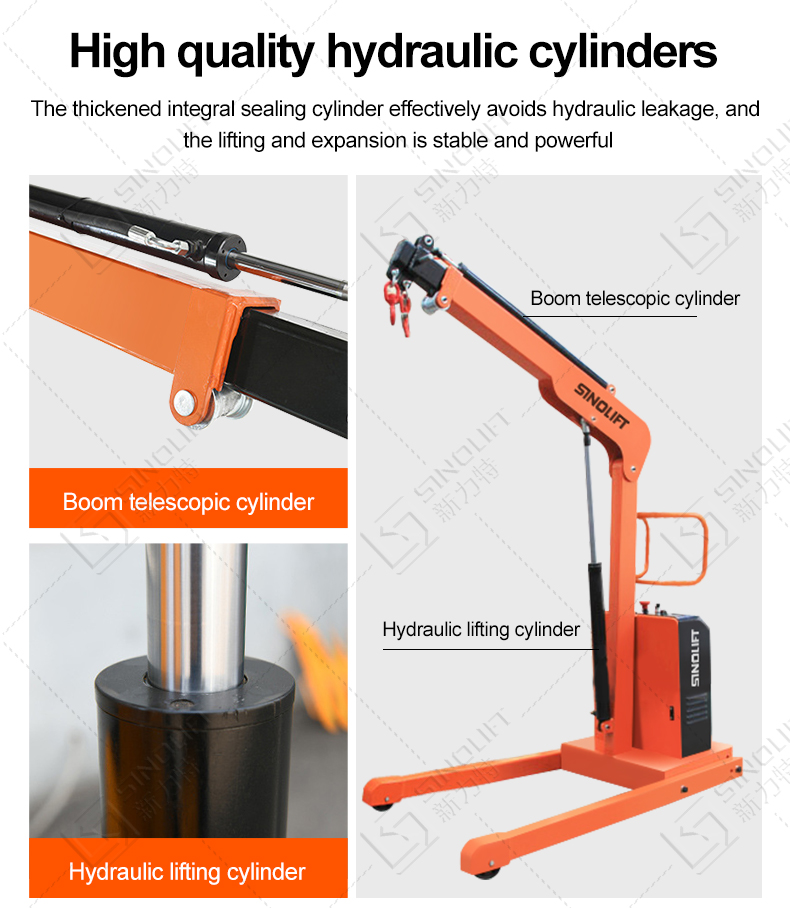

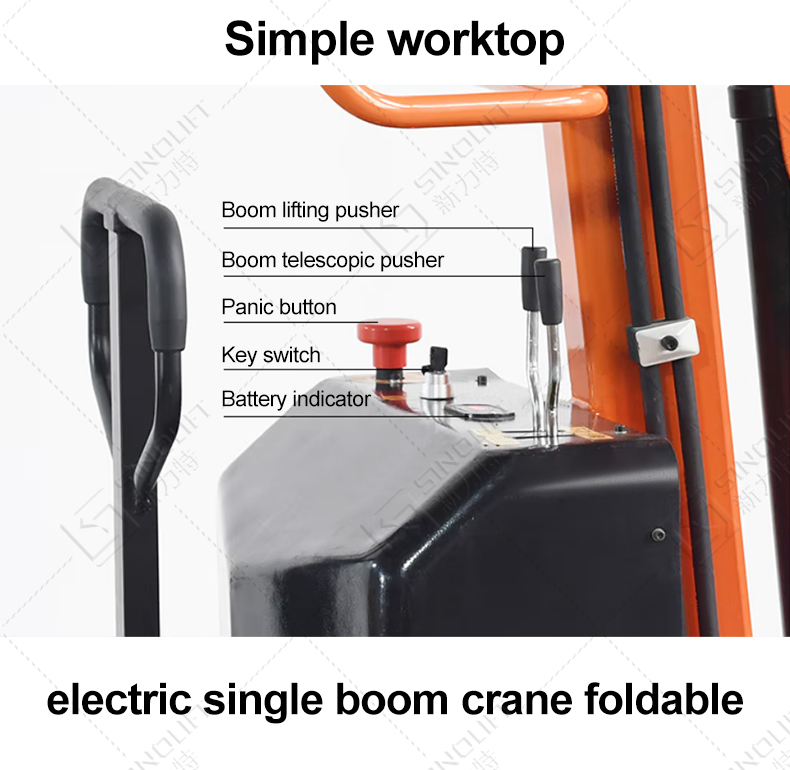

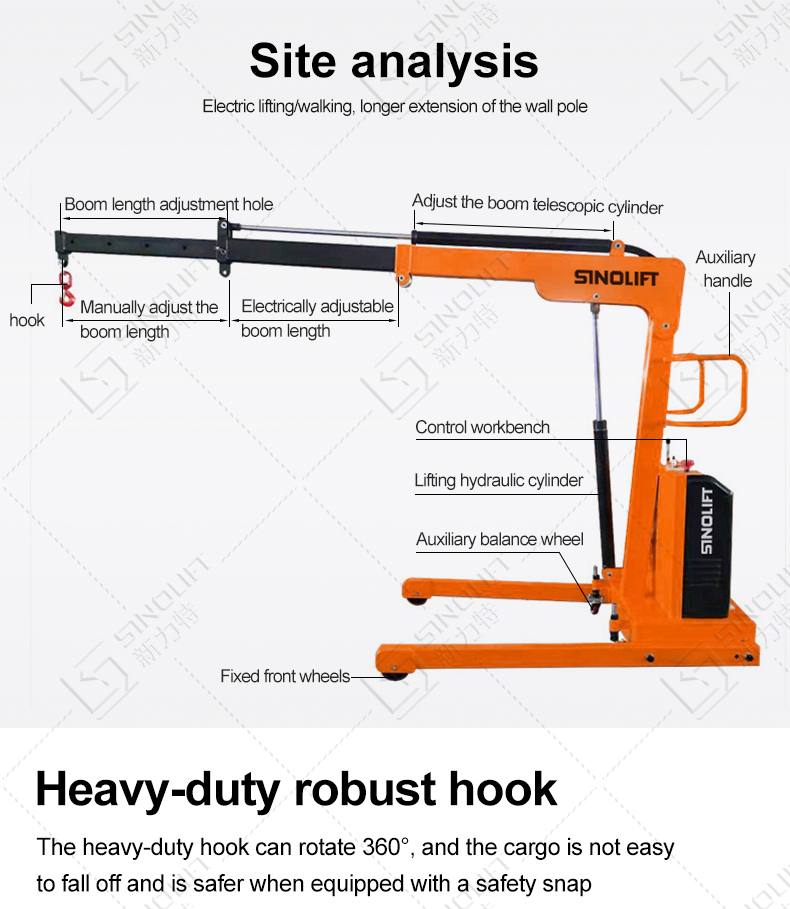

The YLD01 counterbalanced mini crane is part of a complete range of 360° counterbalanced rotating cranes with manual traction, with a maximum load capacity of up to 1000 kg and an outreach of up to 1440 mm. Hydraulic lever control or electric control. They represent the most economical and flexible solution for lifting and transporting loads in a wide range of applications, such as machining centers and machine tools, transport to assembly lines, assembly operations, cargo handling. Thanks to their compact dimensions, they are easy to maneuver even when fully loaded and can be moved effortlessly in tight spaces. All components are made in Italy to ensure the highest structural quality and the absence of defects.

ModelYLD01

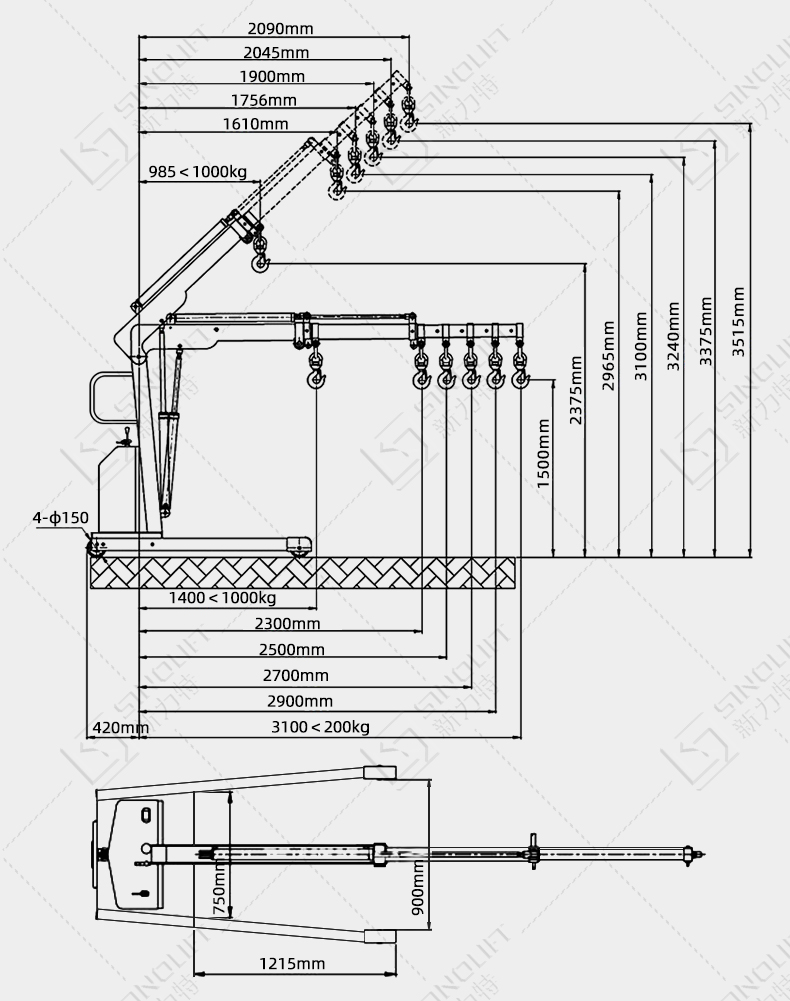

Boom length mm144023002500270029003100
Load Capacitykg1000342290250220200
Lift Motorkw1.6
Battery/12V/120Ah
Front Wheelmm∅150×50
Rear Wheelmm∅150×50

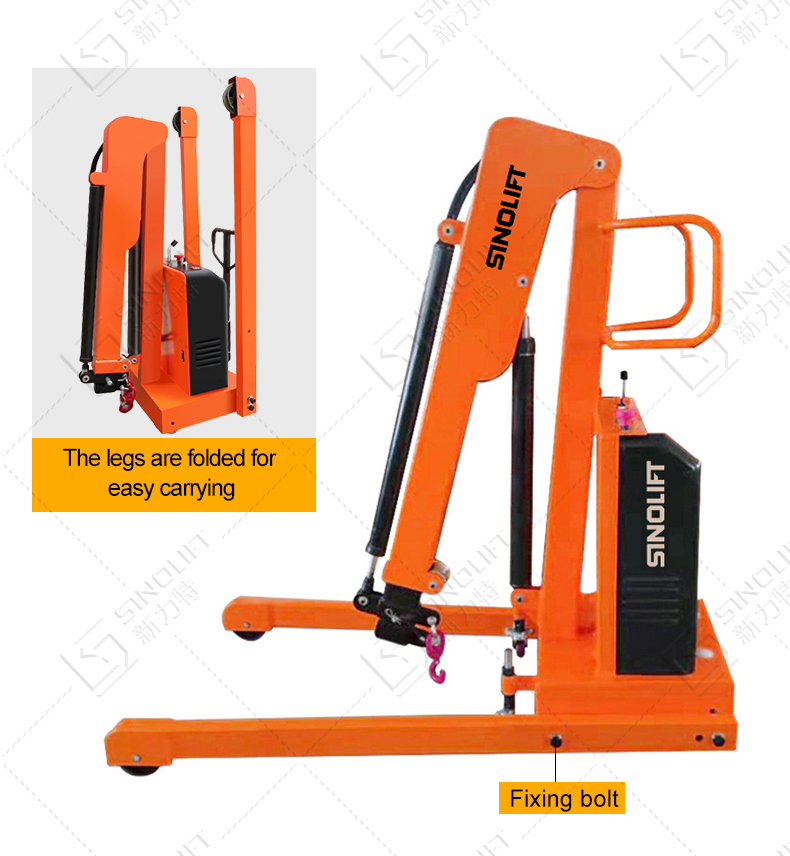

Retracted Sizemm1100×800×1900
Net Weightkg470
