mobile scissors lift platform

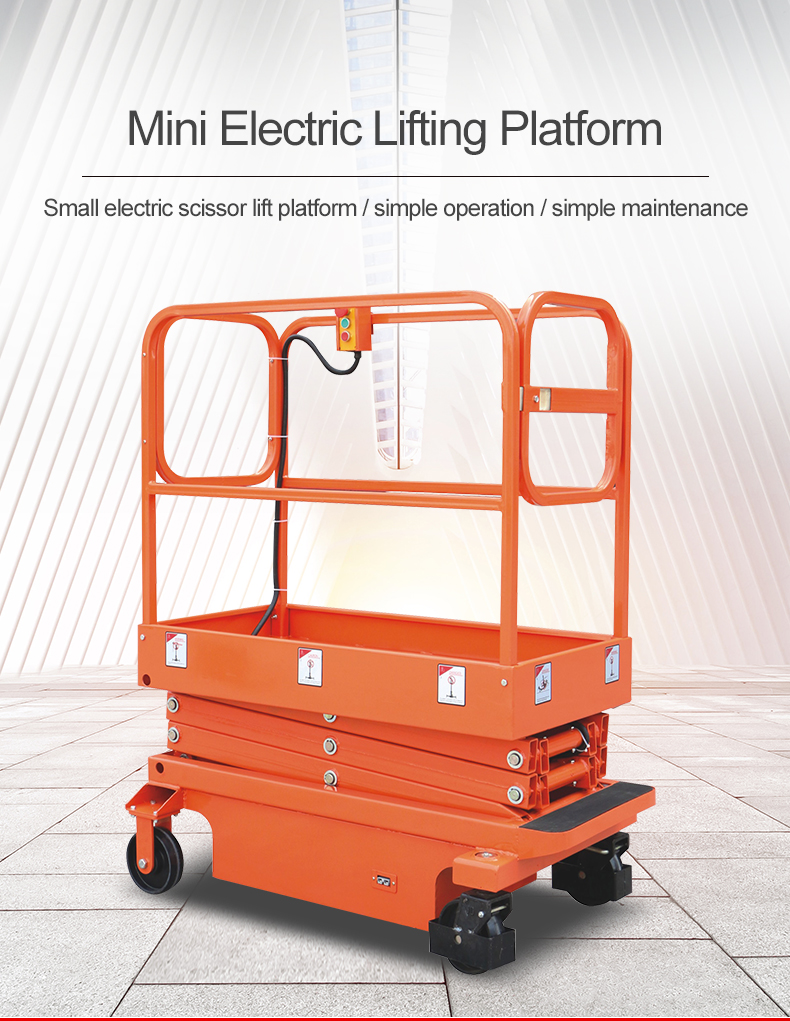

SJY(mini) Mobile Scissors Lift

SJY

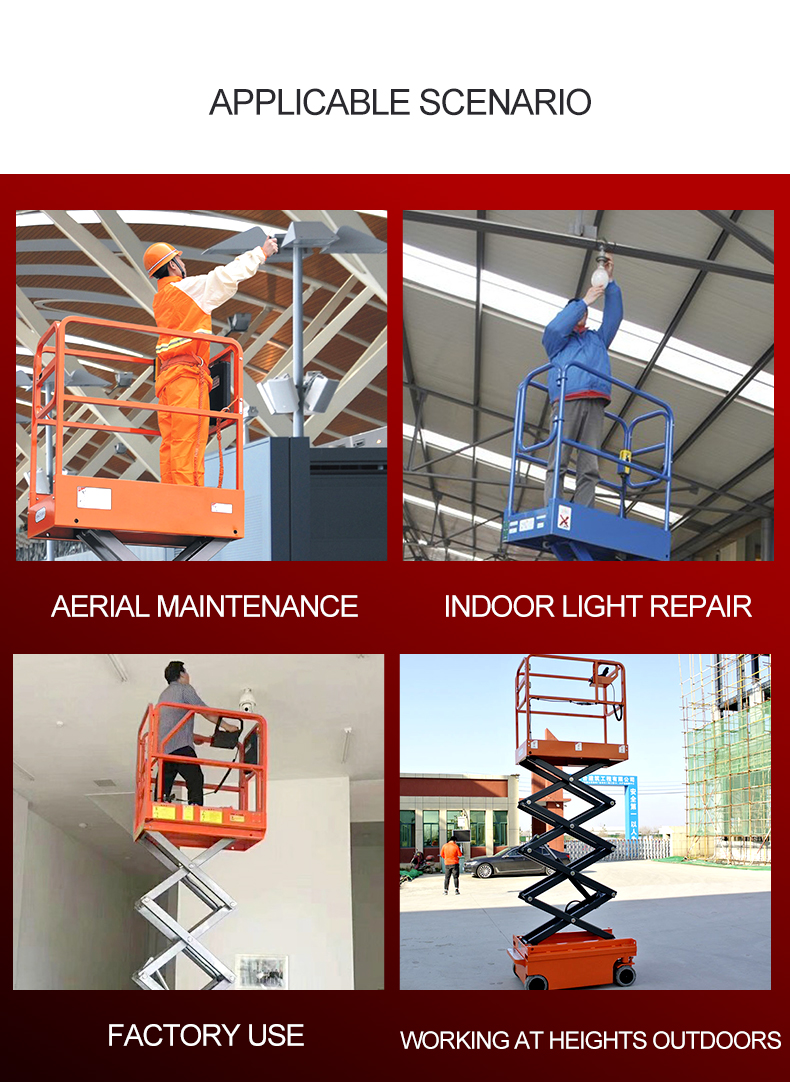

The Manually-propelled Quick Lift mini scissors are ideal for workers requiring safe, vertical access at heights up to 4.8 meters. All Quick Lifts pass through standard doorways and are easily operated by one person. Application environments include warehouses, supermarkets, department stores, offices, hotels, restaurants, construction fields, railway stations, subways, hospitals, universities and schools.
Quantity:
Contact Now
add to cart
All Products

The Manually-propelled Quick Lift mini scissors are ideal for workers requiring safe, vertical access at heights up to 4.8 meters. All Quick Lifts pass through standard doorways and are easily operated by one person. Application environments include warehouses, supermarkets, department stores, offices, hotels, restaurants, construction fields, railway stations, subways, hospitals, universities and schools.

* Free-standing operation, with rechargeable 12V battery power.

* Minimum 200 operating cycles at rated loading.

* Quick and smooth ascent or descent.

* Ergonomic platform with non-slip floor and secure gating.

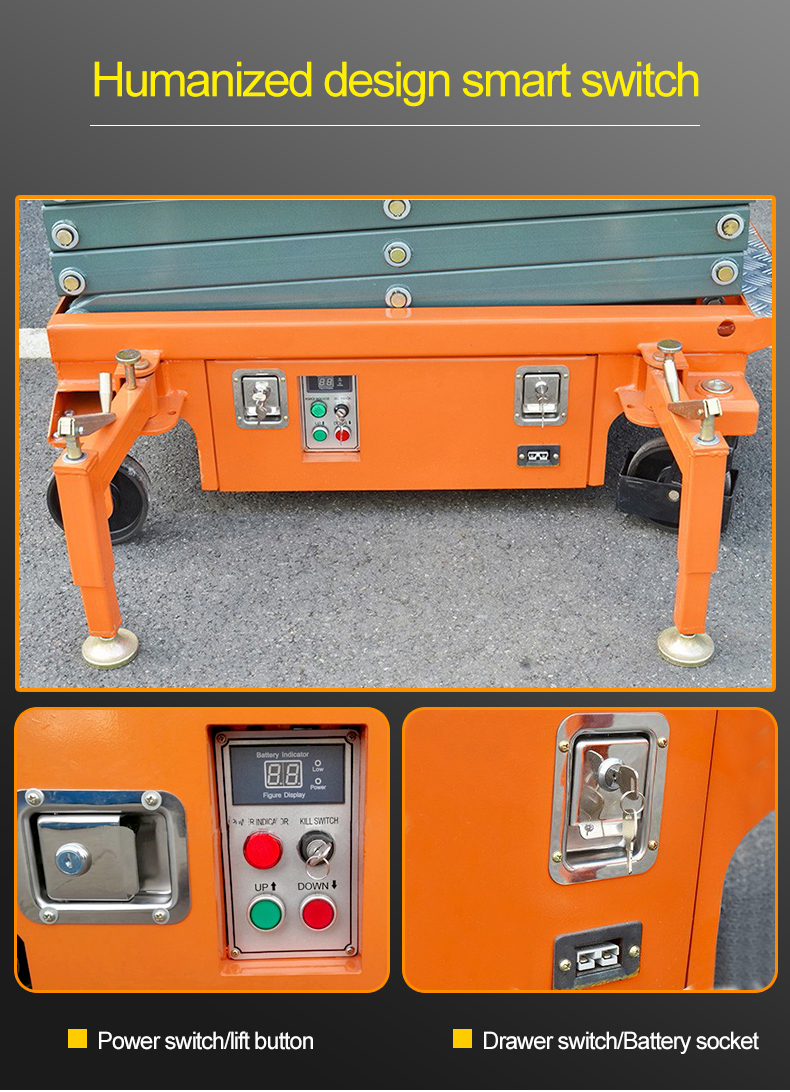

* Dual control points including emergency stops. Audible descend and tilt alerts.

* Spiral cable connection to the platform control unit. Emergency down valve

* Non-marking wheels, all 4 with brakes including 2 for steering.

* Prominent decals promoting responsible use. Forklift pockets and tool box.

Model NumberSJY0.3-3SJY0.3-3.9SJY0.3-4.8
Lift Rated Capacitykg300300300
Max. Platform Heightmm300039004800
Min. Platform Heightmm630700830
Platform Sizemm1170x6001170x6001170x600
Ascent/Descent Times33/3033/3033/30
Lifting Motorv/kw12/0.812/0.812/0.8
ChargerV/A12/1012/1012/10
Overall Lengthmm130013001300
Overall Widthmm740740740
Overall Heightmm165017501880
Overall Net Weightkg360420475
BatteryV/A12/6012/6012/60
