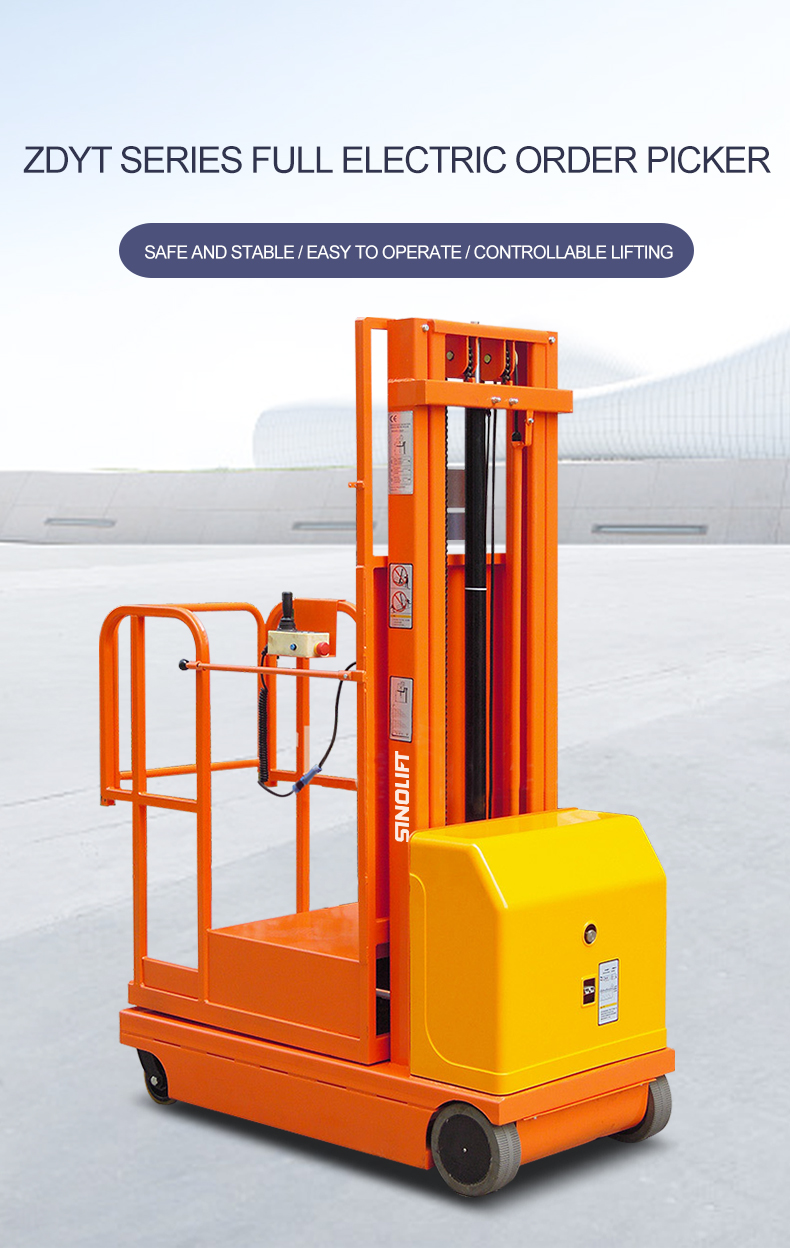

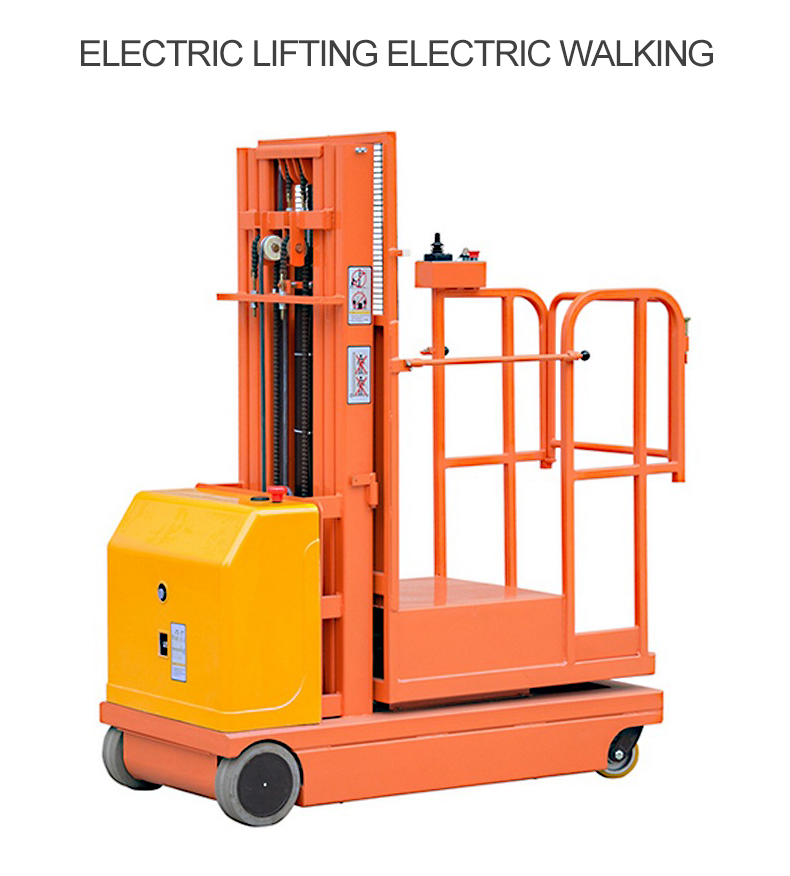

SINOLIFT ZDYT Series Self-propelled Full Electric Order Picker

ZDYT

Quantity:

Contact Now

add to cart

Overview

Applicable Industries:Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Construction works
Showroom Location:None
Condition:New
Place of Origin:Shanghai, China
Power Souce:AC Motor
Warranty:1 Year, 12 month
Machinery Test Report:Provided
Video outgoing-inspection:Provided
Marketing Type:Ordinary Product
Warranty of core components:1 Year
Core Components:Motor
Weight (KG):100 kg
After-sales Service Provided:Field installation, commissioning and training
Product Name:Order Picker
Name:Electric Order Picker
Other name:Self-propelled Electric Semi Order Picker
Type:full electric
Capacity:300kg
Payment:100% T/T in advance
MOQ:1 unit
Lifting height:2700-4500mm

Lead Time:

Quantity(Sets)	1 - 6	7 - 15	>15
Est. Time(days)	15	35	To be negotiated

ZDYT Series Self-propelled Full Electric Order Picker

Product Description

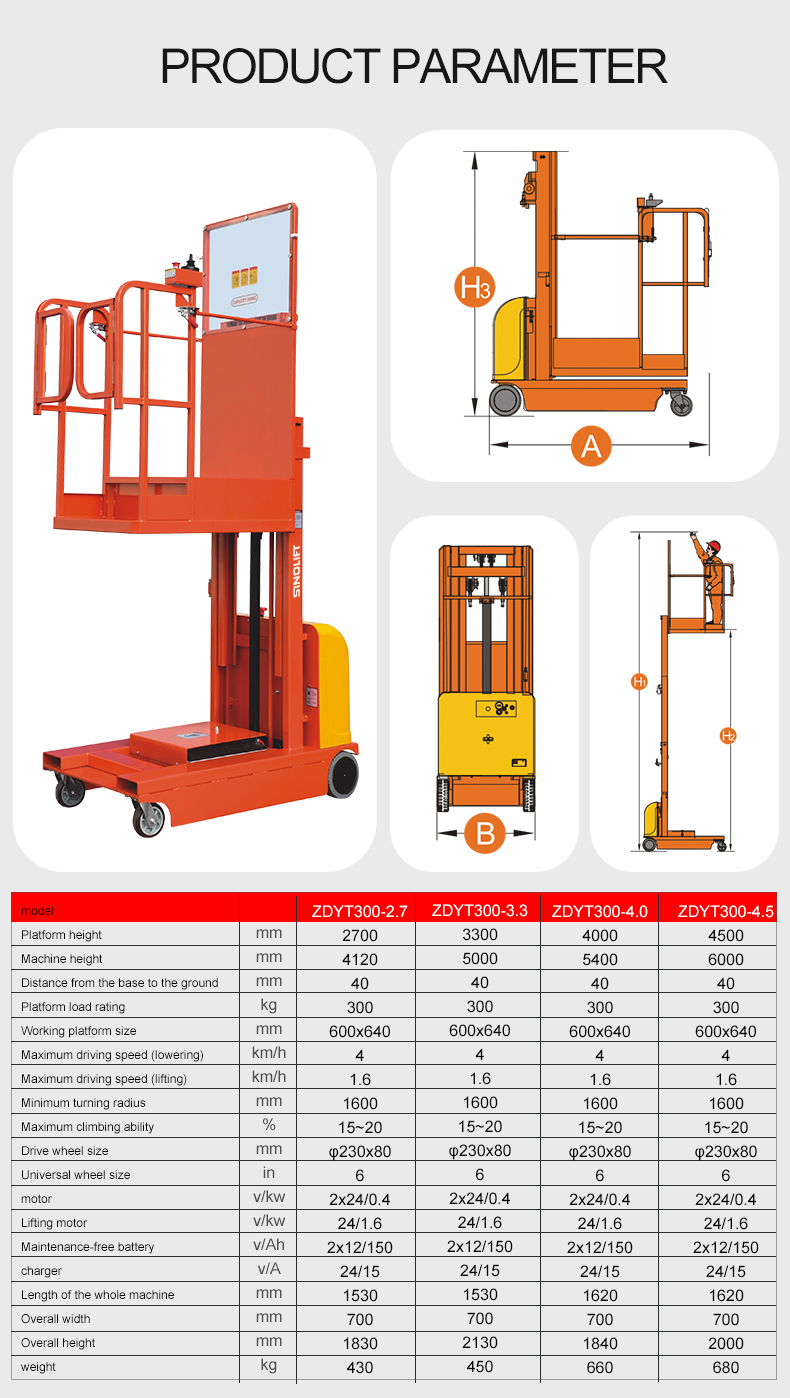

Max. Plarform Height	mm	2700	3300	4000	4500
Max. Machine Height	mm	4120	5000	5400	6000
Ground Clearance	mm	40	40	40	40
Lift Rated Capacity	kg	300	300	300	300
Platform Size	(mm)	600*640	600*640	600*640	600*640
Max. Drive Speed (platform stowed)	km/h	4	4	4	4
Max. Drive Speed (platform elevated)	km/h	1.6	1.6	1.6	1.6
Min. turning Radius	mm	1600	1600	1600	1600
Max. Climbing Capacity	%	15-20	15-20	15-20	15-20
Driving Wheel Size	mm	Φ230*80	Φ230*80	Φ230*80	Φ230*80
Caster Size	in	6	6	6	6
Driving Motor	v/kw	2*24/0.4	2*24/0.4	2*24/0.4	2*24/0.4
Lifting Motor	v/kw	2.4/1.6	2.4/1.6	2.4/1.6	2.4/1.6

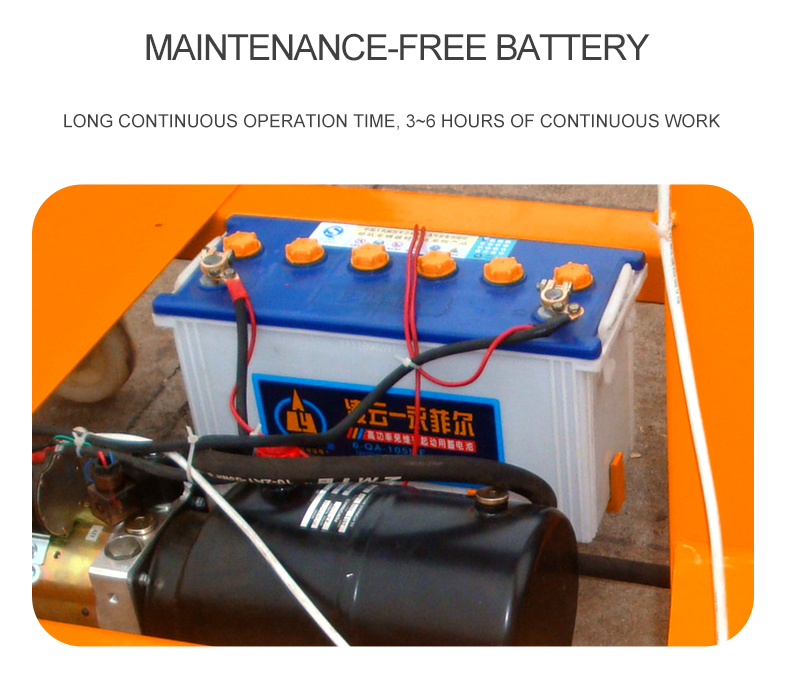

Aneroid Battery	v/Ah	2*12/150	2*12/150	2*12/150	2*12/150

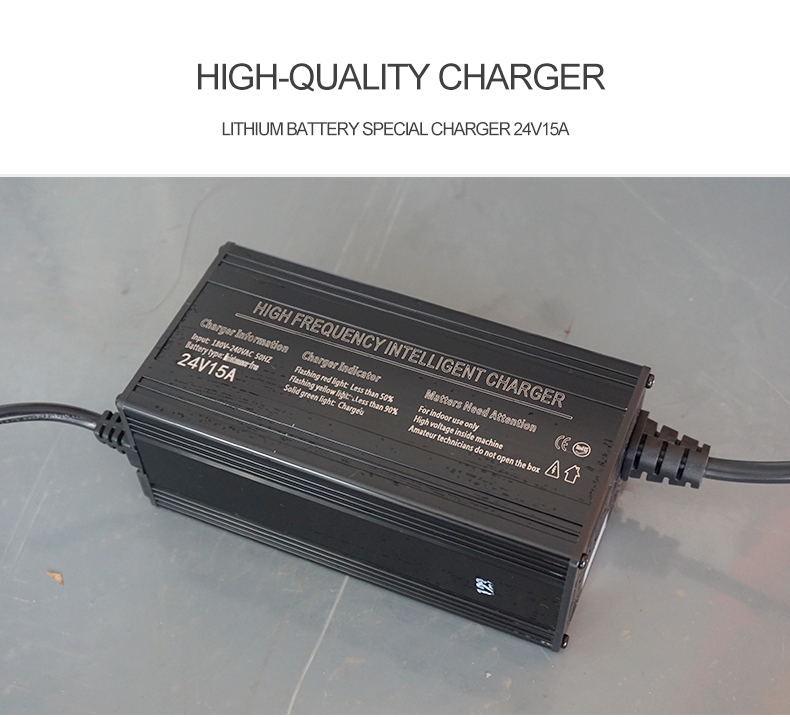

Charger	v/A	24/15	24/15	24/15	24/15
Overall Length	(mm)	1530	1530	1620	1620
Overall Width	(mm)	700	700	700	700
Overall Height	(mm)	1830	2130	1840	2000
Overall Net Weight	kg	430	450	660	680

SINOLIFT ZDYT Series Self-propelled Full Electric Order Picker
