scissor elevated work platform

Sinolift SJY0.3-3/SJY0.3-3.9 mobile elevated work platform With 300kg

SJY0.3-3/SJY0.3-3.9
Quantity:
Contact Now
add to cart
All Products

Overview

Quick Details

Applicable Industries:Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Construction works
Showroom Location:None
Place of Origin:Shanghai, China
Lift Mechanism:Scissor Lift
Table Size:1170x600
Warranty:3 years
Machinery Test Report:Provided
Video outgoing-inspection:Provided
Marketing Type:Ordinary Product
Warranty of core components:1 Year
Core Components:Gear
Product name:mobile elevating work platform
Capacity:300kg
Elevating Time:33s
Lowering Time:30s
Charger:12/15 V/A
Overall Width:740mm
Type:Mobile
Usage:Light Duty
Certificates:ISO9001
Material:Iron
After Warranty Service:Online support
Local Service Location:None
After-sales Service Provided:Field installation, commissioning and training

Supply Ability
Supply Ability
1000 Unit/Units per Month

Packaging & Delivery
Packaging Details
Standard Export Packing
Port
Shanghai,China

Product Description

 The Manually-propelled Quick Lift mini scissors are ideal for workers requiring safe, vertical access at heights up to 4 meters. All Quick Lifts pass through standard doorways and are easily operated by one person. Application environments include warehouses, supermarkets, department stores, offices, hotels, restaurants, construction fields, railway stations, subways, hospitals, universities and schools.


1.Free-standing operation, with rechargeable 12V battery power.
2. Minimum 200 operating cycles at rated loading.
3. Quick and smooth ascent or descent.
4. Ergonomic platform with non-slip floor and secure gating.
5.Dual control points including emergency stops. Audible descend and tilt alerts.
6.Spiral cable connection to the platform control unit. Emergency down valve
7.Non-marking wheels, all 4 with brakes including 2 for steering.
8. Prominent decals promoting responsible use. Forklift pockets and tool box.

     Automatic display of fault code for easy maintenance


Standard Equipment

1.Battery Charge Indicator

2.Self-lock Gate on Platform

3.Leveling  Indicator

4.Safety Brackets

5.Forklift Pockets

6.All Motion Alarm

7.Folding Guardrails


Product Data
SpecificationsSJY0.3-3(mini)SJY0.3-3.9(mini)
Lift Rated Capacitykg300300
Max.Platform Heightmm30003900
Min.Platform Heightmm630700
Platform Size (LxWxH)mm1170x6001170x600
Elevating Times3333
Lowering Times3030
Lift MotorV/kw12/0.812/0.8
ChargerV/A12/1512/15
Overall Lengthmm13001300
Overall Widthmm740740
Overall Heightmm16501650
Service Weightkg360420

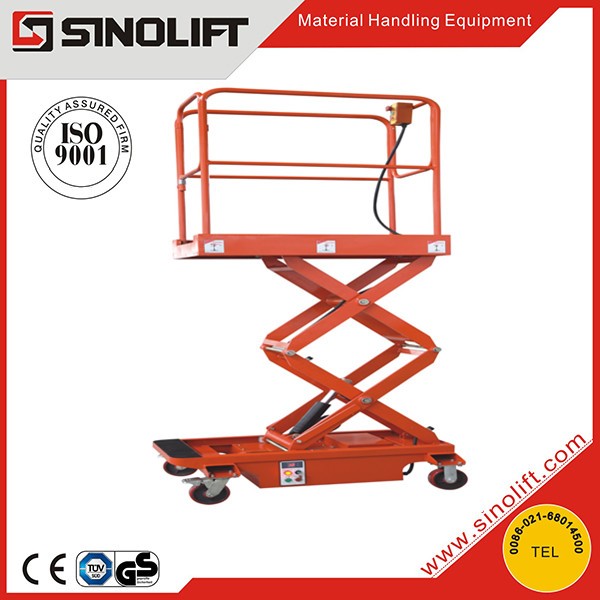

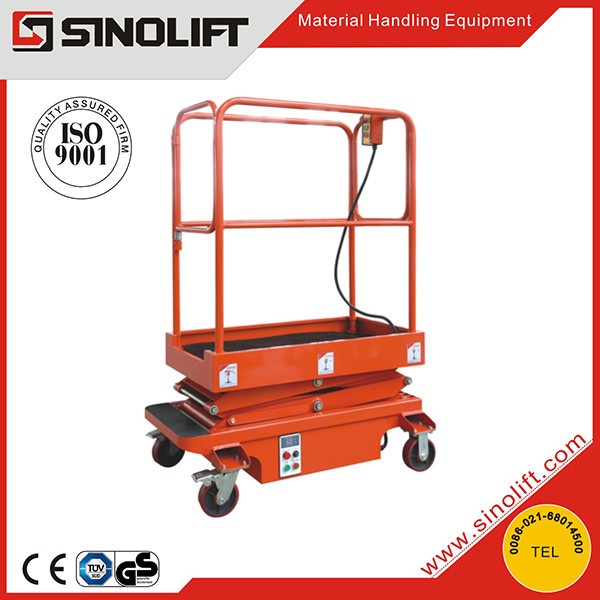

Photos of Product

Sinolift SJY0.3-3/SJY0.3-3.9 mobile elevated work platform With 300kg

Sinolift SJY0.3-3/SJY0.3-3.9 mobile elevated work platform With 300kg

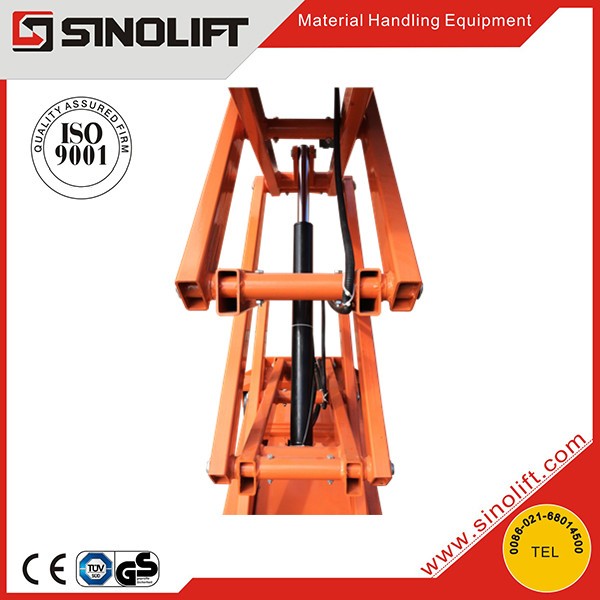

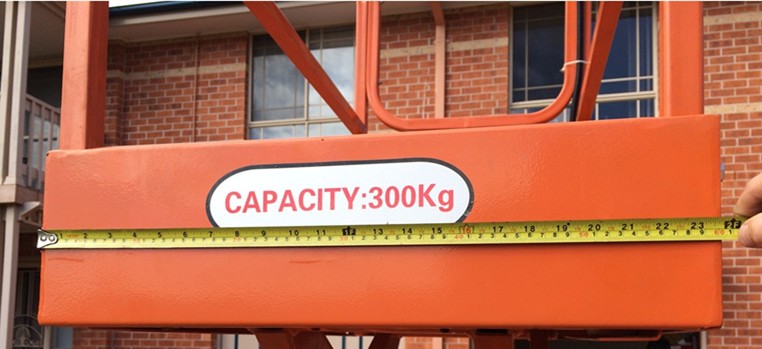

Detail Pictures

Sinolift SJY0.3-3/SJY0.3-3.9 mobile elevated work platform With 300kg

Sinolift SJY0.3-3/SJY0.3-3.9 mobile elevated work platform With 300kg
