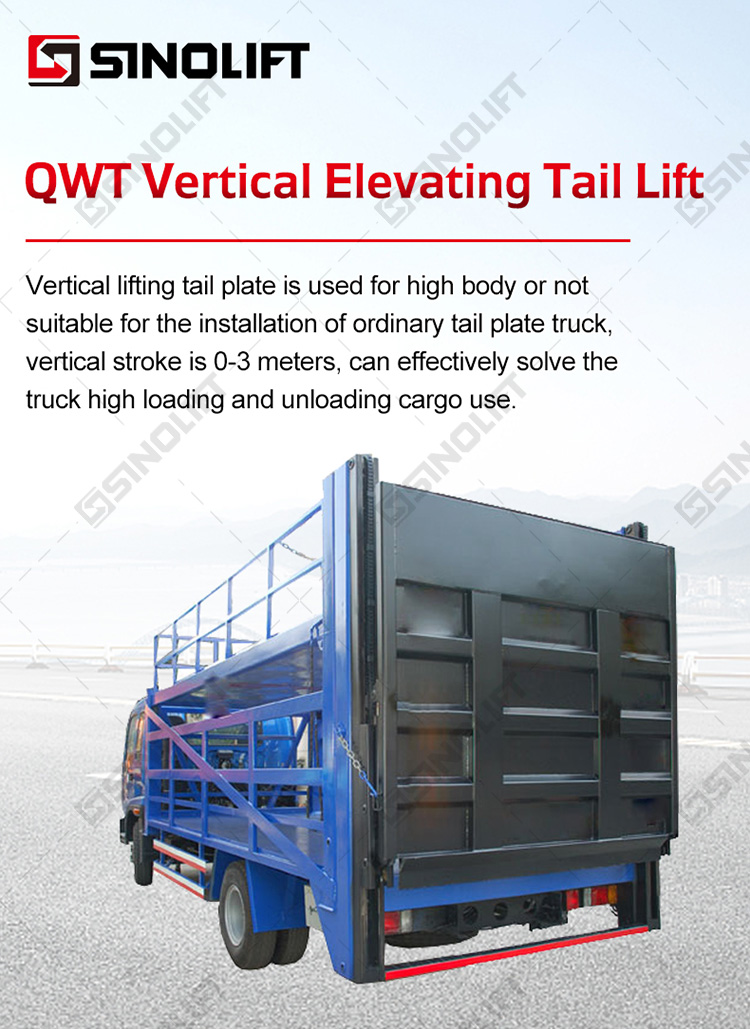

QWT Vertical Elevating Tail Lift
QWT Vertical Elevating Tail Lift
Quantity:

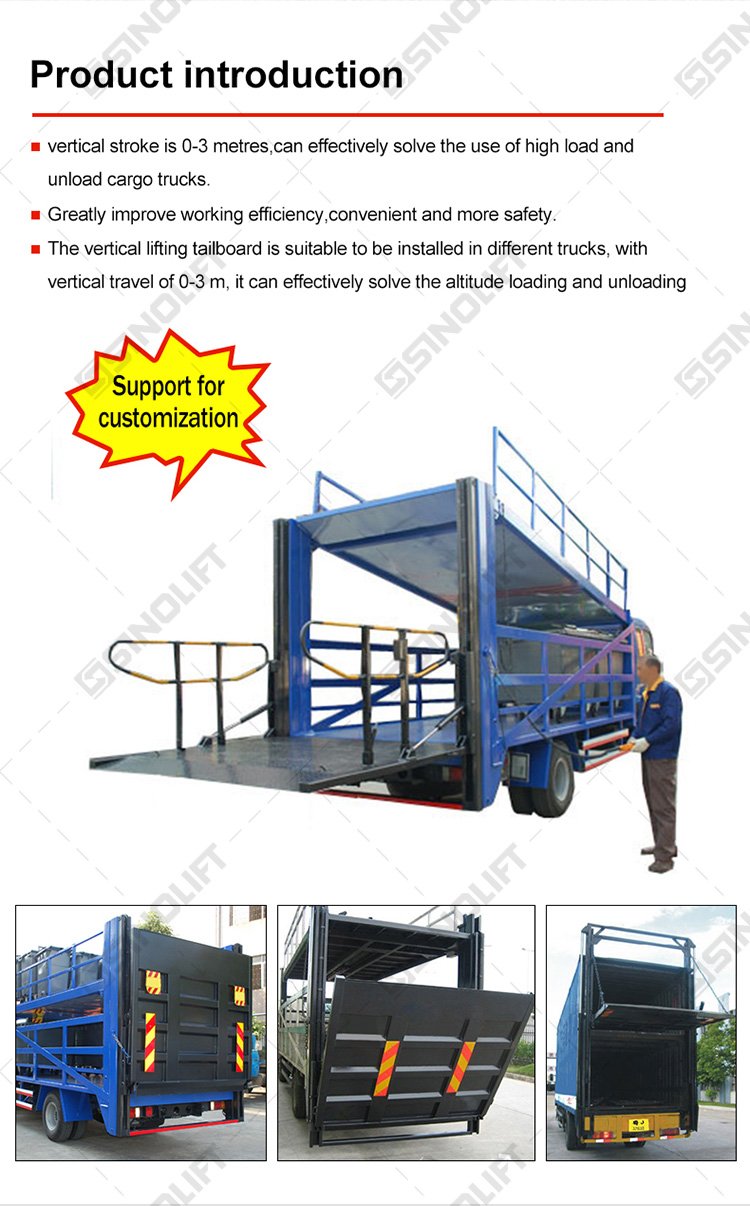

Vertical lifting pygidium is suit to install in different types of trucks,vertical stroke is 0-3 metres,can effectively solve the use of high load and unload cargo trucks.
Greatly improve working efficiency,convenient and more safety!
To meet different market demands, the latest “vertical lifting tailboard” firstly developed by our company in China has been produced in batches and marketed.

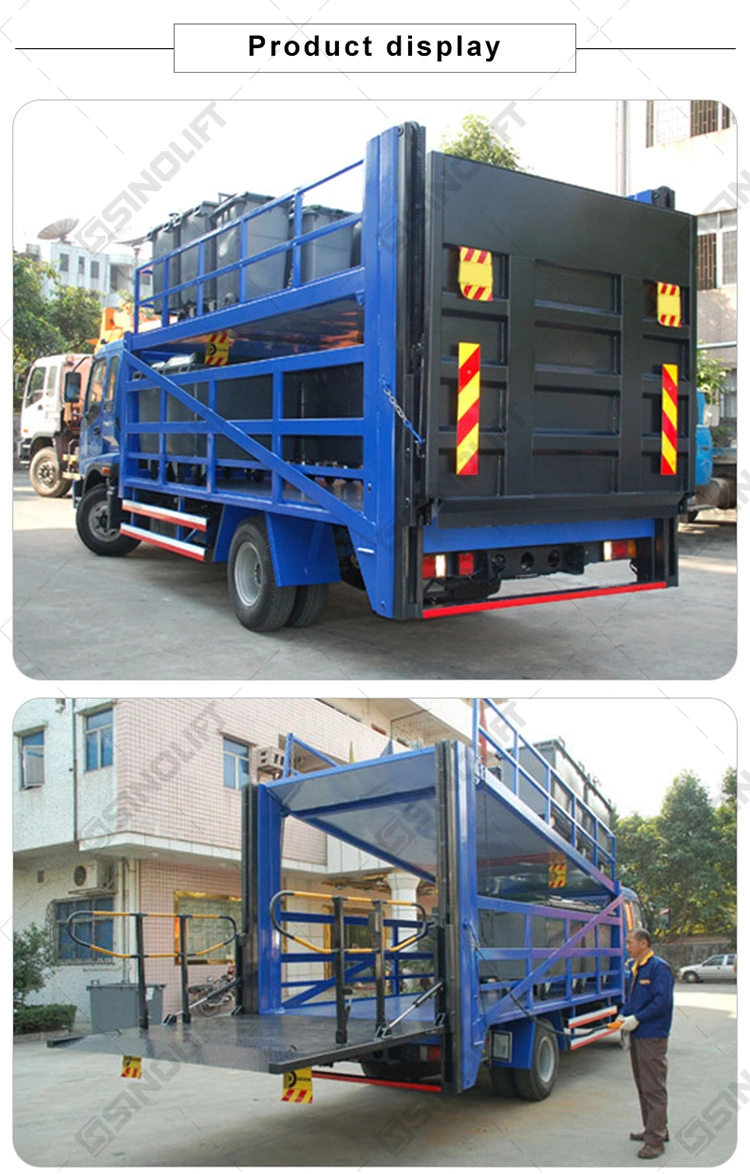

The vertical lifting tailboard is suitable to be installed in different trucks, with vertical travel of 0-3 m, it can effectively solve the altitude loading and unloading, greatly improves operating efficiency and is convenient and safe!

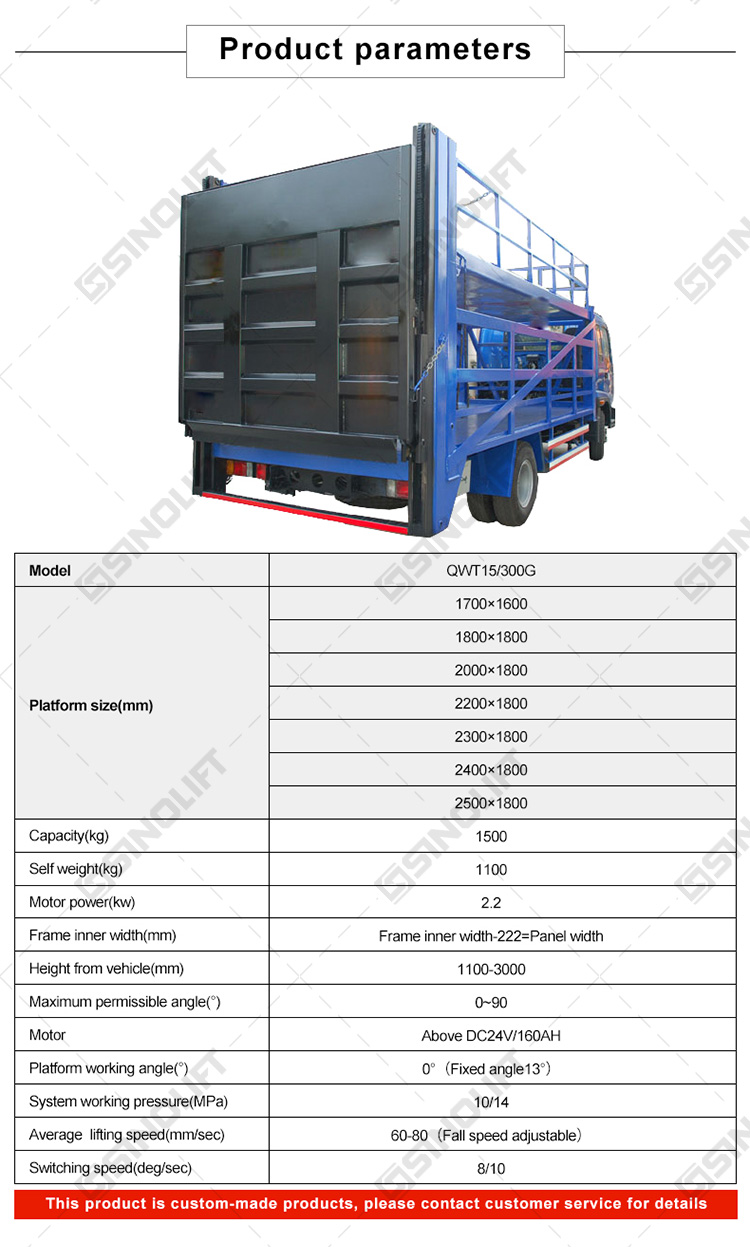

| Model | QB15/300G |
| Platform size(mm) | 1700×1600 |
| 1800×1800 | |
| 2000×1800 | |
| 2200×1800 | |
| 2300×1800 | |
| 2400×1800 | |
| 2500×1800 | |
| Capacity(kg) | 1500 |
| Self weight(kg) | 1100 |
| Motor power(kw) | 2.2 |
| Frame inner width(mm) | Frame inner width-222=Panel width |
| Height from vehicle(mm) | 1100-3000 |
| Maximum permissible angle(°) | 0~90 |
| Motor | Above DC24V/160AH |
| Platform working angle(°) | 0°（Fixed angle13°） |
| System working pressure(MPa) | 10/14 |
| Average lifting speed(mm/sec) | 60-80（Fall speed adjustable） |
| Switching speed(deg/sec) | 8/10 |
