PTS series Post Lift Table
PT
Quantity:
PRODUCT PRESENTATION:

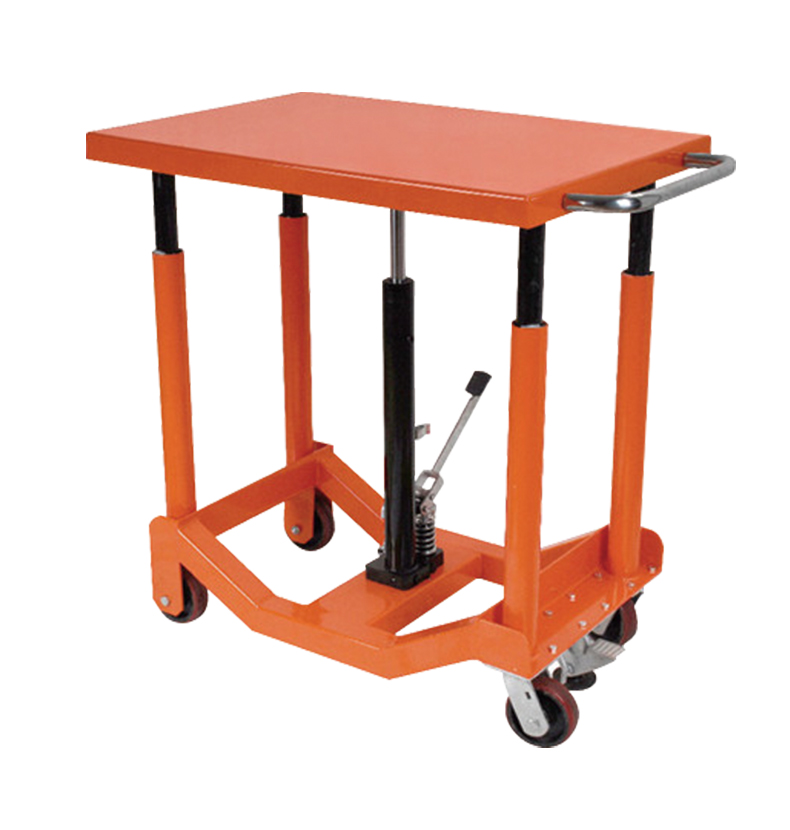

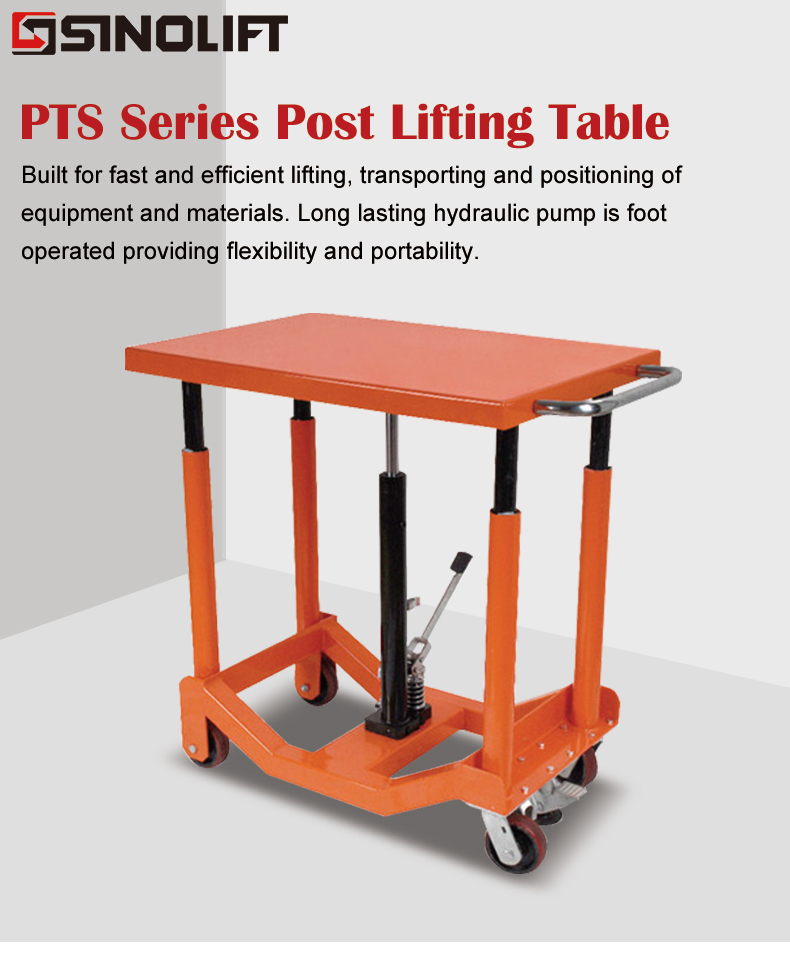

PTS Series Post Lifting Table
1.Built for fast and efficient lifting, transporting and positioning of equipment and materials. Long lasting hydraulic pump is foot operated providing flexibility and portability.

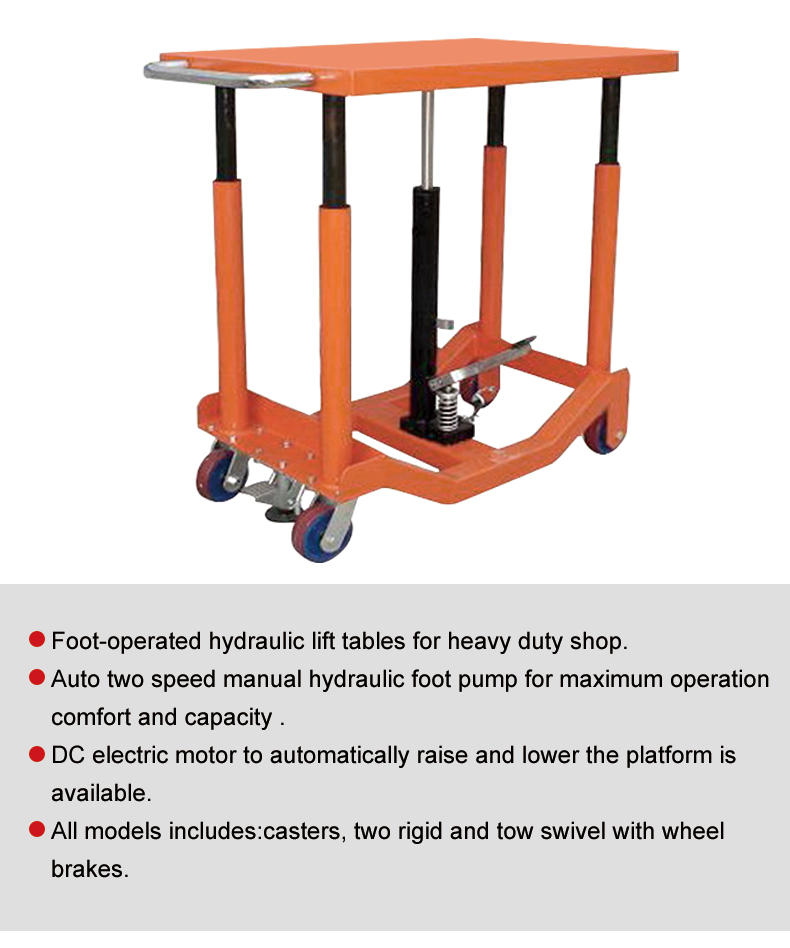

2.Foot-operated hydraulic lift tables for heavy duty shop.
3..Auto two speed manual hydraulic foot pump for maximum operation comfort and capacity .
4.DC electric motor to automatically raise and lower the platform is available.
5.All models includes:casters, two rigid and tow swivel with wheel brakes.
PTS Series Post Lifting Table

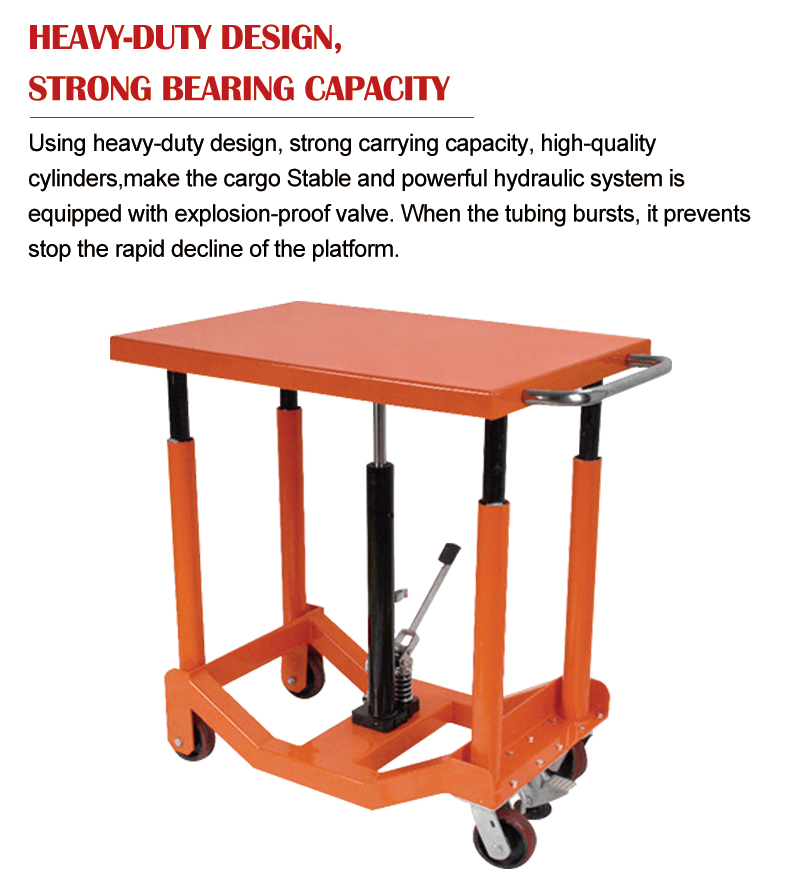

- Heavy-duty design, strong bearing capacity.Using heavy-duty design, strong carrying capacity, high-quality cylinders,make the cargo Stable and powerful hydraulic system is equipped with explosion-proof valve. When the tubing bursts, it prevents stop the rapid decline of the platform.
- Carbon steel roller.The support rollers are designed with high-quality carbon steel CNC high-precision machining internal lubrication bushings,load-bearing, maintenance-free, wear-resistant and durable.
- Quality casters.High-quality PU casters made of polyurethane, resistant to durable grinding,flexible turnover,protective fence can be Anti-pressure foot, with foot brake function.
- Tabletop Appearance.The table tops are electrostatic sprayed and baked at high temperatures,lean welding, smooth polishing, the result of this craftsmanship.

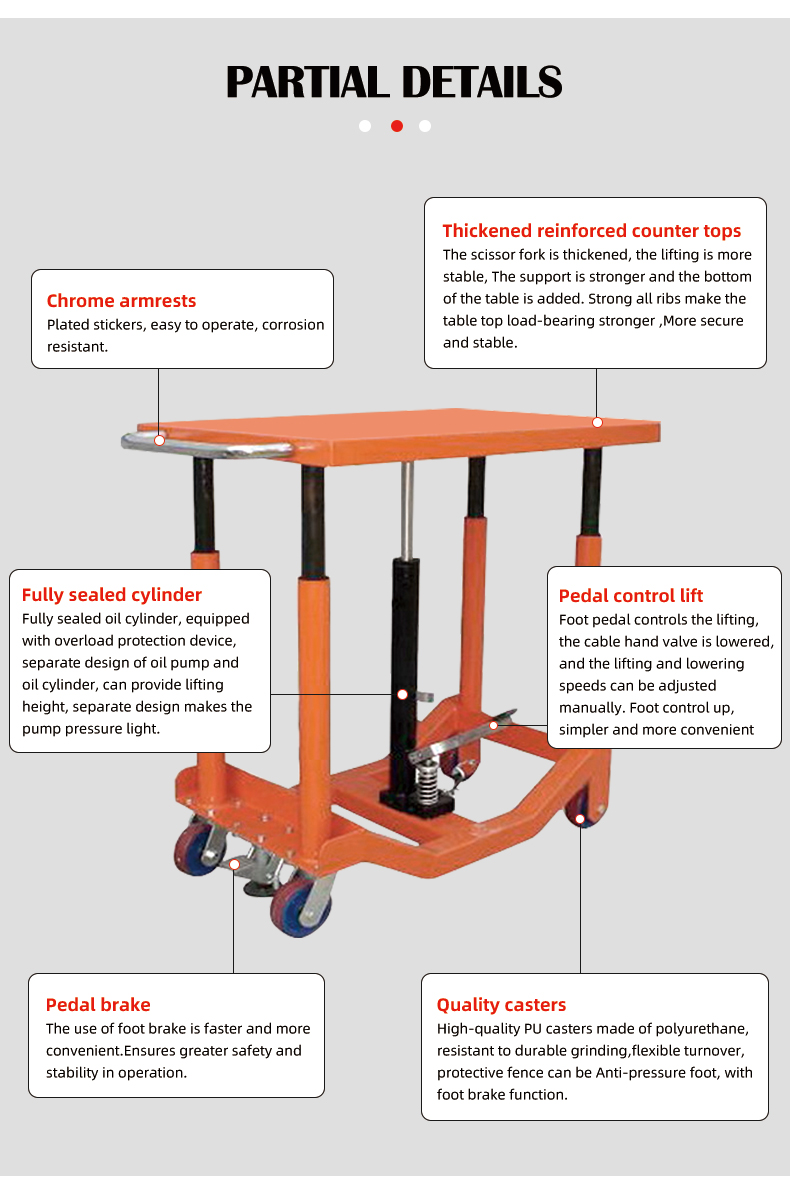

- Thickened reinforced counter tops.The scissor fork is thickened, the lifting is more stable, The support is stronger and the bottom of the table is added. Strong all ribs make the table top load-bearing stronger ,More secure and stable.
- Fully sealed cylinder.Fully sealed oil cylinder, equipped with overload protection device, separate design of oil pump and oil cylinder, can provide lifting height, separate design makes the pump pressure light.
- Pedal control lift.Foot pedal controls the lifting,the cable hand valve is lowered and the lifting and lowering speeds can be adjusted manually. Foot control up,simpler and more convenient.
- Pedal brake.The use of foot brake is faster and more convenient. Ensures greater safety andstability in operation.
- Quality casters.High-quality PU casters made of polyurethane, resistant to durable grinding,flexible turnover,protective fence can be Anti-pressure foot, withfoot brake function.
| Model | PTS-20-2436 | PTS-20-3042 | PTS12-10/PTS18-10 | PTS12-20/PTS18-20 | PTS12-40/PTS18-40 | |
| Load Capacity | kg/lbs | 100kg 2200lb | 100kg 2200lb | 455kg 1000lb | 910kg 2200lb | 1820kg 4000lb |
| Lowest Height | mm | 540 | 670 | 635/787 | 635/787 | 635/787 |
| Max.Height | mm | 1250 | 1500 | 940/1245 | 940/1245 | 940/1245 |
| Table.Dimensions | mm | 610x915 | 762x915 | 508x762 | 610x915 | 610x915 |
| Net Weitht | kg | 145 | 175 | 72/78 | 96/101 | 116 |
| Packing Dimensions | mm | 930x780x550 | 930x780x680 | 810x520x800 | 980x630x800 | 980x630x800 |
| Qty"/1x20"FCL | pcs | 36 | 28 | 87/58 | 54/36 | 54/36 |
1.Built for fast and efficient lifting, transporting and positioning of equipment and materials. Long lasting hydraulic pump is foot operated providing flexibility and portability.
2.Foot-operated hydraulic lift tables for heavy duty shop.
3..Auto two speed manual hydraulic foot pump for maximum operation comfort and capacity .
4.DC electric motor to automatically raise and lower the platform is available.
5.All models includes:casters, two rigid and tow swivel with wheel brakes.
