PT series Post Lift Table
PT
Quantity:
PRODUCT PRESENTATION:

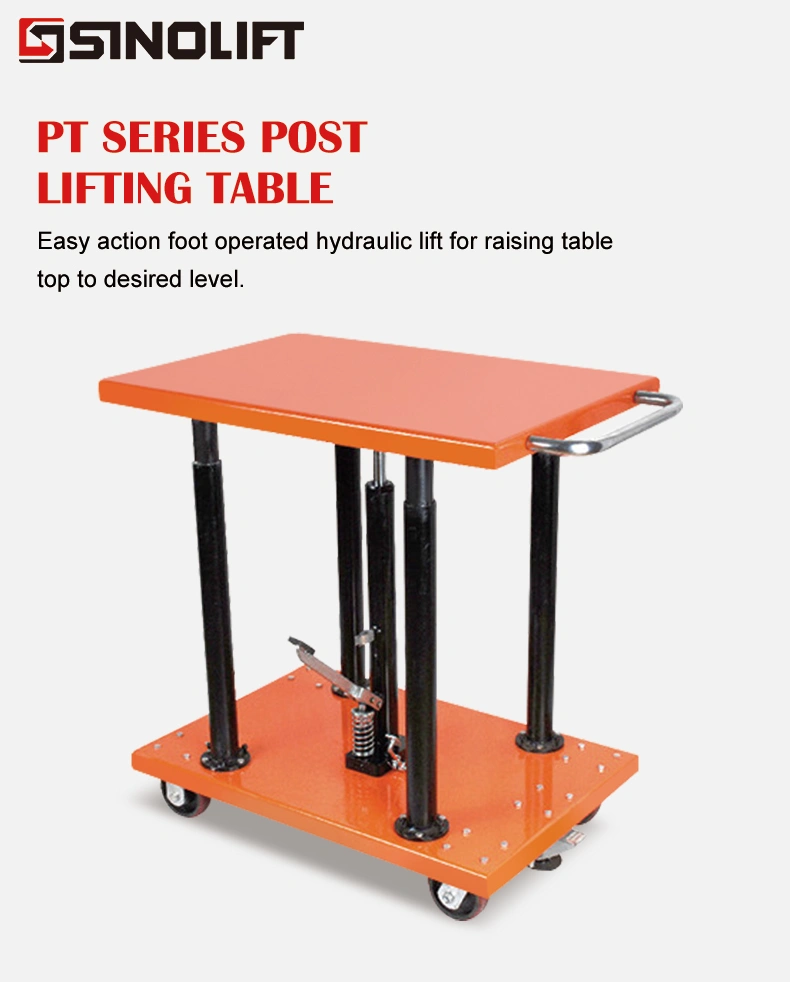

PT Series Post Lifting Table

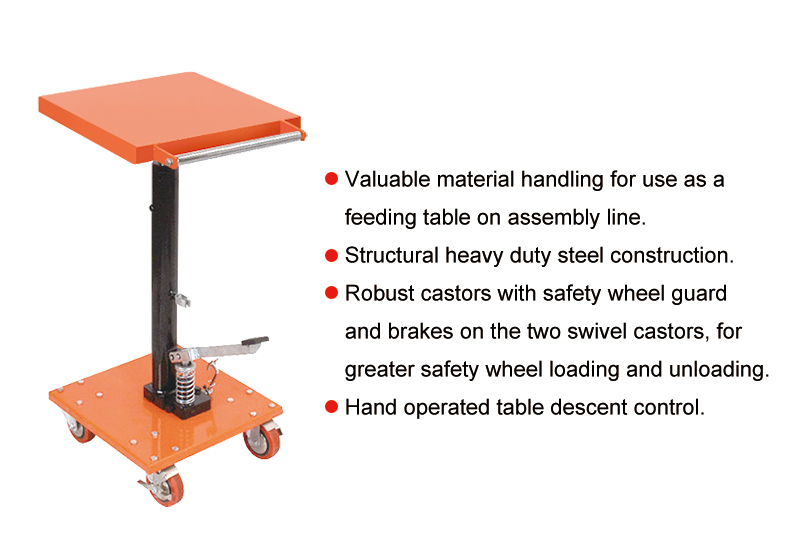

1. Valuable material handling for use as a feeding table on assembly line.
2.Structural heavy duty steel construction.
3. Easy action foot operated hydraulic lift for raising table top to desired level.
4. Robust castors with safety wheel guard and brakes on the two swivel castors, for greater safety wheel loading and unloading.
5. Hand operated table descent control.
PT Series Post Lifting Table

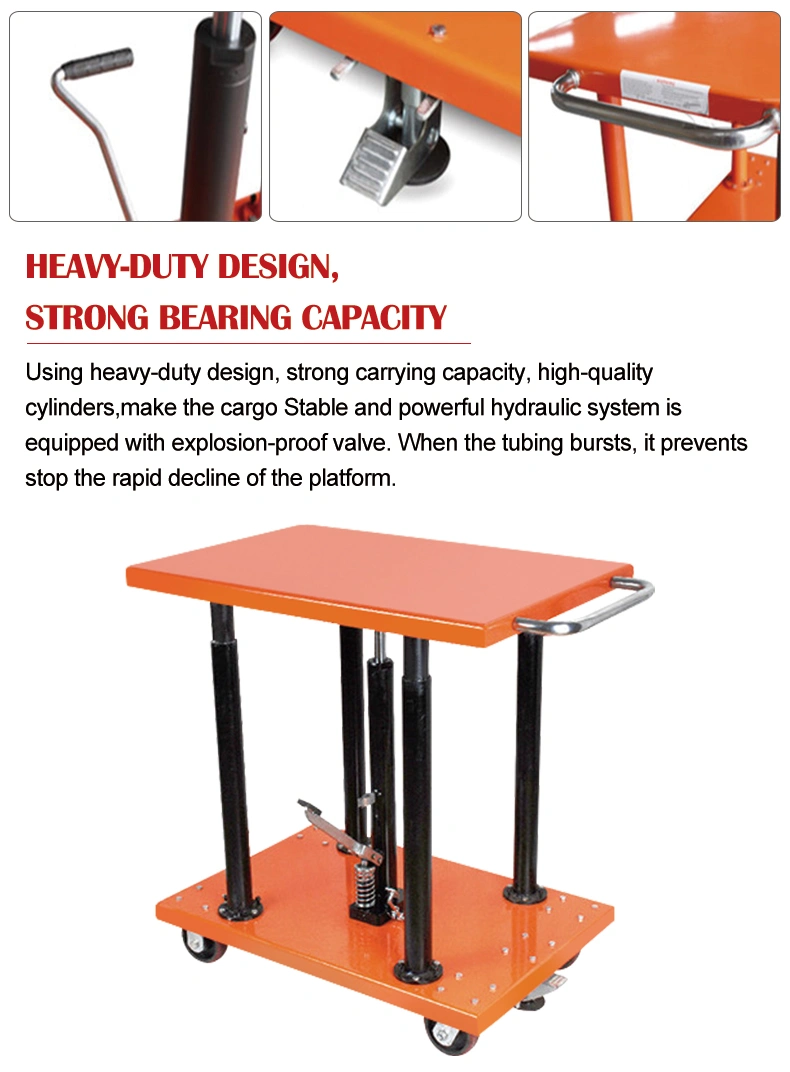

Heavy-duty design, strong bearing capacity.Using heavy-duty design, strong carrying capacity, high-quality cylinders,make the cargo Stable and powerful hydraulic system is equipped with explosion-proof valve. When the tubing bursts, it prevents stop the rapid decline of the platform.
Carbon steel roller.The support rollers are designed with high-quality carbon steel CNC high-precision machining internal lubrication bushings,load-bearing, maintenance-free, wear-resistant and durable.
Quality casters.High-quality PU casters made of polyurethane, resistant to durable grinding,flexible turnover,protective fence can be Anti-pressure foot, with foot brake function.
Tabletop Appearance.The table tops are electrostatic sprayed and baked at high temperatures,lean welding, smooth polishing, the result of this craftsmanship.

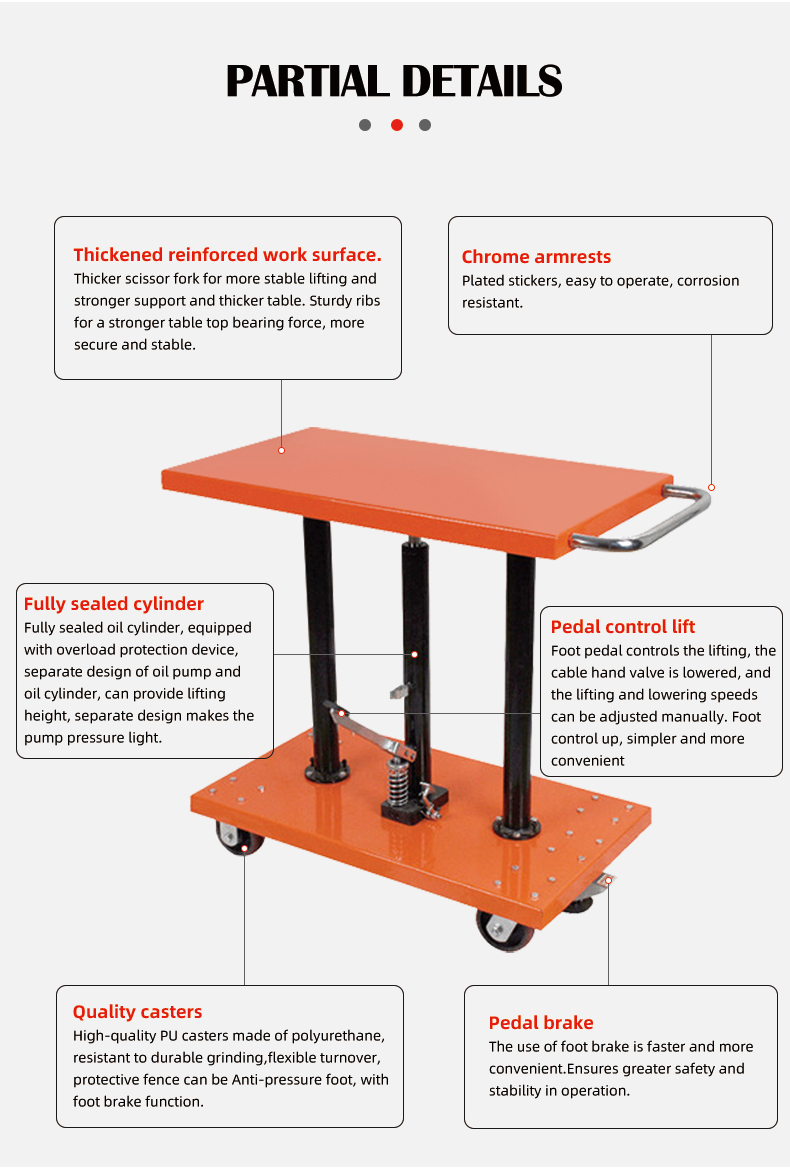

Thickened reinforced counter tops.The scissor fork is thickened, the lifting is more stable, The support is stronger and the bottom of the table is added. Strong all ribs make the table top load-bearing stronger ,More secure and stable.
DC electric motor to automatically raise and lower the platform is available.
| Model | PT02－1616 | PT05－1818 | PT10－2036 | PT20－2436 | PT20－3036 | PT20－3242 | |
| Load Capacity | kg | 100 | 250 | 500 | 1000 | 1000 | 1000 |
| Lowest Height | mm | 790 | 790 | 915 | 915 | 915 | 915 |
| Max.Height | mm | 1245 | 1245 | 1372 | 1372 | 1372 | 1372 |
| Table.Dimensions | mm | 406x406 | 458x458 | 508x915 | 610x915 | 762x915 | 812x1220 |
| Net Weitht | kg | 29 | 44 | 83 | 127 | 142 | 185 |
| Packing Dimensions | mm | 490x420x800 | 540x470x800 | 930x520x920 | 930x630x920 | 930x780x920 | 1240x830x920 |
| Qty/1x20"FCL | pcs | 110 | 96 | 44 | 36 | 28 | 22 |
1. Valuable material handling for use as a feeding table on assembly line.
2.Structural heavy duty steel construction.
3. Easy action foot operated hydraulic lift for raising table top to desired level.
4. Robust castors with safety wheel guard and brakes on the two swivel castors, for greater safety wheel loading and unloading.
5. Hand operated table descent control.
