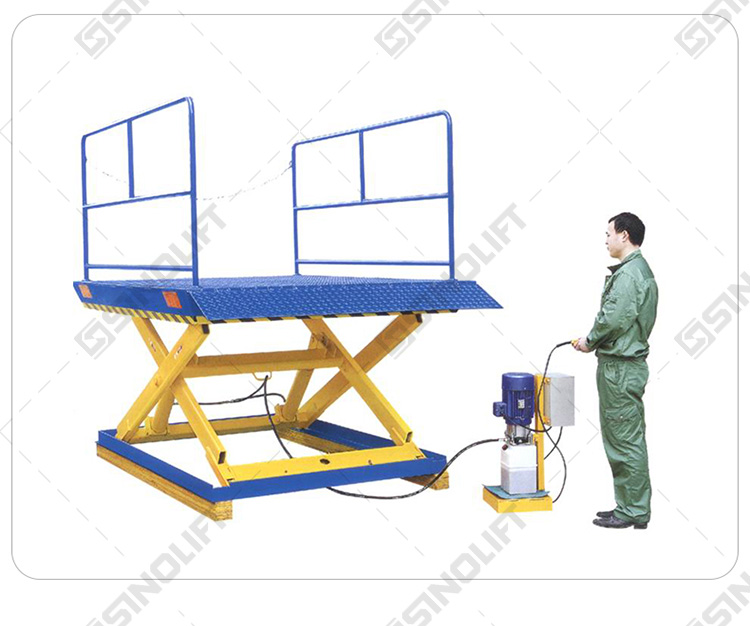

ALT Electric Load and Unloading Lift Table（ALT27 ALT10 ALT20）
ALT
• Designed for industrial heavy duty applications(as part of a production process, for machine feeding or stacking etc.) 应用

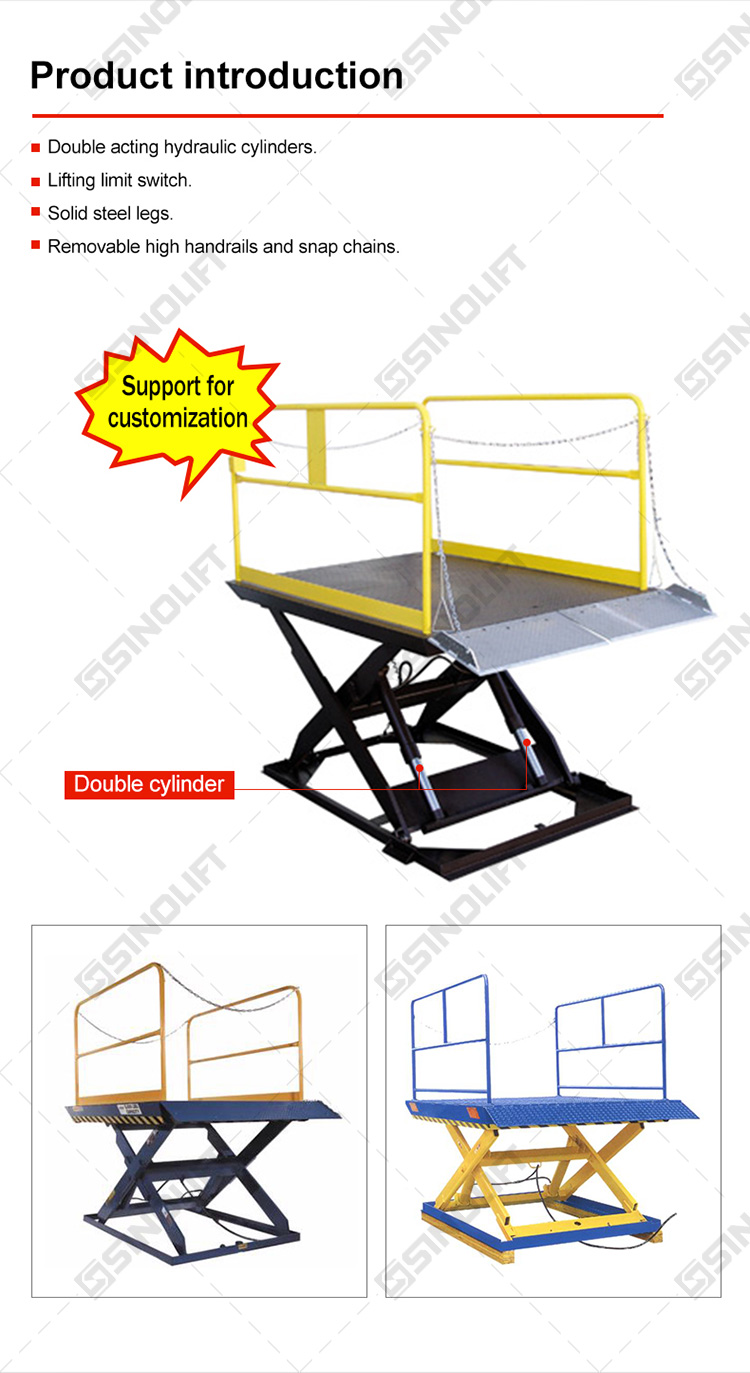

• Double acting hydraulic cylinders.
• Lifting limit switch.
• Double acting hydraulic cylinders.
• Lifting limit switch.
Quantity:
ALT Electric Load and Unloading Lift Table
• Designed for industrial heavy duty applications(as part of a production process, for machine feeding or stacking etc.) 应用
• Double acting hydraulic cylinders.
• Lifting limit switch.
Features:
• Solid steel legs
• Lubricated-for-life composite bearings on all pivot points

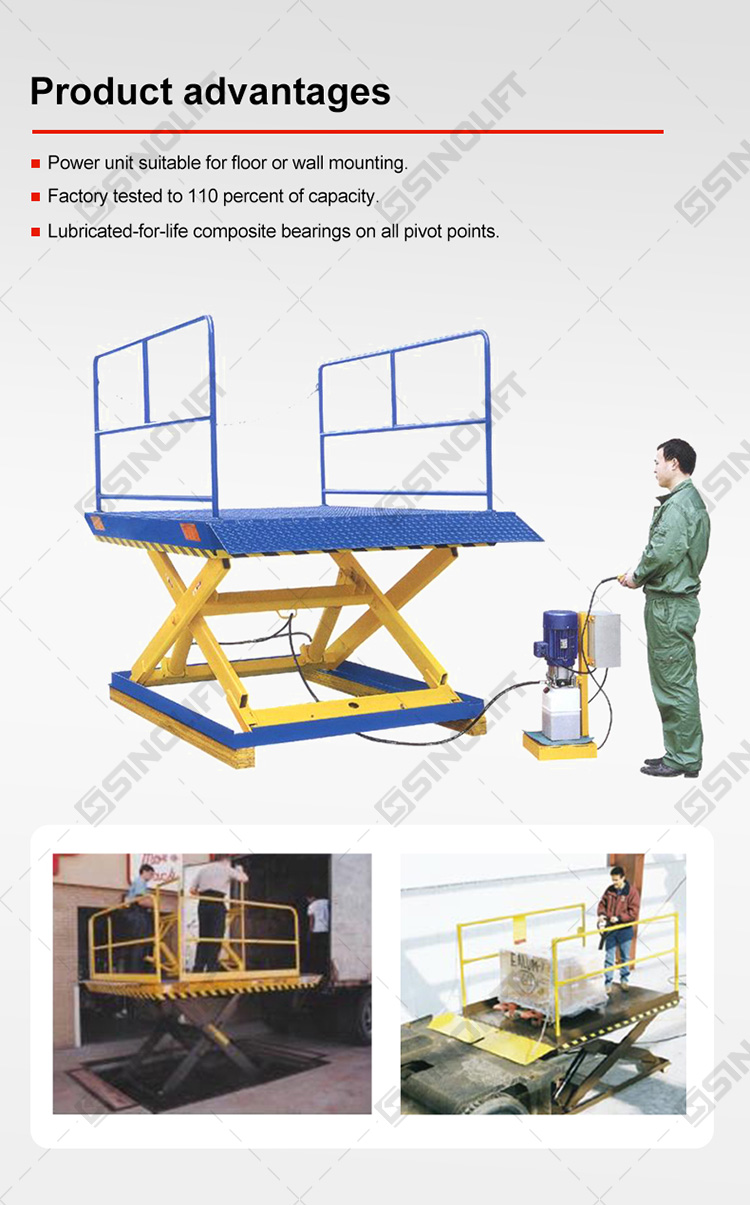

• Power unit suitable for floor or wall mounting –
• Factory tested to 110 percent of capacity –
• Removable high handrails and snap chains -

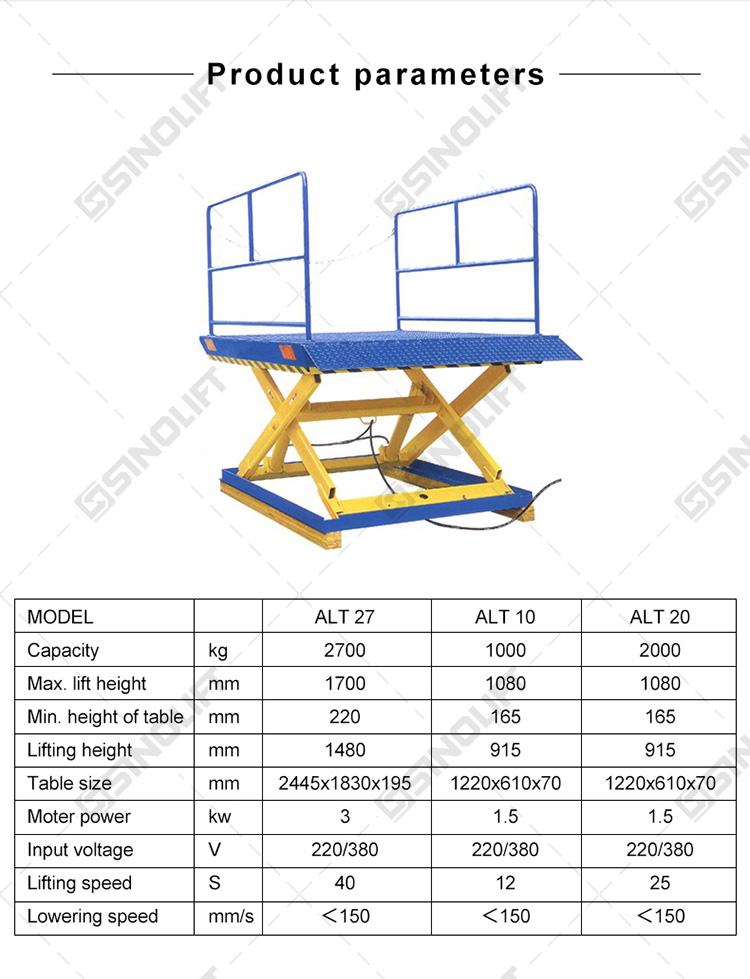

| MODEL | ALT27 | ALT 10 | ALT 20 | ||
| Capacity | kg | kg | 2700 | 1000 | 2000 |
| Max. lift height | L4 | mm | 1700 | 1080 | 1080 |
| Min. height of table | L3 | mm | 220 | 165 | 165 |
| Lifting height | mm | 1480 | 915 | 915 | |
| Table size | L1 x L2 | mm | 2445x1830x195 | 1220x610x70 | 1220x610x70 |
| Moter power | kw | 3 | 1.5 | 1.5 | |
| Input voltage | V | 220/380 | 220/380 | 220/380 | |
| Lifting speed | S | 40 | 12 | 25 | |
| Lowering speed | mm/s | ＜150 | ＜150 | ＜150 |
