GTWY-1200 Single Mast Aluminum Aerial Work Platform
GTWY-1200
Feature:
1.Single group of high-strength aluminum alloy masts are adopted, with light weight and good mobility, which is suitable for single operation.
2.The equipment is compact in structure and small in size after folding. It can enter the bridge box, common door and narrow passage of the general passenger elevator.
3.It has a unique loading device and is convenient to get on and off the truck.
4.Two sets of buttons are set for lifting operation, both of which are safe voltage, and can be monitored by ground personnel for working at heights.
5.The safety devices are complete and reliable.
6.The working platform can be equipped with sockets for electric tools to work at heights.
1.Single group of high-strength aluminum alloy masts are adopted, with light weight and good mobility, which is suitable for single operation.
2.The equipment is compact in structure and small in size after folding. It can enter the bridge box, common door and narrow passage of the general passenger elevator.
3.It has a unique loading device and is convenient to get on and off the truck.
4.Two sets of buttons are set for lifting operation, both of which are safe voltage, and can be monitored by ground personnel for working at heights.
5.The safety devices are complete and reliable.
6.The working platform can be equipped with sockets for electric tools to work at heights.
Quantity:
Characteristic:
The load is 125KG, and the lift is 6-10M, which can be tilted to facilitate the loading and unloading of trucks, and it is convenient to get up and down AWP, which can be tilted, single-mast lifting platform, tilting single-mast aluminum alloy lifting platform:
● Leveling leg with sensor
● Emergency stop button
● Charging indicator
● Limit switch
● Dual control operation
● Emergency descent system
● Level indicator
● Standard forklift hole is convenient for loading and unloading
Parameter:
| 型号规格 Model Number | GTWY6-1200 | GTWY8-1200 | GTWY10-1200 | ||
| 平台额定载荷 Lift Rated Capacity | kg | 150 | 125 | 125 | |
| 平台最大高度 Max Platform Height | mm | 6000 | 8000 | 10000 | |
| 机器最大高度 Max Machine Height | mm | 7700 | 9700 | 11700 | |
| 底座离地间隙 Ground Clearance | mm | 80 | 80 | 80 | |
| 平台尺寸 Platform Size | mm | 650x600 | |||
| 撑腿展开尺寸 Outspread Size | mm | 1930x1770 | |||
| 电源 Power | 交流 AC | V | 220 | ||
| 直流 DC | V | 24 | |||
| 蓄电池 Battery | V/Ah | 2x12/60 | |||
| 充电器 Charger | V | 24/10 | |||
| 举升电机 Lifting Motor | 交流 AC | V/KW | 220/0.75 | ||
| 直流 DC | V/KW | 24/2.0 | |||
| 整机长度 Overall Length | mm | 1560 | 1560 | 1560 | |
| 整机宽度 Overall Width | mm | 800 | 800 | 800 | |
| 整机高度 Overall Height | mm | 1950 | 2050 | 2150 | |
| 整机重量 Overall Weight | 交流 AC | kg | 300 | 350 | 400 |
| 直流 DC | kg | 330 | 380 | 430 | |

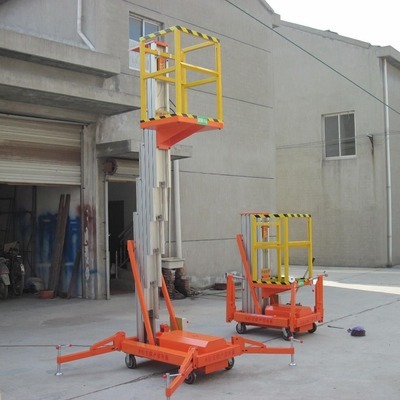

Product detail:
