Sinolift ET50-160 series Full electric scissor lift table truck
ET50-160
Quantity:
PRODUCT PRESENTATION:
ET50-160 Full Electric lifting platform
1. Valuable material handling for use as a feeding table on assembly line.
2.Structural heavy duty steel construction.
3. Easy action foot operated hydraulic lift for raising table top to desired level.
4. Robust castors with safety wheel guard and brakes on the two swivel castors, for greater safety wheel loading and unloading.
5. Hand operated table descent control.
ET50-160 Full Electric lifting platform

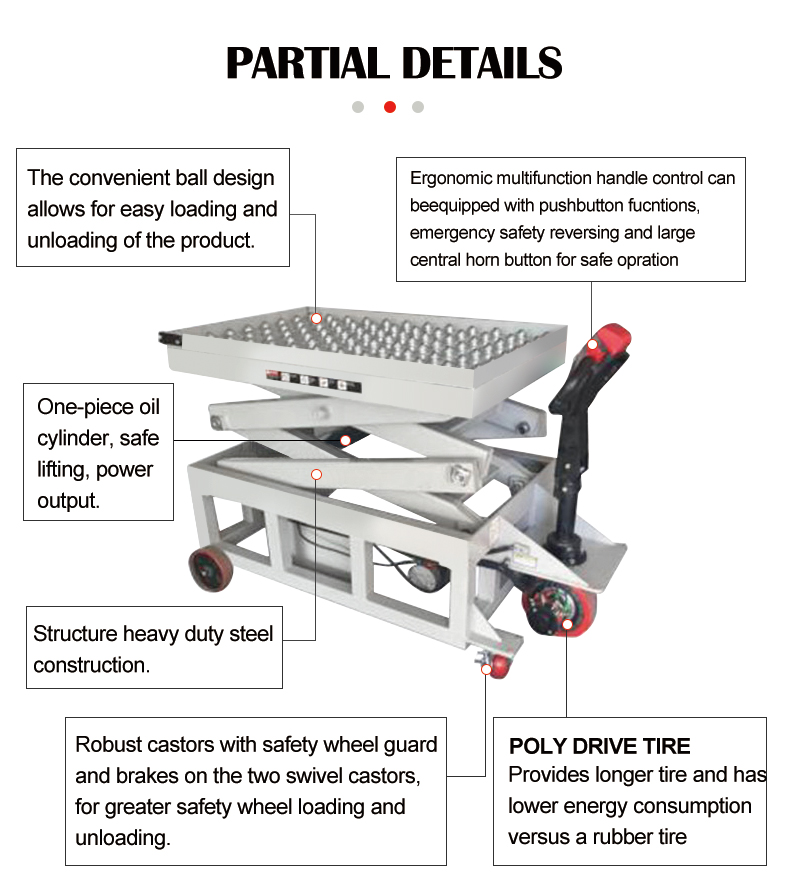

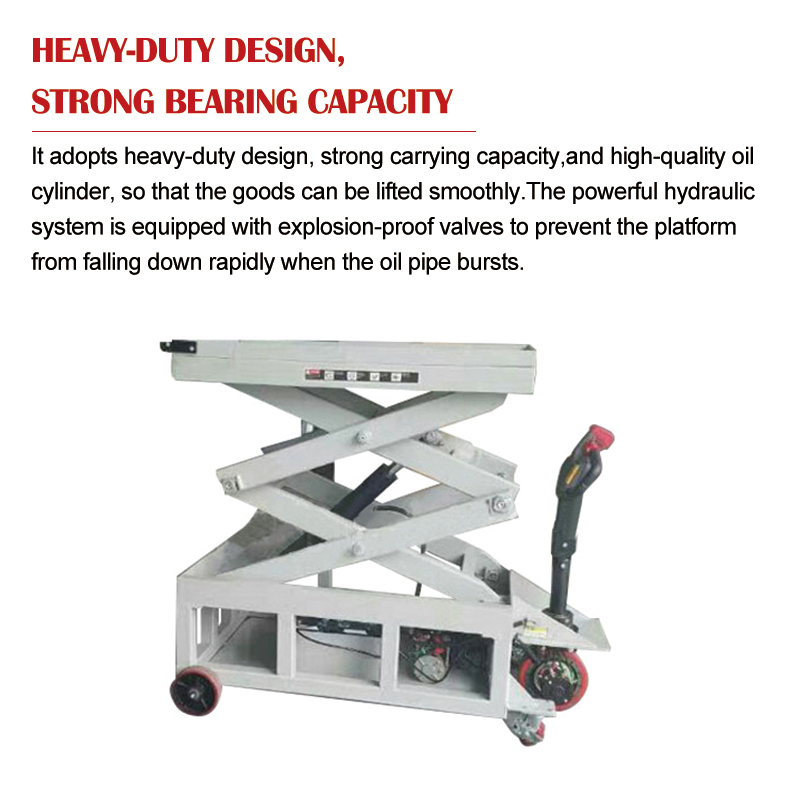

- Heavy-duty design, strong bearing capacity.It adopts heavy-duty design, strong carrying capacity,and high-quality oil cylinder, so that the goods can be lifted smoothly.The powerful hydraulic system is equipped with explosion-proof valves to prevent the platform from falling down rapidly when the oil pipe bursts.
- Special limit switch.Specially set the limit travel switch, when the raising range of the car exceeds the safe value,it will automatically stop the ascent to avoid excessive ascent and damage to the body.
- Structure heavy duty steel construction
- The convenient ball design allows for easy loading and unloading of the product.
- Robust castors with safety wheel guard and brakes on the two swivel castors, for greater safety wheel loading and unloading.
- Adjust the pressure valve.Manually adjust the rising speed,speed can be controlled.
- One-piece oil cylinder, safe lifting, power output.Hydraulic pump station, strong lifting power, stable lifting.Plated stickers, easy to operate, corrosion resistant.Quiet casters, easy to move, silent and wear-resistant.

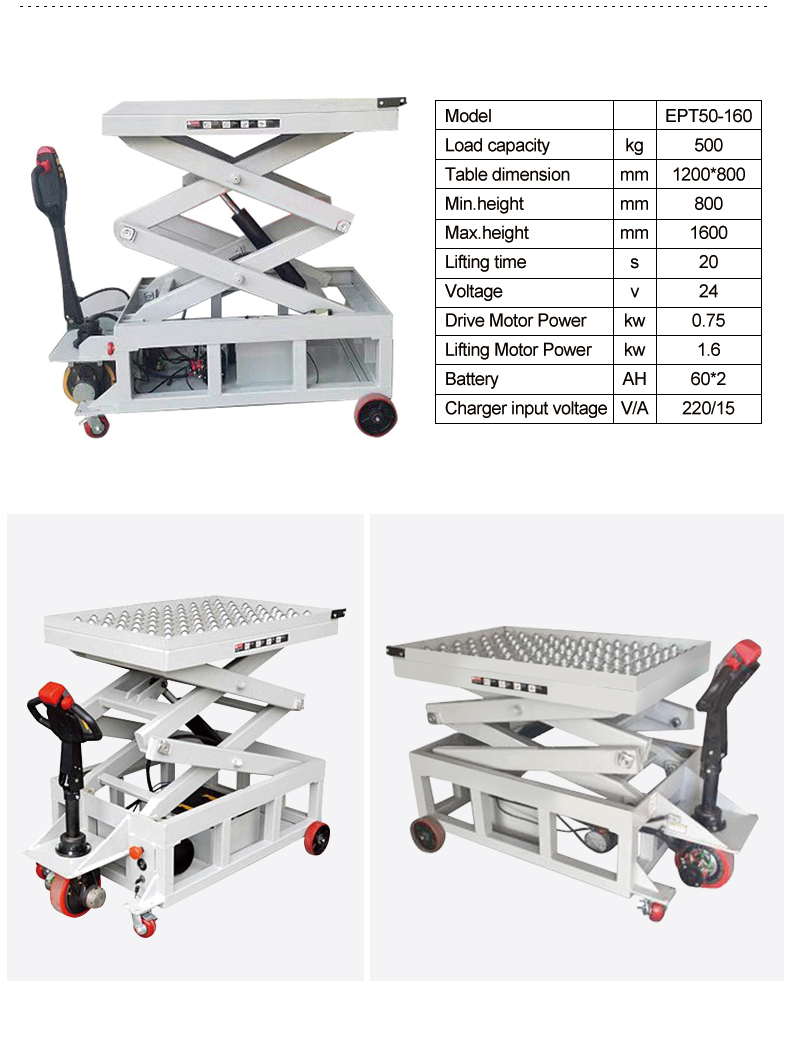

| Model | EPT50-160 | |
| Load capacity | kg | 500 |
| Table dimension | mm | 1200*800 |
| Min.height | mm | 800 |
| Max.height | mm | 1600 |
| Lifting time | s | 20 |
| Voltage | v | 24 |
| Drive Motor Power | kw | 0.75 |
| Lifting Motor Power | kw | 1.6 |
| Battery | AH | 60*2 |
| Charger input voltage | V/A | 220/15 |
1. Valuable material handling for use as a feeding table on assembly line.
2.Structural heavy duty steel construction.
3. Easy action foot operated hydraulic lift for raising table top to desired level.
4. Robust castors with safety wheel guard and brakes on the two swivel castors, for greater safety wheel loading and unloading.
5. Hand operated table descent control.
