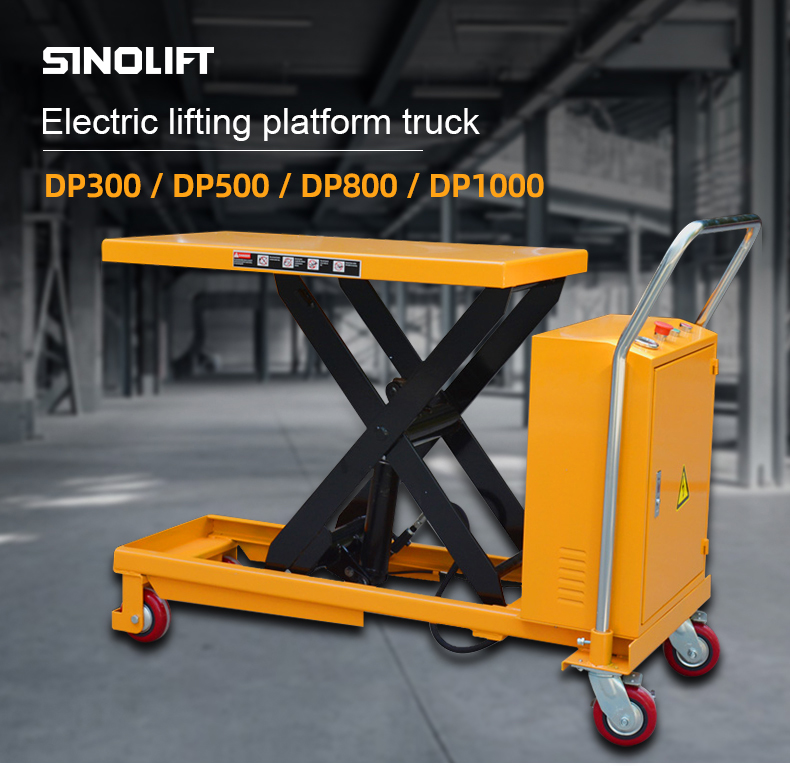

DP300 DP500 DP800 DP1000 Single Scissor Electric Table Lift
DP300 DP500 DP800 DP1000
Quantity:
1. Valuable material handling for use as a feeding table on assembly line.
2.Structural heavy duty steel construction.
3. Easy action foot operated hydraulic lift for raising table top to desired level.
4. Robust castors with safety wheel guard and brakes on the two swivel castors, for greater safety wheel loading and unloading.
5. Hand operated table descent control.
PRODUCT PRESENTATION：
DP300 DP500 DP800 DP1000 Single Scissor Electric Table Lift

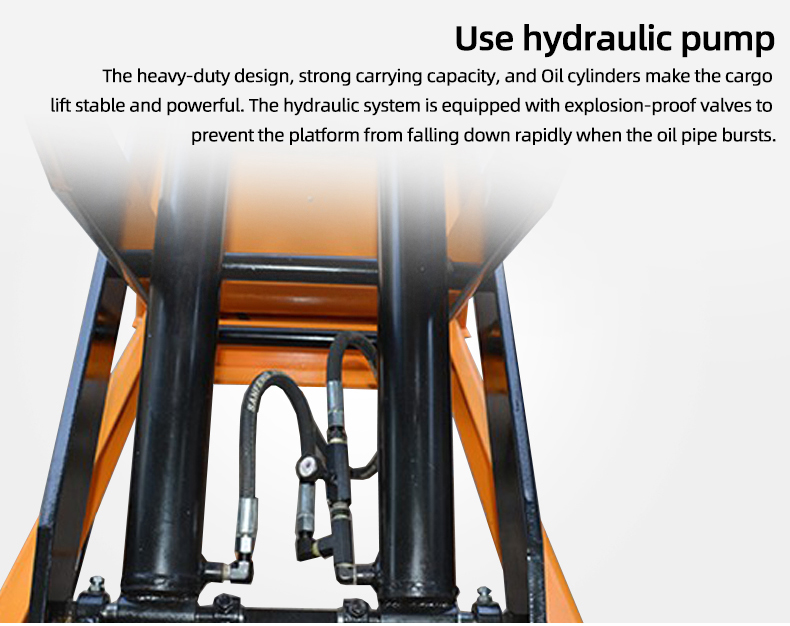

1.Use hydraulic pump.The heavy-duty design, strong carrying capacity, and Oil cylinders make the cargo lift stable and powerful. The hydraulic system is equipped with explosion-proof valves to prevent the platform from falling down rapidly when the oil pipe bursts.

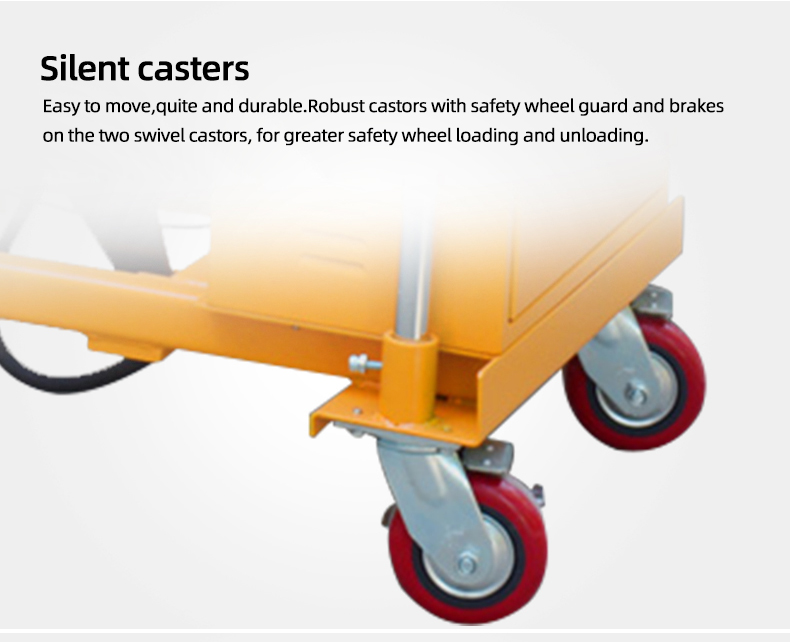

2.Silent casters.Easy to move,quite and durable.Robust castors with safety wheel guard and brakes on the two swivel castors, for greater safety wheel loading and unloading.

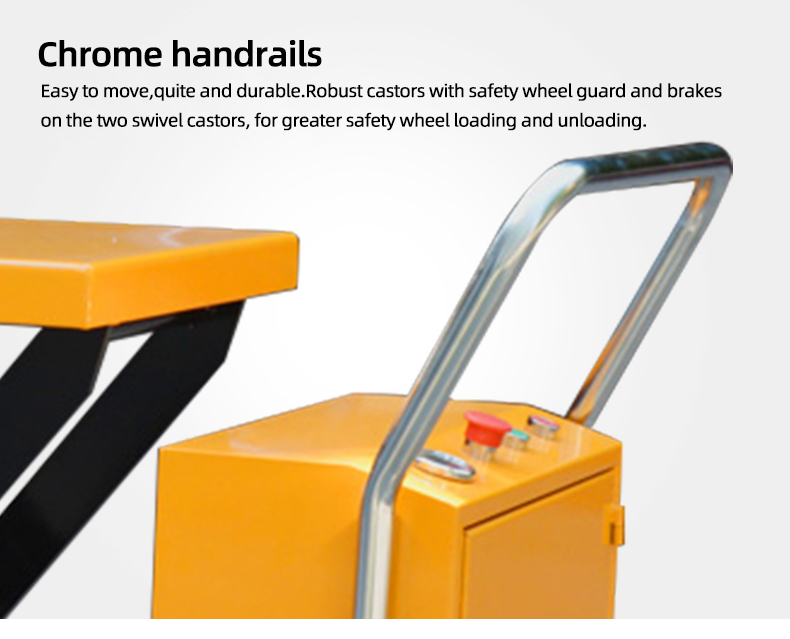

3.Chrome handrails.The design of the handle conforms to the labor-saving principle of ergonomics, and it is very convenient to use.

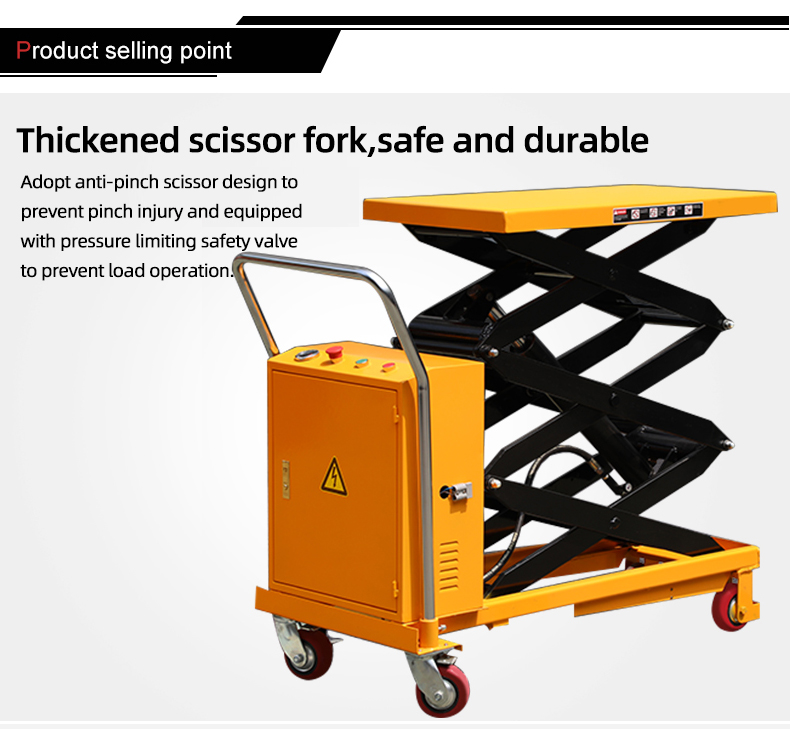

4.Thickened scissor fork,safe and durable.Adopt anti-pinch scissor design to prevent pinch injury and equipped with pressure limiting safety valve to prevent load operation.
2.Structural heavy duty steel construction.
3. Easy action foot operated hydraulic lift for raising table top to desired level.
4. Robust castors with safety wheel guard and brakes on the two swivel castors, for greater safety wheel loading and unloading.
5. Hand operated table descent control.

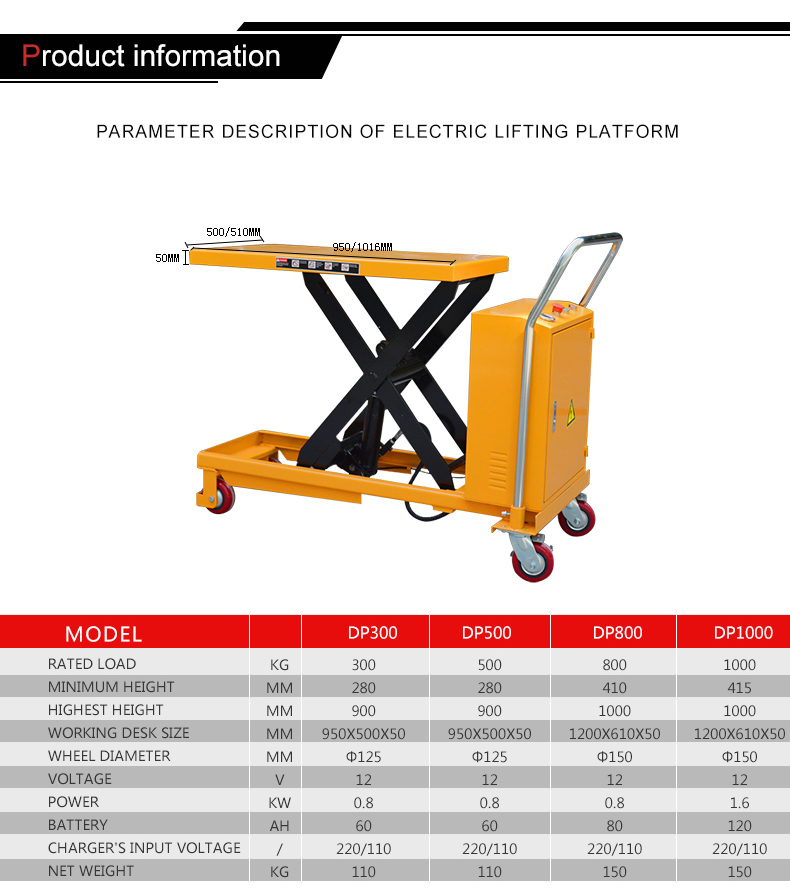

| Model | DP300 | DP500 | DP800 | DP1000 | |
| Load capacity | kg | 300 | 500 | 800 | 1000 |
| Min.height | mm | 280 | 280 | 410 | 410 |
| Max.height | mm | 900 | 900 | 1000 | 1000 |
| Table dimension | mm | 950*500*50 | 950*500*50 | 1200*610*50 | 1200*610*50 |
| Dia.of the wheel | mm | 125 | 125 | 150 | 150 |
| Voltage | V | 12 | 12 | 12 | 12 |
| Power | Kw | 0.8 | 0.8 | 0.8 | 0.8 |
| Storage Battery | Ah | 60 | 60 | 60 | 120 |
| Charger input Voltage | V | 220/110 | 220/110 | 220/110 | 220/110 |
| Net weight | kg | 110 | 110 | 150 | 150 |
DP300 DP500 DP800 DP1000 Single Scissor Electric Table Lift
1.Use hydraulic pump.The heavy-duty design, strong carrying capacity, and Oil cylinders make the cargo lift stable and powerful. The hydraulic system is equipped with explosion-proof valves to prevent the platform from falling down rapidly when the oil pipe bursts.
2.Silent casters.Easy to move,quite and durable.Robust castors with safety wheel guard and brakes on the two swivel castors, for greater safety wheel loading and unloading.
3.Chrome handrails.The design of the handle conforms to the labor-saving principle of ergonomics, and it is very convenient to use.
4.Thickened scissor fork,safe and durable.Adopt anti-pinch scissor design to prevent pinch injury and equipped with pressure limiting safety valve to prevent load operation.
