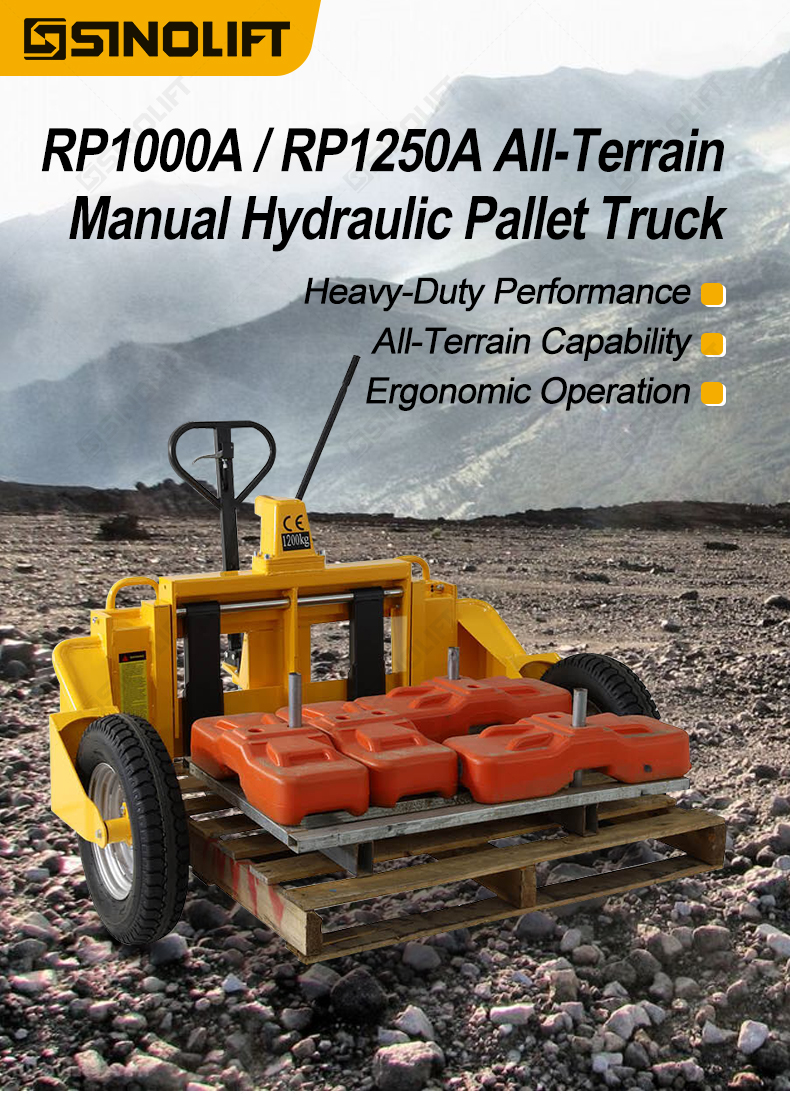

Sinolift RP1000A / RP1250A All-Terrain Manual Hydraulic Pallet Truck
The RP1000A/RP1250A All-Terrain Manual Pallet Truck delivers heavy-duty performance, ergonomic control, and smart fork width adjustment—built tough for outdoor use on any surface.
Key Features

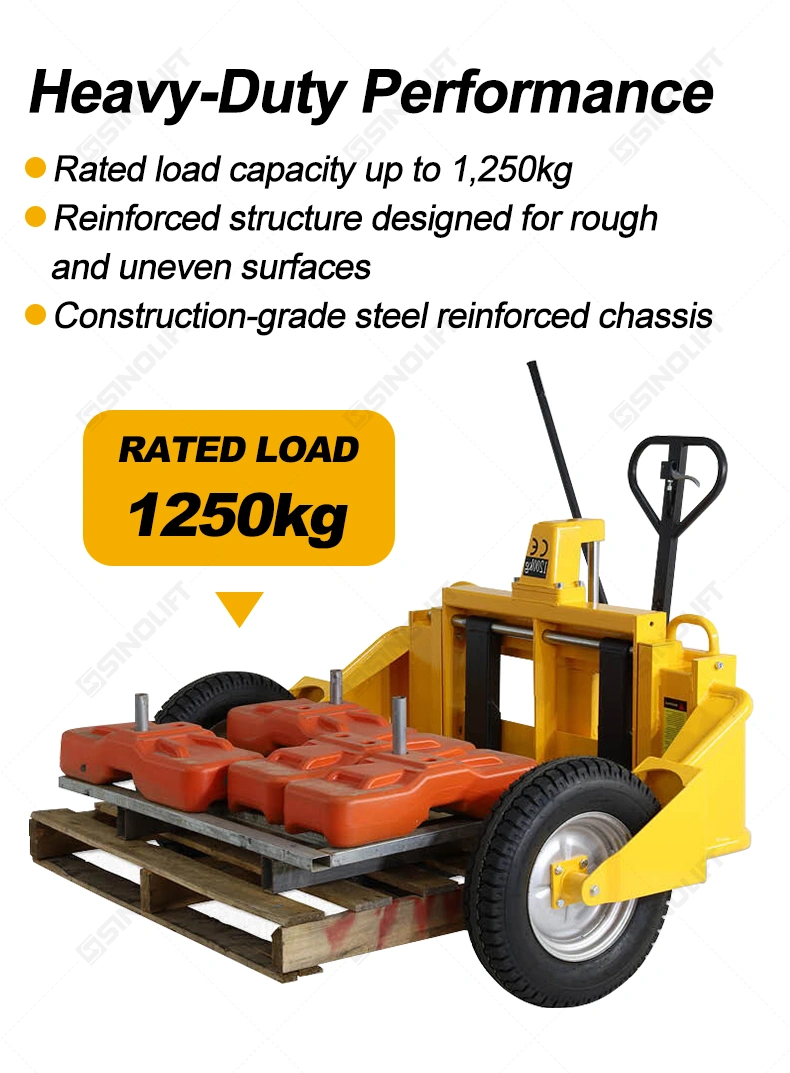

1. Heavy-Duty Performance
- Rated load capacity up to 1,250kg
- Reinforced structure designed for rough and uneven surfaces
- Construction-grade steel reinforced chassis

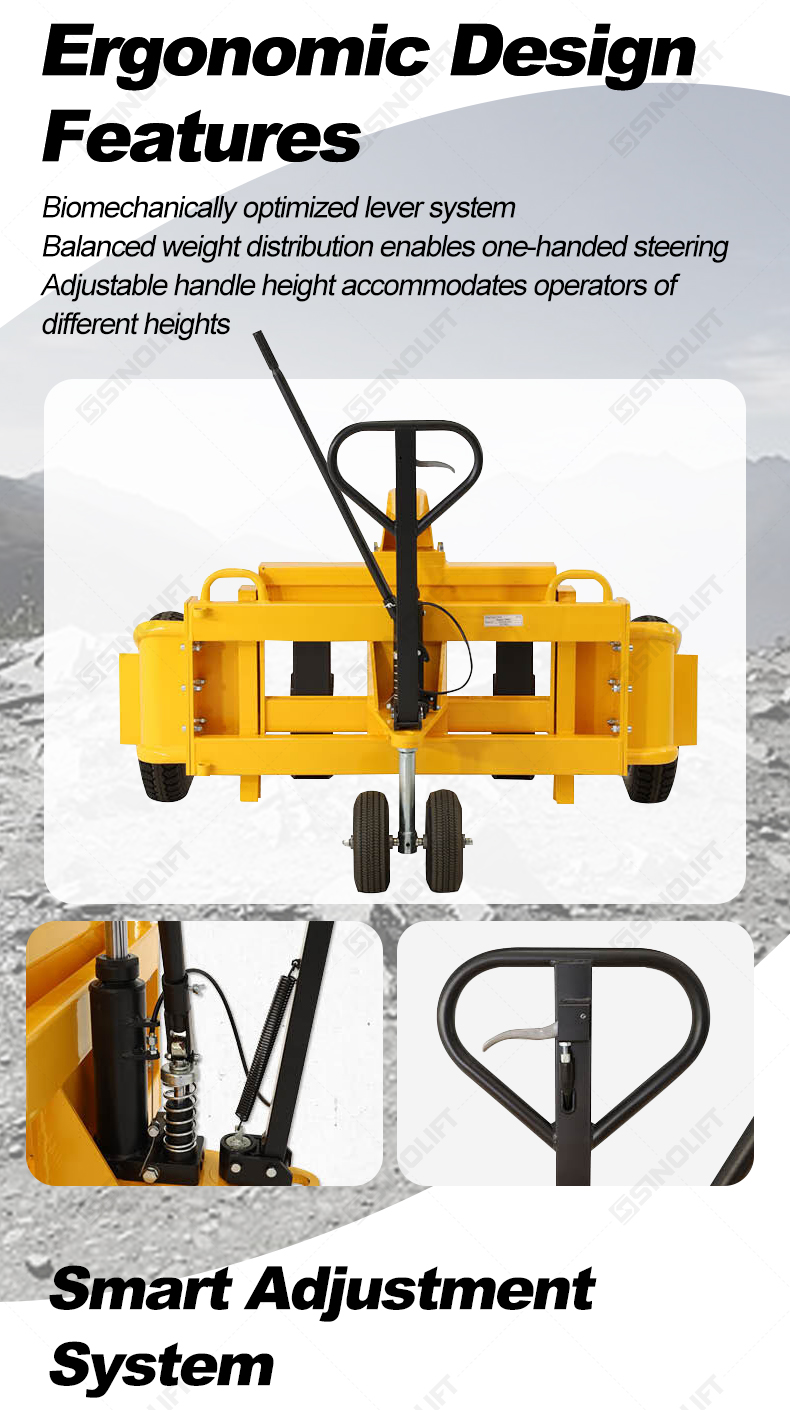

2. Ergonomic Design Features
- Biomechanically optimized lever system
- Balanced weight distribution enables one-handed steering
- Adjustable handle height accommodates operators of different heights
3. All-Terrain Adaptability
- IP54 certified dustproof and waterproof construction
- Suitable for outdoor environments (construction sites, nurseries, warehouses)

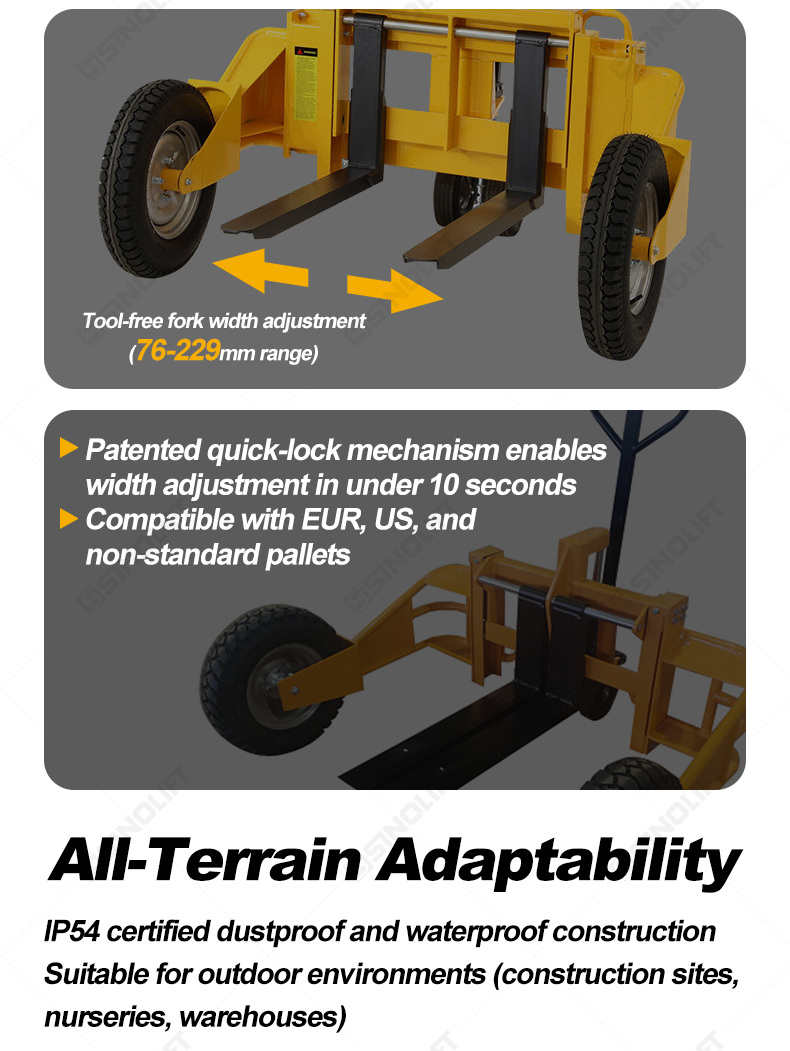

4. Smart Adjustment System
- Tool-free fork width adjustment (76-229mm range)
- Patented quick-lock mechanism enables width adjustment in under 10 seconds
- Compatible with EUR, US, and non-standard pallets
Application Scenarios
- Construction Sites
- Warehousing & Logistics
- Nurseries & Garden Centers
- Agriculture
- Factory Workshops
| Specification | Unit | RP1000A | RP1250A |
| Rated Capacity | kg | 1000 | 1250 |
| Max. Fork Height | h1 mm | 240 | 240 |
| Min. Fork Height | h mm | 70 | 70 |
| Fork Length | l mm | 800 (860) | 800 (860) |
| Load Center | C mm | 400 (430) | 400 (430) |
| Adjustable Fork Width | mm | 216-680 | 256-680 |
| Individual Fork Width | b mm | 100 | 120 |
| Distance inside the Front Wheel | B1 mm | 1230 | 1230 |
| Axle Distance between front Wheel and rear steering wheel | Y mm | 973 | 973 |
| Front Load Wheel (Dia.×Wid) | mm | Ø568×145 | Ø568×145 |
| Rear Steering Wheel (Dia.×Wid) | mm | Ø250 | Ø250 |
| Turn Radius | Wa mm | 1500 | 1500 |
| Overall Size (L×W×H) | mm | 1406×1670×1280 | 1406×1670×1280 |
| Net Weight | kg | 210 | 238 |
