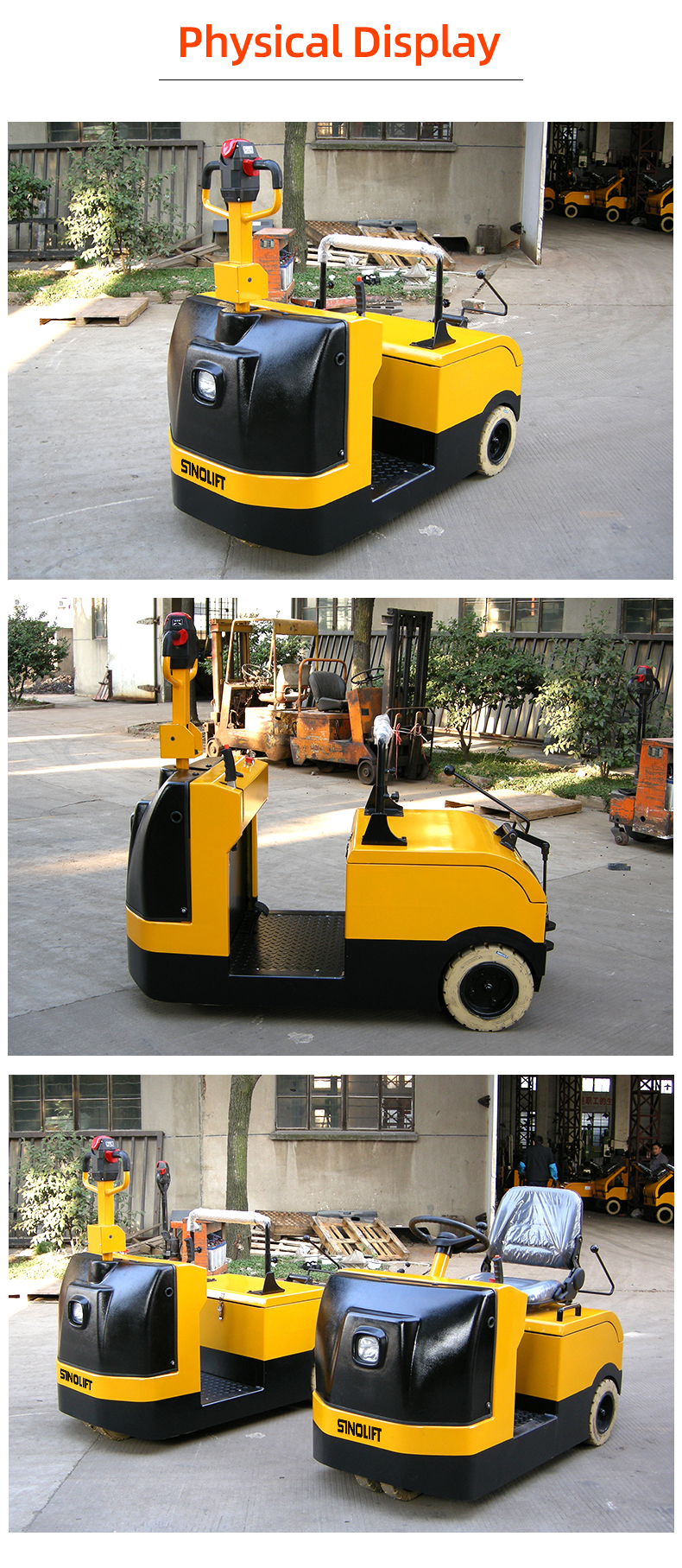

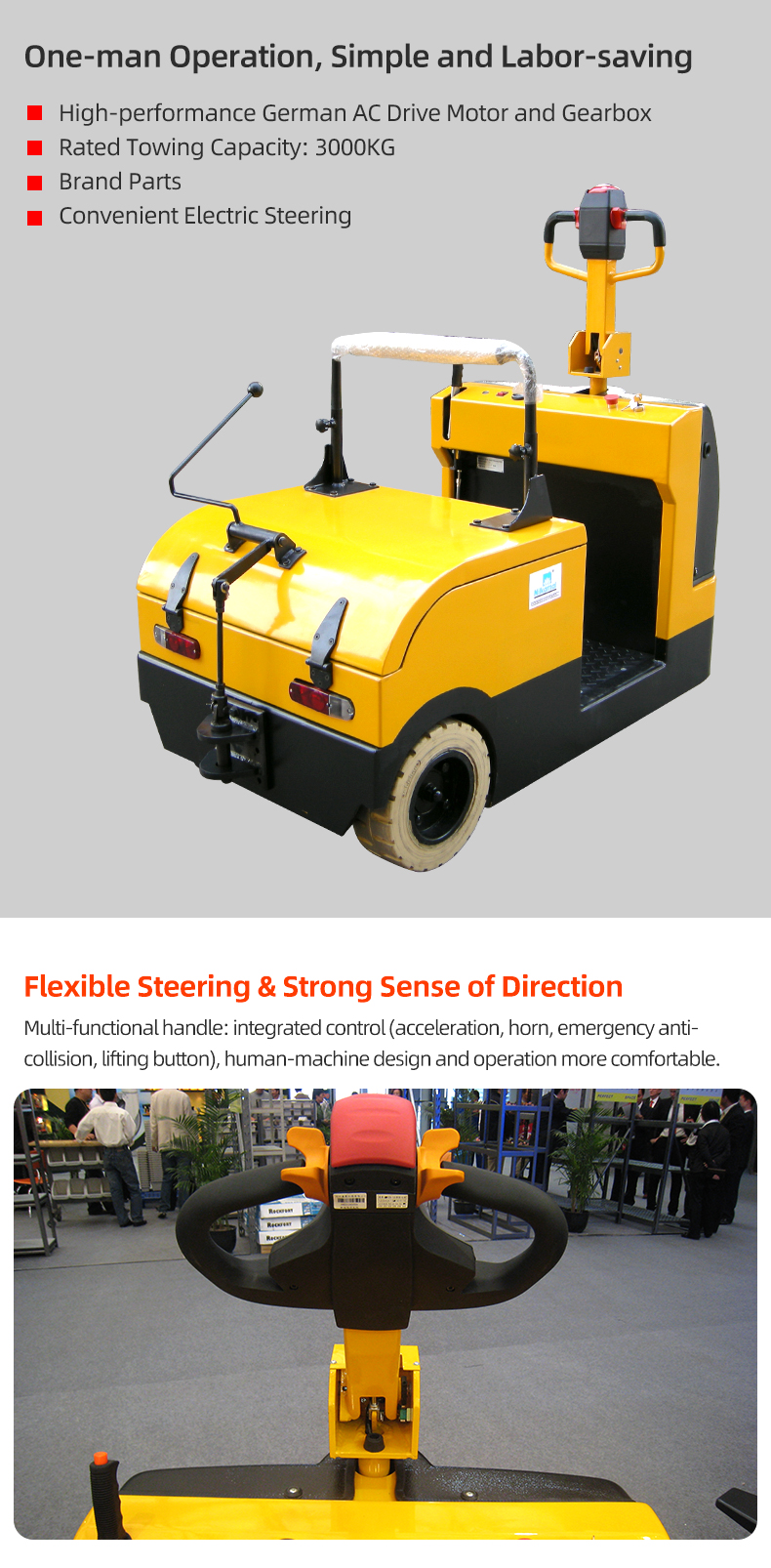

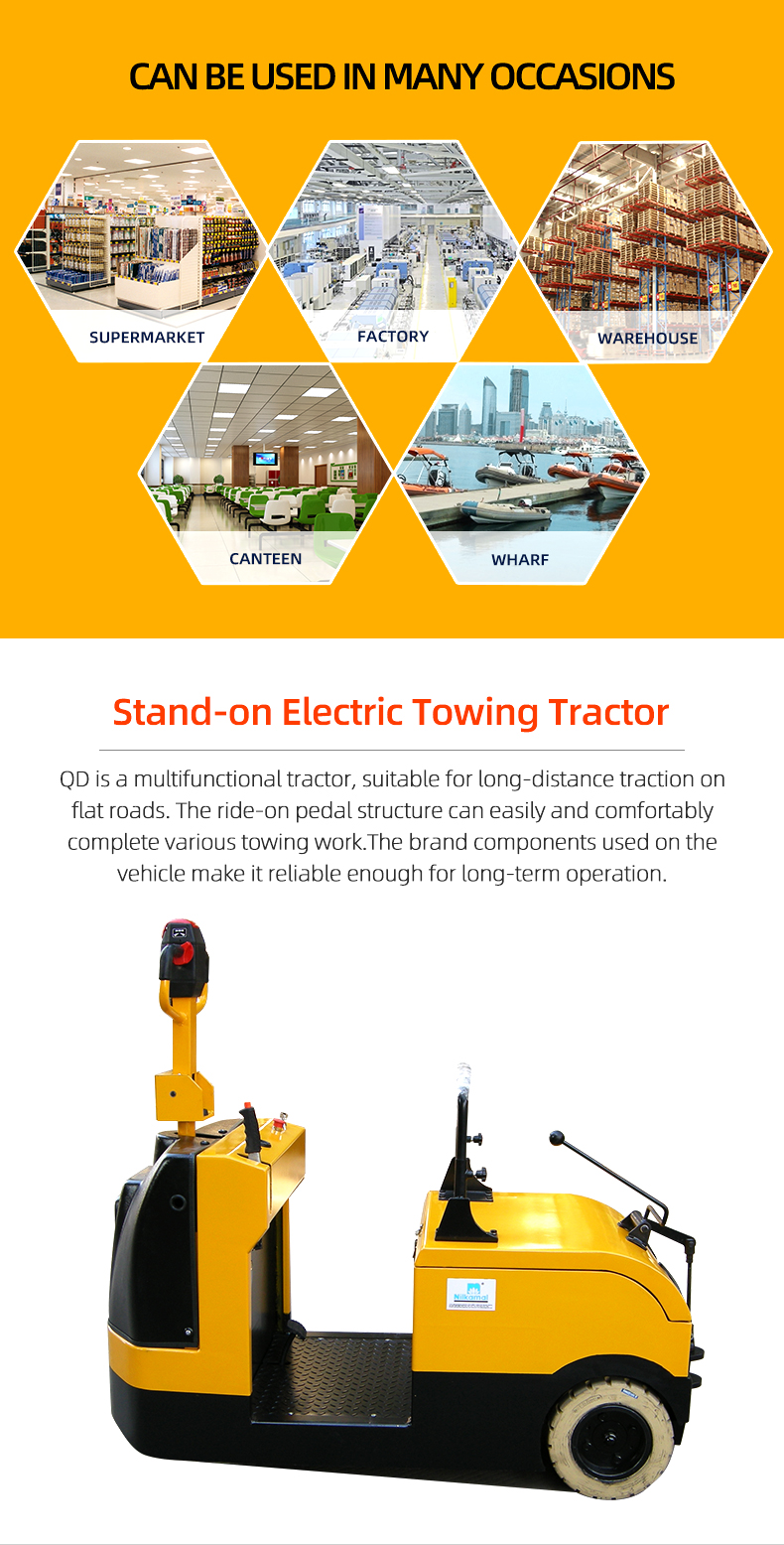

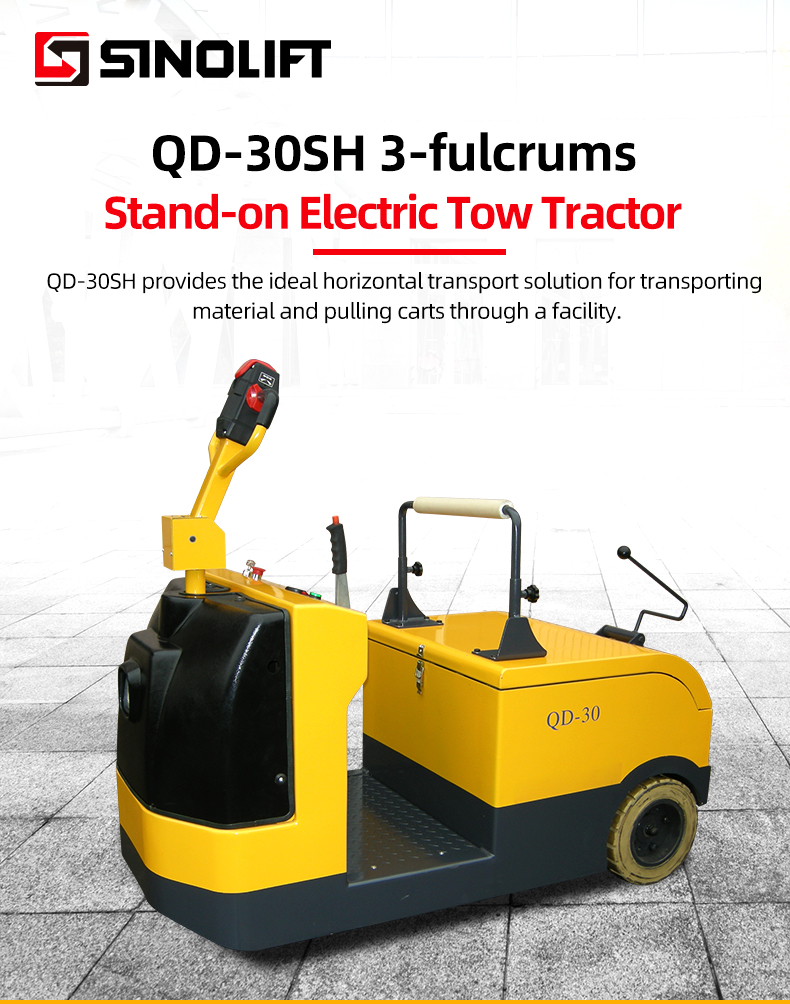

Flexible QD-30SH 3-fulcrums Stand-on Electric Tow Tractor with Excellent Performance
QD-30SH
Quantity:
Product description:
1. Unique appearance and luxurious appearance
2. It adopts imported ac control technology, with excellent performance, reliable and high efficiency, which extends the working time of the vehicle and makes the battery life longer
3. The ac motor is maintenance-free and can achieve high torque output and high speed performance at high speed and high speed, especially the electric braking performance at high speed
4. High torque, strong climbing ability, strong traction and strong power
5. It has the function of turning to active return, turning to a light, flexible and easy to deal with the logistics and transport work in a narrow site
6. Easy operation. Simple, safe, smooth, comfortable and efficient
1. Unique appearance and luxurious appearance
2. It adopts imported ac control technology, with excellent performance, reliable and high efficiency, which extends the working time of the vehicle and makes the battery life longer
3. The ac motor is maintenance-free and can achieve high torque output and high speed performance at high speed and high speed, especially the electric braking performance at high speed
4. High torque, strong climbing ability, strong traction and strong power
5. It has the function of turning to active return, turning to a light, flexible and easy to deal with the logistics and transport work in a narrow site
6. Easy operation. Simple, safe, smooth, comfortable and efficient
| Model No. | QD-30SH | ||
| Towing Capacity | kg | 3000 | |
| Driving Motor | W | DC-24V-2000W | |

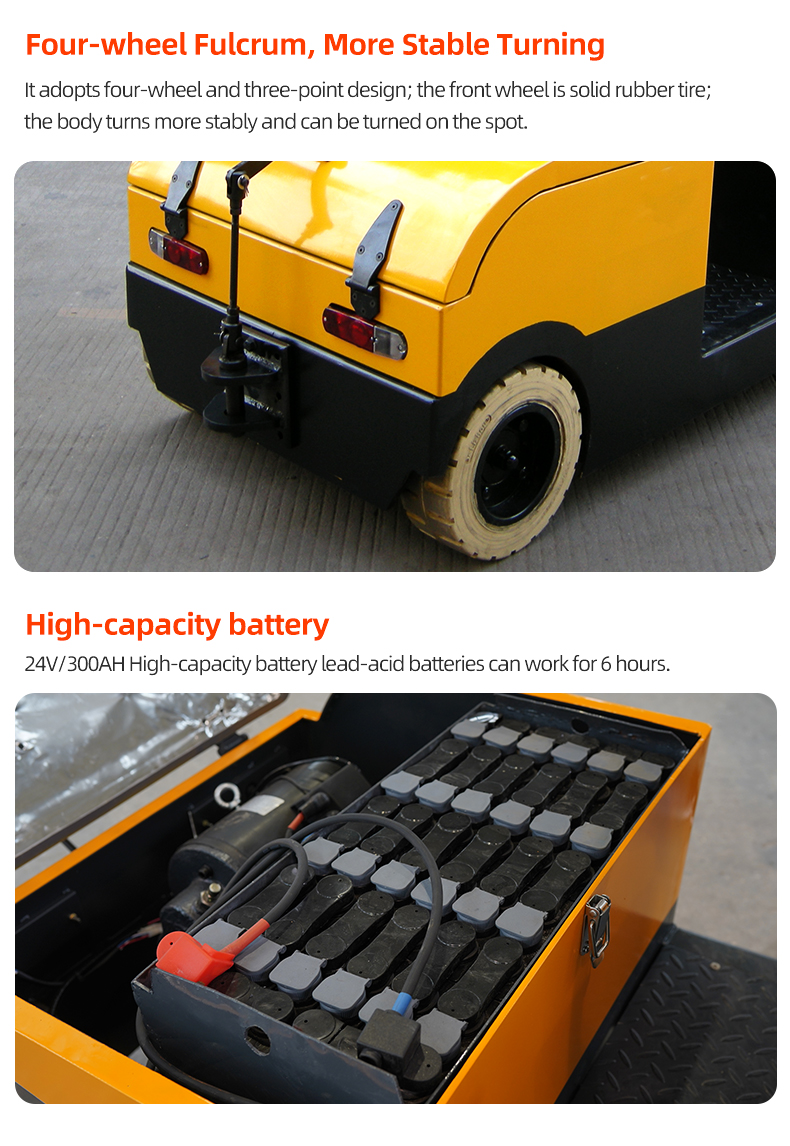

| Battery | D-300A 24V | ||
| Driving Speed | km/h | 7 | |
| Controller Type | MOSFET | ||
| Working Time | Hours | 6 | |
| Min. Turning Radius | mm | R | 1380 |
| Operation Type | Stand-on | ||
| Min.under-clearance | mm | 85 | |

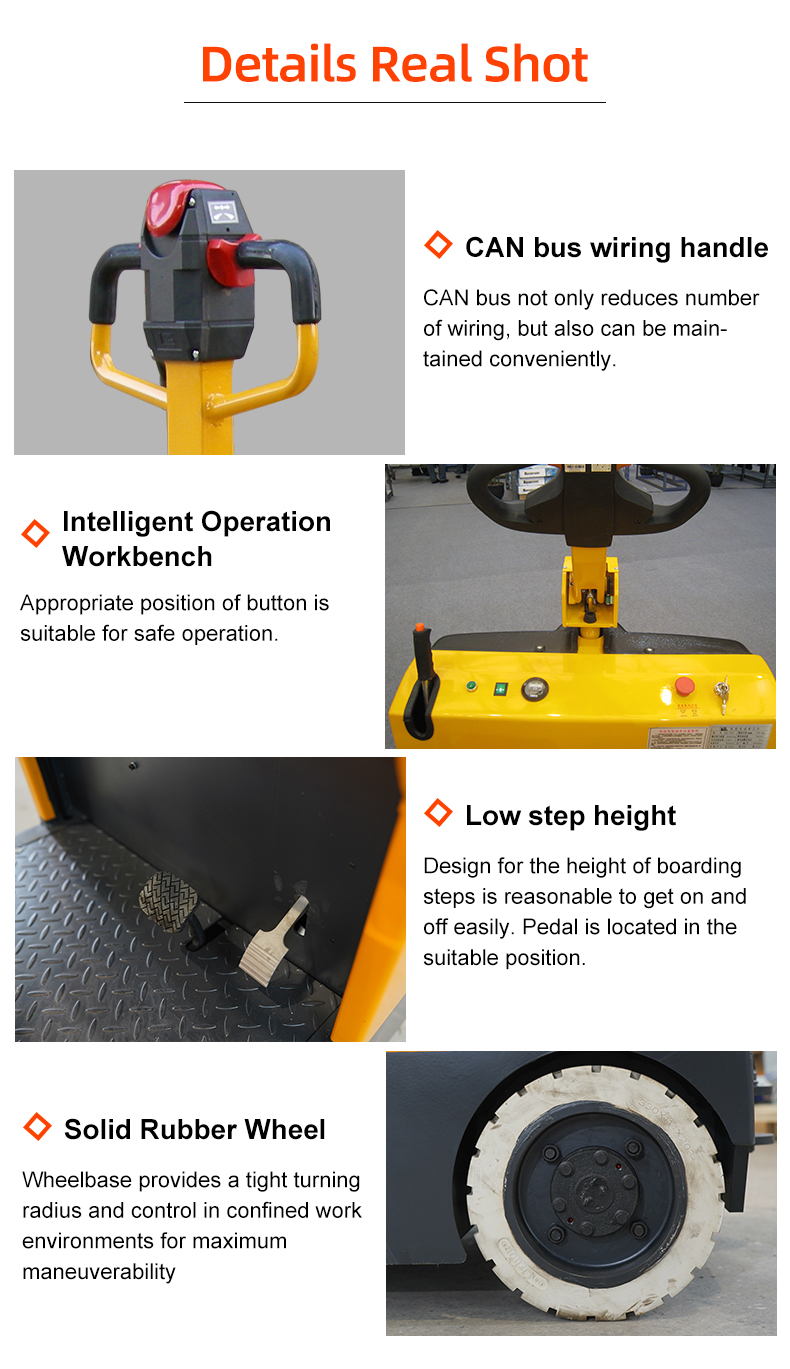

| Steering Wheel | mm | White Rubber Φ267x127 | |
| Drive Wheel | mm | Φ330x165 | |
| Overall length | mm | L | 1490 |
| Overall width | mm | W | 820 |
| Overall height | mm | H | 1350 |
| Service Weight | kg | 1450 | |
