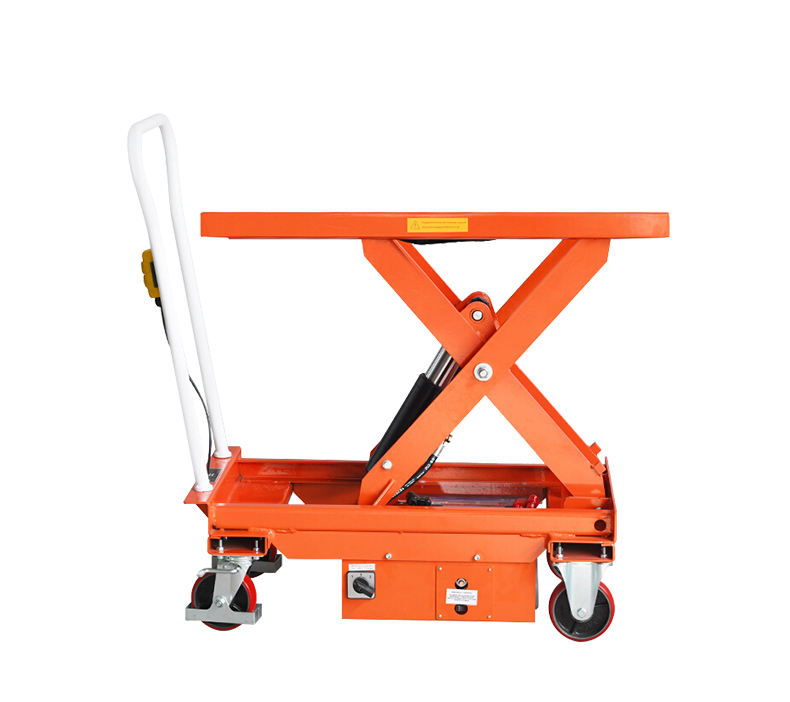

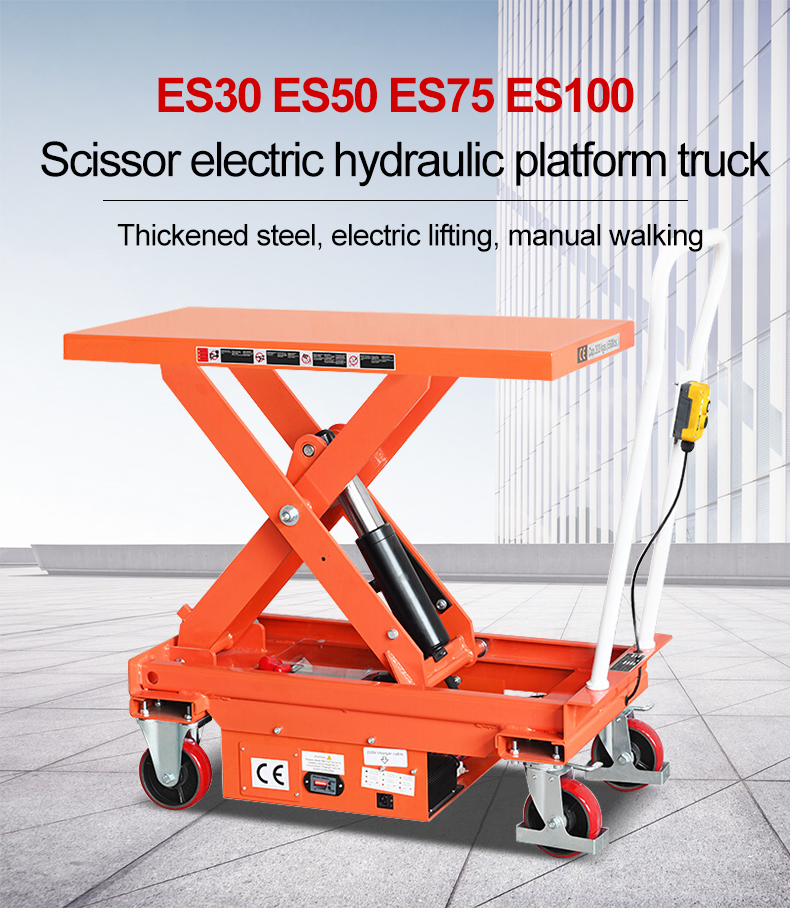

ES30 ES50 ES75 ES100 Single Scissor Electric Table Lift
ES30 ES50 ES75 ES100
Quantity:
Feature:
1.High quality pump station is adopted.
2.Maintenance free battery, saving maintenance time and cost, built-in charger, Electric quantity display table. Low voltage
warning lamp.
3.Charger specification: 220V,50Hz
4. Anti pinch fork design, Overload protection function, reliable and safe.
PRODUCT PRESENTATION：
ES30 ES50 ES75 ES100 Single Scissor Electric Table Lift
1.High quality pump station is adopted.
2.Maintenance free battery, saving maintenance time and cost, built-in charger, Electric quantity display table. Low voltage
warning lamp.
3.Charger specification: 220V,50Hz
4. Anti pinch fork design, Overload protection function, reliable and safe.

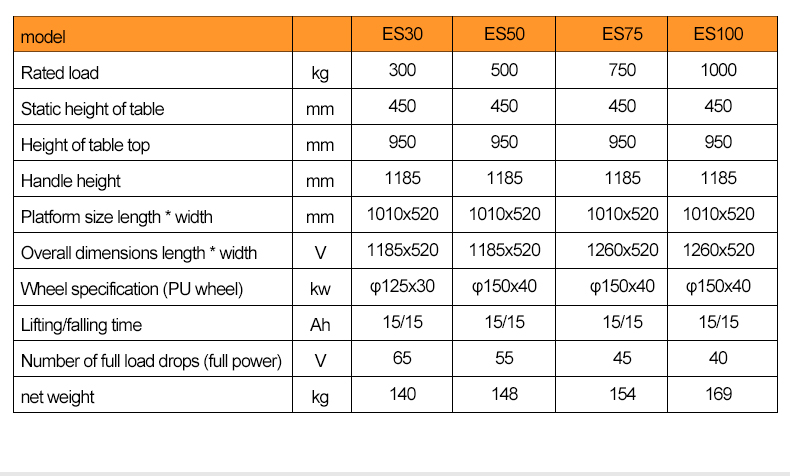

| model | unit | ES30 | ES50 | ES75 | ES100 |
| Rated load | kg | 300 | 500 | 750 | 1000 |
| Static height of table | mm | 450 | 450 | 450 | 450 |
| Height of table top | mm | 950 | 950 | 950 | 950 |
| Handle height | mm | 1185 | 1185 | 1185 | 1185 |
| Platform size length * width | mm | 1010x520 | 1010x520 | 1010x520 | 1010x520 |
| Overall dimensions length * width | V | 1185x520 | 1185x520 | 1260x520 | 1260x520 |
| Wheel specification (PU wheel) | kw | φ125x30 | φ150x40 | φ150x40 | φ150x40 |
| Lifting/falling time | Ah | 15/15 | 15/15 | 15/15 | 15/15 |
| Number of full load drops (full power) | V | 65 | 55 | 45 | 40 |
| net weight | kg | 140 | 148 | 154 | 169 |
ES30 ES50 ES75 ES100 Single Scissor Electric Table Lift

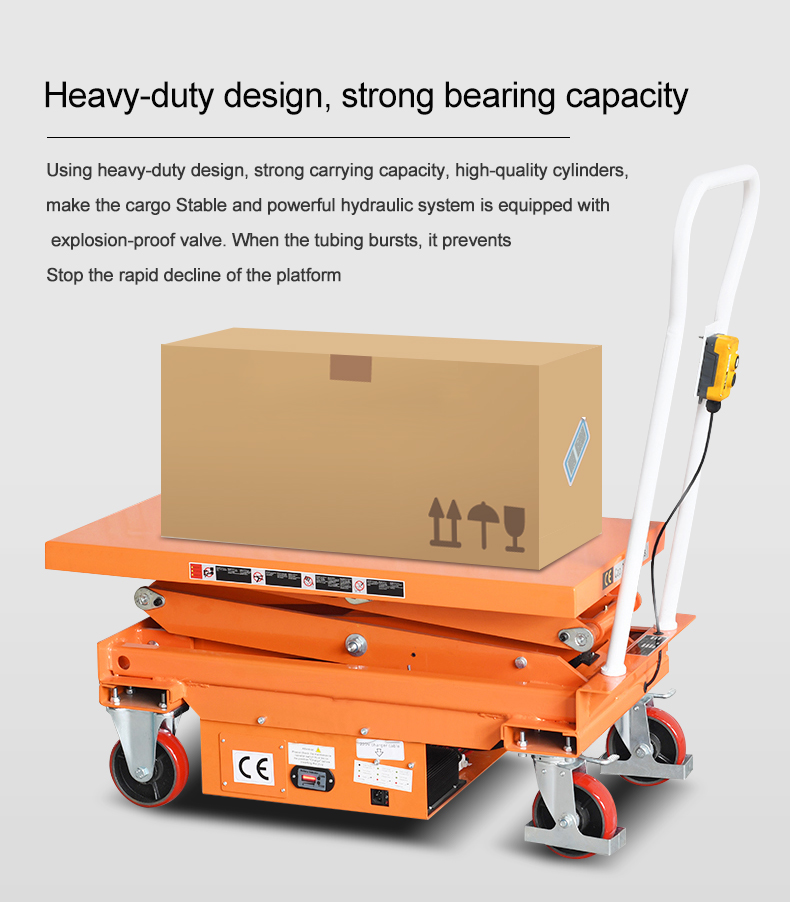

- Heavy-duty design, strong bearing capacity.Using heavy-duty design, strong carrying capacity, high-quality cylinders,make the cargo Stable and powerful hydraulic system is equipped with explosion-proof valve. When the tubing bursts, it prevents stop the rapid decline of the platform.

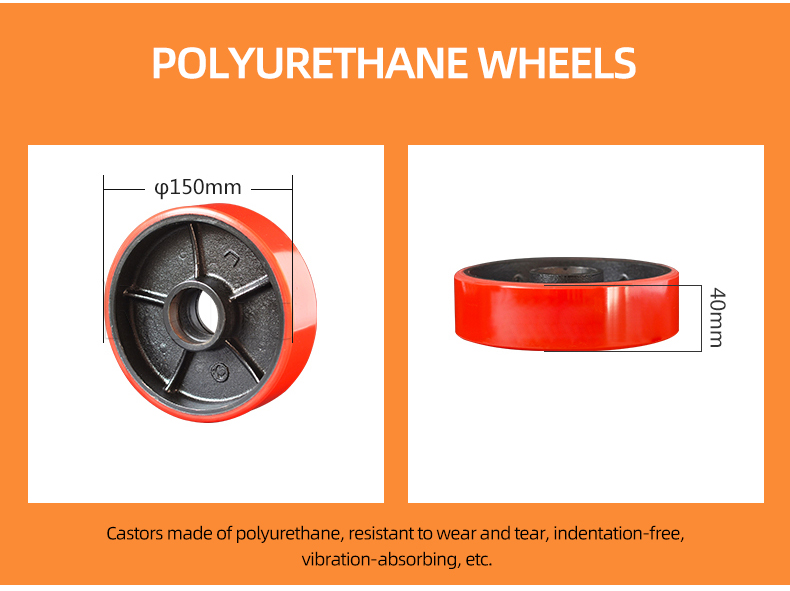

- Hard-wearing and Durable Polyurethane wheels.Castors made of polyurethane, resistant to wear and tear, indentation-free, vibration-absorbing, etc.

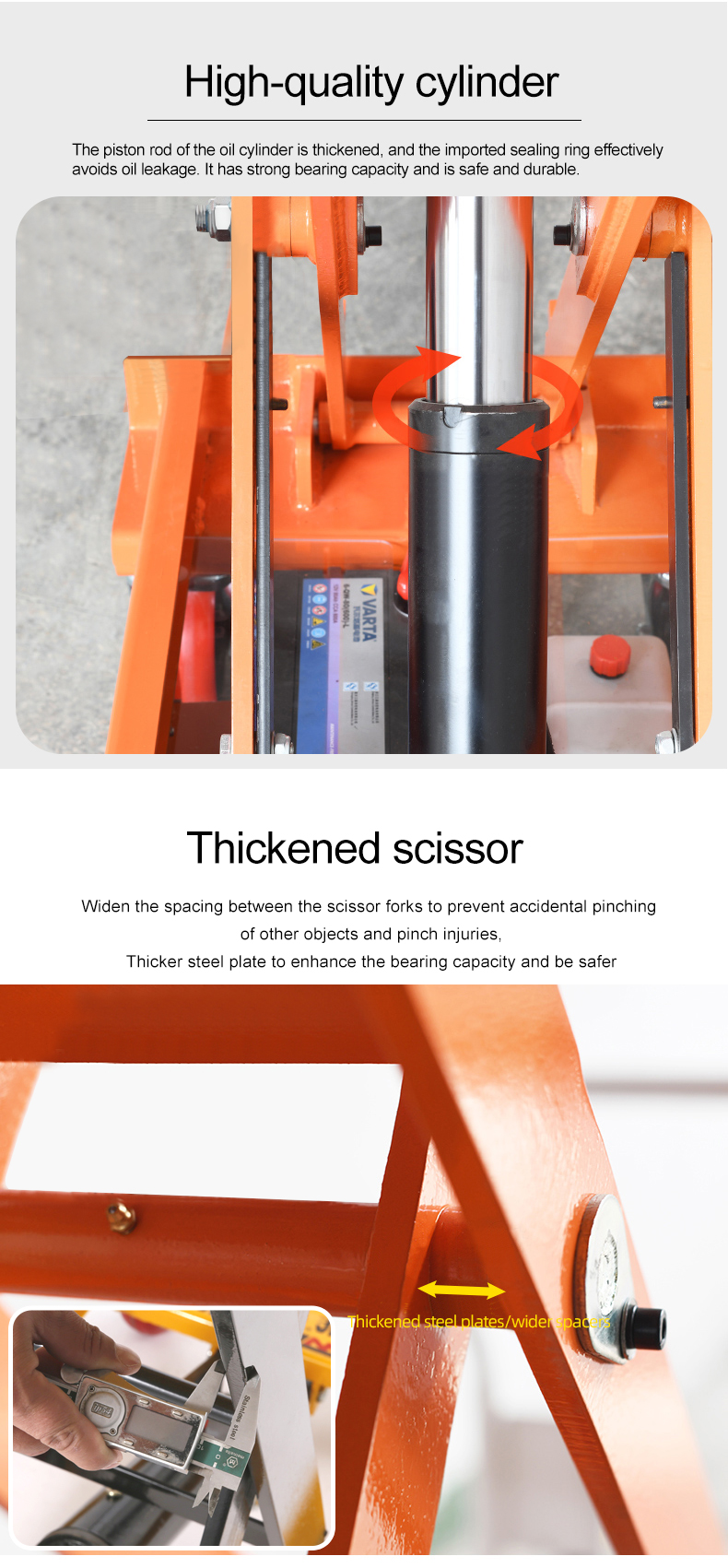

- High-quality cylinder.The piston rod of the oil cylinder is thickened, and the imported sealing ring effectively avoids oil leakage. It has strong bearing capacity and is safe and durable.
- Thickened scissor.Widen the spacing between the scissor forks to prevent accidental pinching

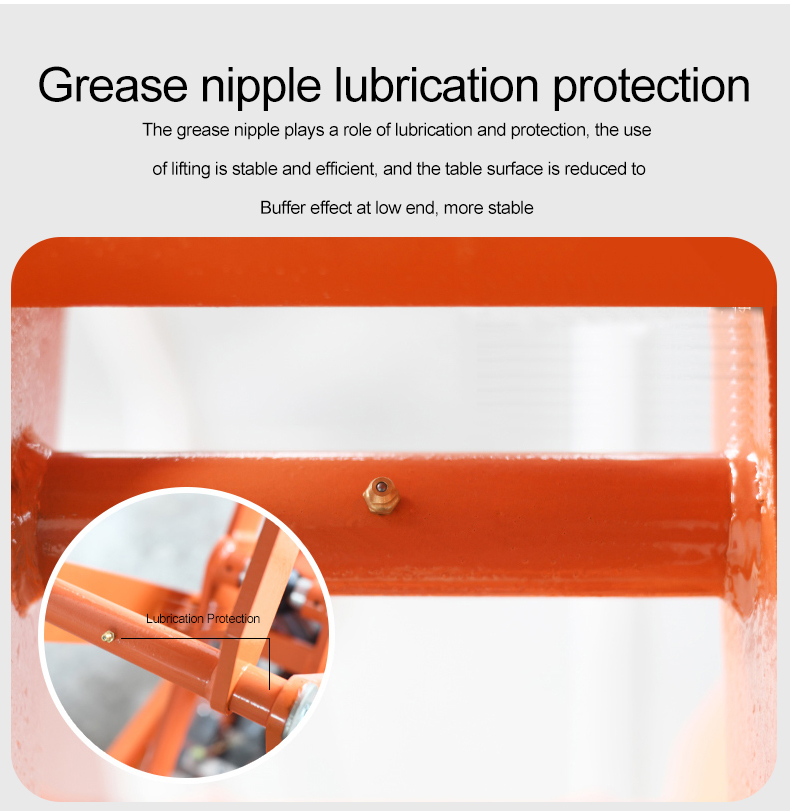

- Grease nipple lubrication protection.The grease nipple plays a role of lubrication and protection, the use of lifting is stable and efficient, and the table surface is reduced to buffer effect at low end, more stable.

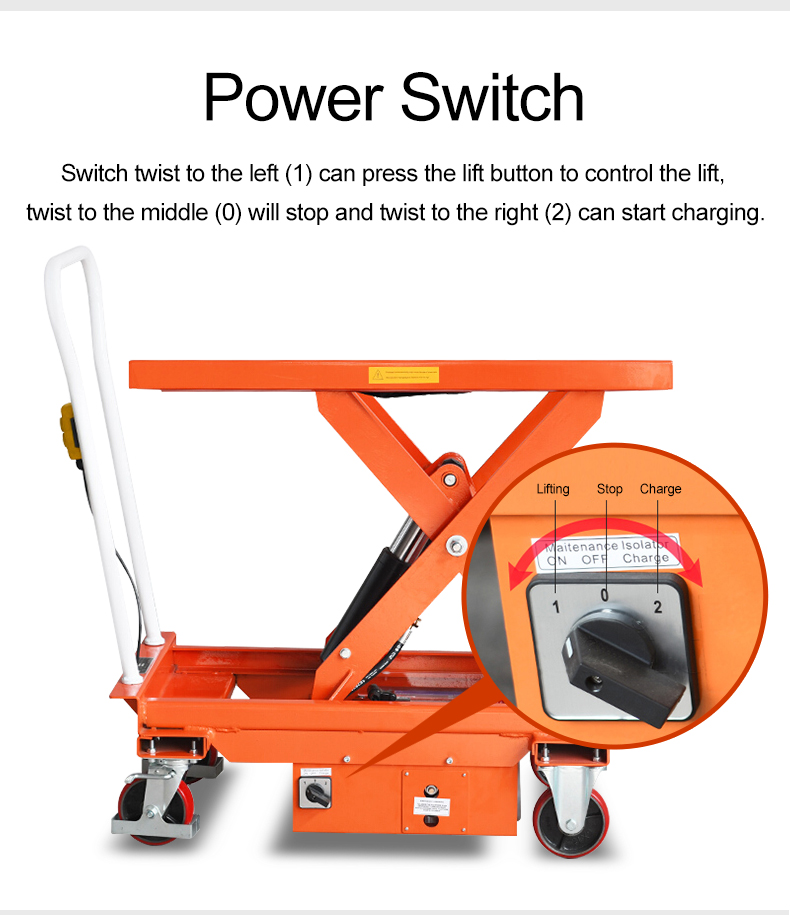

- Power Switch.Switch twist to the left (1) can press the lift button to control the lift,twist to the middle (O) will stop and twist to the right (2) can start charging.

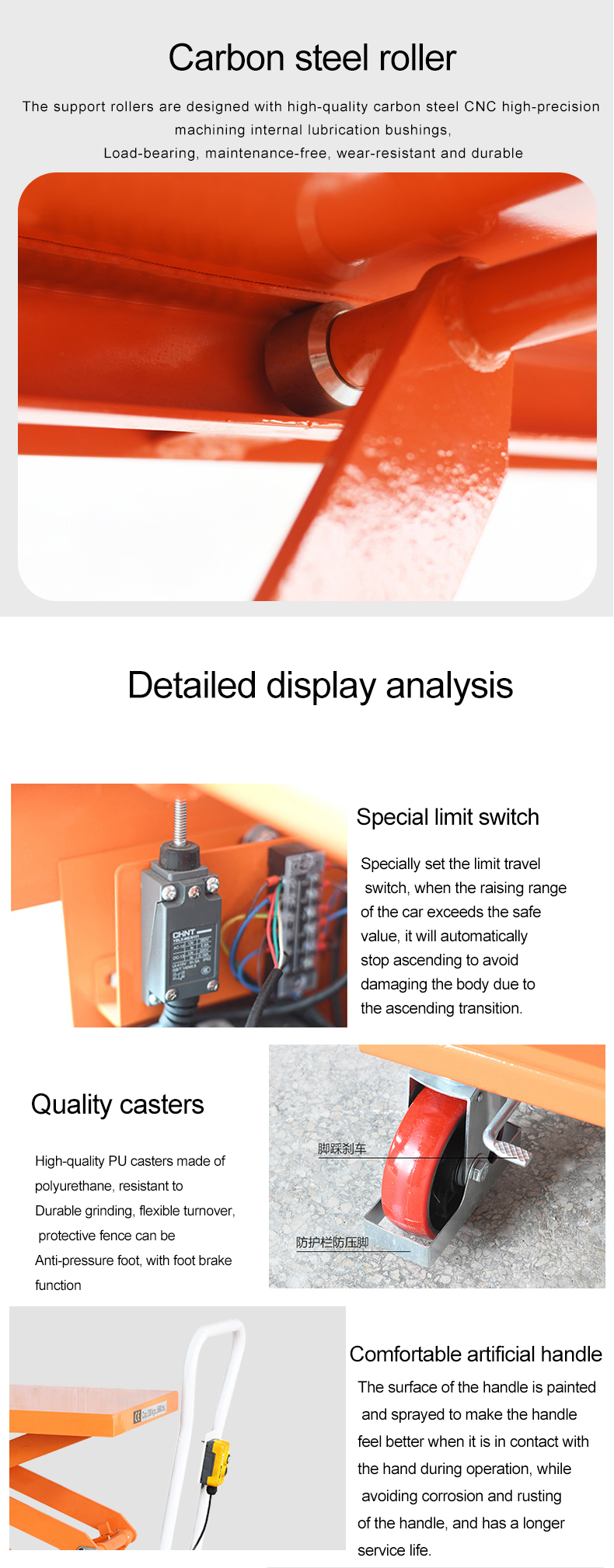

- Carbon steel roller.The support rollers are designed with high-quality carbon steel CNC high-precision machining internal lubrication bushings,load-bearing, maintenance-free, wear-resistant and durable.
- Special limit switch.Specially set the limit travel switch, when the raising range of the car exceeds the safe value, it will automatically stop ascending to avoid damaging the body due to the ascending transition.
- Quality casters.High-quality PU casters made of polyurethane, resistant to durable grinding,
- Comfortable artificial handle.The surface of the handle is painted and sprayed to make the handle feel better when it is in contact with the hand during operation, while avoiding corrosion and rusting of the handle, and has a longer service life.

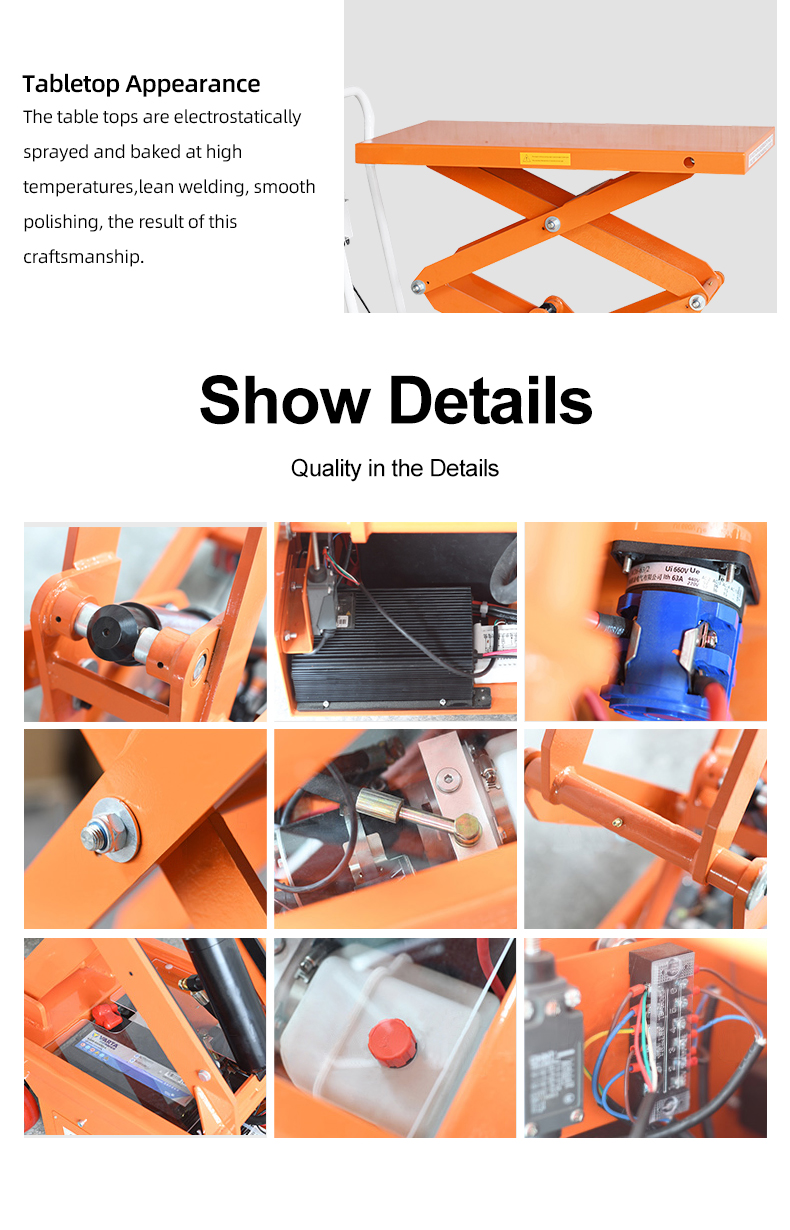

- Tabletop Appearance.The table tops are electrostatic sprayed and baked at high temperatures,lean welding, smooth polishing, the result of this craftsmanship.
