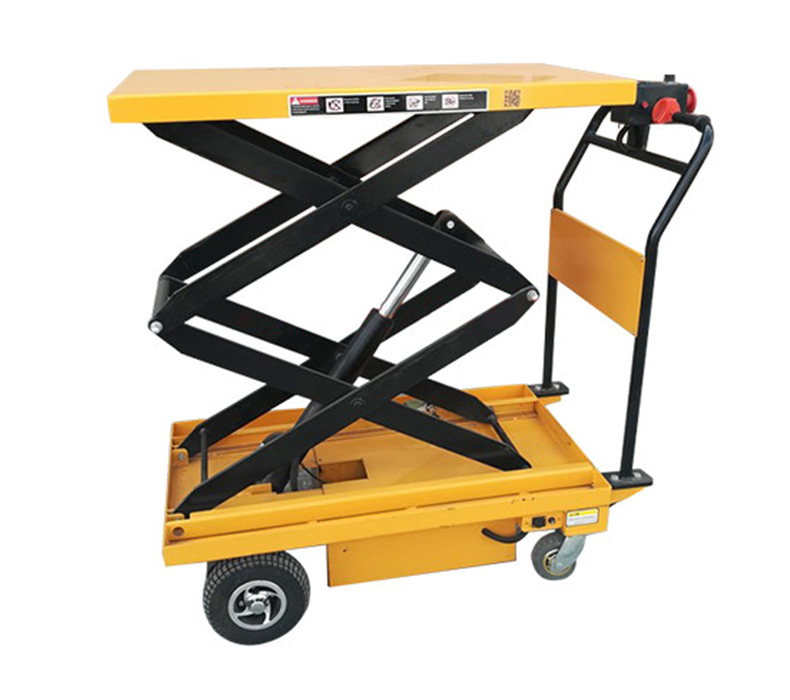

EPT50-160 Full Electric Table Lift
EPT50-160
Quantity:
1. Valuable material handling for use as a feeding table on assembly line.
2.Structural heavy duty steel construction.
3. Easy action foot operated hydraulic lift for raising table top to desired level.
4. Robust castors with safety wheel guard and brakes on the two swivel castors, for greater safety wheel loading and unloading.
5. Hand operated table descent control.
Model | EPT50-160 | |
Load capacity | kg | 500 |
Table Dimension | mm | 1000*600 |
Min.height | mm | 450 |
Max.height | mm | 1600 |
Net weight | kg | 170 |
Lifting time | s | 15 |
Voltage | v | 24 |
Drive Motor Power | kw | 0.4 |
Lifting Motor Power | kw | 0.8 |
Battery | Ah | 40*2 |
Charger input Voltage | V/A | 220/6 |
PRODUCT PRESENTATION:
- Heavy-duty design, strong bearing capacity.It adopts heavy-duty design, strong carrying capacity,and high-quality oil cylinder, so that the goods can be lifted smoothly.The powerful hydraulic system is equipped with explosion-proof valves to prevent the platform from falling down rapidly when the oil pipe bursts.
- Thickened scissor fork, safe and durable.Adopt anti-pinch scissor design to prevent pinch injury, and equipped with pressure limiting safety valve to prevent load operation.

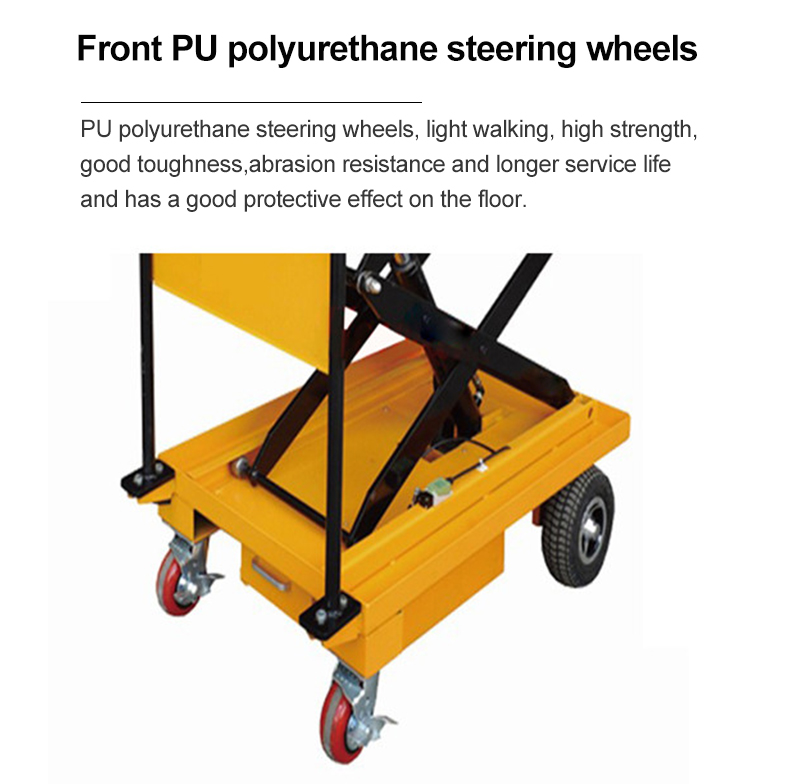

- Front PU polyurethane steering wheels.PU polyurethane steering wheels, light walking, high strength, good toughness,abrasion resistance and longer service life and has a good protective effect on the floor.
- Comfortable chrome handle.Using chrome plating process, refuse to rust Hand grip non-slip.
- design, more comfortable to use Suitable, more labor-saving.
- Safety valve.Equipped with safety valve and explosion-proof oil cylinder, the vehicle will descend steadily without sudden landing.
