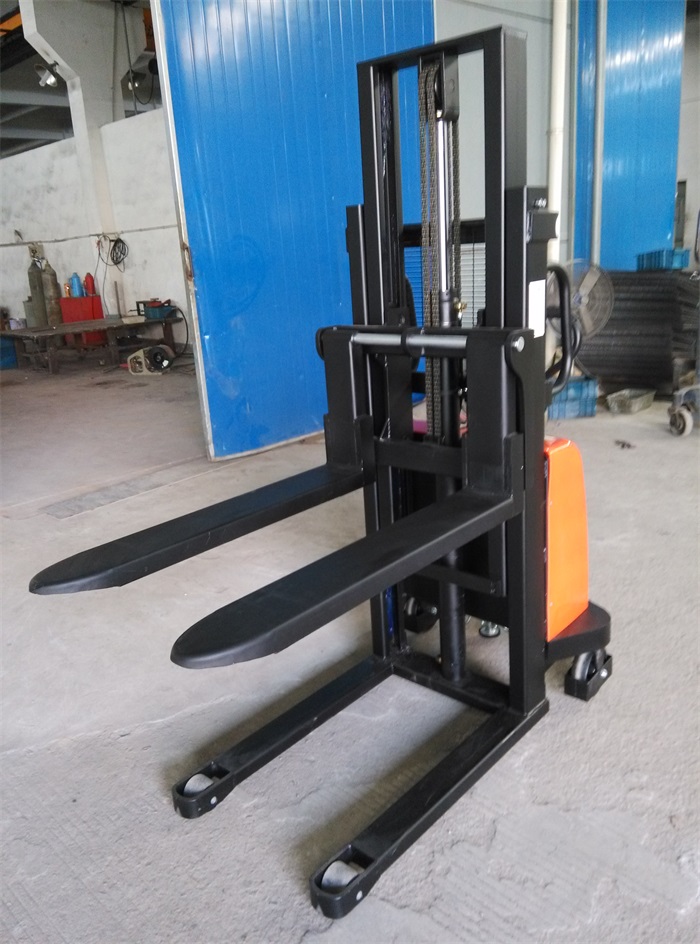

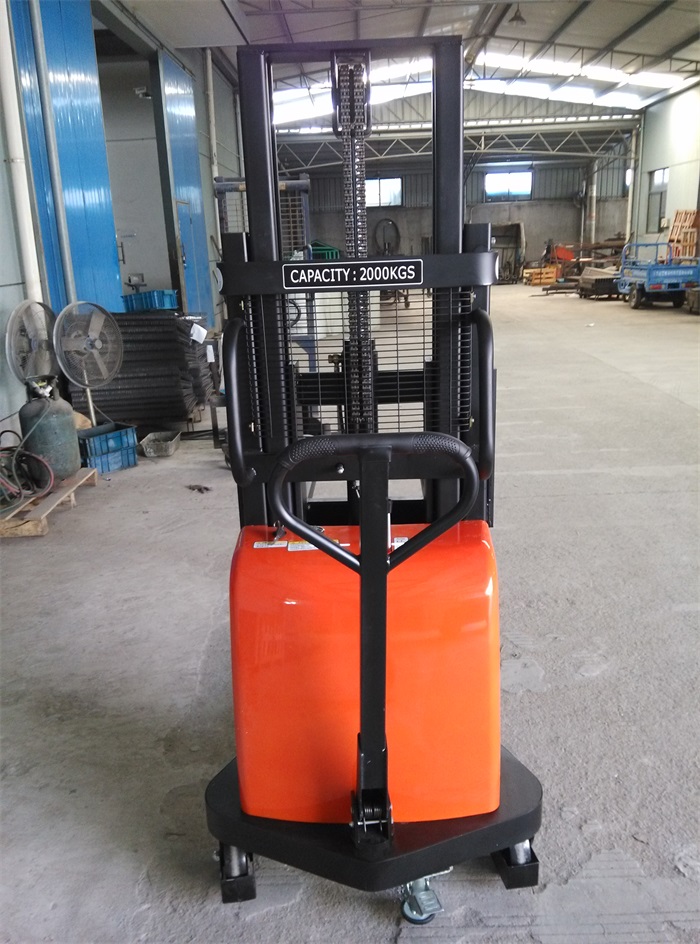

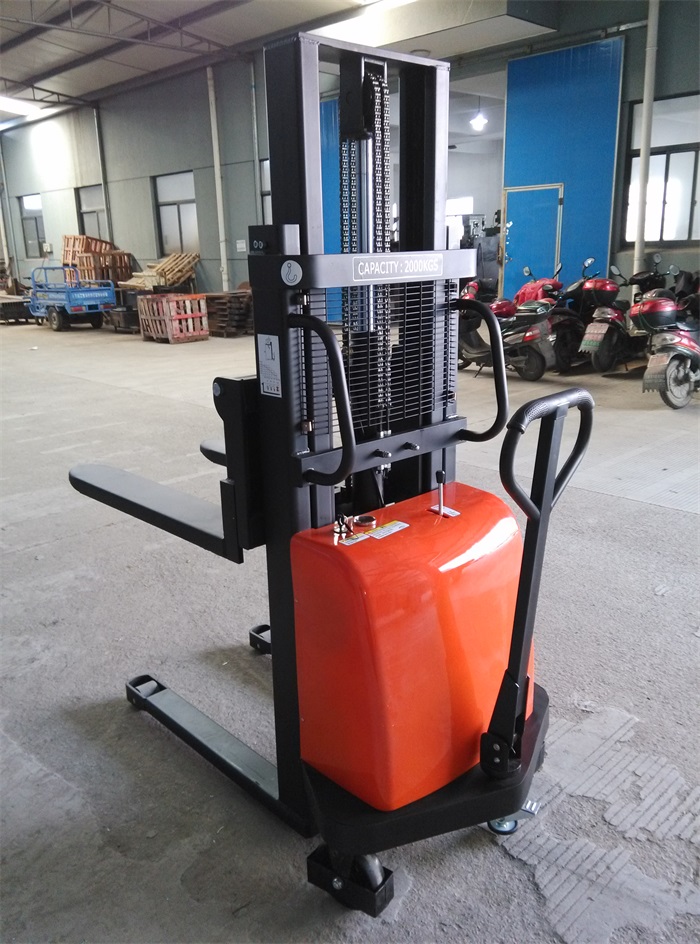

DYC Semi-Electric Stacker
DYC
Quantity:
Product Description
Semi-electric stackers take the hard part out of working with stacker trucks, with a fully electric lift the only non-electric function is movement done by manual push/pull. Ideal for more frequent operations where manual lifting can become strenuous and contribute towards repetitive strain injury, the semi-electric stacker takes most of the strains away.
| Model No. | DYC10 | DYC15 | DYC20 | |
| Rated Capacity | Q(Kg) | 1000 | 1500 | 2000 |
| Load Center | C(mm) | 400 | 400 | 400 |
| Lifting Height | H(mm) | 1600/2000/2500/3000/3500 | 1600/2000/2500/3000/3500 | 1600/2000/2500 |
| Min. Fork Height | H3(mm) | 85 | 85 | 85 |
| Fork Length | L(mm) | 1000 | 1000 | 1000 |
| Fork Width (Adjustable) | E(mm) | 320-685 | 320-685 | 320-685 |
| Turngin Radius | Wa(mm) | 1335 | 1335 | 1335 |
| Max. Mast Height with Mast Extended | H2(mm) | 2165/2532/3032/3532/4032 | 2165/2532/3032/3532/4032 | 2165/2532/3032 |
| Closed Height with Mast Lowered | H1(mm) | 2165/1565/1815/2065/2315 | 2165/1565/1815/2065/2315 | 2165/1565/1815 |
| Overall Width | B(mm) | 800/900 | 800/900 | 800/900 |
| Overall Length | A(mm) | 1685 | 1685 | 1685 |
| Clearance | H4(mm) | 30 | 30 | 30 |
| Lifting Speed (unladen/laden) | mm/s | 230/130 | 230/130 | 230/130 |
| Lowering Speed (unladen/laden) | mm/s | 400*500 | 400*500 | 400*500 |
| Lifting Motor | v/kw | 12/1.6 | 12/1.6 | 12/1.6 |
| Battery | v/ah | 12V/120AH | 12V/120AH | 12V/120AH |
| Charger | v/a | 12V/18A | 12V/18A | 12V/18A |
| Net Weight | kg | 460 | 460 | 480 |
