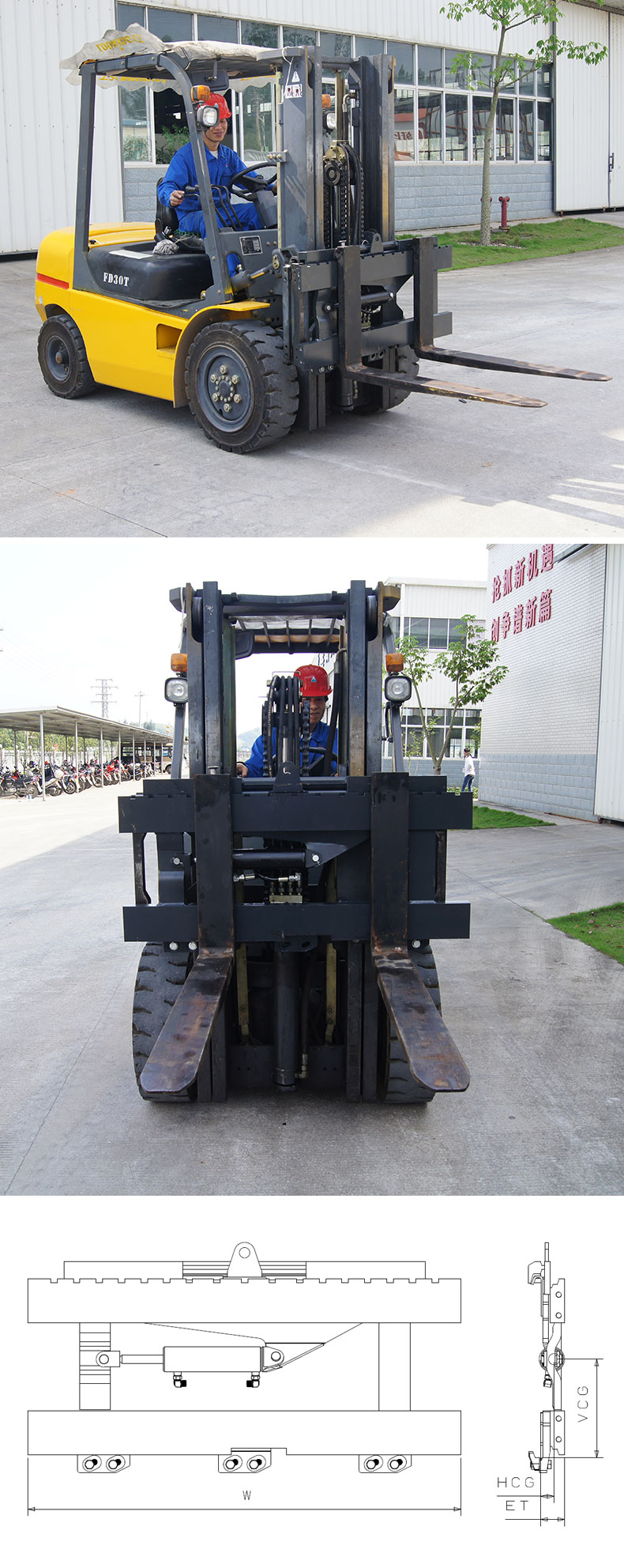

D Series Forklift Truck Sideshifter with 3 Sliding Pads

D Series

Quantity:

Contact Now

add to cart

Enable forklift to move loads from side to side for stacking of load and adjustment of load when loading and unloading with high effeciency,and used in most industry for stacking,loading,unloading and placement of load.

Integrate cylinder and sideshifter frame into a component, saving room and widening the view,
Easily installed, directly connected to fork carriage
The lower bearings used wear-resistant nylon-material to ensure smoothly move.
High efficiency, easy maintenance and operation

Capaticy@ Load Center	Model	Mounting Class	Minimum Truck Carriage Width	Carriage Width	Vertical Center of Gravity	Weight	Effective Thickness	Horizontal Center of Gravity
(Kg@mm)			(mm)	W(mm)	VCG(mm)	(kg)	ET(mm)	HCG(mm)
4500@600	CYQ45D-C001-1100	III	784	1100	297	151	85	38
4500@600	CYQ45D-C001-1200	III	934	1200	299	168	85	38
4500@600	CYQ45D-C001-1300	III	934	1300	296	176	85	39
4500@600	CYQ45D-C001-1350	III	934	1350	295	181	85	40
4500@600	CYQ45D-C001-1380	III	934	1380	295	183	85	40
4500@600	CYQ45D-C001-2200	III	1120	2200	287	257	85	43
6800@600	CYQ68D-D001-1100	IV	840	1100	370	200	87	48
6800@600	CYQ68D-D001-1200	IV	940	1200	370	213	87	49
6800@600	CYQ68D-D001-1350	IV	940	1350	364	233	87	50
6800@600	CYQ68D-D001-1550	IV	1000	1550	368	267	87	50
6800@600	CYQ68D-D001-1600	IV	1000	1600	366	271	87	51
6800@600	CYQ68D-D001-1800	IV	1295	1800	369	299	87	51
6800@600	CYQ68D-D001-1950	IV	1295	1950	365	314	87	52
6800@600	CYQ68D-D001-2000	IV	1295	2000	365	320	87	52
6800@600	CYQ68D-D001-2200	IV	1476	2200	363	365	87	43
8000@600	CYQ80D-D001-2000	IV	1840	2000	440	550	97	49
8000@600	CYQ80D-D001-2400	IV	2100	2400	443	610	97	49
