CBD20Li Electric Pallet Truck
CBD20Li
Quantity:

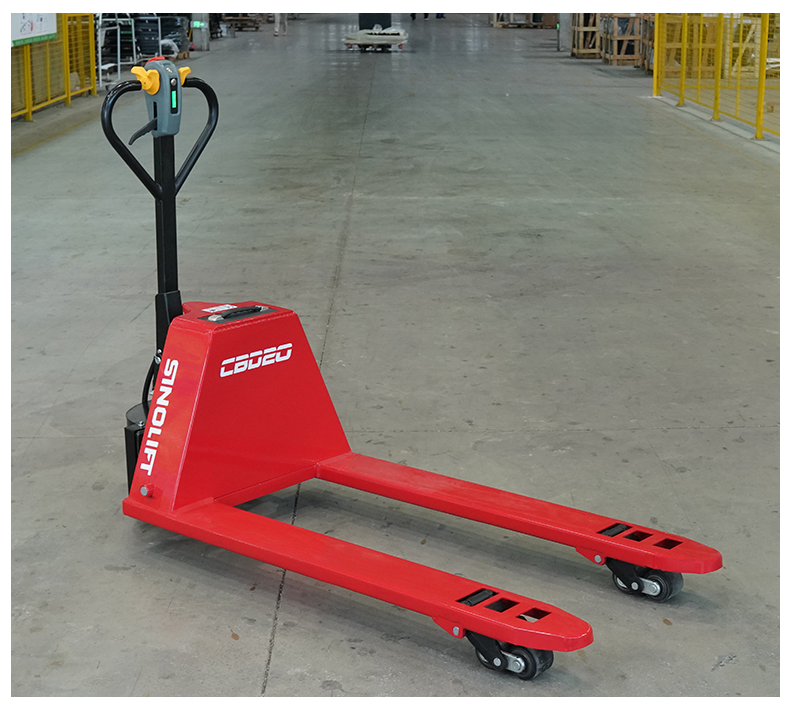

CBD20Li 2T Lithium-ion Battery Pallet Truck
The CBD20Li is an electric pallet truck equipped with a lithium-ion battery. It is ideal for transporting a variety of goods over short distances. Compared to traditional manual pallet trucks, the CBD20Li uses electricity to lift and move cargo. The fork-to-face length makes the CBD20Li very compact and ideal for use in tight spaces, such as stores and commercial centers.
| Manufacturer Brand | SINOLIFT | SINOLIFT | ||
| Model | CBD20Li-712 | CBD20Li-511 | ||
| Power Type | Electric | Electric | ||
| Type of Operation | Walkie | Walkie | ||
| Steering Mode | Mechanical | Mechanical | ||
| Load Capacity / Rated Load | Q | kg | 2000 | 2000 |
| Load Center Distance | C | mm | 600 | 600 |
| Wheel Base | y | mm | 1318 | 1248 |
| Total Weight (Include Battery) | kg | 135 | 130 | |
| Overall Length | L1 | mm | 1686 | 1616 |
| Overall Width | W1 | mm | 685 | 550 |
| Fork Dimension | I/e/s | mm | 1220 x150x45 | 1150x150x45 |
| Width of Fork | b2 | mm | 685 | 550 |
| Min. Fork Height | h3 | mm | 80 | 80 |
| Lift Height | h2 | mm | 195 | 195 |
| Ground Clearance at Center of Wheelbase | m1 | mm | 35 | 35 |
| Height of Operating Handlebar (Max.) | h14 | mm | 1245 | 1245 |
| Turning Radius | Wa | mm | 1575 | 1520 |
| Aisle Width for Lengthways (Pallet Size1000*1200) | Ast | mm | 2375 | 2312 |
| Aisle Width for Lengthways (Pallet Size 800*1200) | Ast | mm | 2205 | 2181 |
| Tyre Type | Polyurethane | Polyurethane | ||
| Tyre Size (Front) | mm | p 78x70 | p 78 x70 | |
| Tyre Size (Driving Wheel) | mm | p 160x50 | p 160x50 | |
| Wheels Quantity, Front/Rear(x=Driving Wheel) | 2/1x | 2/1x | ||
| Drive Damping Method | / | / | ||
| Traveling Speed (laden/unladen) | Km/h | 4.3/4.8 | 4.3/4.8 | |
| Lifting Speed (laden/unladen) | mm/s | 20/25 | 20/25 | |
| Lowering Speed (laden/unladen) | ?>1s | ?>1s | ||
| Max.Gradient Performance (laden/unladen) | % | 5/10 | 5/10 | |
| Service Brake Type | Electromagnetic | Electromagnetic | ||
| Parking Brake Type | Electromagnetic | Electromagnetic | ||
| Drive Motor (DC) | Kw | 0.8 | 0.8 | |
| Lifting Motor (DC) | Kw | 0.8 | 0.8 | |
| Battery Voltage/Capacity K5 | V/Ah | 48/16 | 48/16 | |
| Battery Weight | kg | 6.6 | 6.6 |
