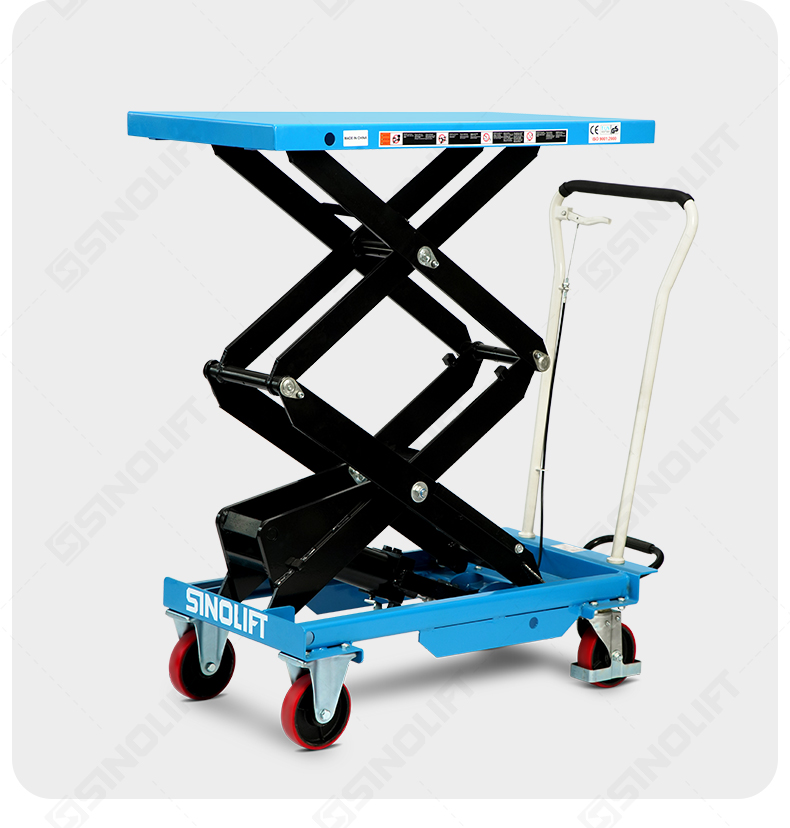

scissor lift table

BS15 BS25 BS50 BS75 BS100 premium hydraulic scissor table lift.

BS15 BS25 BS50 BS75 BS100
Quantity:
Contact Now
add to cart
All Products

BS series hydraulic scissor lift table has heavy duty range, new design to meet EN1570:1999.

Capacity from 150 to 800kg with different lifting height to meet different work requirements. It has BS15, BS25, BS50, BS75, BS100 according to different capacity and lifting

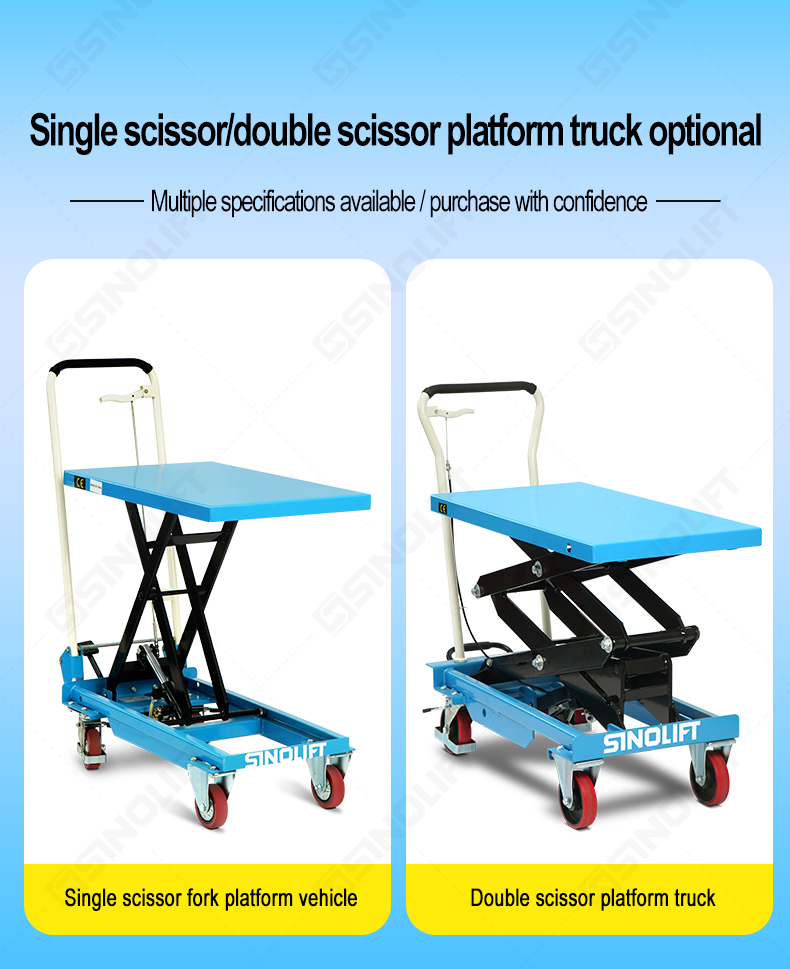

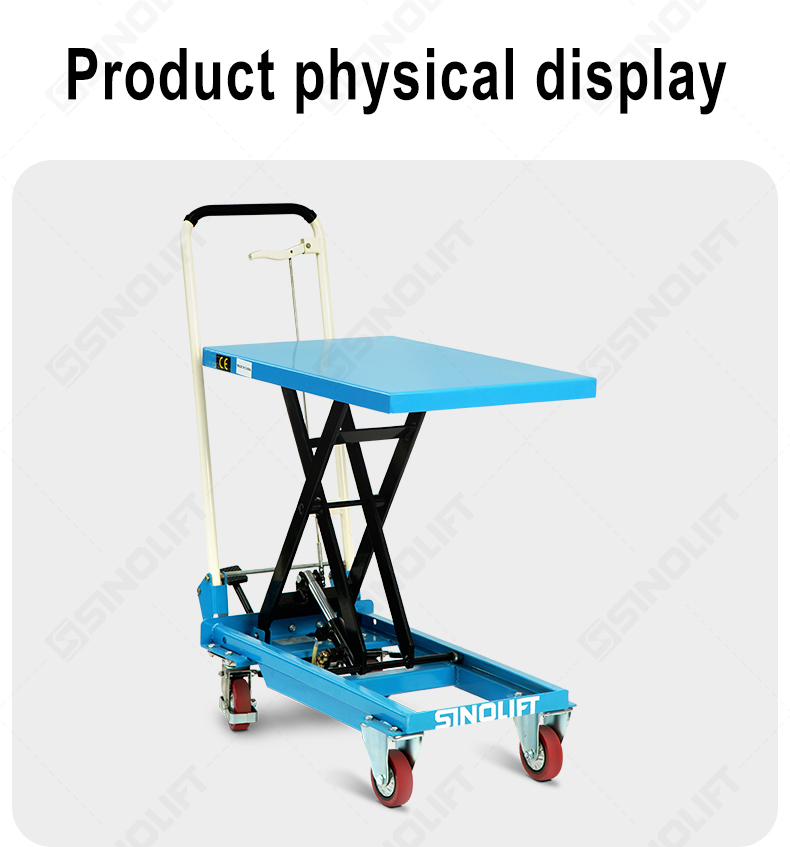

 height to meet all kinds of lifting works. BS15, BS25, BS50, BS75 and BS100 are single scissor lift table.

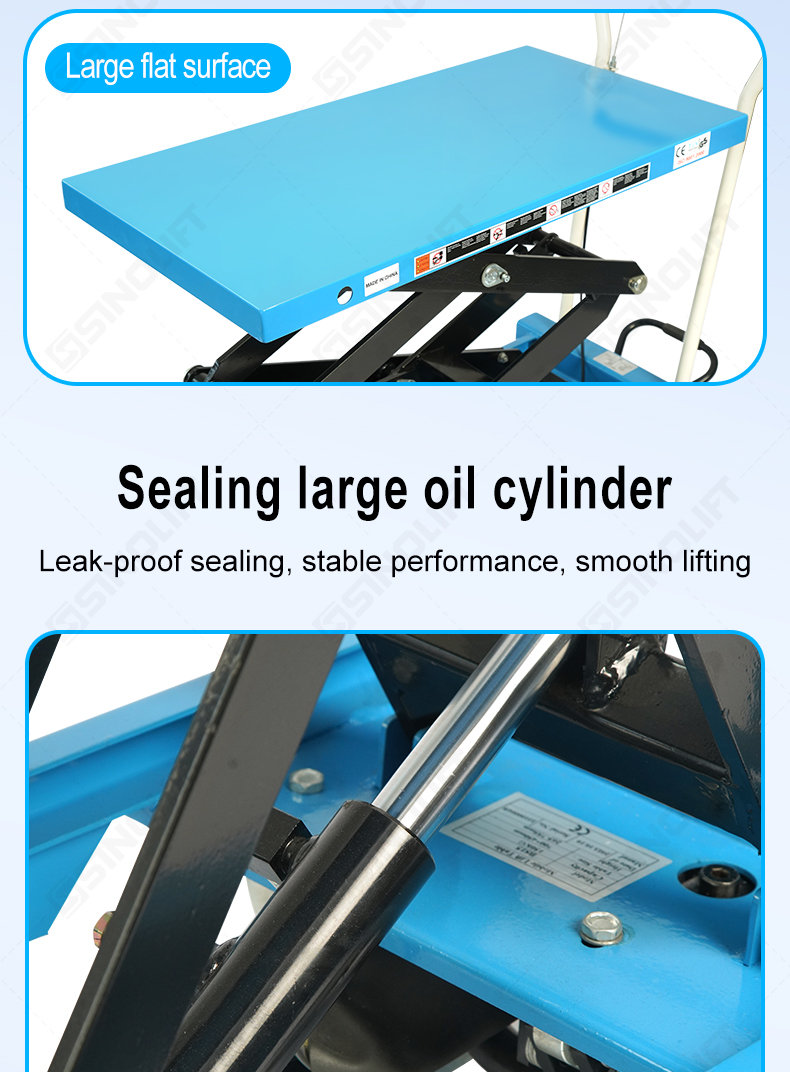

New hydraulic system increases safety and protects your goods,tepless rate of lowering system remains irrespective of the weight of the load.The hydraulic cylinder is designed

 to hold table. As is the nature of the hydraulic system, table lowers very slowly over and extended period of time,Please note the table does not stay at the same position

ionindefiinitely.

Model

BS15

BS25

BS50

BS75

BS100

Capacity

 kg(lb.)

150(330)

250(550)

500(1100)

750(1650)

1000(2200)

Table size(L*W)

 mm(in.)

700*450(86.6*17.7)

830*500(32.7*20)

1010*520(40*20.5)

Table height Min.

 mm(in.)

265(10.4)

330(13)

435(17.1)

442(17.4)

445(17.4)

Table height Max.

 mm(in.)

755(29.7)

910(35.8)

1000(40)

1000(40)

950(39.4)

Handle height

 mm(in.)

1010(40)

1080(42.7)

1190(46.8)

Wheel Dia.

 mm(in.)

100(4)

125(5)

150(6)

Overall size

 mm(in.)

450*940(17.7*37)

500*1040(20*41)

520*1280(20.5*50.4)

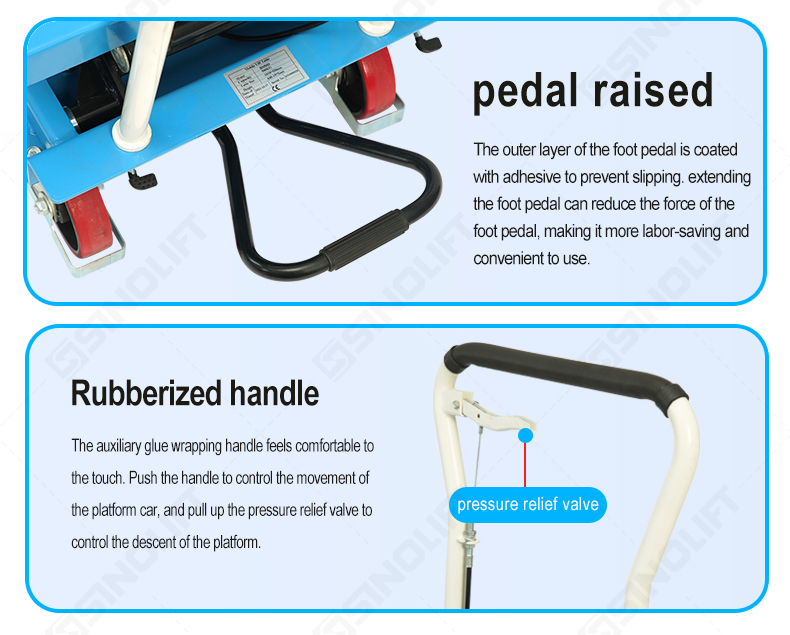

Foot pedal to max.height

 mm(in.)

16

25

44

55

68

Net weight

 kg(lb.)

40(88)

72(158.4)

106(233.2)

110(242)

128(281.6)

Warnning:

1.Do not put foot or hand in scissors mechanism.

2.Do not allow other person to stand in front of or behind lift table when it is moving.

3.Do not move lift table when table is in raised position. Load could fall down.

4.Do not enter under table.

5.Do not overload lift table.

6.Do not put foot in front of rolling wheels. Injury could result.

7.Watch difference and hardness of floor level when moving lift table. Load could fall down.

8.Do not use lift table on slope or inclined surface, lift table may become uncontrollable and create danger.

9.Do not lift people. People could fall down and suffer severe injury
