Automatic pallet hook PHA2000
PHA2000
The automatic pallet hook type PHA2000 is self-levelling for ease of operation. An internal spring mechanism ensures the lifting
eye is in the correct position to keep the tines horizontal, eliminating the need to reposition the lifting ring.
eye is in the correct position to keep the tines horizontal, eliminating the need to reposition the lifting ring.
Quantity:
PHA2000 Automatic pallet hook
The automatic pallet hook type PHA2000 is self-levelling for ease of operation. An internal spring mechanism ensures the lifting
eye is in the correct position to keep the tines horizontal, eliminating the need to reposition the lifting ring.
- The Pallet Hook PHA is a kind of lifting equipment with auto adjustment for center of gravity .
- Widely used by crane and other lifting equipment.
- Enclosed big spring mechanism can automatically maintain the forks with horizontal balance when being used,better protecting the moving cargoes
- Adjustable tine width.
- Surface treatment: painted or galvanized finish.

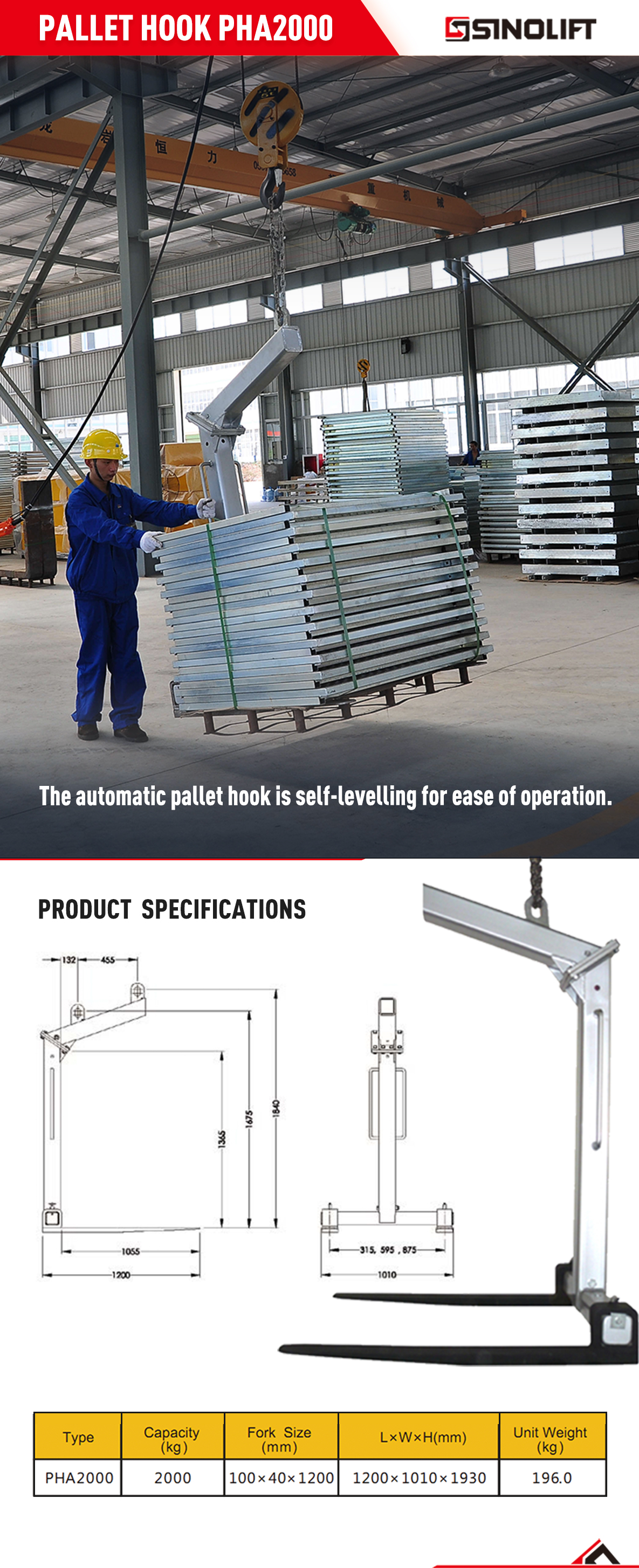

Model | Capacity(kg) | Fork Size(mm) | LxWxH(mm) | Unit Weight(kg) |
PHA2000 | 2000 | 100x40x1200 | 1200x1010x1930 | 196.0 |
